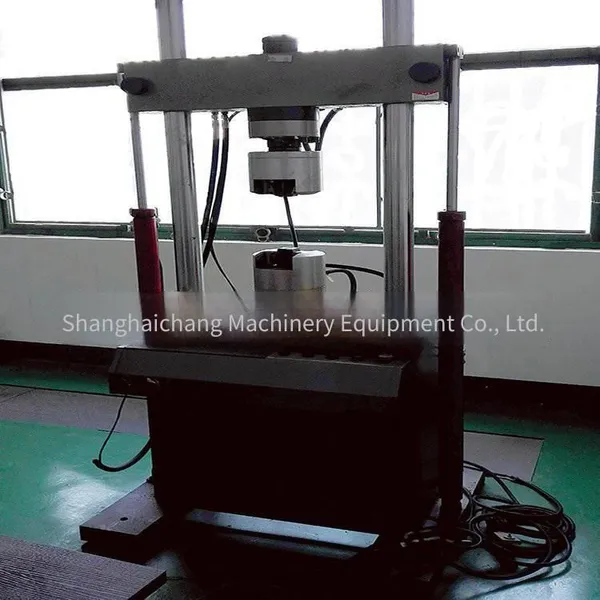

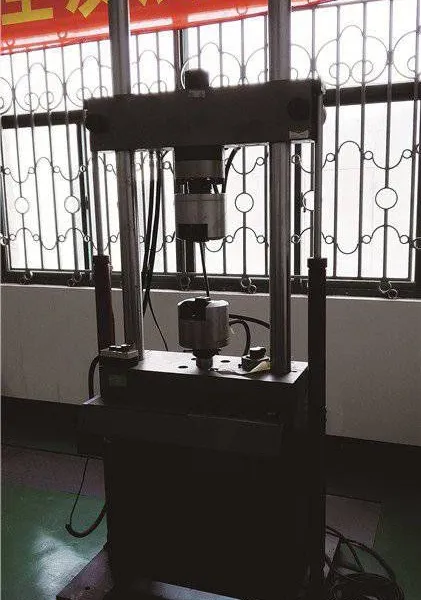

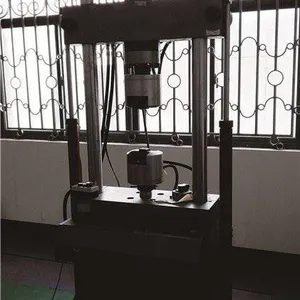

Dynamic and Static Fatigue Testing Machine
I. Applications
It is mainly used for static and dynamic mechanical performance testing of metal materials, non-metal materials, composite materials, and mechanical parts; conducting tensile, compression, fatigue, low-cycle fatigue, crack propagation, fracture mechanics physical and simulation tests, etc.
u Tensile and compression tests
u Crack propagation tests
It consists of an electrical controller, servo valve, load sensor, displacement sensor, extensometer, and computer to form a closed-loop servo control system, which can automatically and accurately control the test process and automatically measure test parameters such as test force, displacement, deformation, torque, and angle.
The testing machine can generate waveforms such as sine wave, triangular wave, square wave, sawtooth wave, reverse sawtooth wave, and pulse wave, and can conduct mechanical tests such as tensile, compression, bending, low-cycle and high-cycle fatigue. It can also be equipped with an environmental test device to complete environmental simulation tests at different temperatures.

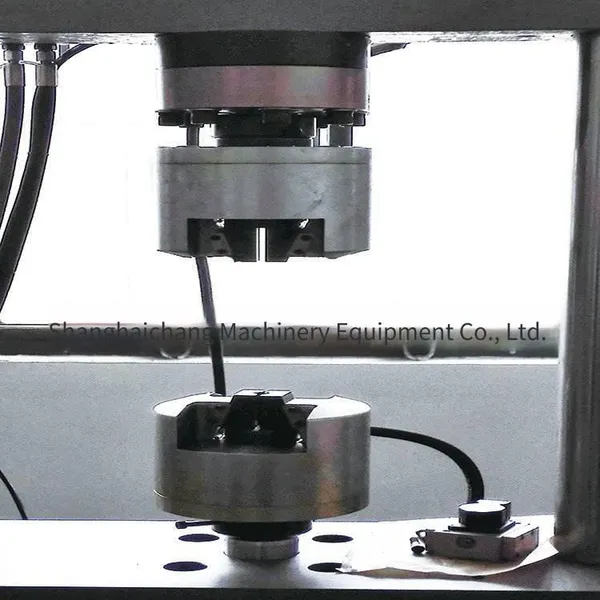

The testing machine is flexible and convenient to operate. The lifting, locking of the moving crossbeam and specimen clamping are all completed by button operations. It uses advanced hydraulic servo drive technology for loading, and high-precision dynamic load sensors and high-resolution magnetostrictive displacement sensors to measure the force value and displacement of the specimen. The fully digital measurement and control system realizes PID control of force, deformation, and displacement, and smooth conversion between different controls. The test software works in the Chinese environment of WINDOWS XP/Win7, with powerful data processing functions. Test conditions and results are automatically saved, displayed, and printed. The entire test process is controlled by the computer. The testing machine is an ideal high-cost-performance test system for scientific research institutions, metallurgical construction, national defense and military industry, colleges and universities, machinery manufacturing, transportation and other industries.
II. Related Standards:
1) GB/T 2611-2007 "General Technical Requirements for Testing Machines"2) GB/T 16825.1-2008 "Verification of Static Uniaxial Testing Machines - Part 1: Verification and Calibration of the Force-Measuring System of Tension and/or Compression Testing Machines"3) GB/T 16826-2008 "Electro-Hydraulic Servo Universal Testing Machines"4) JB/T 8612-1997 "Electro-Hydraulic Servo Universal Testing Machines"5) JB 9397-2002 "Technical Conditions for Tensile and Compression Fatigue Testing Machines"6) GB/T 3075-2008 "Axial Fatigue Test Methods for Metals"7) GB/T 15248-2008 "Axial Constant-Amplitude Low-Cycle Fatigue Test Methods for Metallic Materials"8) GB/T 21143-2007 "Unified Test Methods for Quasi-Static Fracture Toughness of Metallic Materials"9) HG/T 2067-1991 Technical Specifications for Rubber Fatigue Testing Machines10) ASTM E399－09 Standard Test for Linear-Elastic Plane-Strain Fracture Toughness Kic of Metallic Materials11) ASTM E1820 2001 Standard Test Method for JIC, a Measure of Fracture ToughnessThe main components of this test equipment:

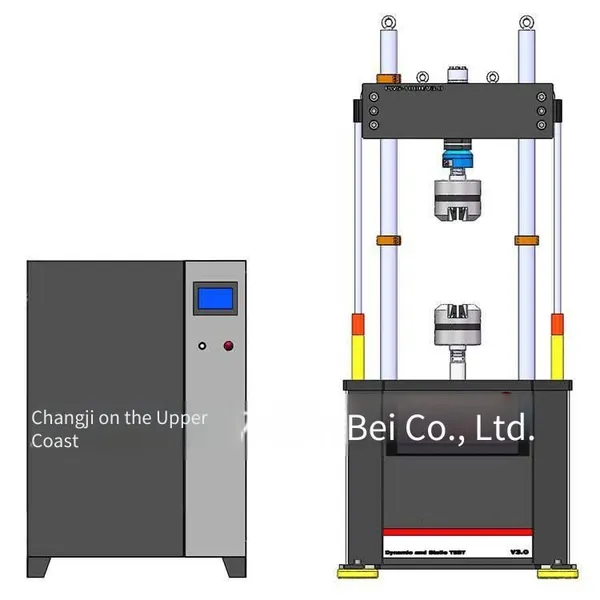

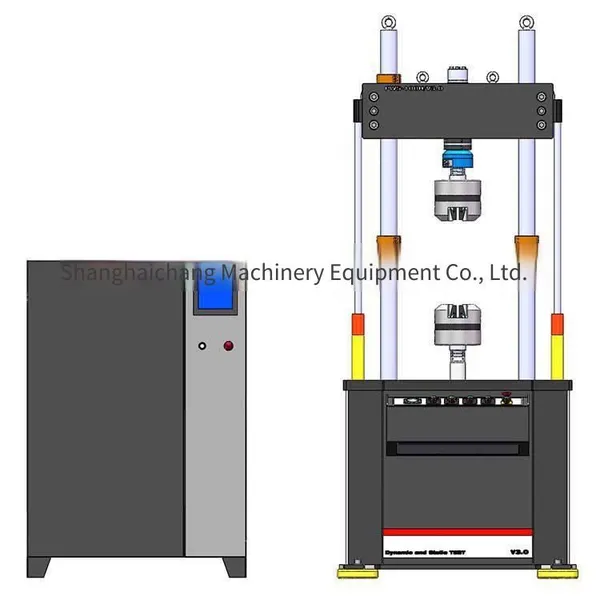

1. Main loading frame with high stiffness and double-column gantry structure;
2. Intelligent constant-pressure silent power source;
3. EDC580 full-digital dynamic and static control system;
4. Chinese and English human-machine dialogue lower computer operation application software;
5. Advantech industrial computer and related printer;
6. Conventional auxiliary tools related to the test
III. Main Technical Indicators
1. Test force: 20KN - 200KN
2. Load measurement accuracy: ±1%
3. Displacement measurement accuracy: ±1FS or ±0.5FS
4. Effective test space: 800mm
5. Distance between columns: 600mm
6. Cylinder stroke: ±50mm (standard model)
7. Frequency response range of the main machine: 0.01 - 100Hz
III. After-sales Service:
1. After the equipment is installed, debugged and qualified at the buyer's site, and the confirmation is signed by both parties, Shanghai Anchang Machinery & Equipment Co., Ltd. will provide one-year free warranty and lifetime maintenance.
2. During the warranty period, Shanghai Anchang Machinery & Equipment Co., Ltd. is responsible for all non-human quality problems of the goods, and will bear the maintenance costs. After the main components of the goods are replaced within the warranty period, the warranty period of the goods will be recalculated. The equipment will be provided with lifetime maintenance service. After the warranty period, only the cost of spare parts will be charged for maintenance. All spare parts of this equipment will be provided at a preferential price for life;
3. During the use of the goods, after receiving the maintenance service notice from your side, Shanghai Anchang Machinery & Equipment Co., Ltd. will respond within 1 hour with excellent service attitude and complete communication with our technical personnel; provide a maintenance solution within 2 hours; solve general faults within 6 hours; if necessary, enter the site within 24 - 48 hours.
4. Shanghai Anchang Machinery & Equipment Co., Ltd. has dedicated after-sales service personnel who will actively follow up and provide dynamic services. According to the archives, they will conduct irregular return visits to check the operation of the equipment, and find and eliminate potential problems in time;
5. Free software upgrades will be provided, and operators will be trained or guided.
