Dynamic and Static Fatigue Testing Machine
I. Applications

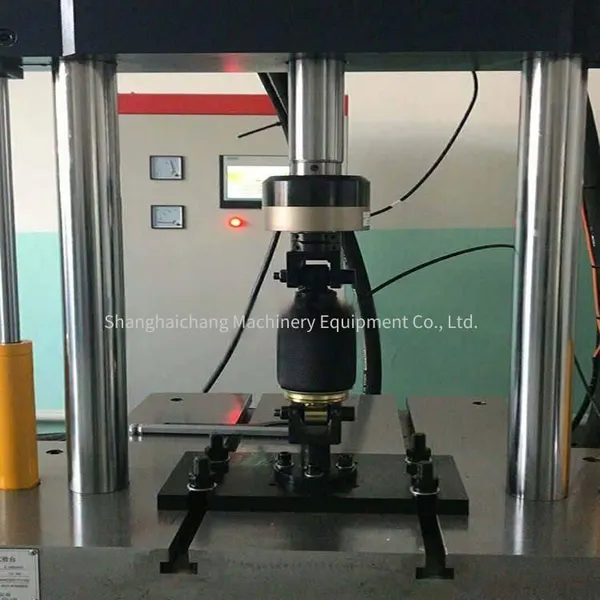

It is mainly used for static and dynamic mechanical performance testing of metal materials, non-metal materials, composite materials, and mechanical parts; it can carry out tensile, compression, fatigue, low - cycle fatigue, crack growth, fracture mechanics physical object, and simulation tests, etc.
u Tensile and compression tests
u Crack growth test

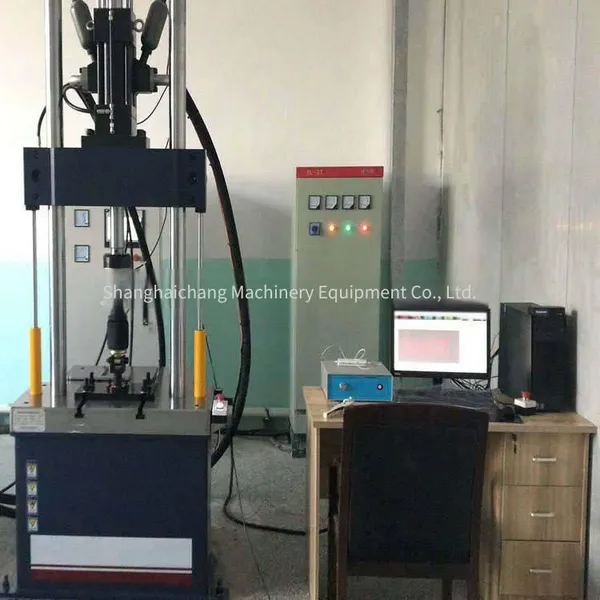

It consists of an electrical controller, a servo valve, a load sensor, a displacement sensor, an extensometer, and a computer to form a closed - loop servo control system, which can automatically and accurately control the test process and automatically measure test parameters such as test force, displacement, deformation, torque, and angle.
The testing machine can generate waveforms such as sine wave, triangular wave, square wave, sawtooth wave, reverse sawtooth wave, and pulse wave, and can conduct mechanical tests such as tensile, compression, bending, low - cycle, and high - cycle fatigue. It can also be equipped with an environmental test device to complete environmental simulation tests at different temperatures.

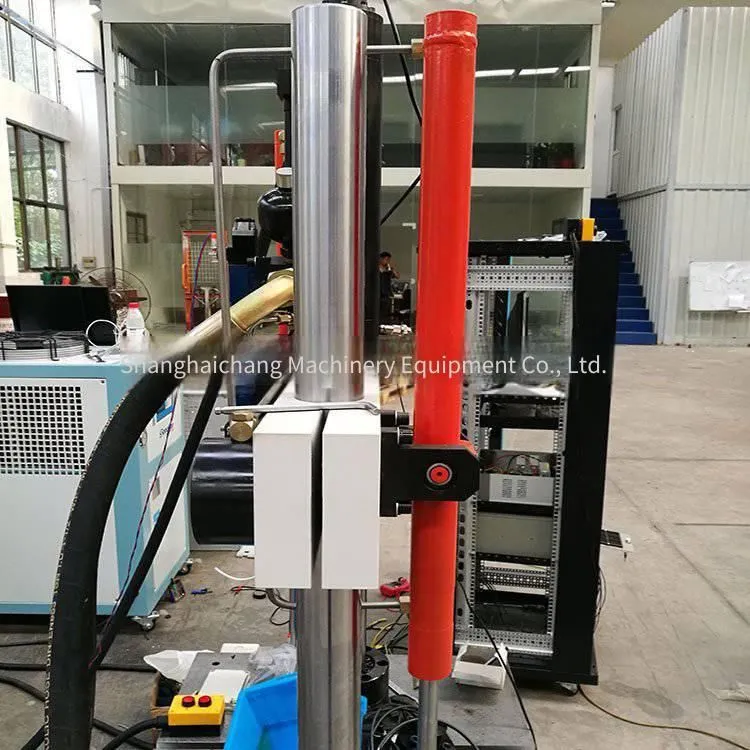

The testing machine is flexible and convenient to operate. The lifting, locking of the moving cross - beam, and specimen clamping are all completed by button operations. It uses advanced hydraulic servo drive technology for loading, and high - precision dynamic load sensors and high - resolution magnetostrictive displacement sensors to measure the force value and displacement of the specimen. The fully digital measurement and control system realizes PID control of force, deformation, and displacement, and smooth conversion can be achieved between different controls. The test software works in the Chinese environment of WINDOWS XP/Win7, with powerful data processing functions. The test conditions and test results are automatically saved, displayed, and printed. The entire test process is controlled by the computer. The testing machine is an ideal high - cost - performance test system for scientific research institutes, metallurgical and construction industries, national defense and military industries, colleges and universities, machinery manufacturing, transportation, and other industries.
II. Related Standards:
1)GB/T 2611-2007 "General Technical Requirements for Testing Machines"2)GB/T16825.1-2008 "Inspection of Static Uniaxial Testing Machines - Part 1: Inspection and Calibration of the Force - Measuring System of Tensile and/or Compression Testing Machines"3)GB/T 16826-2008 "Electro - Hydraulic Servo Universal Testing Machines"4)JB/T 8612-1997 "Electro - Hydraulic Servo Universal Testing Machines"5)JB9397-2002 "Technical Conditions for Tensile and Compression Fatigue Testing Machines"6)GB/T 3075-2008 "Method for Axial Fatigue Testing of Metals"7)GB/T15248-2008 "Method for Axial Constant - Amplitude Low - Cycle Fatigue Testing of Metallic Materials"8)GB/T21143-2007 "Unified Method for Quasi - Static Fracture Toughness Testing of Metallic Materials"9)HG／T 2067-1991 "Technical Conditions for Rubber Fatigue Testing Machines"10) ASTM E399 - 09 Standard Test Method for Linear-Elastic Plane-Strain Fracture Toughness Kic of Metallic Materials11) ASTM E1820 2001 Standard Test Method for Measurement of Fracture ToughnessMain components of this test equipment:
1. High-stiffness double-column gantry main loading frame;

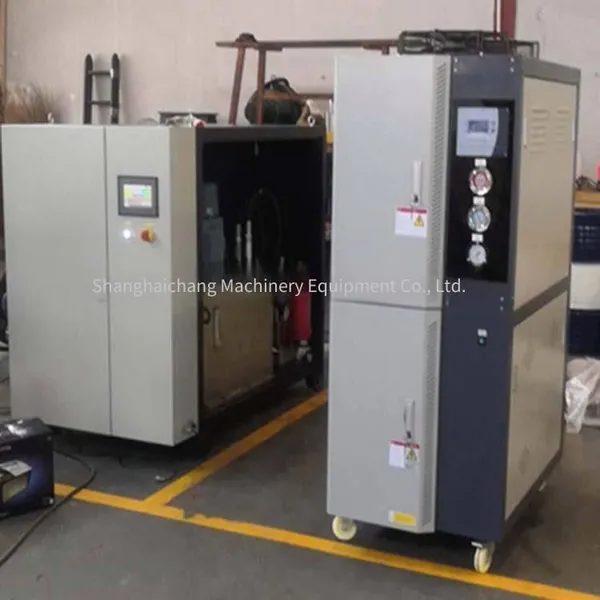

2. Intelligent constant-pressure silent power source;
3. EDC580 full digital dynamic and static control system;
4. Chinese and English man-machine dialogue lower computer operation application software;
5. Advantech industrial computer and related printer;
6. Conventional auxiliary tools related to the test
III. Main technical indicators
1. Test force: 20KN - 200KN
2. Load measurement accuracy: ±1%
3. Displacement measurement accuracy: ±1FS or ±0.5FS
4. Effective test space: 800mm
5. Distance between columns: 600mm
6. Cylinder stroke: ±50mm (standard model)
7. Main machine frequency response range: 0.01 - 100Hz
III. After-sales service:
1. After the equipment is installed, debugged and qualified at the buyer's site, and confirmed by both parties in writing, Shanghai Anchang Machinery & Equipment Co., Ltd. will provide one-year free warranty and lifetime maintenance services.
2. During the warranty period, Shanghai Anchang Machinery & Equipment Co., Ltd. is responsible for all non-human quality problems of the goods, and will bear the maintenance costs. After the main components of the goods are replaced within the warranty period, the warranty period of the goods will be recalculated. The equipment provides lifetime maintenance services. Only the cost of spare parts will be charged for maintenance after the warranty period. All spare parts of this equipment will be provided at a preferential price for life;
3. During the use of the goods, after receiving the maintenance service notice from your side, Shanghai Anchang Machinery & Equipment Co., Ltd. will respond within 1 hour with excellent service attitude and complete communication with our technical personnel; provide a maintenance solution within 2 hours; solve general faults within 6 hours; if necessary, send personnel to the site within 24 - 48 hours.
4. Shanghai Anchang Machinery & Equipment Co., Ltd. has a dedicated after-sales service team, which actively follows up and provides dynamic services. According to the archives, the operation of the equipment will be inspected through irregular return visits to timely discover and eliminate potential problems;
5. Free software upgrades will be provided, and operators will be trained or guided.
