Help CenterPTFE Gasket With Holes, National Standard Flange Multi-hole PTFE Sealing Gasket
Product Spotlights
Related Products
-
PTFE Gasket, Polytetrafluoroethylene Sealing Gasket, White Teflon Flat Gasket, High Temperature and Acid/alkali Resistant Industrial Flange WasherNegotiableMOQ: 25 Units -
Elastic Expanded PTFE Gasket Soft Teflon Gasket Pipe Flange Sealing Gasket High and Low Temperature Corrosion Resistant Ready Stock Custom MadeNegotiableMOQ: 25 Units
-
PTFE Sheet; High-temperature and Acid/alkali Resistant Teflon Sheet; Zero-cuttableNegotiableMOQ: 100 Kilograms
-
PTFE Packing Acid and Alkali Resistant Food Pump and Valve Sealing PackingNegotiableMOQ: 50 Kilograms
-
Adhesive-backed PTFE Sealing Strip; Rough Irregular Flange Filling SealNegotiableMOQ: 100 Kilograms

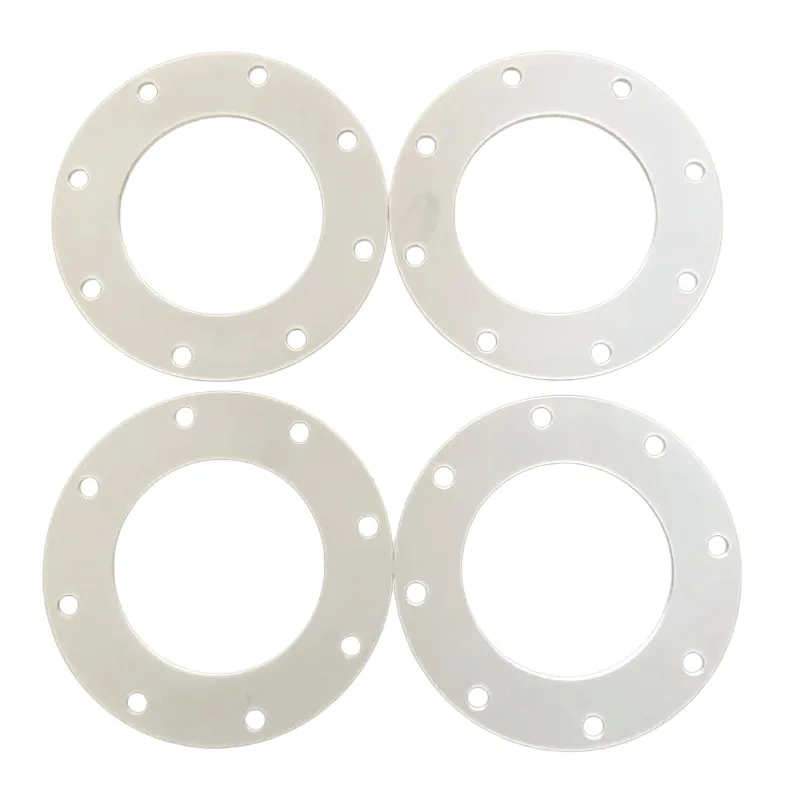

This perforated PTFE gasket is made from a brand-new, pure PTFE sheet using integrated CNC machining or compression molding, with no recycled materials, no impurities, no interlayer, ensuring a uniform and dense structure. - Main Material: High-purity PTFE (Teflon), featuring stable material, dense sealing, and no leakage. Precision Bolt Holes: Holes are accurately drilled according to national standard flange hole positions, with standard hole spacing, no burrs, and no chipping, perfectly fitting flange bolts. - Flataling Surface: Both sides are flat and smooth, fitting the flange sealing surface perfectly, ensuring even compression and stronger sealing performance. - Integrated Molding: The entire sheet is machined a single piece, with no splicing, no fractures, and no easy delamination, resulting in a longer service life.
-

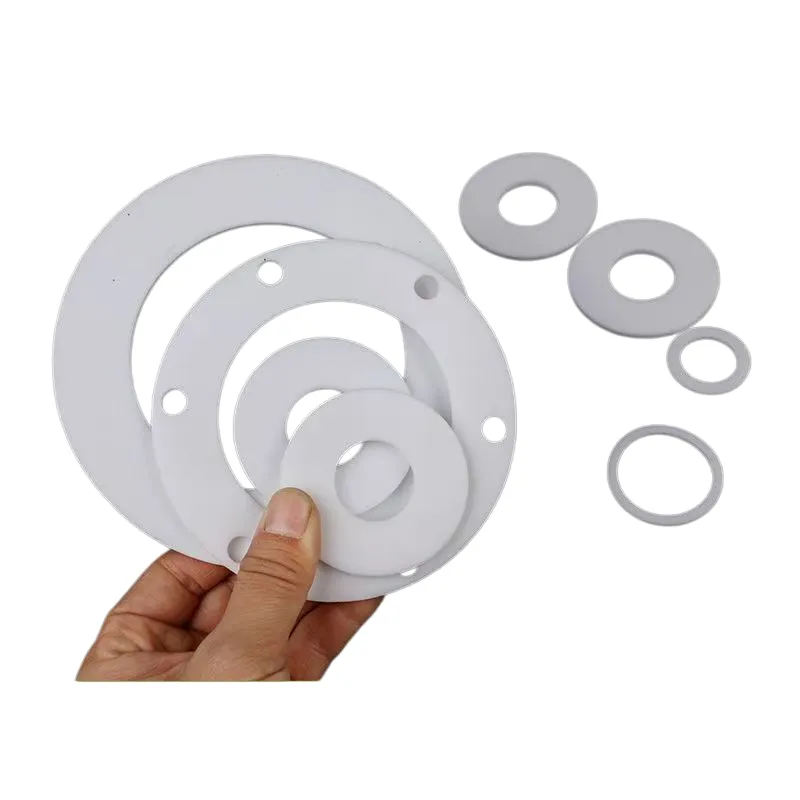

Standard hard PTFE gasket with holes (regular hot-selling) Compact texture, high hardness, resistant to deformation, good compression resistance, suitable for acid-base, high-temperature, and medium-to-high pressure pipelines, high cost-performance, and strong versatility. 2. Expanded PTFE gasket with holes (soft PTFEPTFE) Soft, high-resilience material, can compensate for slight flange unevenness and rough sealing surface gaps, better fit, tighter sealing, suitable for old equipment non-standard flanges, and low-pressure leakage repair.
-
- Built-in bolt holes for easy installation: Standardized hole positions ensure precise fit, allowing for direct installation upon arrival. This eliminates on- drilling, cutting, and grinding processes, significantly saving installation time. - Superior corrosion resistance, universal for all media: Resistant to strong acids, strong alkalis, electrolytes, salt, and various organic solvents. It does not corrode, dissolve, or age, making it suitable for most chemical corrosion working conditions. - High and low temperature resistance, stable conditions: Long-term operating temperature ranges from -200°C to 260°C. It does not soften at high temperatures or become brittle at low temperatures and pipes are less prone to leakage during thermal cycling. - Non-stick flange, convenient maintenance: The PTFE material has an extremely low coefficient of friction, preventing the flange faces sticking together after long-term use. Disassembly leaves no residue and requires no grinding or cleaning, protecting the flange sealing surface. - Non-toxic and clean, industry- application: No leaching, no pollution, and no harmful substances. It can be used for sealing in food, pharmaceutical, pure water, and clean piping systems. - Tight sealing, to leakage: The surface is flat and uniform, distributing pressure evenly. This eliminates issues such as liquid leakage, gas leakage, and water seepage caused by uneven gasket thickness or local gaps.
-
Widely used in various anti-corrosion, high-temperature, clean, and chemical flange sealing applications: - Chemical industry: acid and alkali pipelines reaction vessels, storage tanks, heat exchangers, anti-corrosion valve flanges - Electroplating and pickling: electroplating tanks, pickling equipment, chemical solution circulation pipeline sealing- Environmental protection desulfurization: spray towers, exhaust gas pipelines, desulfurization agent pipelines, water treatment equipment - Food and pharmaceuticals: clean pipelines, pure water equipment, mixing, sterile equipment sealing - Equipment manholes: reaction vessel manholes, equipment maintenance ports, observation ports full-surface FF flange sealing
