Help CenterPTFE Filter Gasket With Stainless Steel Mesh; PTFE Filter Sealing Gasket With Stainless Steel Mesh
Product Spotlights
Related Products
-
PTFE Gasket With Holes, National Standard Flange Multi-hole PTFE Sealing GasketNegotiableMOQ: 100 Blades -
PTFE Gasket, Polytetrafluoroethylene Sealing Gasket, White Teflon Flat Gasket, High Temperature and Acid/alkali Resistant Industrial Flange WasherNegotiableMOQ: 25 Units
-
Elastic Expanded PTFE Gasket Soft Teflon Gasket Pipe Flange Sealing Gasket High and Low Temperature Corrosion Resistant Ready Stock Custom MadeNegotiableMOQ: 25 Units
-
PTFE Sheet; High-temperature and Acid/alkali Resistant Teflon Sheet; Zero-cuttableNegotiableMOQ: 100 Kilograms
-
PTFE Packing Acid and Alkali Resistant Food Pump and Valve Sealing PackingNegotiableMOQ: 50 Kilograms

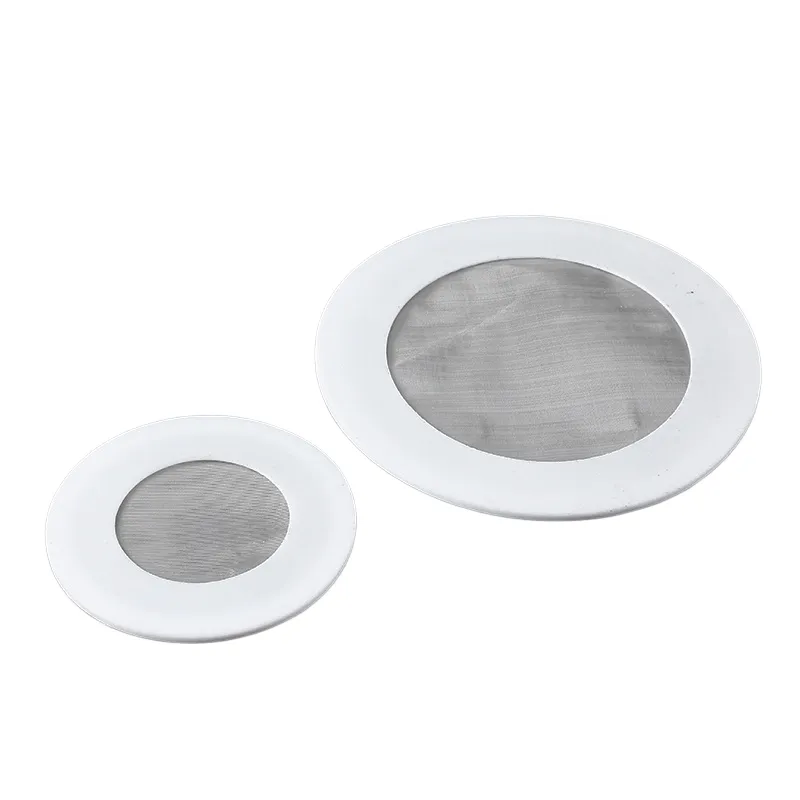

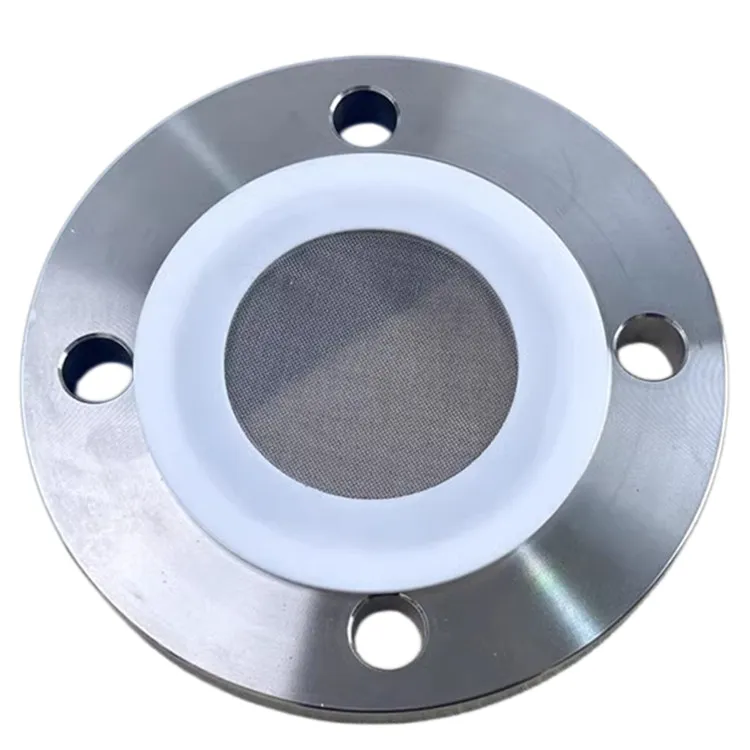

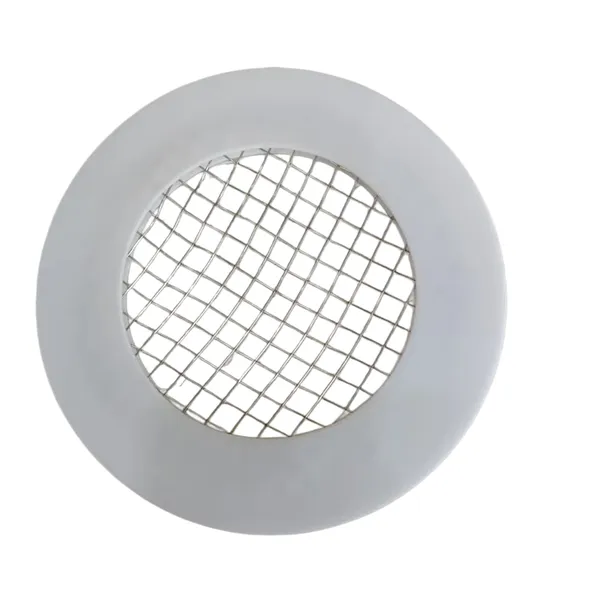

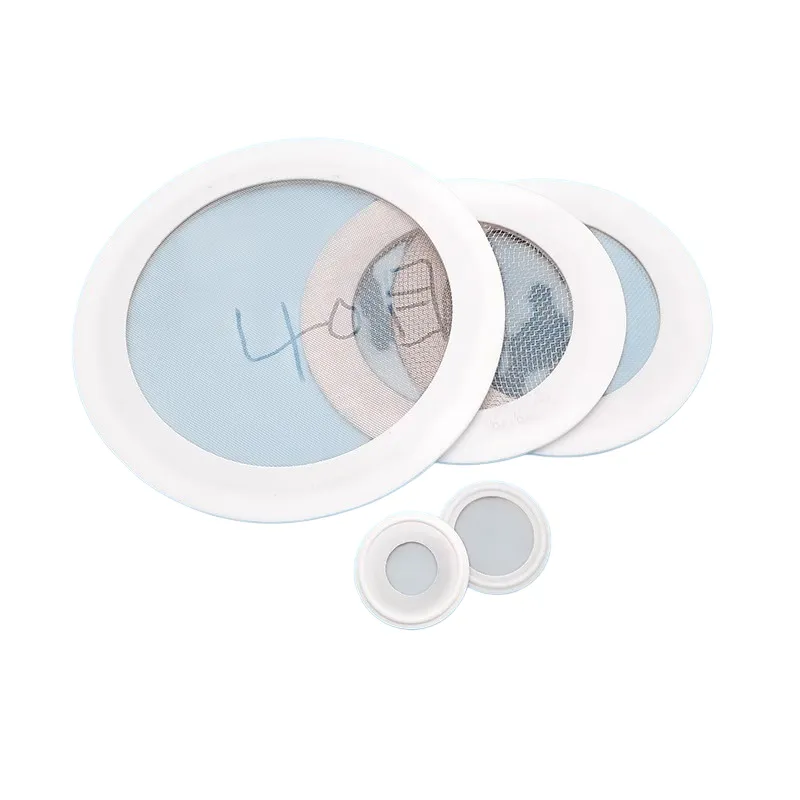

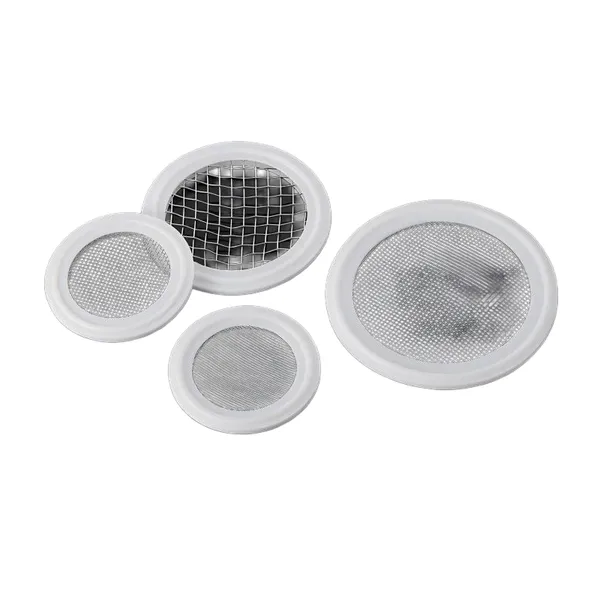

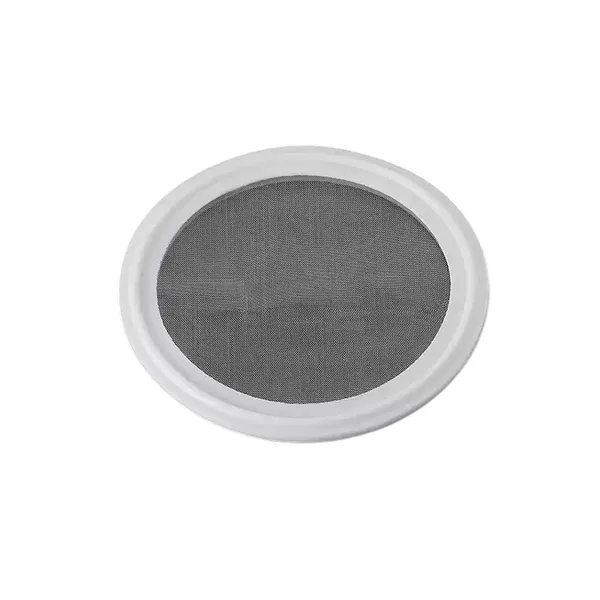

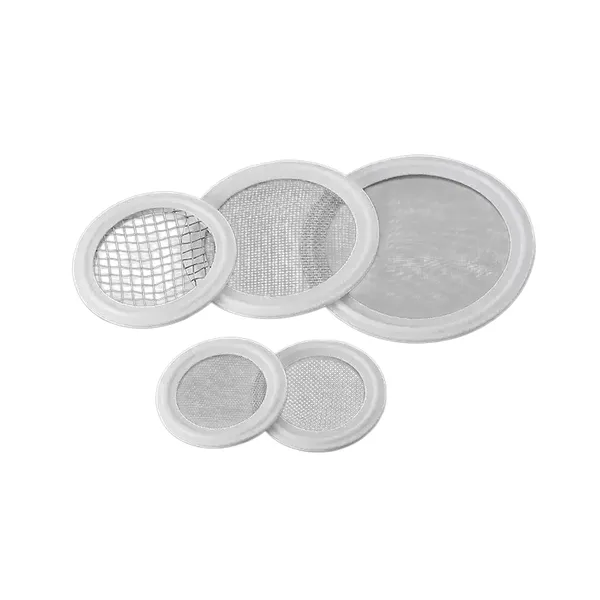

The PTFE gasket with filter is a 2-in-1 composite gasket for filtration and sealing. It features an outer PTFE sealing layer and an inner composite304/316 stainless steel filter mesh, combining flange sealing with media impurity interception functions. While ordinary PTFE gaskets only provide sealing, this model with a built-in filter can block particles, crystals, and debris from entering valves, pump bodies, and instruments, preventing valve core clogging and wear. The entire gasket is highly resistant to strong acids andalis, and is widely used in chemical, electroplating, chemical dosing, desulfurization, and chemical solution transport pipeline flanges. Various DN sizes are in stock, and non- sizes are available for customization.
Integrated sealing and filtration, dual-purpose in one; Eliminates the need for separate filter installation, simplifies piping installation, and saves on accessories and labor; The filter mesh intercepts impurities to protect valves and instruments; Blocks crystals, particles, and rust debris to prevent valve core jamming and instrument clogging, extending equipment service life PTFE strong corrosion resistance, suitable for highly corrosive media; Resistant to hydrochloric acid, sulfuric acid, caustic soda, electrolytes, and various chemical solvents, suitable for media pH 0-14; High and low temperature resistance; Long-term operating temperature -200℃ to 260℃, resistant to hardening and cracking under and cold conditions; Corrosion-resistant stainless steel filter mesh is durable; 304 universal model, 316 model suitable for high chloride ion and desulfurization salt media, resistant to rust and damage; Easy assembly and disassembly without residue; Smooth PTFE surface prevents sticking to flanges over long-term use, making maintenance, disassembly, and cleaning; Compatible with various flanges; Compatible with RF (raised face) and MFM (male-female) flanges, suitable for installation in PN10/16/5 medium and high-pressure pipelines.
Chemical industry: acid and alkali transfer pipelines, reactor discharge outlets, chemical dosing lines, corrosion-resistant valve flanges Electroplating and pickling: electroplating circulation lines, pickling pump inlets and outlets, chemical solution transfer flanges Environmental protection desulfurization: spray tower piping, desulfurization agent lines, exhaust gas treatment equipmentPharmaceutical water treatment: chemical solution lines, purified water dosing tanks, small filtration instrument interfaces Instruments and meters: pressure gauges, flow meters, control valve front-end sealing filter
