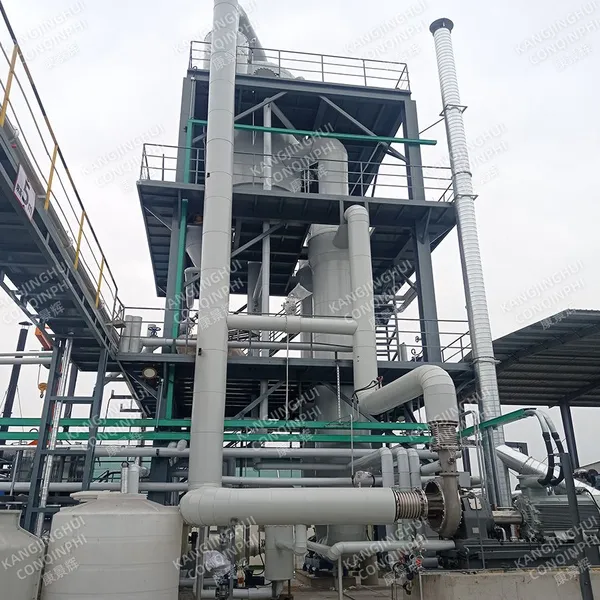

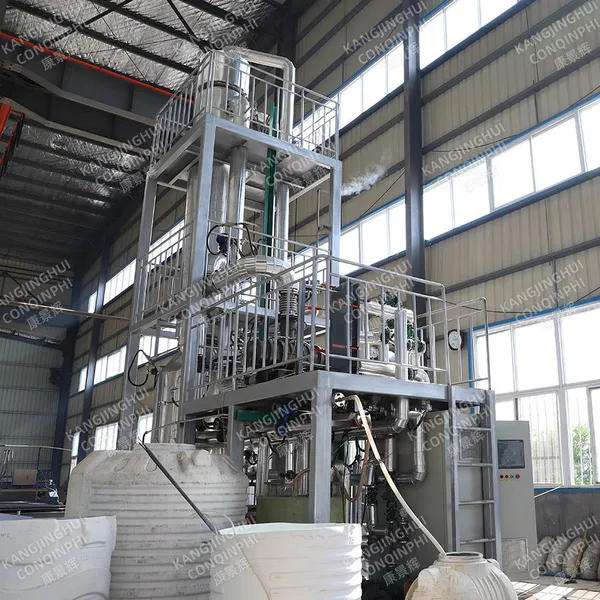

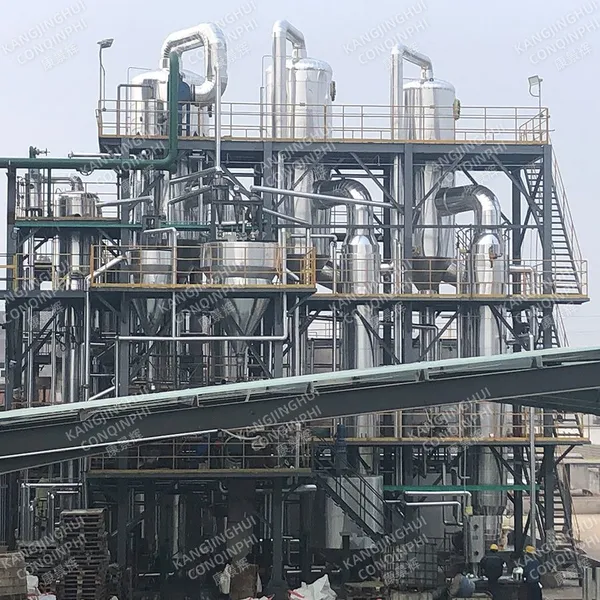

Help CenterPharmaceutical Grade MVR Evaporation Crystallization System, 316L SS, Used for API Crystallization Process
Product Spotlights
Related Products
-
Reliable MVR Evaporation Crystallization System, Mill Test Report Provided, Standard Compliant Design, After-Sales ServiceUS$ 6840 - 748000MOQ: 2 Combos -
Compact MVR Evaporation Crystallization System, 500L/h Rate, Three-Phase 380V, 316L SS, Low Energy ConsumptionUS$ 6840 - 748000MOQ: 2 Combos
-
MVR Evaporation Crystallization System With 1-Year Warranty, Free Technical Training, On-site Installation SupportUS$ 6840 - 748000MOQ: 2 Combos
-
Energy-Saving MVR Evaporation Crystallization System, 304 Stainless Steel, Automatic Operation, 220V/50HzUS$ 6840 - 748000MOQ: 2 Combos
-
304 Stainless Steel Tubular Skid-Mounted MVR Evaporator With PLC Control 380V 50Hz Automatic OperationUS$ 4160 - 739000MOQ: 1 Combo
As a leading manufacturer established in 2015, Qingdao Conqinphi Environmental Technology Group Co., Ltd. specializes in designing and producing high-quality MVR evaporation crystallization systems. Our Pharmaceutical Grade MVR Evaporation Crystallization System, constructed from premium 316L stainless steel, is engineered specifically for the demanding API crystallization process. This system combines advanced mechanical vapor recompression technology with pharmaceutical-grade standards, ensuring exceptional purity, energy efficiency, and operational reliability. With a factory spanning 10,000–30,000 square meters and a dedicated team of 201–300 experienced professionals, we deliver solutions that meet the rigorous requirements of global pharmaceutical manufacturers.
Our MVR crystallization system is a closed-loop, energy-saving solution that recycles vapor latent heat, dramatically reducing steam consumption compared to traditional multi-effect evaporators. The 316L SS construction guarantees excellent corrosion resistance, especially in chloride-containing environments, and complies with FDA and GMP guidelines for pharmaceutical contact surfaces. The system is fully automated with a PLC and HMI interface, allowing precise control over temperature, pressure, and crystal size distribution. Whether you are producing antibiotics, active pharmaceutical ingredients, or high-purity intermediates, this system is designed to deliver consistent, scalable results.
Key Features & Technical Specifications
- Pharmaceutical-Grade Design: All wetted parts are made of 316L SS with electropolished surfaces (Ra ≤ 0.6 μm) to prevent product contamination and facilitate CIP/SIP cleaning.
- Energy-Efficient MVR Technology: Uses a mechanical compressor to recompress vapor, achieving energy savings of up to 60-80% compared to conventional evaporation systems.
- Precise Crystallization Control: Advanced PLC system controls supersaturation, cooling rate, and residence time, ensuring uniform crystal morphology and high yield.
- Compact & Modular Design: Skid-mounted structure saves floor space and simplifies installation; expansion modules are available upon request.
- Wide Capacity Range: Customizable from 500 L/h to 50,000 L/h evaporation capacity, tailored to your production scale.
- Robust Safety Features: Includes pressure relief valves, temperature sensors, and emergency shutdown systems to ensure safe operation.
- Full Compliance: Designed to meet ISO9001, ISO14000, OHSAS18001, and HACCP standards; optional ATEX certification for explosive environments.
| Parameter | Specification |
|---|---|
| Material | 316L Stainless Steel (wetted parts) |
| Evaporation Capacity | 500 – 50,000 L/h (customizable) |
| Operating Temperature | 40°C – 150°C (adjustable) |
| Operating Pressure | -0.08 MPa to 0.5 MPa (vacuum to low pressure) |
| Compressor Type | Centrifugal / Roots blower (optional) |
| Control System | PLC + HMI (Siemens or equivalent) |
| Power Consumption | 30 – 150 kWh (depends on capacity) |
| Certifications | ISO9001, ISO14000, OHSAS18001, HACCP, others on request |
Advantages for API Crystallization
- High Purity: The 316L SS construction and CIP capability minimize cross-contamination, meeting strict pharmacopoeia requirements.
- Energy & Cost Savings: MVR technology reduces steam consumption by up to 80%, lowering operational costs significantly.
- Scalable Production: Modular design allows easy capacity expansion without major infrastructure changes.
- Consistent Crystal Quality: Automated control ensures narrow crystal size distribution, improving downstream filtration and drying efficiency.
- Environmentally Friendly: Closed-loop system minimizes wastewater and emissions, supporting sustainable manufacturing.
With over 8 years of industry experience, Qingdao Conqinphi has become a trusted partner for pharmaceutical companies worldwide. Our factory, certified with ISO9001, ISO14000, OHSAS18001, and HACCP, operates under strict quality control systems. We have served clients across North America, South America, Europe, Southeast Asia, Africa, and the Middle East, with an annual export value exceeding US$10 million. Our team of 200+ professionals ensures seamless project execution from design to commissioning. We are confident that our Pharmaceutical Grade MVR Evaporation Crystallization System will exceed your expectations in terms of performance, reliability, and compliance. Contact us today to discuss your API crystallization requirements and receive a customized quotation.
Frequently Asked Questions
-
What is the difference between MVR and traditional multi-effect evaporation?
MVR (Mechanical Vapor Recompression) reuses the latent heat of vapor by compressing the vapor, requiring only electrical energy for the compressor. Traditional multi-effect uses steam as the primary energy source and consumes more thermal energy. MVR typically saves 60-80% energy. -
Can this system handle heat-sensitive APIs?
Yes, the system can operate at low temperatures (e.g., 40°C) under vacuum, making it suitable for heat-sensitive compounds. The temperature and pressure are precisely controlled via PLC to prevent degradation. -
What cleaning procedures are supported?
The system is designed for CIP (Clean-in-Place) and SIP (Sterilize-in-Place). All wetted surfaces are electropolished to facilitate cleaning and reduce bacterial adhesion. -
What is the typical lead time for a custom system?
Lead time depends on capacity and customization level. Standard systems ship in 8-12 weeks; custom designs may require 12-16 weeks. We provide a detailed timeline after order confirmation. -
Do you provide installation and commissioning support?
Yes, we offer on-site installation guidance and commissioning services. Remote technical support is also available via video call or phone. -
What certifications do your systems have?
Our systems are manufactured under ISO9001, ISO14000, OHSAS18001, and HACCP certified facilities. Additional certifications such as ATEX or ASME can be provided upon request. -
Can the system be integrated with existing API production lines?
Absolutely. Our engineers can design the system to match your existing piping, control, and layout. Modular skid design facilitates easy integration. -
What is the warranty period?
We offer a standard 12-month warranty from the date of commissioning, covering defects in materials and workmanship. Extended warranty options are available.
