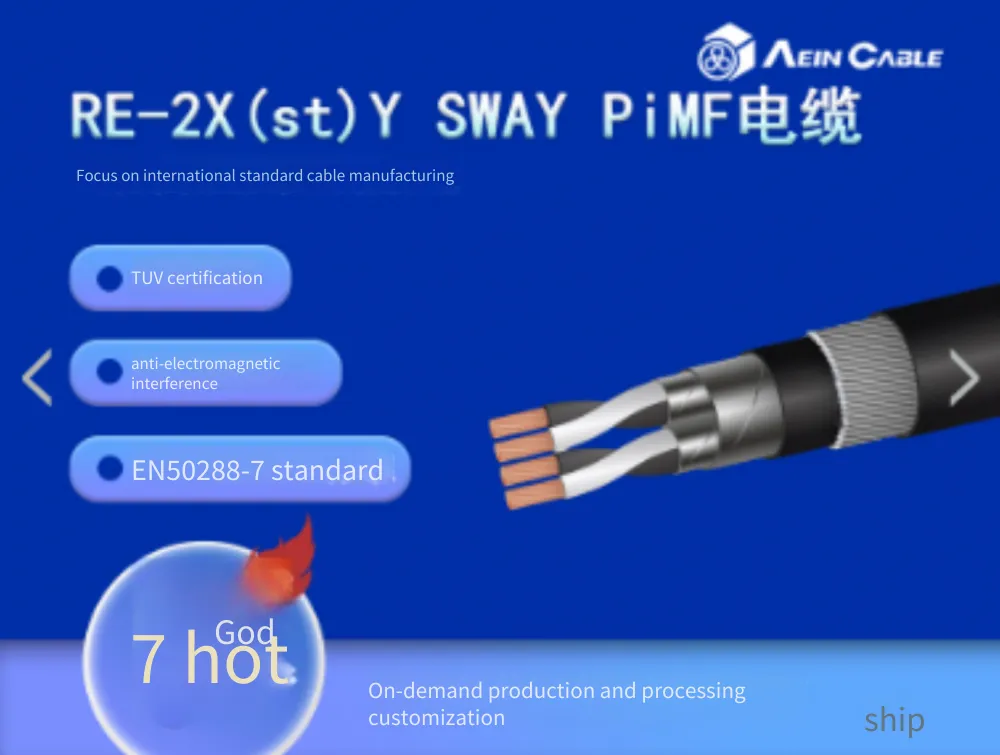

Help Centeren 50288-7-re-2x(st)h Swah Lszh Pimf Tuv Certified Instrumentation Cable
Related Products
-
s 600v -40°c/+105°c ep Insulated, ep Sheathed Rubber Cable With Canadian CertificationUS$ 0.89 - 0.98MOQ: 1000 Meters -
Sjtw/sjt 105°c 300v Ul62 Standard Automotive Wire, Flame Retardant, Highly Flexible, WaterproofUS$ 0.87 - 1.04MOQ: 1000 Meters
-
Cmr Canada Csa Certified Communication Fire-resistant Cable, Fep Insulation, Pvc Sheath, 300vUS$ 1.33 - 1.52MOQ: 1000 Meters
-
Svt 105°c 300v Flame-retardant, Highly Flexible, Cold-resistant Automotive Wire for Indoor Use, Complying With Ul62 StandardUS$ 0.9 - 1.04MOQ: 1000 Meters
-
Thhn 90°c 600v Sun-resistant, Gas-resistant, Heat-resistant, Oil-resistant Pvc + Nylon Single-core CableUS$ 0.81 - 0.98MOQ: 1000 Meters
Product Introduction
01 Product Applications
This cable is designed to connect electrical instrument circuits and provide communication services inside and around process plants (such as the petrochemical industry, etc.). Each pair of cables has a separate shield to enhance signal security and prevent
crosstalk within the cable. It is suitable for direct burial applications. For installations where fire, smoke emissions, and toxic fumes pose potential risks to life and equipment.
02 Product Features
Low smoke zero halogen compliance: IEC/EN60755-1/2 Flame retardant rating: IEC/EN60333-1-2
EN50288-7 standard
UV protection rating: UL1581-1200
TUV/CE dual certification
Product Structure
Conductor material: 0.5 square meters - 0.75 square meters: Category 5 soft copper; 1 square meter and above: Category 2 bare copper
Core insulation: XLPE
Colors: black, white; numbered coding
Stranding: Insulated layers are stranded into pairs, and pairs are stranded into layers
Wrapping: Polyester tape + tinned copper drain wire
Inner sheath: LSZH
Armor: SWA (galvanized steel wire)
Sheath: LSZH (Low smoke zero halogen) - UV resistant
Insulation resistance: min M2xKm 5000
Withstand voltage: 300V
Temperature: -40°C to +80°C (fixed installation)
Bending radius: 12x cable diameter
Product identification: Aein bei ke SHANGHAI AEIN WIRE& CABLE CO.,LTD Model Specification Voltage Meter mark
