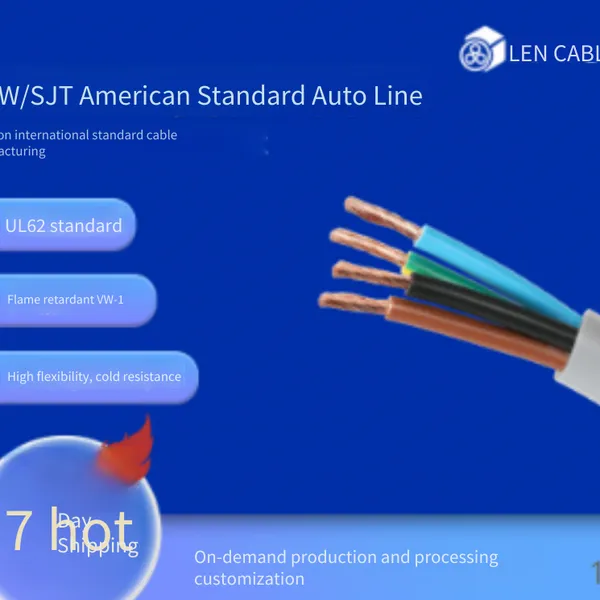

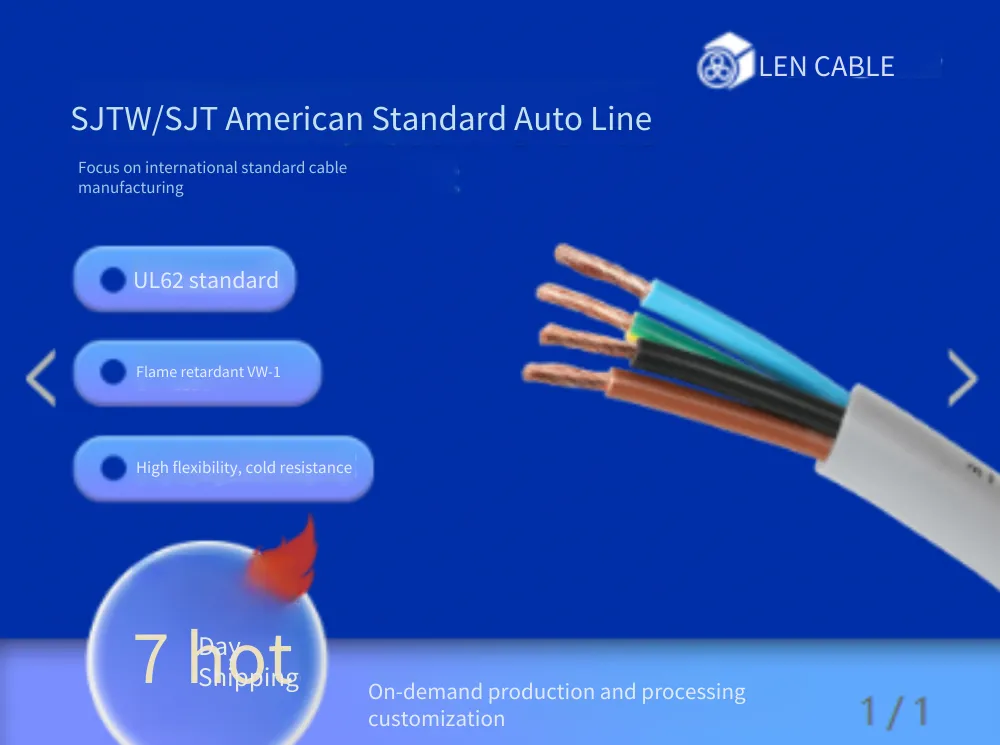

Help CenterSjtw/sjt 105°c 300v Ul62 Standard Automotive Wire, Flame Retardant, Highly Flexible, Waterproof
Related Products
-
Cmr Canada Csa Certified Communication Fire-resistant Cable, Fep Insulation, Pvc Sheath, 300vUS$ 1.33 - 1.52MOQ: 1000 Meters -
Svt 105°c 300v Flame-retardant, Highly Flexible, Cold-resistant Automotive Wire for Indoor Use, Complying With Ul62 StandardUS$ 0.9 - 1.04MOQ: 1000 Meters
-
Thhn 90°c 600v Sun-resistant, Gas-resistant, Heat-resistant, Oil-resistant Pvc + Nylon Single-core CableUS$ 0.81 - 0.98MOQ: 1000 Meters
-
Xhhw-2 90°c 600v Low Smoke Zero Halogen, Waterproof, Cold Bend Resistant, Impact Resistant Xlpe Single-core CableUS$ 0.77 - 0.91MOQ: 1000 Meters
-
Cmp Communication Fire-resistant Cable With Canadian Csa Certification, Fep Insulation, Pvc Sheath, 300vUS$ 1.31 - 1.48MOQ: 1000 Meters
Product Introduction
01 Product Applications
This product is mainly used for hand-held power tools, washing machines, vibrators, lamps, therapeutic instruments, medical instruments, office equipment, etc. It can also be used in harsh environments.
Such as outdoor lighting, power tools, construction sites, etc.
02 Product Features
UL Certification
Flame retardancy meets VW-1
High flexibility and waterproof
03 Technical Certifications
Complies with RoHS standards
UL Certification
Complies with UL62/CSA-C22.2, UL1581
Product Structure
Conductor material: Flexible stranded copper conductor
Conductor grade: Complies with UL62 standards
Core insulation: Special PVC
Core identification: Black core with white numbers, with or without GNYE
Stranding: Insulated cores are stranded into cables with the optimal pitch
Outer sheath: Special PVC
Outer sheath color: Black RAL9005 or gray RAL7001 (optional)
Rated voltage: 300V
Test voltage: 2.5kV
Bending radius: 7.5xd
Temperature rating: -40°C/+105°C
Flame retardant rating: Self-extinguishing, complies with UL VW-1 standards
Standard: UL62
Product identification: Aein bei ke E503806(UL) Model *x**AWG(**mm2) Temperature Voltage c(UL) Model *x**mm2(**AWG) Temperature Voltage VW-1
