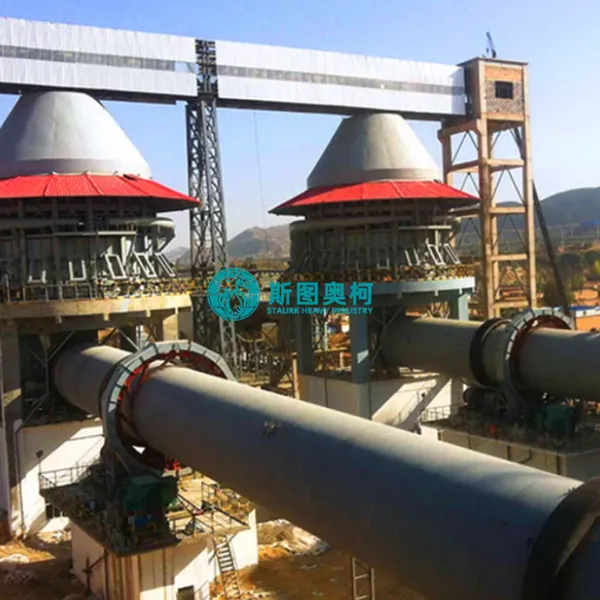

rotary kiln for coal ash treatment 300 tpd
1. Introduction
The 300 TPD (Tons Per Day) Rotary Kiln for Coal Ash Treatment is a specialized thermal processing system designed for the large-scale modification, sintering, or decontamination of coal ash (including fly ash and bottom ash from coal-fired power plants).
With a daily capacity of 300 tons, this equipment plays a critical role in environmental engineering and resource recovery. It thermally processes coal ash to remove residual carbon, immobilize heavy metals, or sinter the ash into high-strength artificial lightweight aggregates (ceramsite), transforming an industrial byproduct into valuable raw materials for the construction and manufacturing industries.
2. Working Principle
The treatment of coal ash in a rotary kiln is a continuous pyro-processing procedure. Depending on the specific application (e.g., carbon burnout or aggregate sintering), the process generally follows these stages:
Preparation and Feeding: Raw coal ash (often pelletized with binders if used for aggregate production, or fed as dry powder/slurry) is introduced into the kiln via the feeding system at the kiln tail (the elevated end).
Thermal Processing & Reaction: As the inclined kiln cylinder rotates slowly, the coal ash moves downward toward the kiln head. It passes through distinct thermal zones:
Drying & Preheating Zone: Moisture is driven off, and the temperature rises.
Reaction/Sintering Zone: In this high-temperature zone , residual carbon is completely combusted, hazardous organic compounds are destroyed, and the ash particles undergo phase transformation or partial melting (sintering) to form a stable, ceramic structure.
Cooling and Output: The treated ash or sintered aggregates discharge from the kiln head into a cooling unit (such as a rotary or grate cooler). This rapidly lowers the material temperature, recovers heat to preheat the kiln's combustion air, and readies the product for final screening or packaging.
3. Advantages
Optimized Capacity for Regional Hubs: The 300 TPD capacity is highly cost-effective and perfectly scaled for medium-sized power plants or centralized industrial waste recycling facilities, ensuring steady, continuous operations.
Excellent Product Consistency: The continuous tumbling motion within the rotating drum ensures uniform heat distribution and mass transfer. This prevents localized overheating and guarantees that the treated ash achieves consistent chemical stability or physical strength.
High Value-Added Upscaling: It successfully converts hazardous or low-value coal ash into eco-friendly building materials, such as lightweight aggregates, lightweight concrete blocks, or high-purity mineral fillers.
