log washer turnkey solution
1. Product Introduction
Our Log Washer Turnkey Solution provides a complete, hassle-free engineering and manufacturing service designed for operators dealing with heavily contaminated, clay-bound ores and aggregates. Instead of managing multiple equipment vendors, engineering firms, and contractors, our clients receive a fully finalized, operational wet-processing plant from a single source. Our turnkey scope covers every phase of the project: raw material laboratory testing, custom 3D plant layout engineering, equipment manufacturing, structural steel fabrication, electrical automation (PLC) integration, on-site installation, and final commissioning. At the heart of the system is our heavy-duty dual-shaft log washer, ensuring absolute material cleanliness and maximum product recovery.
2. Applications
This turnkey engineering model is highly sought after for large-scale, complex projects globally:
Global Mining Projects: Establishing pre-treatment washing circuits for iron ore, bauxite, manganese, copper, and gold-bearing gravels to eliminate tough clay coatings before downstream processing.
Large Quarry & Infrastructure Aggregates: Building high-capacity aggregate plants to transform low-grade, muddy rock deposits into premium concrete gravel and asphalt sand.
Environmental & Waste Remediation: Designing complete processing lines to scrub construction & demolition (C&D) waste and remediate heavily silted or contaminated soils.
3. Working Principle of the Turnkey Circuit
Integrated Feeding & Scalping: Raw material is deposited into a heavy-duty hopper. A synchronized vibrating grizzly or scalping screen removes oversized rocks to protect the washing circuit and bypasses materials that do not require aggressive scrubbing.

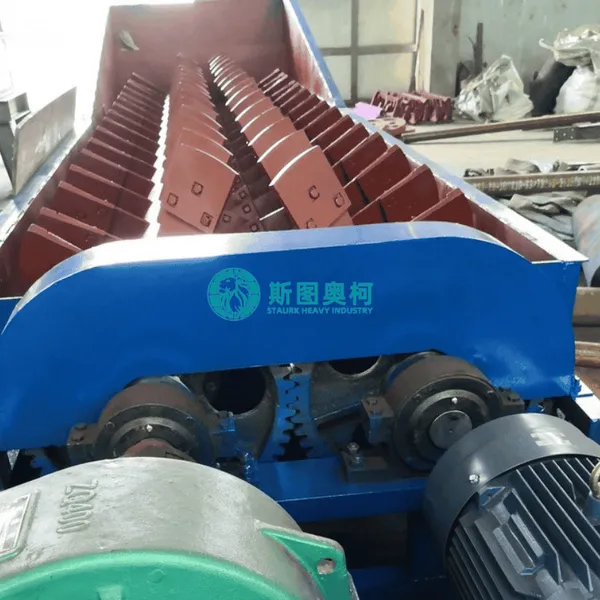

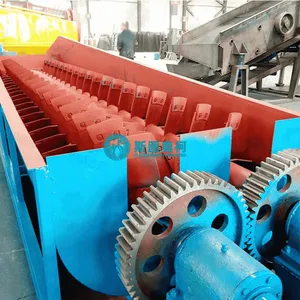

Aggressive Dual-Shaft Scrubbing: The remaining clay-bound feed enters the lower end of the inclined log washer. Dual massive steel shafts lined with alternating alloy paddles rotate counter-directionally. The blades continuously cut and chop through mud balls, forcing the rocks to grind against each other (material-on-material attrition), stripping away stubborn clay jackets.
Counter-Current Rinsing: High-pressure spray bars rinse the tumbling rocks. The pitch of the paddles conveys the clean, heavy aggregates up the incline to discharge, while the dissolved clay and lighter silt float backward, exiting via the lower overflow weir.
Water Recycling & Tailings Management: Clean stone is sent to a dewatering screen. The muddy overflow slurry is immediately routed to a water clarification thickener and filter press, reclaiming up to 85%–90% of the process water for instant, closed-loop recirculation back into the log washer.
4. Key Advantages of Our Turnkey Solution
Single-Source Responsibility: We manage the entire project from concept to completion. This eliminates communication gaps between equipment manufacturers and site contractors, significantly reducing project risks and timeline delays.
Custom Engineering & 3D Simulation: Before manufacturing begins, our engineers use advanced 3D software to map out your plant layout, piping networks, and electrical schematics based on your site's topography and exact material profile.
Rapid On-Site Assembly: All structural steel supports, walkways, piping modules, and equipment footprints are pre-fabricated and pre-fitted at our factory. This "modular building block" design drastically lowers on-site civil engineering costs and shortens installation times.
Advanced Centralized Automation: The entire plant is integrated into a unified PLC control system (with touch-screen HMI). Operators can monitor motor loads, water pressure, and material flow rates in real-time from a central control room, maximizing safety and operational efficiency.
Guaranteed Plant Performance: Because we control the design of the entire circuit (from feed rates to water recycling capacity), we provide an overarching system performance guarantee, ensuring your final product meets strict industry specifications from day one.
