log washer crushing washing line
1. Product Introduction
The Log Washer Sand Washing Line is a premium, high-capacity wet processing system designed specifically for the aggressive cleaning, scrubbing, and classification of heavily contaminated sand and gravel. Standard sand washers (like wheel or screw types) often fail when dealing with raw materials choked with tough plastic clay, cemented silt, or mud balls. This integrated production line utilizes a heavy-duty dual-shaft log washer as its core scrubbing unit, paired with dewatering screens, hydrocyclones, and sand-grading technology. It completely breaks down clay matrices, dissolves mud conglomerates, and rinses fine aggregates, turning low-value, dirty deposits into premium, high-specification manufactured sand (M-sand) or natural concrete sand.
2. Applications
This specialized washing line is widely utilized where raw sand deposits contain high percentages of sticky clay or silt:
Manufactured Sand (M-Sand) Plants: Scrubbing and processing crushed stone fines, quarry dust, and manufactured sand to eliminate deleterious micro-clays and meet strict concrete aggregate standards.
Natural Sand & Gravel Operations: Cleaning heavily silted river gravel, bank sand, and alluvial deposits containing stubborn clay blocks or mud balls.
Industrial & Silica Sand Processing: Purification of high-purity silica sand for glass manufacturing, foundry casting, and fracturing (frac sand) by stripping away surface iron oxides and clay coatings.
Construction & Demolition (C&D) Recycling: Washing recycled concrete fines and demolition waste to separate clean reusable sand from dirt and organic impurities.
3. Working Principle
The sand washing line operates as a continuous, automated circuit, blending heavy mechanical attrition with advanced fine-material recovery:
[Raw Clay-Bound Sand/Gravel]
⬇
[Pre-Screening / Sizing Screen] ➔ (Bypasses clean fines / Scalps oversize)
⬇
[Log Washer Heavy Scrubbing Zone] ➔ (Intense Mechanical Attrition)
╱ ╲
╱ ╲
[Clean Coarse Aggregates] [Silty Sand & Clay Slurry Overflow]
⬇ ⬇
[Sizing & Rinsing Screen] [Hydrocyclone Fine Sand Recovery]
⬇ ⬇
[Premium Finished Gravel] [Premium Clean Fine Sand]
╲ ╱
➔ [Blended High-Spec Concrete Sand] ➔ [Dewatering & Stacking]
Feeding & Pre-Screening: Raw sand and gravel are introduced into the feeding hopper. A vibrating screen splits the material, routing the clay-bound fractions directly into the log washer while bypassing clean fines to save energy.

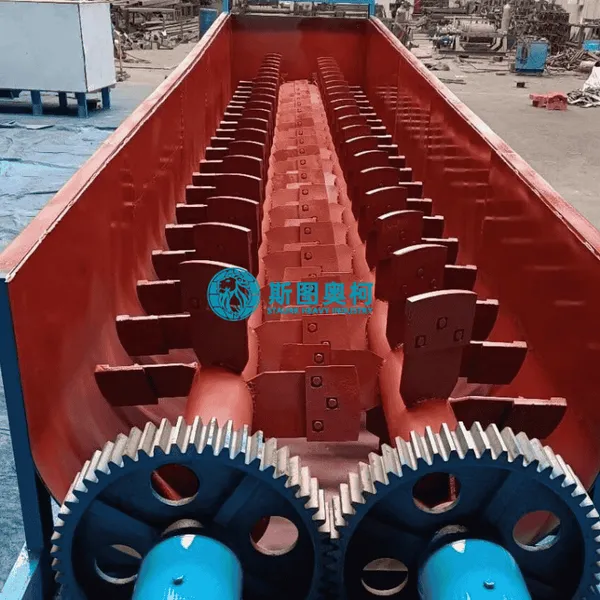

Aggressive Clay Dissolution: The material enters the inclined trough of the dual-shaft log washer. High-torque steel shafts fitted with overlapping alloy paddles rotate counter-directionally. The paddles aggressively cut and chop through mud balls, forcing the sand and rocks to grind against each other (material-on-material attrition). This intense friction strips away the sticky clay jackets bound to the sand grains.
Counter-Current Rinsing: High-pressure water spray bars wash the tumbling material. Clean, heavier coarse gravel is conveyed up the incline by the paddle pitch and discharges at the top. Concurrently, the dissolved mud, silt, and fine sand form a slurry and flow downward, overflowing via the lower weir.
Hydrocyclone Fine Sand Recovery: The muddy overflow slurry is not wasted; it is pumped directly into a hydrocyclone circuit. Centrifugal force separates the ultra-fine sand particles from the clay waste. The clean, recovered fine sand is then dropped onto a high-frequency dewatering screen, blended with the coarse sand, and discharged as a dry, ready-to-market finished product.
4. Key Advantages of the Sand Washing Line
Ultimate Clay Elimination: While standard sand washers only rinse the surface, the log washer mechanically pulverizes tough clay balls and scrubs the sand grains clean, ensuring a zero-plasticity index for the finished sand.
Maximum Fine Sand Recovery (No Material Loss): By integrating hydrocyclones into the overflow line, the system recaptures up to 95% of fine sands . This prevents valuable material from being washed into settling ponds, maximizing total plant yield.
Precise Sand Grading Control: The system allows operators to easily adjust water flow rates, hydrocyclone pressures, and blending ratios between coarse and fine sand, consistently creating a perfect fineness modulus (FM) that complies with ASTM or international standards.
Heavy-Duty, Extended Wear Life: Engineered for abrasive sand environments, our log washers feature extra-thick steel linings and bolt-on paddles made from proprietary high-chromium or manganese alloy steel, minimizing maintenance downtime.
Closed-Loop, Eco-Friendly Operation: The production line can be seamlessly integrated with automated water thickeners and filter presses. This allows the plant to recycle up to 90% of its process water, drastically reducing fresh-water intake and eliminating the need for massive tailings ponds.
