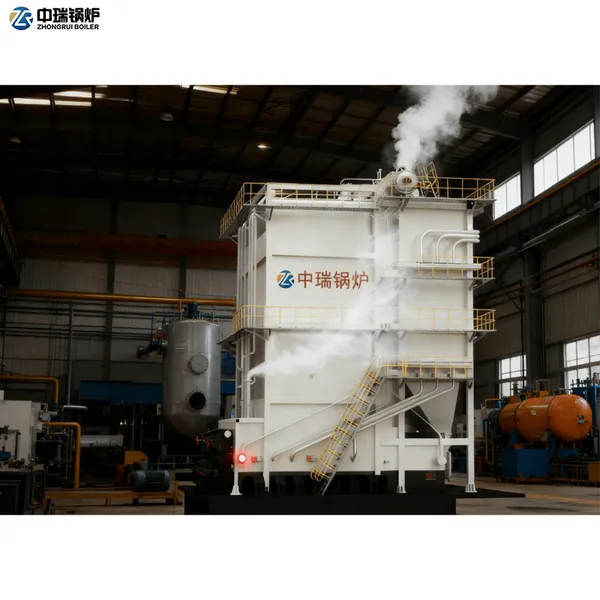

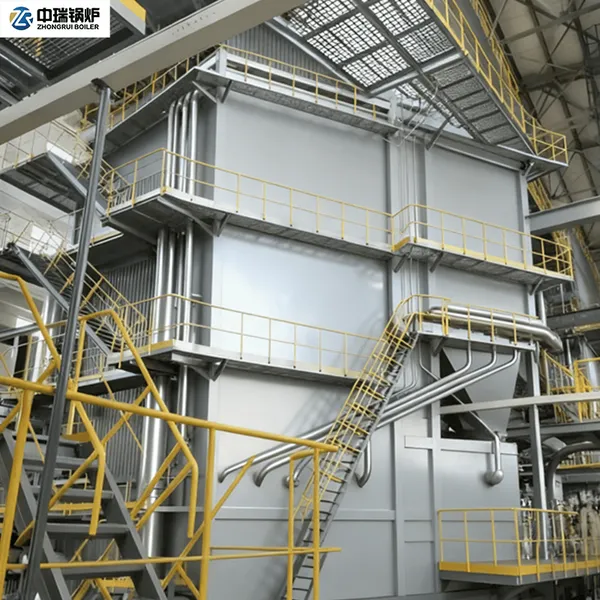

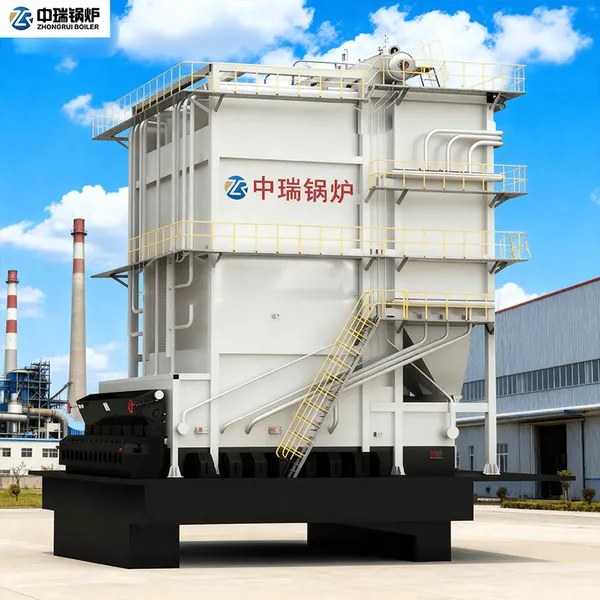

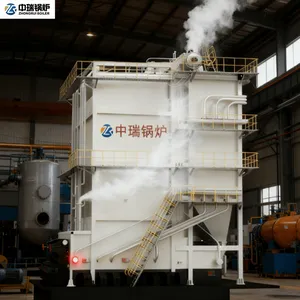

Corner-Tube Coal-Fired Biomass Steam Boiler
Introducing the Zhongrui Corner-Tube Coal-Fired Biomass Steam Boiler, an industrial powerhouse developed by Yangzhou Zhongrui Boiler Co., Ltd. This boiler showcases our independent R&D strength, blending cutting-edge structural design with eco-conscious energy solutions to deliver superior efficiency.
This innovative boiler features a unique angle-tube structure, ensuring exceptional stability and optimum heat transfer. Designed to use coal and biomass as fuel, it delivers consistent steam output for a wide range of industrial uses. With a scientifically arranged heating surface, it achieves complete fuel combustion and remarkable thermal efficiency, while significantly minimizing emissions to comply with strict environmental standards.
Delivered as a fully assembled unit, it enables rapid on-site installation and commissioning. Except for the connections of water, fuel, and electricity, no additional civil engineering or special installation protocols are necessary, significantly reducing the project timeline. Every boiler undergoes rigorous factory inspections and comprehensive system commissioning to ensure optimal performance, safety, and reliability.

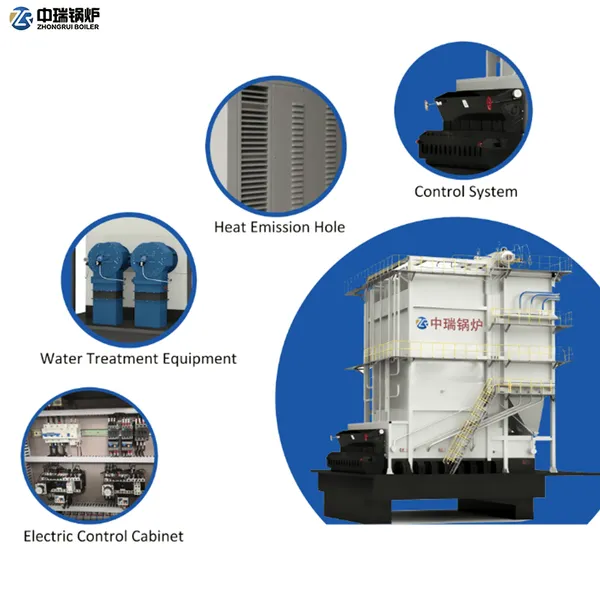

Constructed with precision-engineered angle-tube boiler body, top-tier burners compatible with coal and biomass, an advanced control system, superior instruments and pumps, along with other accessories. This boiler stands out for its efficient combustion, cost-effective operation, and ease of maintenance. Its versatility caters to industries such as chemical, textile, food & beverage, pharmaceutical, and building materials, fulfilling diverse steam demands across various production processes.
Main Technical Parameters
Boiler Model: Angle-Tube Coal & Biomass Steam Boiler Series
Structure Type: Angle-Tube, Fire Tube, Multi-Pass
Rated Capacity: 20-165 t/h
Rated Pressure:1.25, 1.6, 2.5, 3.82MPa
Applicable Fuels: Coal, biomass, etc.
Product Parameters
| Items | Unit | Steam Boiler DHL20~165, Hot Water Boiler DHL14~116 |
| Rated evaporation capacity of steam furnace | t/h | 20, 30, 35, 65, 80, 100, 130, 165 |
| Rated heat out put of hot water furnace | MW | 14, 21, 29, 48, 58, 70, 92, 116 |
| Working pressure | MPa | Steam Boiler: 1.25, 1.6, 2.5, 3.82, 5.3; Hot Water Boiler: 0.7, 1.0, 1.25, 1.6 |
| Steam temperature | °C | Saturated (194, 204, 224, 250, 270); Superheated (300, 350, 400, 450) |
| Hot water temperature/Return water temperature | °C | 95/70, 115/70, 130/70, 130/80, 150/90 |
| Suitable fuel | - | Class II Biomass (SCII), Biomass Bulk Fuel (SS), Class II Bituminous Coal (AII), Class II Anthracite (WII) |
| Fuel consumption | Kg/h | 3200, 4800, 6458, 10333, 12917, 14208, 15500, 16833 |
| Boiler transport size | L | 13, 13.1, 13.6, 15, 15.7, 15.6, 16.5, 20 (m) |
| W | 8.3, 9.1, 9.97, 12, 13.5, 14.3, 15.2, 17.4 (m) | |
| H | 10, 10, 12.7, 14.4, 15.4, 15.4, 15.69, 16.4 (m) | |
| Maximum transport size | L | 7.4, 8.2, 10.5, 13.1, 14, 15.8, 16.5, 14.2 (m) |
| W | 1.2, 1.2, 1.4, 1.5, 1.5, 1.6, 1.6, 14 (m) | |
| H | 1.2, 1.2, 1.4, 1.5, 1.5, 1.6, 1.6, 15.6 (m) | |
| Maximum transport weight | t | 6.8, 9.6, 10.5, 15.6, 15.9, 16.7, 17.2, 10.6 |
