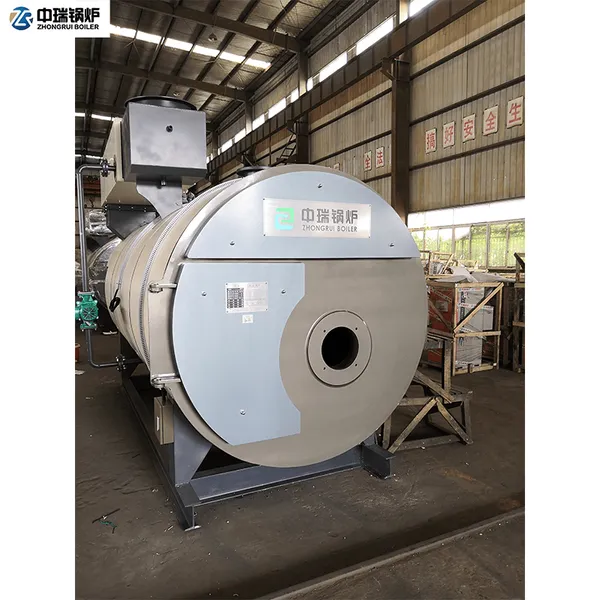

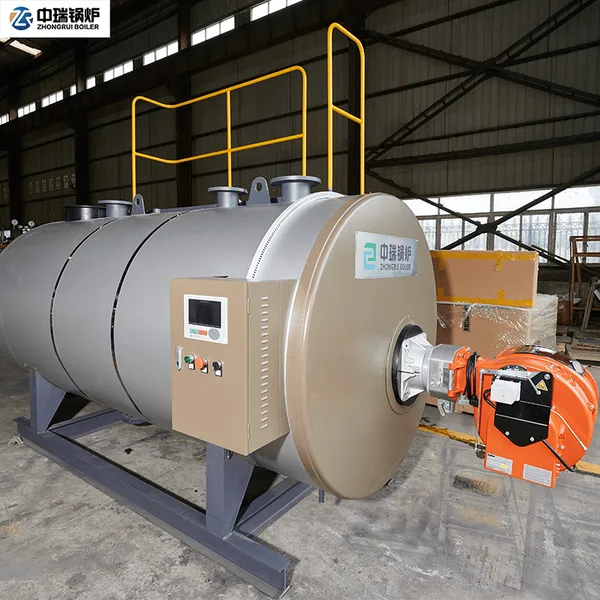

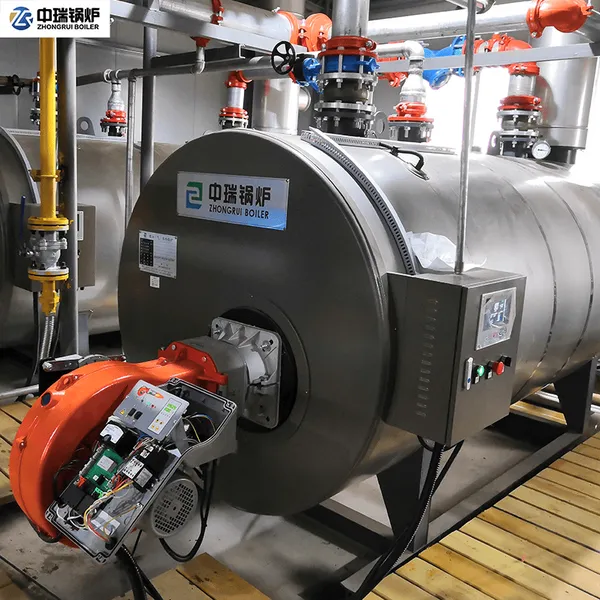

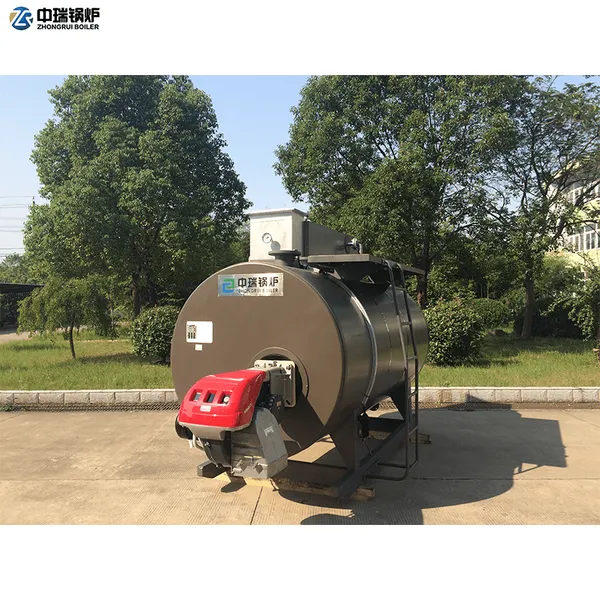

CWNS Horizontal Gas Oil Hot Water Boiler
The remarkable CWNS horizontal gas oil hot water boiler is an efficient powerhouse, exclusively crafted by the experts at Yangzhou Zhongrui Boiler Co., Ltd. This marvel of engineering embodies cutting-edge thermal design principles and draws from a wealth of practical engineering acumen.
With its sophisticated horizontal structure, this boiler boasts a scientifically optimized internal layout, delivering outstanding heat exchange capabilities, superb thermal efficiency, and an impressively long service life. Designed as a comprehensive package, it promises swift on-site setup and seamless commissioning. Just connect water, fuel, and electricity-no additional civil work or complex installations required!
Every CWNS horizontal gas oil hot water boiler is subjected to meticulous inspection and comprehensive commissioning, ensuring unmatched stability and safety upon factory release. The boiler's superior design includes a meticulously crafted boiler body, a top-tier gas oil-compatible burner, an intelligent control system, elite instrumentation and pumps, along with essential accessories.
The CWNS series boiler is renowned for its exceptional gas oil combustion efficiency, minimal emissions, user-friendly operation, and abundant hot water production. It stands as the perfect choice for diverse industries, including heating supply, catering, hotel services, and small-scale industrial applications.
Main Technical Parameters
Boiler Model: CWNS Series
Structure Type: Horizontal
Rated Heat Output: Varies (customizable according to needs)
Rated Pressure: Customizable (to meet different working condition requirements)
Rated Temperature: Customizable (matching the rated pressure and application scenarios)
Product Parameters
| Technical Parameter Table of Horizontal Condensing Oil (Gas) Atmospheric Hot Water Boiler | ||||||||||||||
| Model | CWNS0.35 | CWNS0.48 | CWNS0.6 | CWNS0.7 | CWNS1.05 | CWNS1.2 | CWNS1.4 | CWNS1.75 | CWNS2.1 | CWNS2.8 | CWNS3.5 | CWNS4.2 | ||
| Rated Heat Power | MW | 0.35 | 0.48 | 0.6 | 0.7 | 1.05 | 1.2 | 1.4 | 1.75 | 2.1 | 2.8 | 3.5 | 4.2 | |
| Kcal/h | 300000 | 400000 | 500000 | 600000 | 900000 | 1000000 | 1200000 | 1500000 | 1800000 | 2400000 | 3000000 | 3600000 | ||
| Rated Working Pressure | mPa | 0 | ||||||||||||
| Rated Inlet/Outlet Water Temperature | ºC | 85/65(90/70) | ||||||||||||
| Designed Thermal Efficiency | % | 91~98 | ||||||||||||
| Water Capacity | L | 530 | 660 | 860 | 1050 | 1420 | 1560 | 2150 | 2850 | 3250 | 4000 | 5413 | 6450 | |
| Transport Weight | T | 1.01 | 1.23 | 1.63 | 1.83 | 2.35 | 2.6 | 3.12 | 3.71 | 5.4 | 5.91 | 6.84 | 7.59 | |
| Natural Gas Pipe Diameter | DN | 40 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | 80 | 80 | 100 | 100 | |
| Natural Gas Pressure | Kpa | 4~6 | 6~10 | 10~15 | ||||||||||
| Fuel Consumption | Light Oil | kg/h | 32.4 | 50 | 55 | 64.5 | 97 | 108 | 130 | 161 | 195 | 255 | 323 | 687 |
| Natural Gas | Nm3/h | 36 | 43.2 | 60 | 72 | 108 | 120 | 144 | 180 | 216 | 287 | 361 | 342 | |
| Liquefied Petroleum Gas | Nm3/h | 13.5 | 16.7 | 23.9 | 27.3 | 41.8 | 46.3 | 55.2 | 69.7 | 83.1 | 111.3 | 148.4 | 166.4 | |
| City Gas | Nm3/h | 84.0 | 91.8 | 138.4 | 166.1 | 251.1 | 277.3 | 333.1 | 417.1 | 500.1 | 639.6 | 816.0 | 1003.0 | |
| Heat Transfer Area | Radiation | m2 | 2.9 | 3.65 | 4.28 | 4.75 | 6.14 | 6.4 | 7 | 8.5 | 10.75 | 12.05 | 14.3 | 16.5 |
| Convection | m2 | 5.7 | 7.67 | 10.4 | 12.21 | 19.57 | 23.6 | 27.3 | 33.87 | 40.38 | 54.66 | 68.7 | 83.9 | |
| Condensation | m2 | 9.53 | 12.7 | 15.6 | 18.4 | 28 | 32 | 36 | 48 | 58.6 | 76.2 | 98.2 | 112 |
