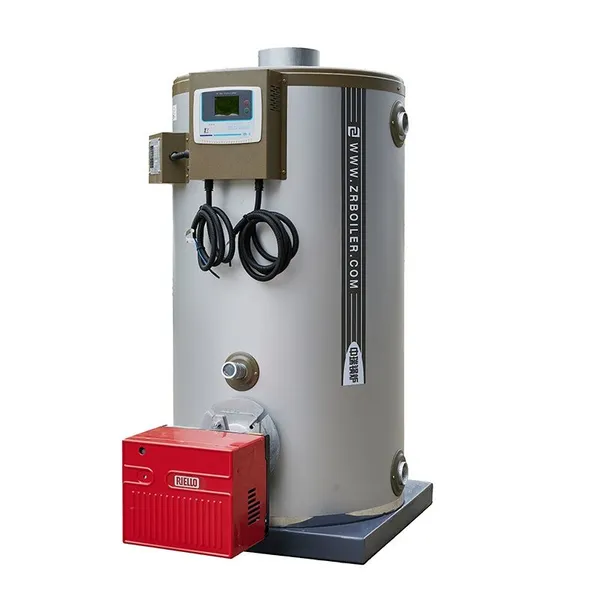

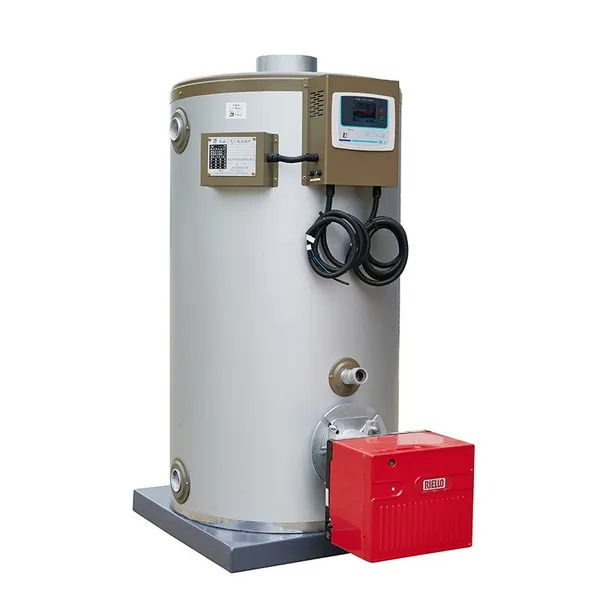

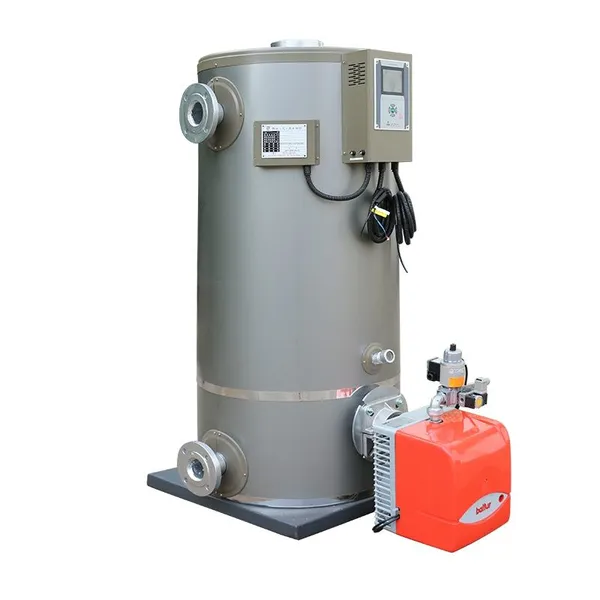

CLHS Vertical Gas Oil Hot Water Boiler
The CLHS vertical gas oil hot water boiler is a superbly engineered, high-performance steam-generating marvel, exclusively crafted by Yangzhou Zhongrui Boiler Co., Ltd. This cutting-edge boiler epitomizes advanced design philosophies infused with our extensive hands-on experience.
Boasting a vertical architecture and meticulously arranged internal components, this boiler assures exceptional heat transfer, unmatched thermal efficiency, and impressive longevity. Delivered as a comprehensive unit, it facilitates swift on-site setup and commissioning. Simply connect water, fuel, and electricity-no further civil infrastructure or complex installation rituals required.
Every LHS vertical gas oil steam boiler undergoes rigorous scrutiny and complete commissioning pre-departure from our factory, ensuring unparalleled performance and safety. The boiler comprises a meticulously designed boiler body, a superior burner optimized for gas oil, an intelligent control system, premium instrumentation, pumps, and essential accessories.
Experience the LHS series boiler-where gas oil combusts with supreme efficiency, emissions remain minimal, operations are hassle-free, and steam output is ample. It's the ultimate solution for a variety of sectors, including small-scale manufacturing, catering, and laundry services.
Main Technical Parameters
Boiler Model: CLHS Series
Structure Type: Vertical
Rated Capacity: Flexible and customizable to suit your specific requirements
Rated Pressure: Tailored to meet diverse operational needs
Rated Temperature: Adaptable to align with designated pressure and application demands
Product Parameters
Technical Parameter Table of Vertical Oil/Gas Fired Hot Water Boiler |
||||||||||||
| Model | CLHS0.06 | CLHS0.08 | CLHS0.12 | CLHS0.18 | CLHS0.24 | CLHS0.35 | CLHS0.48 | CLHS0.6 | CLHS0.7 | CLHS1.05 | ||
| MW |
0.06 |
0.08 |
0.12 |
0.18 |
0.24 |
0.35 |
0.48 |
0.6 |
0.7 |
1.05 |
||
| Rated Thermal Power |
Kcal/h |
5 |
7 |
10 |
15 |
20 |
30 |
40 |
50 |
60 |
90 |
|
| Rated Working Pressure | mPa | 0 | ||||||||||
| Rated Inlet/Outlet Water Temperature |
ºC |
85/65(90/70) | ||||||||||
| Design Thermal Efficiency | % | 91~96 | ||||||||||
| Water Capacity | L | 95 | 110 | 170 | 190 | 342 | 550 | 736 | 960 | 1260 | 1660 | |
| Transport Weight | T |
0.2 |
0.24 |
0.35 |
0.42 |
0.56 |
0.78 |
1.05 |
1.25 |
1.5 |
1.88 |
|
| Natural Gas Pipe Diameter | DN | 20 |
20 |
25 |
25 |
32 |
40 |
50 |
50 |
50 |
50 | |
| Natural Gas Supply Pressure | Kpa | 2~3 | 4~6 | |||||||||
| Fuel Consumption | Light Oil | kg/h | 5.2 | 7.5 | 10.7 | 16.2 | 21.5 | 32.2 | 43.1 | 53.7 | 64.5 | 96 |
| Natural Gas | Nm3/h | 6.5 | 9.2 | 13.1 | 19.5 | 26.1 | 39.2 | 52.2 | 65 | 75.2 | 108 | |
| Liquefied Petroleum Gas | Nm3/h | 2.5 | 3.6 | 5.1 | 7.5 | 10.1 | 15.1 | 20.2 | 25.1 | 29.1 | 41.7 | |
| City Gas | Nm3/h | 13.8 | 19.6 | 27.8 | 41.4 | 55.5 | 83.3 | 110.9 | 138.1 | 159.8 | 229.5 | |
| Heated Area | Radiation | m2 | 0.6 | 0.66 | 1.04 | 1.24 | 1.51 | 2.14 | 2.6 | 3.19 | 4 | 4 |
| Convection | m2 | 0.99 | 1.53 | 2.24 | 3.22 | 3.85 | 5.97 | 7.97 | 10.08 | 12.09 | 19.8 |
