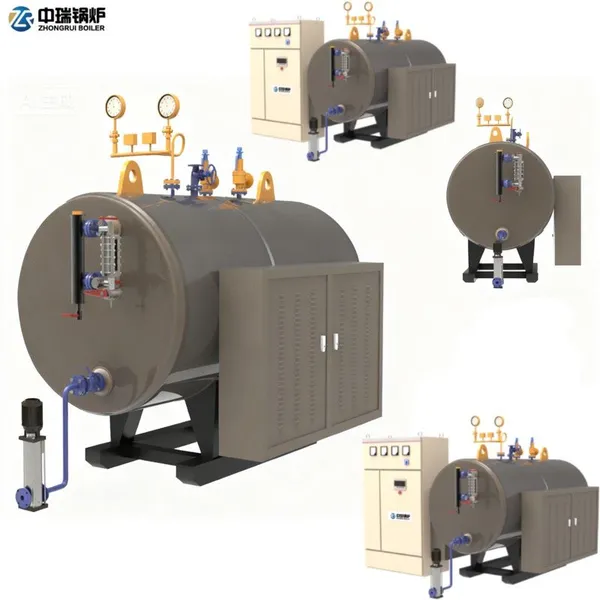

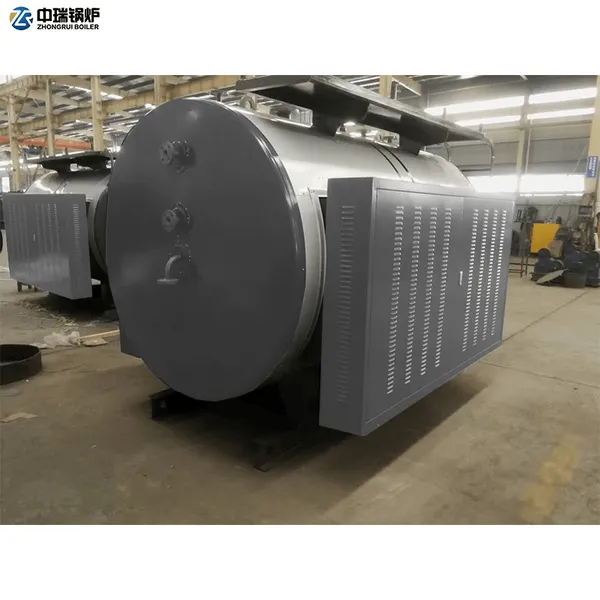

WDR Horizontal Electric Steam Boiler
The Zhongrui WDR Horizontal Electric Steam Boiler stands as a beacon of energy efficiency, cleanliness, and intelligent design. Proudly developed by Yangzhou Zhongrui Boiler Co., Ltd., this innovative boiler harmonizes cutting-edge electric heating technology with decades of esteemed R&D expertise in thermal equipment. It is meticulously crafted to meet the stringent demands of industries prioritizing environmental stewardship, safety, and precise steam management.
This sophisticated boiler employs a vertical water tube structure, fortified with state-of-the-art electric heating elements, ensuring swift heat transfer, elevated thermal efficiency, and consistent steam production. Its ingeniously compact vertical configuration economizes floor space, rendering it ideal for installations where space is at a premium.
Designed for seamless on-site integration, the boiler is delivered as a comprehensive unit. With the exception of connecting water and electricity, it requires no additional civil construction or intricate installation efforts, significantly slashing deployment time and expenses for users.
Every boiler is subject to rigorous factory inspections and exhaustive performance evaluations to ensure unparalleled safety, reliability, and longevity. The boiler system, constructed with an LDR-structured core, features premium electric heating components, an intelligent control system, superior instrumentation and pumps, a steam header, and other components, all orchestrated for optimal, stable performance.
The Zhongrui LDR series epitomizes clean electric heating with zero combustion emissions, coupled with user-friendly operation, precise steam regulation, and unmatched safety. It is perfectly suited for an expansive array of applications, including the food & beverage, pharmaceutical, laboratory, small-scale manufacturing, hotel sectors, and other industries where pristine and dependable steam is crucial.
Main Technical Parameters
Boiler Model: LDR Series
Structure Type: Vertical, Water Tube, Electric Heating
Rated Capacity: 1000-4000kg/h
Rated Pressure: Low Pressure (customizable as per requirements)
Applicable Fuel: Electric Heating
Circulation Mode: Natural Circulation
Installation Mode: Horizontal Floor-mounted
Product Parameters
| WDR Horizontal Electric Steam Boiler | ||||||||||||||
| Model | Vertical | Horizontal | ||||||||||||
| LDR0.1 | LDR0.13 | LDR0.2 | LDRO.3 | LDRO.5 | WDR1 | WDR1.5 | WDR2 | WDR4 | ||||||
| Rated Evaporation | kg/h | 100 | 130 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 4000 | ||||
| Rated Working Pressure | mPa | 0.7(D) | 0.7 | 0.7(D) | 0.7 | 1.0 | 0.7 | 1.0 | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 | 1.3 |
| Rated Steam Temperature | ºC | 170 | 170 | 170 | 170 | 184 | 170 | 184 | 170 | 184 | 184 | 184 | 184 | 193 |
| Rated Electric Power | kw | 72 | 72 | 96 | 144 | 216 | 360 | 720 | 1080 | 1440 | 2880 | |||
| Number of Heating Tubes * Power | kw | 4*18 | 6*12 | 4*24 | 6*24 | 9*24 | 12*30 | 24*30 | 36*30 | 48*30 | 96*30 | |||
| Feed Water Temperature | ºC | 20 | ||||||||||||
| Design Thermal Efficiency | % | 98 | ||||||||||||
| Water Capacity | L | 49 | 106 | 49 | 270 | 350 | 690 | 1500 | 2500 | 3200 | 6000 | |||
| Transport Weight | T | 0.21 | 0.22 | 0.21 | 0.38 | 0.4 | 0.35 | 0.42 | 0.58 | 0.65 | 1.6 | 2.1 | 2.4 | 5.5 |
