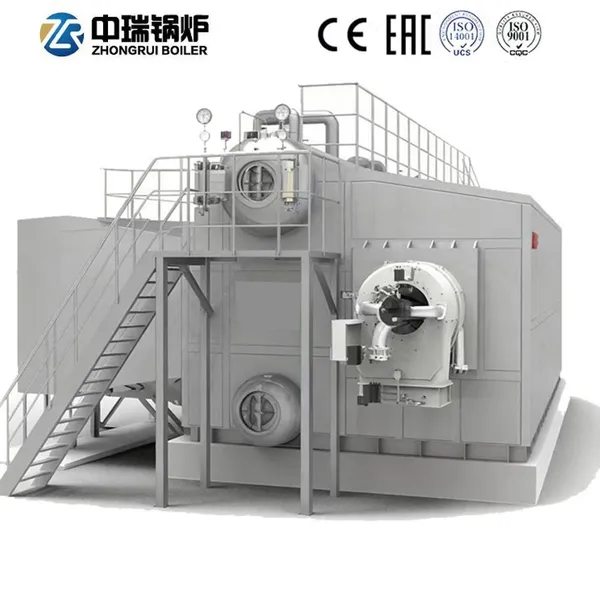

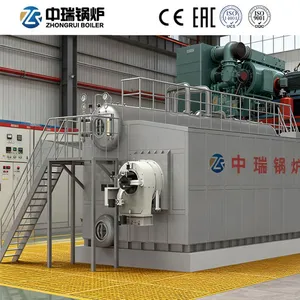

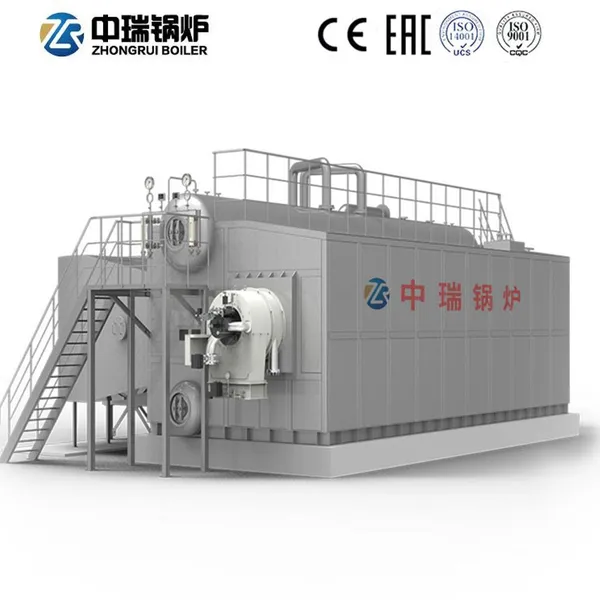

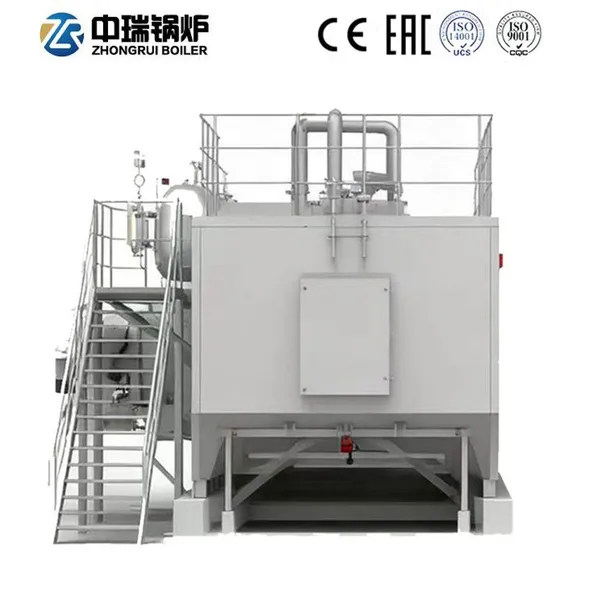

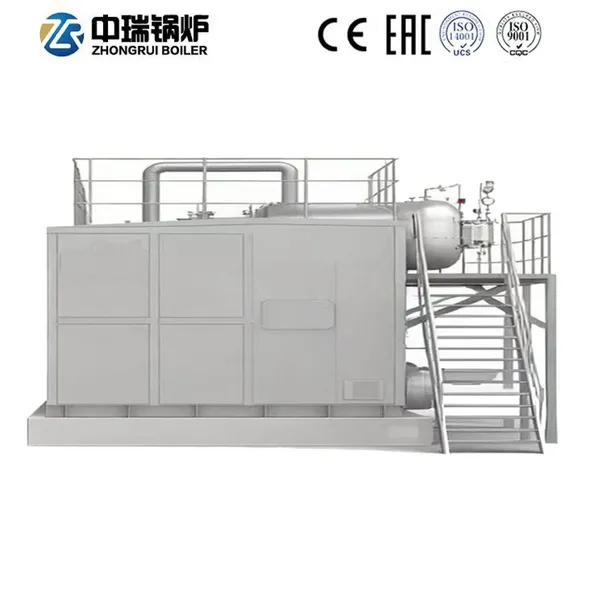

SZS Gas Oil Steam Boiler
Introducing the Zhongrui SZS Gas Oil Hot Water Boiler-a pinnacle of high-performance heating solutions masterfully engineered by Yangzhou Zhongrui Boiler Co., Ltd. This boiler embodies a seamless fusion of cutting-edge technology and extensive practical expertise, setting a benchmark in heating efficiency.
With an innovative water-tube structure featuring multiple passes, this boiler ensures optimal heat transfer, unparalleled thermal efficiency, and an impressively extended service life. Delivered as a comprehensive package, it facilitates swift on-site installation and operation. Simply link water, fuel, and electricity-no additional civil construction or complex setup procedures required.
Every boiler undergoes meticulous inspection and comprehensive commissioning prior to dispatch, guaranteeing unwavering performance and supreme safety. It comprises a meticulously crafted boiler body, international-brand burners, a state-of-the-art intelligent control system, premium instrumentation, pumps, and other critical components, ensuring peak operation.
Main Technical Parameters
Boiler Model: SZS Series
Structure Type: Water Tube, Multiple Pass
Rated Heat Output: Customizable to meet diverse needs
Rated Pressure: 0.7 / 1.0 / 1.25 / 1.6 MPa (options available)
Applicable Fuels: Gas oil, among others
Product Parameters
| Main Technical Parameters of SZS Series Horizontal Biomass Gasification Steam Boilers | |||||||||||
| Rated Evaporation Capacity | t/h | 10 | 15 | 20 | 25 | 35 | 50 | 65 | 80 | 100 | |
| Rated Steam Pressure | MPa | 1.25,1.6,2.0,2.5 | |||||||||
| Rated Steam Temperature | °C | 194,204,214,224 | |||||||||
| Boiler Thermal Efficiency | % | 88-92 | |||||||||
| Fuel Consumption | NM3/h | 730 | 1100 | 1450 | 1813 | 2550 | 3645 | 4745 | 5840 | 7290 | |
| Overall Dimensions of Boiler Body |
Length | mm | 7500 | 8100 | 9000 | 9800 | 11500 | 12500 | 13200 | 13800 | 14800 |
| Width | mm | 3000 | 3240 | 3300 | 4100 | 4200 | 4250 | ||||
| Height | mm | 3400 | 3520 | 3550 | 3800 | 4400 | 4500 | ||||
| Chimney Diameter | mm | 800 | 950 | 1150 | 1300 | 1500 | 1650 | 2000 | 2200 | 2500 | |
| Steam Outlet Diameter | DN | 150 | 200 | 200 | 250 | 250 | 300 | 350 | 400 | 450 | |
| Transport Weight | t | 29 | 34 | 38 | 42 | 50 | 58 | 62 | 68 | 72 |
