Fully Premixed Vacuum/Phase Change Hot Water Boiler

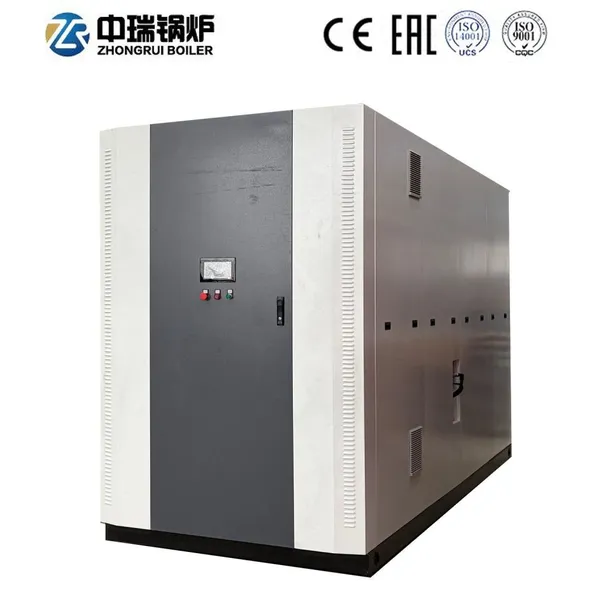

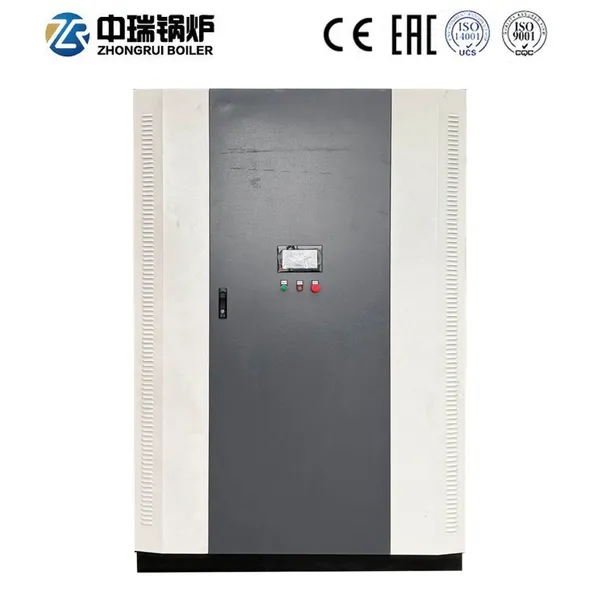

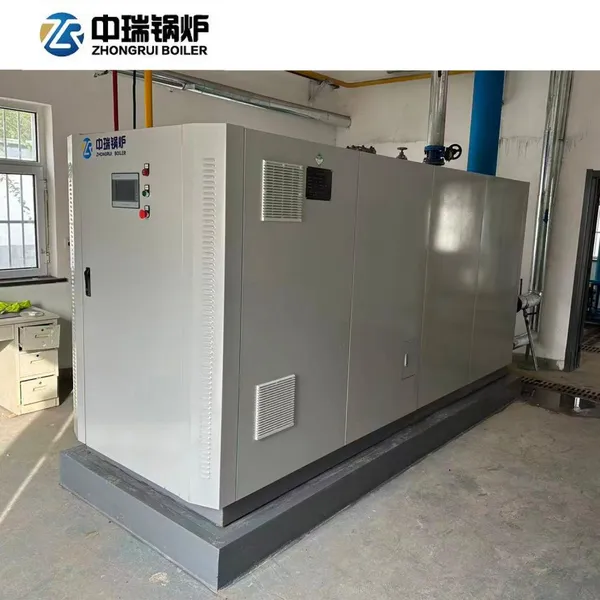

Introducing the state-of-the-art Vacuum Indirect Gas Oil Hot Water Boiler, a pinnacle of high-efficiency, eco-friendly, and intelligent heating solutions. This remarkable piece of equipment combines advanced vacuum indirect heating technology with a wealth of R&D expertise in thermal systems. It is meticulously engineered for environments with the highest requirements for environmental stewardship, operational safety, and precise hot water temperature regulation.
Our cutting-edge boiler incorporates a vacuum indirect heat exchange architecture complemented by top-tier gas oil combustion components. This design ensures swift heat transfer, outstanding thermal efficiency, and consistent hot water output. Its sleek and compact form conserves valuable floor space, suited perfectly for both industrial and commercial environments with area constraints. The boiler is delivered fully assembled, ensuring rapid on-site installation and commissioning. Beyond water and fuel connections, no additional construction or complex installation processes are required, thereby minimizing deployment time and cost.
Every boiler undergoes rigorous factory inspection and exhaustive performance testing to ensure utmost safety, reliability, and longevity. The system comprises a vacuum-tight boiler body, an efficient gas oil combustion system, an intelligent temperature regulation system, premium instrumentation and pumps, along with other components, all harmoniously integrated for optimal and stable operation.
This Vacuum Indirect Gas Oil Hot Water Boiler boasts clean-burning gas oil technology, ensuring low emissions, user-friendly operation, precise hot water control, and robust safety features. It is the perfect choice for diverse applications, including industrial processing, commercial heating, hotel hot water provision, and other sectors where dependable hot water supply is critical.
Main Technical Parameters
Boiler Model: Customizable, e.g., ZR-VIGO Series
Structure Type: Vacuum Indirect, Water Tube, Gas Oil Fired
Rated Capacity: 233-2330KW
Rated Pressure: Low Pressure (customizable as per requirements)
Applicable Fuel: Gas Oil (Heavy Oil/Light Oil optional)
Circulation Mode: Forced Circulation / Natural Circulation, customizable
Installation Mode: Vertical / Horizontal, customizable
Warranty: Customizable, e.g., 1 Year
Product Parameters
| Technical Parameters of Full Premix Vacuum/Phase Change Unit | |||||||||||||
| Heat Output/Heat Power | ×104kcal/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 150 | 180 | 200 |
| KW | 233 | 350 | 470 | 583 | 700 | 930 | 1050 | 1170 | 1400 | 1750 | 2100 | 2330 | |
| MW | 0.233 | 0.35 | 0.47 | 0.58 | 0.7 | 0.93 | 1.05 | 1.17 | 1.4 | 1.75 | 2.1 | 2.33 | |
| Designed Thermal Efficiency % | 97-106 | ||||||||||||
| Flue Gas Temperature ºC | ≤(Return Water Temperature + 10ºC) | ||||||||||||
| Power Supply V/Hz | 220-380/50 | ||||||||||||
| Total Power Consumption KW | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 12 | |
| Natural Gas | Minimum Consumption Nm³/h | 22 | 34 | 45 | 56 | 67 | 89 | 100 | 111 | 133 | 166 | 200 | 222 |
| Valve Diameter DN | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Pressure (Dynamic) kPa | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | |
| Nitrogen Oxides (NOx) | mg/Nm³ | 30 | |||||||||||
| Boiler Safety Valve N3 | DN | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 |
| Boiler Steam Discharge N4 | DN | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Boiler BlowdownN5 | DN | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Condenser Condensate Discharge N6 | DN | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Boiler Flue Gas N7 | φmm | 194 | 194 | 194 | 245 | 245 | 273 | 273 | 273 | 325 | 377 | 377 | 377 |
| Boiler Net Weight | t | 1.5 | 1.7 | 1.9 | 2.3 | 2.3 | 3.1 | 3.1 | 3.1 | 3.8 | 4.8 | 4.8 | 4.8 |
| Hot Water Tank Capacity | t | 0.38 | 0.42 | 0.48 | 0.56 | 0.56 | 0.7 | 0.7 | 0.7 | 0.9 | 1.45 | 1.45 | 1.45 |
| Operating Weight | t | 1.9 | 2.1 | 2.4 | 2.9 | 2.9 | 3.8 | 3.8 | 3.8 | 4.7 | 6.3 | 6.3 | 6.3 |
| Vacuum Hot Water Unit | Type A Converter (△t=10ºC, Inlet/Outlet Temperature: 40ºC/50ºC, 50ºC/60ºC) | ||||||||||||
| Heat Output | ×104kcal/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 150 | 180 | 200 |
| Rated Circulation | m³/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 150 | 180 | 200 |
| Water Supply Port N1 /Return N2 | DN | 50 | 65 | 80 | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 |
| Vacuum Hot Water Unit | Type B Converter (△t=20ºC, Inlet/Outlet Temperature: 40ºC/60ºC, 60ºC/80ºC) | ||||||||||||
| Heat Output | ×104kcal/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 150 | 180 | 200 |
| Rated Circulation | m³/h | 10 | 15 | 20 | 250 | 30 | 40 | 45 | 50 | 60 | 75 | 90 | 100 |
| Water Supply Port N1 / Return N2 | DN | 40 | 50 | 50 | 65 | 65 | 80 | 80 | 80 | 100 | 125 | 125 | 125 |
| Slightly Positive Pressure Phase Change Electric Hot Water Unit |
Type A Converter (△t=25ºC, Inlet/Outlet Temperature: 95ºC/70ºC) | ||||||||||||
| Heat Output | ×104kcal/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 150 | 180 | 200 |
| Rated Circulation | m³/h | 10 | 15 | 20 | 25 | 24 | 32 | 36 | 40 | 48 | 60 | 72 | 80 |
| Water Supply Port N1 / Return N2 | DN | 40 | 50 | 50 | 65 | 65 | 80 | 80 | 80 | 125 | 125 | 125 | 125 |
| Slightly Positive Pressure Phase Change Electric Hot Water Unit |
Type B Converter (△t=25ºC, Inlet/Outlet Temperature: 95ºC/70ºC) | ||||||||||||
| Heat Output | ×104kcal/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 150 | 180 | 200 |
| Rated Circulation | m³/h | 4 | 7 | 9 | 11 | 13 | 18 | 20 | 22 | 27 | 33 | 40 | 44 |
| Water Supply Port N1 /Return N2 | DN | 40 | 40 | 40 | 50 | 50 | 65 | 65 | 65 | 65 | 65 | 80 | 80 |
