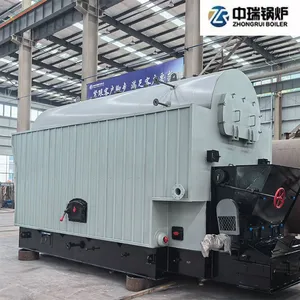

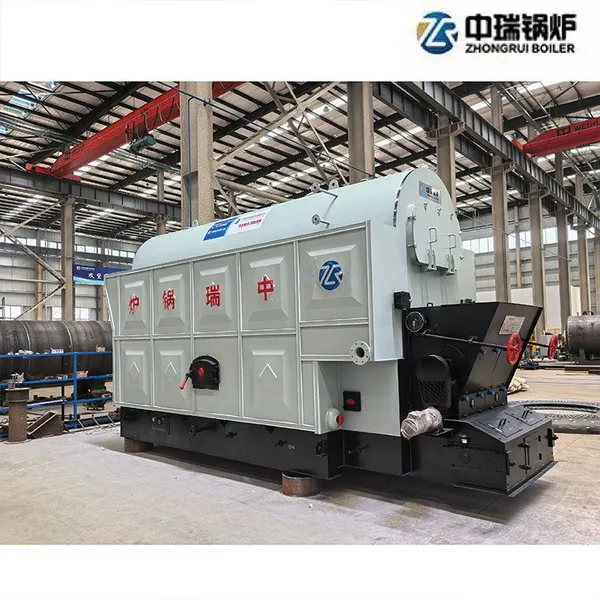

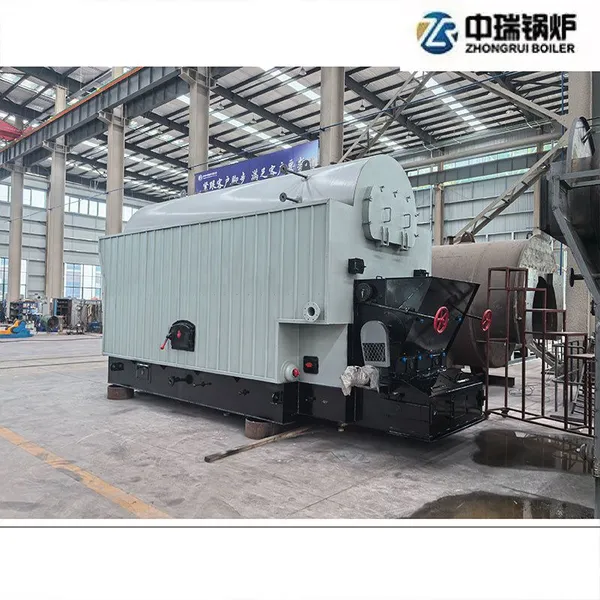

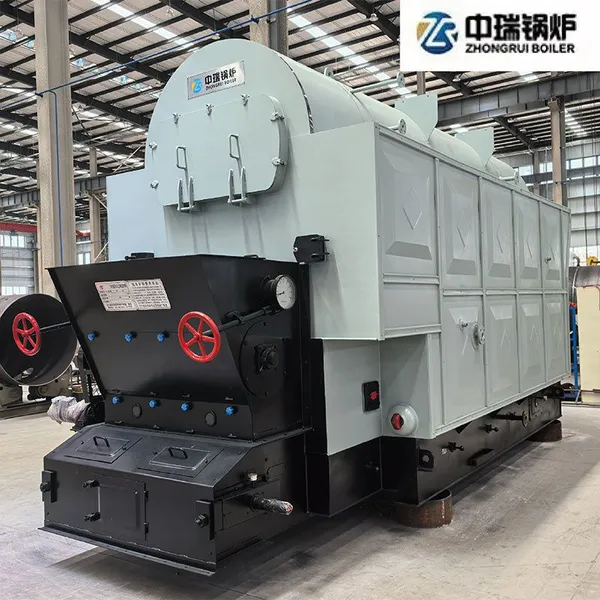

Help CenterRapid-Heating Dzl 4.2MW Peanut Shell Hot Water Boiler, Single Drum, 1.25MPa 130/70℃, for Medium Industrial Baking and Coating Processes
Related Products
-
Advanced Hot Water Boiler for Food Processing With Low Emissions BoilerUS$ 1000 - 6000MOQ: 1 Unit -
High Quality Industrial Burner Gas Burner for Furnace Boiler Part, Biomass BurnerNegotiableMOQ: 1 Unit
-
Advanced Steam Boiler for Food Processing With Low EmissionsUS$ 2000 - 5000MOQ: 1 Unit
-
Electric Steam Generator Boiler With 1-Year Warranty and Custom DesignUS$ 2000 - 32000MOQ: 1 Unit
-
High-Efficiency Waste Oil Steam Boiler for Chemical PlantsUS$ 2000 - 5000MOQ: 1 Unit
DZL Coal-Fired Biomass Hot Water Boiler
Introducing the DZL coal-fired biomass hot water boiler, an epitome of efficiency and versatility in heating solutions, masterfully developed by Yangzhou Zhongrui Boiler Co., Ltd. This innovative boiler integrates cutting-edge combustion technology with decades of industry expertise.
Engineered with a single-drum longitudinal structure and a sophisticated layer-burning combustion method, this boiler is adept at utilizing both coal and biomass pellets. It boasts superior heat transfer capabilities, remarkable thermal efficiency, and a steadfast reliability. The intelligently designed boiler body ensures optimal water circulation and heat exchange, guaranteeing abundant steam output and consistent quality.
Delivered as a fully assembled unit, the DZL boiler simplifies on-site installation and commissioning. With minimal connections required for water, fuel, and electricity, it eliminates the need for additional civil works or special installation procedures, significantly reducing time and expenses for users.
Every DZL boiler is subjected to rigorous factory inspection and comprehensive commissioning to assure peak performance and utmost safety. Comprising a meticulously crafted boiler body, a premium burner for versatile fuel options, an intelligent control system, top-tier instrumentation and pumps, along with essential accessories, it epitomizes quality and reliability.
The DZL coal-fired biomass steam boiler stands out for its commendable attributes like clean combustion (ideal for biomass), broad fuel compatibility, user-friendly operation, and robust load adjustment capacity. It is a preferred choice across diverse industries such as food & beverage, textile, printing & dyeing, chemical, building materials, and industrial manufacturing, adeptly meeting the steam demands of varied production processes.
Main Technical Parameters
Boiler Model: DZL Series
Structure Type: Single Drum Longitudinal, Layer Burning, Fire Tube
Rated Capacity:2.1-14MW
Rated Pressure: 0.7,1.0,1.25,1.6 MPa
Applicable Fuels: Coal, Biomass Pellets
Product Parameters
| Main Technical Parameters of DZL Coal-Fired Biomass Hot Water Boiler | |||||||||||
| Item | Unit | DZL1.4 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7 | DZL10.5 | DZL14 | |||
| Rated Heat Output | MW | 2.1 | 2.8 | 4.2 | 5.6 | 7.0 | 10.5 | 14 | |||
| Working Pressure | MPa | 0.7,1.0,1.25,1.6 | |||||||||
| Outlet Water Temperature | ºC | 95/115 | |||||||||
| Return Water Temperature | ºC | 70 | |||||||||
| Applicable Fuels | Coal, Biomass Pellets | ||||||||||
| Designed Thermal Efficiency | % | 80.8 | 80.3 | 80.5 | 80.3 | 81.6 | 82 | 81.5 | |||
| Fuel Consumption | kg/h | 330 | 660 | 99 | 1320 | 1625 | 2400 | 3200 | |||
| Maximum Transport Dimensions | Length | mm | 5690 | 6290 | 7900 | 6810 | 6890 | 7600 | 8150 | 8100 | 8000 |
| Width | mm | 2860 | 2950 | 2900 | 3100 | 3100 | 3200 | 3200 | 3380 | 3380 | |
| Height | mm | 3400 | 3550 | 3600 | 3270 | 3500 | 3160 | 3500 | |||
| Weight of Large Components | t | 23.3 | 31 | 36.8 | 20/15 | 23/18 | 18/24 | 24/24 | |||
| Structure Type | Quick-Assembly | Assembly |
