Electric Steam Generator

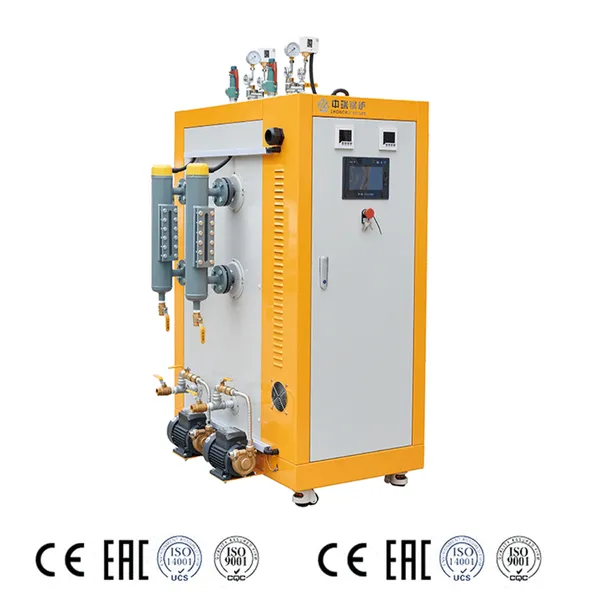

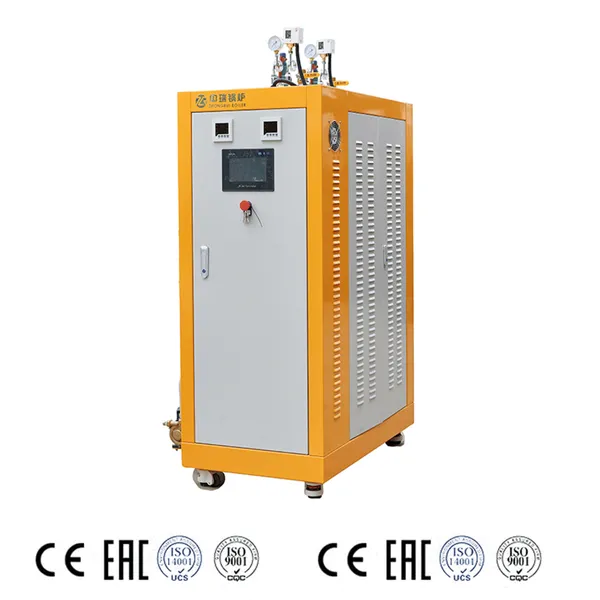

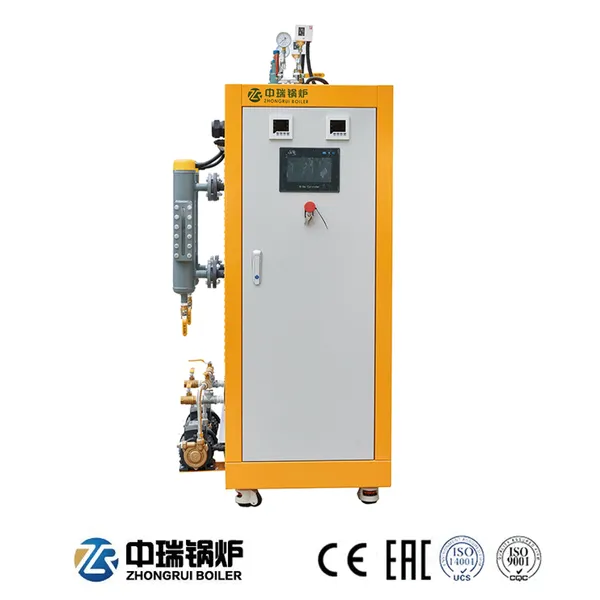

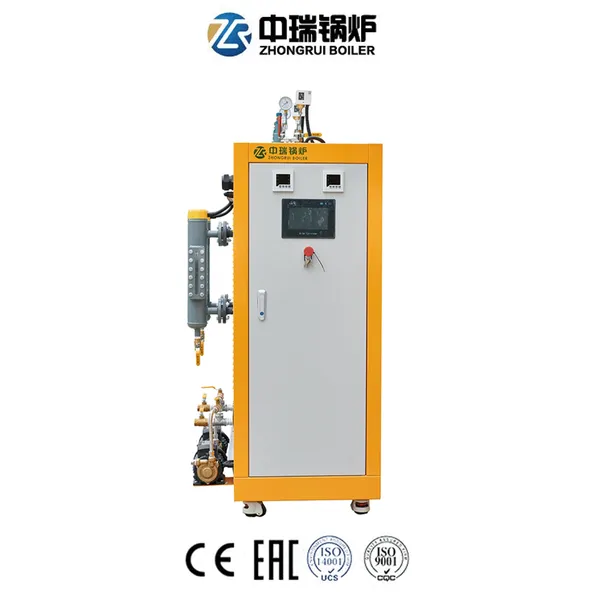

Presenting the remarkable Zhongrui Electric Steam Generator, a true testament to the innovative spirit of Yangzhou Zhongrui Boiler Co., Ltd. This cutting-edge, eco-conscious powerhouse masterfully integrates the latest electric heating advancements with our vast expertise in thermal systems, gained from years of dedicated research and development. Ideal for those seeking an environmentally friendly solution with unparalleled safety features and precise steam regulation, this generator establishes a new benchmark in superior performance.
Crafted with meticulous attention to detail, the vertical water tube design of this boiler employs state-of-the-art electric heating elements. This design strategy guarantees rapid heat transfer, outstanding thermal efficiency, and reliable steam generation, while its compact vertical configuration is perfect for facilities with limited space, offering remarkable flexibility across varied operational environments.
Supplied as a complete package, our generator is engineered for straightforward on-site installation and commissioning. With no need for extensive groundwork or complex setup, requiring only water and power connections, it drastically reduces installation time and minimizes expenses, making it exceptionally user-friendly and cost-effective.
Each boiler undergoes stringent factory tests and comprehensive performance assessments to guarantee consistent safety, reliability, and longevity. The robust system is a symphony of a finely crafted boiler body, high-quality electric heating components, an advanced control system, sophisticated instrumentation, pumps, a steam header, and essential accessories, all working in harmony to ensure maximum efficiency and stable performance.
The Zhongrui Electric Steam Generator series represents the pinnacle of clean, emission-free electric heating technology. It promises effortless operation, finely tuned steam control, and uncompromised safety. Perfectly suited for industries such as food & beverage, pharmaceuticals, laboratories, small-scale manufacturing, hospitality, and any field where immaculate, reliable steam is a necessity.
Main Technical Parameters
Boiler Model: Electric Steam Generator Series
Structure Type: Water Tube, Electric Heating
Rated Capacity: 30-500kg/h
Rated Pressure: Low Pressure (customizable as per requirements)
Rated Temperature: 151/170 °C (customizable as per requirements)
Applicable Fuel: Electric Heating
Circulation Mode: Natural Circulation
Installation Mode: Vertical Floor-mounted
Product Parameters
| Electric Steam Generator | ||||||||||||
| Rated Evaporation | kg/h | 30 | 50 | 65 | 75 | 100 | 130 | 150 | 200 | 250 | 300 | 500 |
| Rated Working Pressure | mPa | 0.4/0.7 | 0.7 | |||||||||
| Rated Steam Temperature | ºC | 151/170 | 170 | |||||||||
| Rated Electric Power | kw | 24 | 36 | 48 | 54 | 72 | 96 | 108 | 144 | 180 | 216 | 360 |
| Number of Heating Tubes * Power | kw | 2*12 | 2*18 | 2*18 | 3*18 | 4*18 | 4*24 | 6*18 | 8*18 | 12*15 | 12*18 | 16*18 |
| Feed Water Temperature | ºC | 20 | ||||||||||
| Design Thermal Efficiency | % | 98 | ||||||||||
| Water Capacity | L | 23 | 26.6 | |||||||||
| Transport Weight | T | 0.09 | 0.18 | 0.19 | 0.2 | 0.21 | 0.25 | 0.28 | 0.3 | 0.35 | 0.4 | 0.58 |
