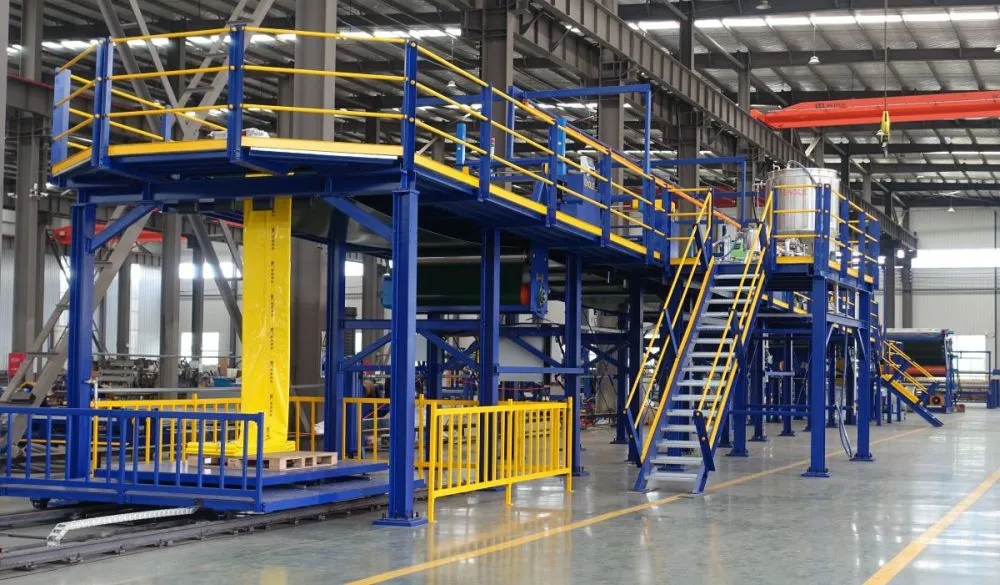

As a dedicated manufacturer with over a decade of experience in industrial machinery, Qingdao Yongke Machinery Co., Ltd. is proud to present our advanced Robust Production Line for UV-Cured Glass Fiber Liner Hoses. This integrated system is engineered for the efficient, high-volume manufacturing of durable, corrosion-resistant liner hoses essential for demanding industrial applications. Our commitment to quality, embodied in our ISO9001, ISO14000, and OHSAS18001 certifications, ensures that every production line we deliver is built for reliability and performance, helping our global clients in over a dozen markets secure their supply chains for critical fluid handling components.
This production line represents a significant technological advancement in hose manufacturing. By utilizing ultraviolet (UV) light curing for the glass fiber-reinforced liner, it enables rapid, energy-efficient, and environmentally friendly production compared to traditional thermal curing methods. The result is a hose product with superior mechanical properties, excellent chemical resistance, and consistent quality. Operating from our 10,000-30,000 square meter facility, we design and assemble these lines to be the backbone of your manufacturing operation, providing a tangible return on investment through increased output and reduced operational costs.
Core Technical Features & Advantages:
-
Advanced UV Curing Technology: The heart of the line is a high-intensity UV curing chamber. This system polymerizes the resin-saturated glass fiber matrix instantly, leading to a fully cured, dimensionally stable liner. Benefits include:
- Dramatically reduced curing cycle times, enabling higher production speeds.
- Lower energy consumption as no prolonged heating is required.
- Minimized VOC (Volatile Organic Compound) emissions, supporting cleaner production.
- Exceptional control over the curing process, ensuring uniform material properties throughout the hose length.
- Precision Fiber Application & Impregnation: The line incorporates sophisticated mechanisms for the continuous application and wet-out of glass fiber strands or fabrics. This ensures optimal resin-to-fiber ratio and complete encapsulation of the fibers, which is critical for achieving the hose's high burst pressure and fatigue resistance.
- Robust Mechanical Design: Built with heavy-duty frames, precision guides, and high-torque drives, the production line is designed for 24/7 operation with minimal downtime. Key components are sourced from reputable suppliers to guarantee longevity and consistent performance.
- Integrated Quality Control: The line can be equipped with inline monitoring systems for parameters like wall thickness, ovality, and UV light intensity. This real-time data allows for immediate process adjustments, ensuring every meter of hose meets stringent specifications.
- Flexible Configuration: We understand that hose requirements vary. Therefore, our production line is highly customizable. Parameters such as hose inner diameter (ID), wall thickness, liner composition, and production speed can be tailored to your specific product portfolio.
Key Technical Specifications & Output Parameters:
| Parameter | Typical Range / Capability | Notes |
|---|---|---|
| Hose Inner Diameter (ID) | 25 mm - 300 mm | Custom diameters outside this range are available upon request. |
| Standard Production Length | Continuous coil or cut-to-length | Line includes a cutting and coiling/winding station. |
| Line Power Requirement | Customizable (3-Phase) | Depends on line size and configuration. |
| Control System | PLC with HMI Touchscreen | Allows for recipe storage, fault diagnosis, and production data logging. |
| Floor Space Required | Approx. 30m (L) x 5m (W) | Layout can be optimized based on factory constraints. |
Benefits for Your Business:
- Enhanced Product Quality: Produce hoses with consistent, high-grade liners that resist a wide range of chemicals, acids, and alkalis, meeting the demands of OEMs and end-users in harsh environments.
- Increased Production Efficiency: The continuous, automated process significantly boosts output compared to batch methods, reducing labor costs per unit and increasing your overall capacity.
- Strong Market Credibility: Each production run is backed by a Mill Test Report (MTR). This traceable document, detailing material composition and key performance tests, provides your customers with verified proof of quality, facilitating approvals and building trust.
- Operational Sustainability: The UV curing process is a greener alternative, using less energy and generating fewer emissions, which can help your company meet its environmental and social governance (ESG) goals.
Trust in a partner with a proven track record. Qingdao Yongke Machinery supports a global clientele from North America to Oceania, with an annual export value reflecting the reliability of our solutions. Our team of 51-100 skilled professionals is committed to providing comprehensive support, from initial line design and factory acceptance tests to installation guidance and after-sales service. By choosing this robust production line, you are not just purchasing machinery; you are investing in a scalable, future-proof manufacturing capability for a high-demand industrial product. Contact us today to discuss how we can configure a system to unlock your production potential and secure your supply of premium UV-cured glass fiber liner hoses.
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of UV curing over traditional oven curing for these hoses?
A1: UV curing offers significantly faster processing times (seconds vs. hours/minutes), leading to higher production speeds and lower energy consumption. It also provides more precise control over the cure, resulting in more consistent material properties and potentially superior chemical resistance in the final liner.
Q2: Can this production line manufacture hoses for potable water applications?
A2: Yes, it can. The key is using resins and glass fibers that are certified for potable water contact (e.g., compliant with NSF/ANSI 61 or similar standards). The production process itself is suitable; the compliance is determined by the raw materials you select and use in the line.
Q3: What is included in the "Mill Test Report" (MTR) you provide?
A3: The MTR is a quality certificate for the raw materials used (e.g., resin, glass fiber). It typically includes batch numbers, chemical composition analysis, physical property data (like tensile strength), and confirmation that the materials meet the specified purchase standards. It provides traceability and verification for your customers.
Q4: How customizable is the production line? Can it produce non-circular profiles?
A4: The line is highly customizable in terms of hose diameter, wall thickness, liner composition, and production speed. However, the standard configuration is designed for producing continuous, circular cross-section hoses. Producing non-circular profiles would require significant modifications to the forming and curing sections and should be discussed as a special project.
Q5: What kind of after-sales support and training do you offer?
A5: We provide comprehensive support including detailed operation and maintenance manuals, installation supervision if requested, and on-site or remote training for your operators and maintenance staff. We also offer technical support via email, phone, and video call, and supply spare parts for critical components.
Q6: What is the typical lead time for delivering and installing a complete line?
A6: Lead time varies based on the complexity and customization of the order. For a standard configuration, it generally ranges from 90 to 150 days after order confirmation, covering manufacturing, testing, and preparation for shipment from Qingdao port.
Q7: Can the line integrate with other processes, like adding an outer cover or reinforcement layer?
A7> Yes, the line can be designed as a core module. We can engineer extensions or work with you to integrate downstream stations for applying additional layers, such as a thermoplastic outer jacket or a secondary braided reinforcement, creating a complete composite hose production solution.
Q8: How does your company ensure consistent quality in the machinery you build?
A8> Our quality management system, certified to ISO9001, governs every stage from design and procurement to assembly and testing. We use quality-controlled components, conduct rigorous in-factory run-off tests on completed lines, and involve our engineering team throughout the process to ensure the final product meets the agreed performance specifications.
