1. Basic Information

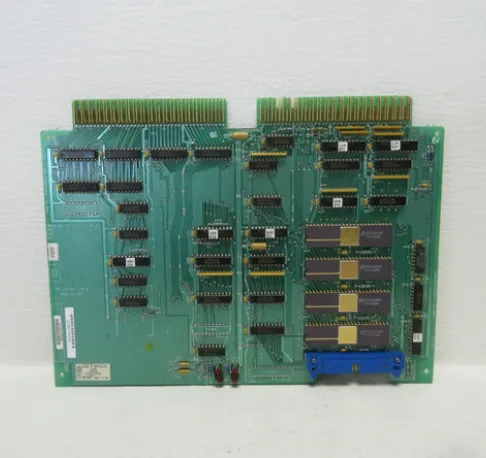

GE IC600CB524M is a dedicated Arithmetic Control Module for GE Fanuc Series 6 PLC systems, serving as the core operation expansion unit of legacy industrial control systems. It undertakes high-precision floating-point operation, industrial algorithm calculation and engineering value conversion tasks, effectively sharing the operation load of the main CPU.
Featuring independent operation core, expandable memory and strong anti-interference capability, this module optimizes system control accuracy and response speed. It is widely used in power, metallurgy and chemical industries for legacy system replacement, operation performance upgrade and precision control optimization, ensuring long-term stable operation of old industrial control equipment.
2. Technical Specifications
2.1 Core Operation Performance
Model: IC600CB524M, Type: Series 6 Arithmetic Control Module
Compatible System: GE Fanuc Series 6 PLC System
Core Functions: Independent floating-point operation, arithmetic calculation, engineering conversion, data filtering and process compensation
Operation Advantage: Independent core operation without occupying main CPU scan cycle
Memory Feature: Expandable industrial memory for mass data caching and continuous operation
Algorithm Support: Supports industrial common algorithms such as filtering, compensation and proportional integral calculation
Linkage Capacity: Cooperates with discrete I/O points to realize operation result linkage control
2.2 Electrical & Bus Specifications
Power Supply: Series 6 rack backplane power supply
Rated Voltage: 24VDC, adaptive voltage range ±20%
Bus Protocol: Dedicated Series 6 high-speed backplane bus for data interaction
Isolation Design: Electrical isolation between operation unit and bus interface
Protection Mechanism: Over-voltage, over-current, surge and ESD multi-level protection
Power Consumption: Low power design with low temperature rise for long-term closed cabinet operation
2.3 Diagnosis & Operation Characteristics
Power-on Self-test: Comprehensive self-inspection of operation core, memory and bus firmware
Real-time Diagnosis: Identifies operation overflow, data abnormality, bus disconnection and memory fault
Fault Reporting: Precise fault code classification for quick troubleshooting
LED Indication: Onboard status indicators for run, fault and communication
Fault Tolerance: Automatic correction of transient operation abnormalities to ensure continuous system operation
Data Protection: Power-off cache protection for key operation parameters and configurations
2.4 Environmental & Protection Specifications
Operating Temperature: -40℃～+70℃ industrial ultra-wide temperature range
Storage Temperature: -40℃～+85℃ high and low temperature impact resistance
Humidity Range: 5%～95%RH (non-condensing), dust-proof and moisture-proof
EMC Performance: High anti-interference capability against harmonic and electromagnetic noise
Vibration Resistance: Reinforced PCB design for long-term vibrating working conditions
Protection Grade: IP20 standard for indoor industrial cabinet installation
2.5 Physical & Installation Specifications
Structure: Series 6 standard compact modular board card
Installation: Embedded rail mounting for Series 6 standard rack
Structural Feature: Lightweight reinforced structure with stable long-term operation
Durability: Industrial anti-aging process for 7×24-hour continuous operation
3. Working Principle
Power-on Initialization & Self-test: After backplane power-on, the module completes full hardware self-test, loads firmware and operation configuration, initializes algorithm parameters and bus protocol, and enters standby state.
Instruction Reception & Task Loading: Receives arithmetic operation tasks and data parameters from the main CPU, caches tasks in local memory, and queues them for execution to reduce main CPU load.
Independent High-speed Operation: Executes complex floating-point calculation, engineering conversion, data filtering and process compensation independently without occupying main CPU scan resources, improving overall system efficiency.
Result Verification & Synchronization: Verifies and corrects operation data errors, synchronizes accurate results to the main CPU and system registers to ensure precise process parameters.
Linkage Control Scheduling: Drives equipment adjustment, logic interlock and parameter correction based on operation results to realize precise closed-loop process control.
Real-time Monitoring & Protection: Monitors hardware, bus and operation status in real time, locks tasks and uploads fault codes during abnormalities to prevent process fluctuation and equipment misoperation.
4. Application Scenarios
4.1 Complex Process Algorithm Expansion
Shares high-load operation tasks for power, metallurgy and chemical complex processes, solves the problems of insufficient main CPU operation capacity, long scan cycle and low control accuracy, and optimizes system response speed and control precision.
4.2 Legacy Series 6 System Spare Part Replacement
Directly replaces aging faulty arithmetic modules without program and wiring modification, quickly restoring system operation performance and extending the service life of legacy GE Series 6 control systems.
4.3 High-precision Analog Control Optimization
Optimizes the stability of temperature, pressure, flow and liquid level parameters through independent filtering, difference compensation and mean value calculation, eliminating data jitter, overshoot and steady-state errors.
4.4 Complete Equipment Automation Upgrade
Adds independent arithmetic operation capability for old automatic equipment systems, expands algorithm functions, and realizes low-cost improvement of equipment automation level and control accuracy.
4.5 System Maintenance & Fault Rectification
Eliminates hidden dangers such as operation data error, parameter drift and system response lag during annual maintenance, ensuring long-term stable and accurate operation of the control system.
