1. Basic Information

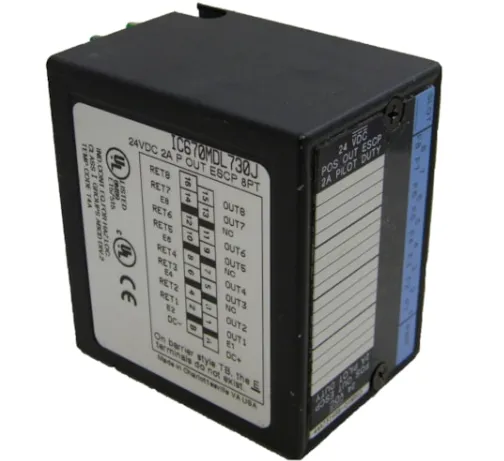

GE IC670MDL730 is an 8-channel 24VDC positive logic discrete output module for GE Fanuc Field Control and Genius distributed I/O systems. Adopting PNP sourcing output design, it converts PLC logic commands into field switch signals to drive solenoid valves, indicator lights, relays and other low-voltage DC actuators.
Equipped with independent channel LED indicators, built-in fuse overcurrent protection and surge suppression circuit, the module supports distributed remote networking and real-time fault diagnosis. Featuring stable output performance and strong load capacity, it is widely used in legacy system replacement, I/O point expansion and on-site control loop renovation in industrial automation fields.
2. Technical Specifications
2.1 Core Channel & Output Characteristics
Model: IC670MDL730, Type: 8CH 24VDC Positive Logic Discrete Output Module
Compatible System: GE Fanuc Field Control / Genius Distributed I/O System
Channel Quantity: 8 independent DC output channels, single common group design
Rated Output Voltage: 24VDC, Operating Voltage Range: 12VDC～30VDC
Load Current: 2A continuous resistive load; 5A instantaneous inductive surge load
Output Logic: PNP sourcing positive logic output
Adaptable Load: Solenoid valves, relays, indicator lights, alarm devices
Response Performance: Fast switching response without output delay
2.2 Electrical & Protection Specifications
Logic Power Supply: Backplane bus power supply
Field Load Power: External 24VDC industrial power supply
Built-in Fuse: 5A slow-blow fuse for overcurrent and short-circuit protection
Isolation Design: Electrical isolation between logic side and field output side
Surge Protection: Built-in surge absorption circuit for inductive load reverse EMF
Fault Isolation: Single-channel fault independent isolation without affecting other channels
2.3 Communication & Operation Features
Bus Protocol: Dedicated Genius industrial bus, compatible with IC670GBI002 V2.10+
Communication Mode: High-speed distributed remote I/O data interaction
Status Indication: Independent LED for each channel; public indicators for power and fault
Power-on Self-test: Comprehensive self-inspection of circuit, bus and fuse status
Fault Diagnosis: Accurately identifies overload, short circuit, fuse blow and bus disconnection
Fault Tolerance: Fault channel locking protection to ensure continuous operation of other channels
2.4 Environmental & Physical Specifications
Operating Temperature: 0℃～+60℃
Storage Temperature: -40℃～+85℃
Humidity Range: 5%～95%RH (non-condensing)
EMC Performance: Industrial anti-electromagnetic interference design
Vibration Resistance: Reinforced PCB anti-vibration structure
Protection Grade: IP20 indoor protection standard
Installation: Embedded mounting for Field Control standard base
Cable Specification: Adaptable to AWG#14～AWG#16 industrial cables
3. Working Principle
Power-on Initialization & Self-test: The module obtains logic power from the backplane, completes full hardware self-test and Genius bus parameter initialization, synchronizes with the main control system, and enters standby state.
Bus Command Reception & Parsing: Receives real-time switch output commands from PLC via Genius bus, verifies command validity, and parses on/off logic of each channel.
Power Drive & Output Execution: The external 24VDC power supply passes through the built-in fuse protection circuit, drives the corresponding channel to conduct in PNP sourcing mode, and supplies power to field loads for equipment action.
Status Feedback & Indication: Synchronously lights up channel LED indicators according to output status, collects real-time load operating conditions, and uploads all status data to the main control system.
Overload & Short-circuit Protection: The built-in fuse blows quickly in case of overload or short circuit, locks the faulty channel, triggers fault alarm, and protects the module and field equipment.
Closed-loop Cyclic Operation: Continuously executes output commands, feeds back operating status and monitors loop conditions to realize stable closed-loop control operation.
4. Application Scenarios
4.1 Low-voltage Field Equipment Drive Control
Drives 24VDC on-site actuators such as solenoid valves, alarm lamps, status indicators and small relays, realizing basic automatic control functions including equipment start-stop and process action execution.
4.2 Genius Distributed I/O Networking
Supports field distributed installation, reduces long-distance wiring loss, realizes centralized control of scattered process equipment, and adapts to large-scale factory and multi-station automation scenarios.
4.3 Process Interlock & Safety Output
Executes safety protection actions such as equipment shutdown, valve switching and fault alarm for chemical, power and utility systems, ensuring the safety and stability of process production.
4.4 Legacy Distributed System Spare Replacement
Directly replaces aging output modules with insufficient load capacity and abnormal output faults. No program or wiring modification is required to quickly restore system control performance.
4.5 Automation System I/O Expansion & Upgrade
Realizes low-cost switch point expansion for process upgrading and new equipment renovation, expands system control scope, and optimizes the automation level of legacy systems.
