Help CenterGE IC697MDL250 120VAC Discrete Logic Input Module
Related Products
-
GE IC697CPX928-CD Central Processing Unit ModuleNegotiableMOQ: 1 Piece -
GE IC698CRE030 Redundant CPU ModuleNegotiableMOQ: 1 Piece
-
GE IC698CMX016-ED Controls the Memory Swap ModuleNegotiableMOQ: 1 Piece
-
GE IC698PSA100 Power ModuleNegotiableMOQ: 1 Piece
-
GE 369-HI-0-M-0-0-0 Motor Protection RelayNegotiableMOQ: 1 Piece
1. Basic Information

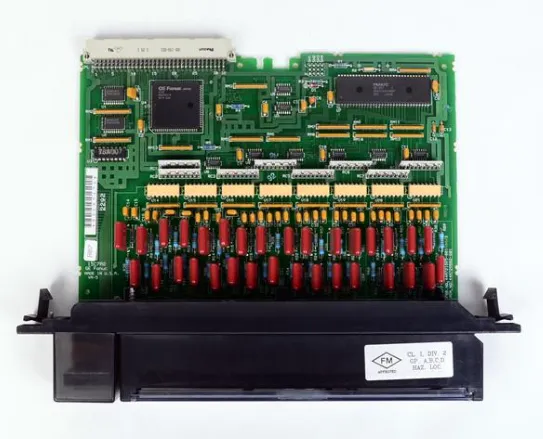

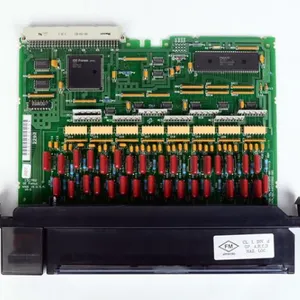

GE IC697MDL250 is a 32-point 120VAC discrete digital input module designed for GE Fanuc Series 90-70 PLC. It converts field AC switch signals into digital data for PLC CPU via backplane bus. 32 channels are split into 4 isolated groups of 8 points each with inter-group isolation, equipped with fixed 20ms input filter and compatible with 2/3-wire AC proximity switches. Address assignment is fully configured by programming software without jumpers or DIP switches.
2. Technical Specifications
2.1 Basic Spec
Model: IC697MDL250
Brand: GE Fanuc, Origin: USA
Type: AC Digital Input Module(DI)
Compatible System: GE Series 90-70 PLC Rack
Points:32DI,4 isolated groups×8 points,500Vrms isolation between groups
Mount: Standard slot installation with mechanical anti-misplug key
Ingress Rating:IP20
2.2 Electrical Spec
Rated Input:120VAC,47~63Hz
ON range:75~132VAC;OFF range:0~25VAC
Typical input current per channel:10mA@rated voltage
Backplane consumption:0.35A@5VDC
Filter time:20ms fixed hardware filter
Input standard:IEC Type2 reactive input
2.3 Environment Spec
Operating Temp:0℃~+60℃;Storage Temp:-40℃~+85℃
Humidity:5%~95%RH(non-condensing)
2.4 Indicator & Configuration
Top-mounted individual LED for each channel status display
Software-based I/O address configuration, no hardware setting needed
3. Main Features
Four-group isolated circuit avoids cross-group fault spread when single group short-circuited.
Built-in 20ms filter eliminates industrial transient noise to prevent false trigger.
Compatible with mechanical switches and AC proximity switches widely used in industry site.
Mechanical anti-misplug key prevents wrong-type module installation to avoid hardware burnout.
Low heat dissipation capacitive input circuit improves long-term operational stability.
Software address setup simplifies field modification and system expansion.
4. Working Principle
After rack power-up, module gets 5VDC from backplane and completes self-test. Field 120VAC signal passes filter and isolation circuit, module judges ON/OFF status then transfers digital data to backplane for CPU scan; corresponding LED lights up when channel is switched ON. Fault on single group will be isolated without affecting other input groups.
5. Typical Applications
Power plant auxiliary control, chemical process control, metallurgy production line, heavy-duty automatic equipment and spare replacement for aged Series 90-70 control system.
