1. Basic Information

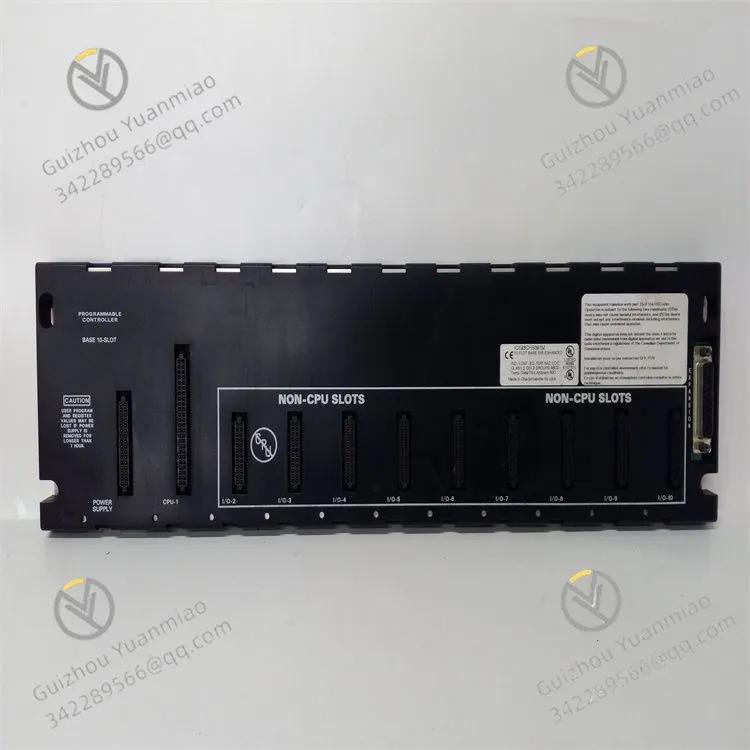

GE IC693CHS392 is a 10-slot standard main baseplate dedicated for GE Fanuc Series 90-30 PLC systems. As the core hardware carrier of the control system, it carries CPU, power supply, I/O modules and communication modules uniformly, providing backplane bus communication, power distribution and signal transmission channels for the whole system.
Adopting industrial reinforced PCB layout and anti-interference bus design, the baseplate ensures unified system timing and stable data interaction. With 10 high-compatibility slots, it supports full-capacity module configuration and multi-CPU networking. It is widely used in system construction, I/O expansion and legacy equipment renovation of industrial automation fields.
2. Technical Specifications
2.1 Structure & Slot Features
Model: IC693CHS392, Type: Series 90-30 10-Slot Standard PLC Baseplate
Compatible System: Full series of GE Fanuc Series 90-30 PLC modules
Slot Quantity: 10 universal standard slots for all single-slot 90-30 modules
Recommended Layout: Slot 1 for CPU, remaining slots for power supply, I/O and communication modules
Expansion Capacity: Supports remote extension cable networking and multi-rack linkage
Multi-CPU Support: Maximum 7 CPUs collaborative operation according to CPU configuration
Dimensions: 443mm × 142mm × 130mm
2.2 Electrical & Bus Specifications
Backplane Voltage: 5VDC rated logic power supply
Rated Current: 150mA standard backplane current load
Bus Type: 90-30 dedicated high-speed parallel backplane bus
Signal Performance: Impedance matching design eliminates signal crosstalk and reflection
Power Distribution: Zoned power supply design for independent fault isolation
Insulation Protection: Reinforced insulation to prevent short circuit and electric leakage
2.3 Operation & Compatibility
Full Compatibility: Compatible with all 90-30 CPU, power, I/O and communication modules
Configuration-free Operation: Passive hardware baseplate, plug-and-play without program setting
Timing Synchronization: Unifies system scan cycle and module communication timing
Fault Isolation: Single-slot fault isolation without affecting overall system operation
Long-term Stability: Maintenance-free passive structure without aging and parameter drift
2.4 Environmental & Physical Specifications
Operating Temperature: 0℃～+60℃
Storage Temperature: -40℃～+85℃
Humidity Range: 5%～95%RH (non-condensing)
EMC Performance: Industrial anti-electromagnetic interference wiring design
Vibration Resistance: Reinforced anti-loosening structure for industrial vibration scenarios
Protection Grade: IP20 indoor protection standard
Installation: Standard DIN rail embedded mounting
3. Working Principle
Hardware Carrying & Positioning: The 10-slot baseplate acts as the system foundation, fixing all functional modules to form a complete PLC hardware structure and ensuring accurate module positioning.
Unified Power Distribution: Distributes stable 5VDC logic power from the power module to each slot through backplane circuits, providing basic operating power for all module logic units.
Backplane Bus Data Transmission: Builds a high-speed parallel data interaction channel, realizing real-time command issuance, status upload and data synchronization between CPU and peripheral modules.
Hardware Topology Identification: The CPU scans all slot hardware information during power-on self-test, matches system topology configuration, and completes system initialization and startup.
Timing Synchronization & Anti-interference: Unifies system bus timing, corrects communication time difference, and filters industrial clutter interference to ensure accurate and stable signal transmission.
Fault Tolerant & Stable Operation: Isolates single-point slot faults independently, prevents local abnormalities from causing overall system bus disorder and power failure, and guarantees long-term closed-loop stable operation.
4. Application Scenarios
4.1 90-30 System Overall Construction
Serves as the 10-slot main baseplate for new Series 90-30 automation projects, supporting full configuration of CPU, power supply, multi-group I/O and communication modules to meet medium and large-scale control system construction requirements.
4.2 Large-scale I/O Point Expansion
Realizes high-density I/O point expansion for process upgrading and equipment renovation. The 10-slot large-capacity design avoids redundant rack configuration and reduces system transformation cost.
4.3 Legacy System Rack Fault Replacement
Directly replaces aging baseplates with poor contact, bus failure and line aging. No program or wiring modification is required to quickly restore system communication and power supply stability.
4.4 Complex System Multi-module Networking
Adapts to complex control scenarios with multi-communication modules and extended equipment, supports multi-CPU collaborative networking and remote I/O linkage, and meets high-complexity process control requirements.
4.5 Disassembled Equipment Reconstruction & Reuse
Standard 10-slot architecture supports modular recombination of legacy equipment, ensures reconstructed systems meet factory-standard operating performance, and extends the service life of old automation equipment.
