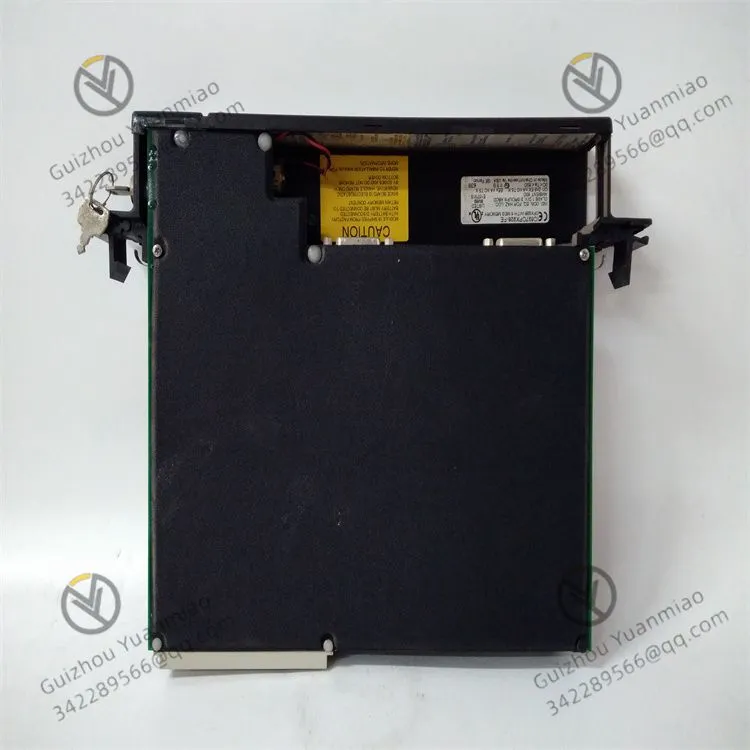

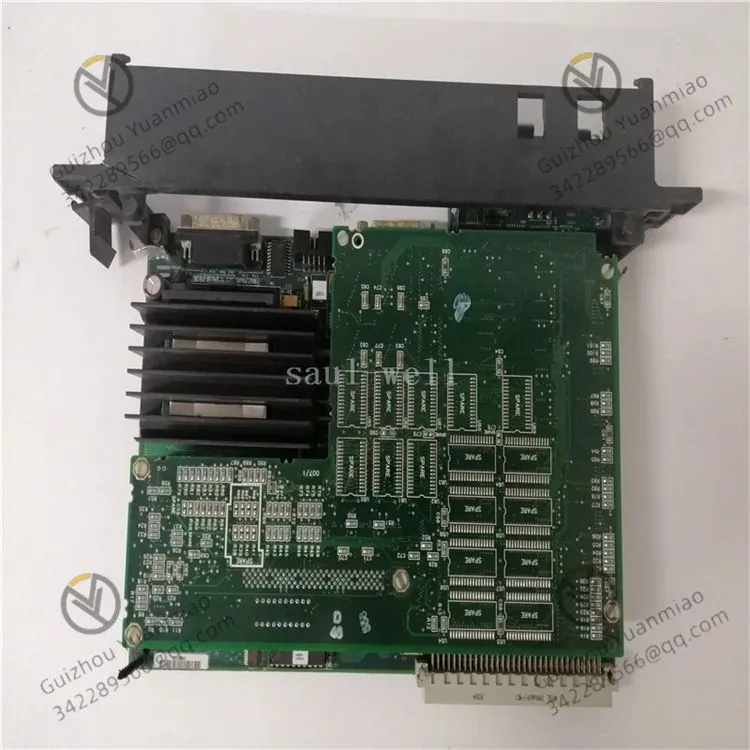

I. Basic Information
IC697CPX928-CD is a high-end high-performance central processing unit module for the GE Fanuc Series 90-70 PLC platform and serves as the flagship master controller of the Series 90-70 family. It adopts a single-slot integrated design equipped with a 96MHz high-speed 32-bit 80486DX4 microprocessor featuring floating-point arithmetic and ultra-fast program scan performance. The module integrates large-capacity battery-backed RAM and non-volatile flash memory, with multiple native serial ports onboard. Programming debugging, host communication and equipment interlock linkage can be realized without additional expansion modules, supporting large complex user programs, massive I/O layout and multi-protocol communication networking.
This CPU supports a maximum of 12,000 mixed I/O points and 8,000 analog I/O channels. It is suitable for complex automatic control scenarios including medium-to-large process industries, heavy industry, power generation and new energy sectors, and stably performs multi-tasks such as logic operation, PID regulation, mathematical computation, interlock protection and backplane bus communication. As a core spare part for high-end upgrade of Series 90-70 systems, it is fully compatible with all Series 90-70 racks and I/O modules. It is the preferred master controller for faulty CPU replacement, program expansion and performance upgrade on legacy equipment, and is widely deployed in thermal power, chemical, metallurgical, water treatment and large intelligent manufacturing automatic control systems.
II. Technical Specifications
(1) Basic Hardware Parameters
Full Model: IC697CPX928-CD
Brand: GE Fanuc (General Electric Fanuc)
Equipment Type: High-performance Central Processing Unit (CPU) for Series 90-70 PLC
Applicable System: Full range of GE Fanuc Series 90-70 PLC rack systems
Processor Core: 32-bit industrial 80486DX4 microprocessor
Clock Frequency: 96MHz high-speed operating frequency
Mounting: Single-slot installation onto standard Series 90-70 backplane
Ingress Protection: IP20 (indoor protection for standard control cabinets)
Core Role: Core component of the entire PLC system responsible for logic execution, program operation, I/O scheduling, communication networking and process control
(2) Calculation & Scan Performance
Boolean Instruction Scan Speed: 0.4μs per instruction; ultra-fast logic calculation greatly shortens program scan cycle
Computing Capability: Floating-point operation, complex mathematic calculation, closed-loop PID control and bulk data processing supported
Max I/O Capacity: Up to 12,000 mixed discrete/analog I/O points
Max Analog Capacity: Up to 8,000 analog I/O channels for large-scale process data acquisition and control
Program Handling: Supports large structured programs, multi-layer subroutine nesting, interlock logic and sequential logic batch computation
(3) Memory Configuration Parameters
Operating RAM: 6MB battery-backed RAM to retain user programs and runtime data upon power loss
Flash Memory: 256KB non-volatile user flash for permanent storage of firmware and core configuration parameters
Data Retention: Dual protection via backup battery plus flash storage to eliminate data loss caused by power outage or system shutdown
Program Capacity: Supports storage and execution of large user programs, recipe data and process parameters
(4) Communication Interface Parameters
Onboard Serial Ports: 3 integrated native serial communication interfaces
Interface Configuration: 1×RS232 + 2×RS485; multi-device networking available without expansion modules
Supported Protocols: GE proprietary protocol, Modbus RTU and other mainstream industrial serial protocols
Dedicated Port: Factory reset & debug port for firmware upgrade, parameter reset and fault diagnosis
Expandability: Works with Series 90-70 LAN cards, coprocessors and bus interface modules to expand Ethernet and fieldbus functions
(5) Electrical & Power Consumption Parameters
Power Supply: 5VDC backplane bus power from Series 90-70 rack
Overall Power Consumption: Mid-to-low power design with controllable heat generation under full-load operation
Hardware Protection: Built-in multi-layer protection against overvoltage, overcurrent, surge and ESD to prevent port damage from field interference
Backup Battery: Field-replaceable onboard backup battery for long-term data retention during power failure
(6) Environmental Specifications
Operating Temperature: 0℃ ~ +60℃, standard industrial stable operating range
Storage Temperature: -40℃ ~ +85℃
Operating Humidity: 5% ~ 95%RH (non-condensing)
Environmental Resistance: Resists EMI, mechanical shock, ambient temperature fluctuation and long-term aging
Cooling Method: Passive natural convection cooling, fan-free and maintenance-free
III. Key Features
High-speed 96MHz Core Operation: Equipped with premium 32-bit 80486DX4 CPU delivering ultra-short 0.4μs Boolean scan and floating-point calculation capability. It efficiently processes complex process logic, bulk data computation and high-precision PID control, eliminating program lag and scan timeout on large applications.
Dual Data Protection with Oversized Memory: Combination of 6MB battery-backed RAM and 256KB non-volatile flash ensures user programs, real-time data and process parameters survive power cuts, while firmware and core configurations are permanently stored in flash; dual-layer protection improves overall system data security.
Large-scale I/O Load Capacity: Supports 12,000 mixed I/O points plus 8,000 analog channels, ideal for centralized automation, multi-section interlocking and large-scale parameter acquisition in medium & large factories to meet production line expansion demands.
Multi-networking via Triple Serial Ports: Native 1×RS232 + dual RS485 ports enable simultaneous connection to programming PCs, HMI touch panels, field transmitters, variable frequency drives and third-party serial devices with interference-free parallel communication without extra expansion cards.
Full Compatibility with Entire Series 90-70 Platform: Fully compatible with all Series 90-70 racks, I/O modules, communication cards and accessories. Existing programs, configurations and wiring remain largely unchanged for direct drop-in replacement of legacy low-speed CPUs to realize cost-effective system performance upgrade.
Industrial-grade High Stability & Noise Immunity: Optimized PCB circuit design with multi-stage electrical isolation and port protection withstands industrial EMI, voltage fluctuation and transient surges for reliable 24/7 continuous operation in harsh heavy industry, power and chemical environments.
Maintenance-free Long-life Construction: Fanless passive cooling with zero moving mechanical parts minimizes dust accumulation and mechanical wear for stable operation and low maintenance costs under long-term continuous production conditions.
Convenient Commissioning & Fault Diagnosis: Dedicated debug/reset port supports online program monitoring, parameter modification, fault code reading and firmware upgrade, greatly boosting efficiency of on-site commissioning, troubleshooting and equipment maintenance.
IV. Working Principle
Power-on Initialization & Self-test: The CPU receives 5VDC power from rack backplane and automatically completes hardware self-check, core initialization, flash firmware loading, RAM verification and communication port detection after power-up; it enters RUN or STANDBY mode once no hardware faults are confirmed.
Program Loading & Execution: User programs, process parameters and system configurations are loaded from flash and backup RAM. Following cyclic scan logic, the CPU sequentially executes instructions for logic computation, sequence control, mathematic calculation, PID regulation and interlock judgment.
I/O Backplane Scheduling & Data Exchange: Via high-speed Series 90-70 VME backplane bus, the CPU periodically polls all I/O modules to collect discrete and analog field signals and outputs control commands to respective output modules for on-site equipment regulation.
Multi-channel Communication Data Exchange: RS232 and RS485 ports establish links with programming terminals, upper-level SCADA systems, field instruments and interlocked equipment to upload runtime data, receive control orders and synchronize process parameters in real time.
Data Storage & Power-fail Protection: Critical runtime data, recipe parameters and equipment status are cached into battery-backed RAM during operation. The onboard backup battery sustains RAM power during unexpected blackouts, while core firmware is permanently stored in flash to avoid data loss and system crash.
Fault Monitoring & System Safeguard: Real-time monitoring covers hardware status, bus communication, program execution and port conditions. Upon program exception, bus dropout or hardware failure, the unit triggers fault alarms, freezes operating status or initiates safe shutdown to protect the whole control system.
System Expansion & Collaborative Processing: Compatible with diverse expansion modules to add Ethernet communication, high-speed counting, redundant control and coprocessing functions for implementation of sophisticated large-scale automated control workflows.
V. Application Fields
(1) Power & Energy Automatic Control Systems
Extensively used in auxiliary control of thermal power plants, power station water treatment, distribution automation and gas turbine auxiliary control systems. Its fast computation and high reliability satisfy strict requirements for uninterrupted operation, high-precision interlock and high safety standards in power industry.
(2) Chemical Process Control Systems
Deployed on continuous production lines for general chemical, petrochemical and fine chemical industries to realize reactor temperature control, pressure regulation, flow interlock and multi-workshop coordinated control; large I/O capacity and stable arithmetic performance match complex continuous chemical processes.
(3) Large Heavy Industry Production Lines
Suited for severe operating conditions in steel rolling, sintering, blast furnace auxiliary control and mine conveying. It handles multi-equipment interlock, high-frequency logic computation and heavy-load safety interlock with superior anti-interference and stability to guarantee nonstop heavy industry production.
(4) Large-scale Water Treatment & Environmental Protection Systems
Applied to municipal wastewater, industrial pure water, reclaimed water reuse and flue gas desulfurization & denitrification control systems for massive signal collection, multi-device linkage and precise process parameter tuning in large environmental automation projects.
(5) Upgrade & Retrofit of Legacy Series 90-70 Systems
Replaces aging, failure-prone and underperforming low-end CPUs on existing Series 90-70 installations. Drop-in compatibility with original racks, I/O hardware and programs eliminates large-scale rework to improve system processing speed, communication performance and I/O capacity with low retrofit costs.
