1. Basic Information

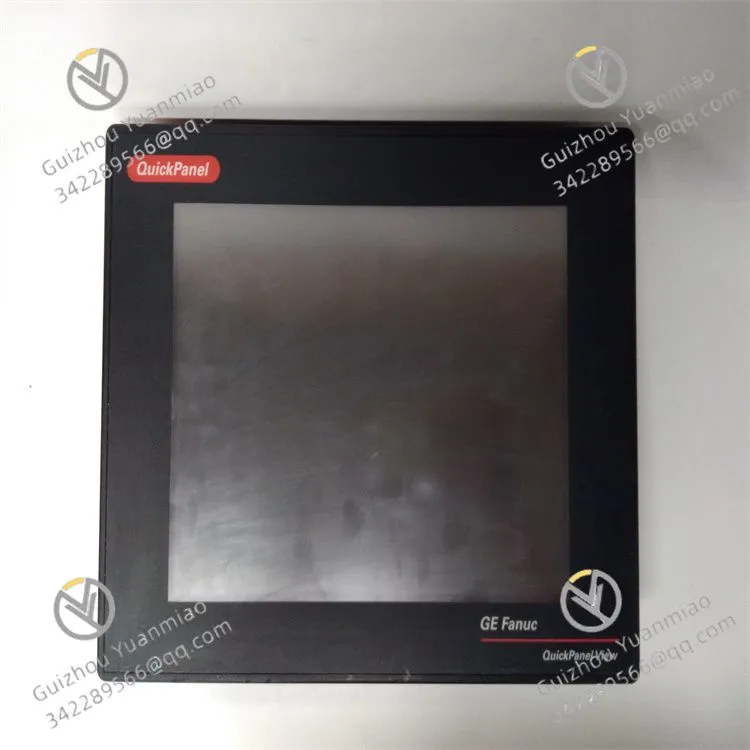

GE IC754CSL12CTD is a 12-inch industrial touch human-machine interface (HMI) of the GE Fanuc (Emerson) QuickPanel Control series. Integrating display, touch control, data acquisition and communication control functions, it adopts an all-in-one compact structure and supports 7×24-hour continuous industrial operation.
Equipped with Intel XScale 400MHz processor, 32MB DRAM and 4MB Flash memory, it features rich communication ports and wide temperature operating adaptability. Native compatible with Proficy Machine Edition configuration software and GE full-series industrial control equipment, it is widely used in automated production lines, water treatment, energy power and environmental protection equipment for on-site visualization monitoring and man-machine interaction.
2. Technical Specifications
2.1 Display & Touch Parameters
Model: IC754CSL12CTD
Device Type: 12-inch Industrial TFT Color Touch HMI
Screen Size: 12-inch industrial color TFT display
Resolution: 800×600 (SVGA)
Touch Type: Industrial resistive touch, anti-scratch and glove-touch support
Visual Feature: Wide viewing angle, no color deviation
2.2 Hardware & Storage Parameters
CPU: Intel XScale industrial embedded processor, 400MHz
DRAM: 32MB
Flash Memory: 4MB
System: Industrial real-time embedded OS
Function Support: Local data recording, alarm log and formula storage
2.3 Communication & Electrical Parameters
Power Supply: DC 24V industrial power supply

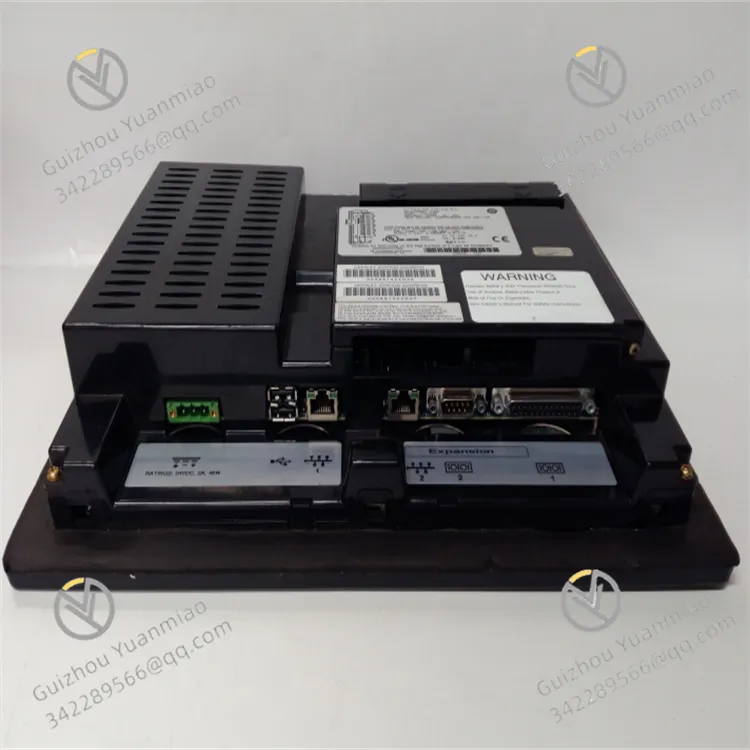

Interfaces: Ethernet, RS232, RS485, USB
Protocol Support: GE dedicated protocol, Modbus RTU/TCP
Download Mode: USB & Ethernet high-speed program upload/download
Isolation Performance: Built-in electrical isolation for anti-interference
2.4 Environmental & Physical Parameters
Operating Temperature: -20℃～+60℃
Storage Temperature: -30℃～+70℃
Humidity Range: 10%～90%RH (Non-condensing)
Protection: High front-panel dust-proof and moisture-proof performance
Installation: Standard cabinet embedded mounting
Shock Resistance: Industrial reinforced anti-vibration structure
3. Features
12-inch High-definition Visualization: 800×600 high-resolution large screen displays process flow charts, trend curves and alarm windows clearly, meeting panoramic monitoring requirements of medium and large-scale equipment.
Integrated All-in-one Design: Integrates operation, display and communication functions independently, simplifying equipment structure, reducing failure points and lowering operation and maintenance costs.
Multi-interface & Multi-protocol Compatibility: Rich port configuration supports connection with GE and third-party mainstream industrial control devices, realizing multi-device network linkage and system docking.
High-speed & Stable Operation: 400MHz high-performance processor ensures smooth screen switching and fast data response without stuttering or crash during long-term continuous operation.
Industrial-grade Durability: Wide temperature resistance, vibration resistance and strong anti-interference capability adapt to complex industrial workshop environments; resistive touch screen is oil-proof and scratch-resistant.
Convenient Configuration & Maintenance: Matches Proficy Machine Edition software, supporting offline simulation, online debugging, program backup and firmware upgrade to improve commissioning efficiency.
Complete Data & Alarm Function: Supports historical data recording, formula storage and fault alarm logging, facilitating process traceability and equipment fault troubleshooting.
4. Working Principle
Power-on Initialization: The device completes hardware self-inspection after power-on, loads configuration programs and system firmware, and initializes each functional module to enter monitoring state.
Field Data Collection: Establishes communication with lower-level PLCs and instruments through network ports or serial ports to collect real-time process data and equipment operating status.
Data Processing & Screen Refresh: The built-in processor analyzes and calculates the collected data, and dynamically refreshes the screen process interface, parameter values and trend curves.
Touch Instruction Execution: Converts human touch operations into standard control commands and forwards them to the lower control system to realize equipment start-stop, parameter modification and mode switching.
Data Storage & Alarm Triggering: Automatically saves production data and operation logs, triggers pop-up alarms for abnormal working conditions such as parameter over-limit and equipment faults, and records fault information.
Closed-loop Monitoring Operation: Realizes all-weather visual closed-loop monitoring through continuous data collection, interactive control and fault self-diagnosis, supporting remote system operation and maintenance.
5. Applications
5.1 Complete Automation Equipment Monitoring
Serves as the core operation terminal for assembly lines, packaging equipment and conveying equipment, realizing integrated management of equipment operation, parameter setting and fault query.
5.2 GE Industrial Control System Matching Terminal
Perfectly matches GE PLC, drive and servo control systems with native protocol compatibility, used for on-site man-machine interaction and process visual monitoring of GE automatic control systems.
5.3 Water Treatment & Environmental Protection Industry
Applied in pure water, sewage and reclaimed water systems to monitor water quality parameters and equipment status, realizing automatic adjustment and data traceability of water treatment processes.
5.4 Energy & HVAC Power System
Used in heating ventilation, water pump station and auxiliary power generation systems to realize visual monitoring and automatic operation management of power equipment.
5.5 Old HMI Equipment Replacement & Upgrade
Replaces aging HMI with black screen, touch failure and abnormal communication, realizing plug-and-play replacement without modifying equipment control logic.
