1. Basic Information

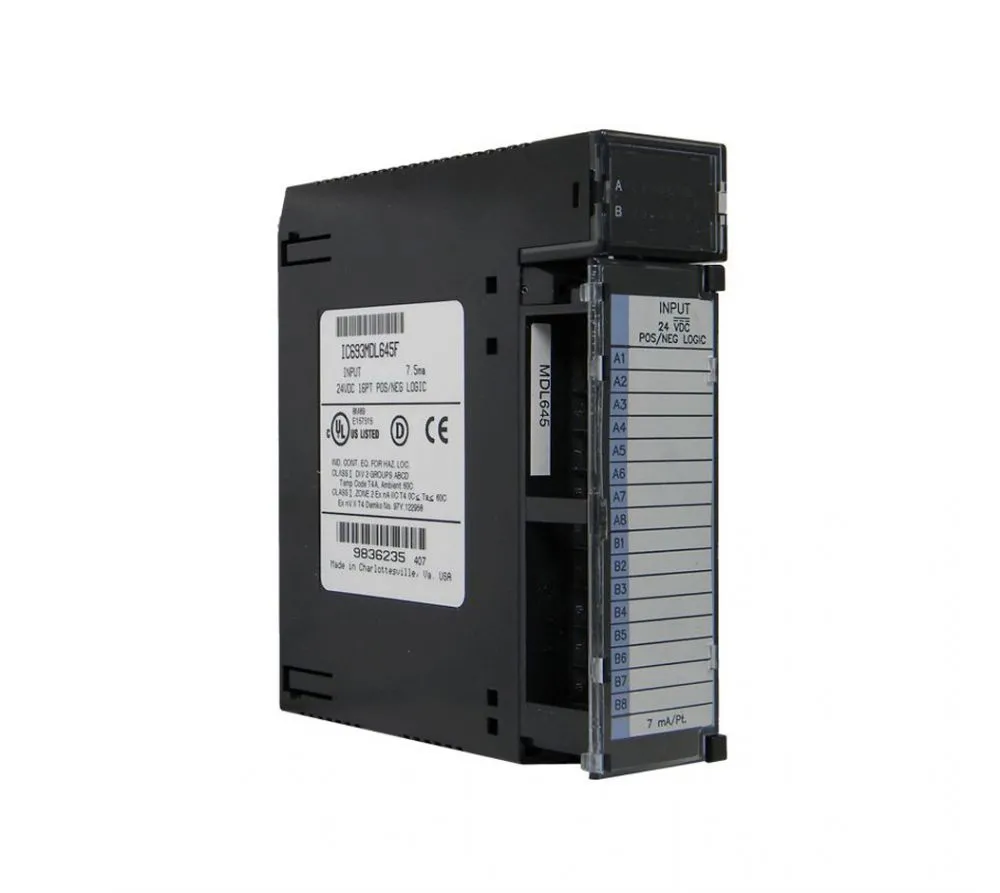

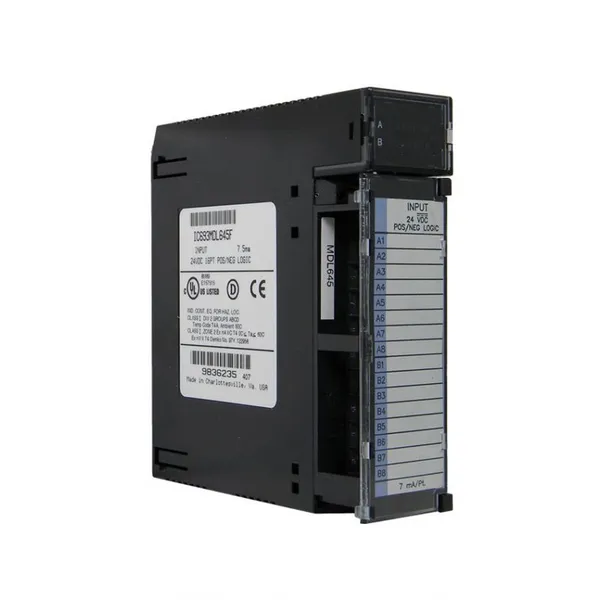

GE IC693MDL645 is a 16-point 24VDC universal digital input module dedicated for GE Fanuc Series 90-30 PLC systems. It supports both positive and negative logic input, compatible with PNP and NPN field sensors. As a high-density signal acquisition module, it collects switch status signals from buttons, limit switches, proximity switches and other field devices, converting physical signals into standard PLC logic signals.
Featuring 1500V electrical isolation, independent channel LED indicators and 7ms fast response, the module delivers stable anti-interference performance and long-term operational reliability. It is widely used in industrial automation equipment status monitoring, interlock signal collection and legacy system replacement for mechanical, chemical and power industries.
2. Technical Specifications
2.1 Core Channel & Input Characteristics
Model: IC693MDL645, Type: 16CH 24VDC Positive/Negative Logic Digital Input Module
Compatible System: GE Fanuc Series 90-30 PLC System
Channel Quantity: 16 independent digital input channels
Rated Voltage: 24VDC, Input Range: 0~30VDC
On-state Voltage: 11.5VDC ~ 30VDC
Off-state Voltage: 0VDC ~ ±5VDC
Input Current: Typical 7mA @ rated voltage; Min 3.2mA on-current; Max 1.1mA off-leakage current
Response Time: Typical 7ms for on/off switching
Logic Mode: Adaptive positive/negative logic for PNP/NPN sensors
2.2 Electrical & Isolation Specifications
Backplane Power: 5V bus power supply, typical power consumption 80mA
Field Power: External 24VDC isolated power supply for field circuit driving
Isolation Voltage: 1500V isolation between field side and logic side
Isolation Structure: Group isolation design to prevent crosstalk between channels
Protection: Over-voltage, over-current and surge multi-level protection
Filter Design: Built-in hardware filter to eliminate high-frequency jitter and interference
2.3 Diagnosis & Operation Features
Channel Indication: Independent LED status indicator for each channel
Power-on Self-test: Automatic self-inspection of circuit and bus status
Real-time Upload: Synchronous upload of all channel status to PLC CPU
Single-channel Isolation: Independent fault isolation without affecting other channels
Stable Operation: No false triggering or signal jitter for long-term operation
2.4 Environmental & Physical Specifications
Operating Temperature: 0℃～+60℃
Storage Temperature: -25℃～+70℃
Humidity Range: 5%～95%RH (non-condensing)
Vibration Standard: Compliant with IEC 60068-2-6
Certification: CE, UL, cUL, CSA industrial certification
Protection Grade: IP20 indoor protection
Installation: Standard DIN rail & rack base mounting
Dimensions: 142mm × 30mm × 130mm
Weight: Approx. 0.42kg
3. Working Principle
Power-on Initialization: The module obtains 5V working power from the rack backplane, completes hardware self-test and bus synchronization, initializes signal acquisition parameters and logic recognition mode, and enters standby state.
Field Signal Access: Receives 24VDC switch signals from field sensors and switches, and identifies signal level status through precise threshold judgment circuit.
Filtering & Isolation: Eliminates high-frequency jitter via hardware filter, and isolates high-voltage interference and potential difference through 1500V isolation circuit to purify logic signals.
Status Lock & Indication: Locks valid channel status, lights up corresponding LED indicators, and filters instantaneous invalid interference to avoid false triggering.
Data Synchronization Upload: Uploads 16-channel real-time status to PLC CPU, updates I/O image table, and provides accurate field basis for program logic operation and interlock judgment.
Cyclic Acquisition & Monitoring: Collects field signals cyclically, monitors channel operating status in real time, and isolates single-channel faults independently to ensure overall system stability.
4. Application Scenarios
4.1 Industrial Equipment Status Acquisition
Collects limit position, in-place induction, safety door and emergency stop signals of automated production lines and mechanical equipment, accurately feeding back equipment operating status to support automatic process control.
4.2 Dual-logic Device Adaptive Collection
Compatible with both NPN and PNP proximity switches and photoelectric sensors, solving the adaptation problem of mixed use of multi-brand field equipment and meeting the transformation requirements of legacy automation systems.
4.3 Process Interlock Signal Collection
Acquires valve feedback, equipment operation feedback, fault alarm and interlock permission signals for chemical, power and utility systems, ensuring accurate and reliable safety interlock logic.
4.4 Legacy 90-30 System Spare Replacement
Directly replaces aging input modules with channel failure and false signal faults. No program or wiring modification is required, quickly restoring system signal acquisition function.
4.5 PLC I/O Point Expansion & Upgrade
Realizes low-cost I/O point expansion for process upgrading and new monitoring point addition, expanding the monitoring and control range of automation systems.
