ProductOverview:
HCNJ-102DStaticTorque Sensoruses the principle of resistance strain, with high accuracy, stable and reliable performance, a large range, and convenient installation and use. It is suitable for the measurement and control of torque force values in static and non-continuous rotation situations.
ProductFeatures:
■ Suitable for the measurement and control of static torque or non-continuous rotation torque force values;
■ High detection accuracy, good stability, and strong anti-interference ability;
■ Small size, light weight, and easy to install;
■ Integrated design of the inner shaft and the shell;
■ Continuous measurement of static torque can be carried out without repeated zero adjustment;
Technical parameters:
Rated load |
1000～5000N.m |
Comprehensive accuracy |
0.1 0.2 0.5 ( Linearity+Hysteresis+Repeatability) |
Sensitivity |
1.0～2.0 mV/V |
Creep |
±0.05 %F·S/30min |
Zero output |
±2%F·S |
Effect of temperature on zero point |
±0.05 %F·S/10℃ |
Effect of temperature on output |
±0.05 %F·S/10℃ |
Operating temperature |
-20℃～+65°C |
Input impedance |
380±10 Ω or 750±15 Ω |
Output impedance |
350±3 Ω or 700±5 Ω |
Insulation resistance |
>5000 MΩ |
Safe overload |
120% F·S |
Bridge supply voltage |
Recommended 10VDC |
Material |
Alloy Steel Alloy Steel |
|
Wiring Method
|
Input + : Red Input - : Black Output + : Green Output - : White |
Application Areas:
Torque Wrenches, Steering Gears, Electric Actuators, Valves, Bearings, Testing Machines, etc.RotationTorque detection occasions where the rotation angle is less than 360 degrees.
Installation method:
1. Fix the flange end of the sensor and connect the other end to the device under test and apply force.
2. The rotation angle of the sensor should not exceed 360 degrees.
Common signal types and supporting products:
1. The torque signal can be directly transmitted to a computer or PLC for processing.
2.It can be matched with XSE5 torque display instrument to directly display the torque value.Basic functions: Zero setting, 2-point alarm. Extended functions: 4 - 20mA transmission output, RS232 or RS485 communication interface.
3. It can be paired with a signal conversion module to convert the signal into4 - 20mA, 0 - 5V, 1 - 5V, ±5VStandard current or voltage signals, which are convenient for customers to collect.
4、Select the professional data acquisition card and supporting software of Beijing Haibohua Technology Co., Ltd. to realizefunctions such as displaying, storing and printing measured values and curves.

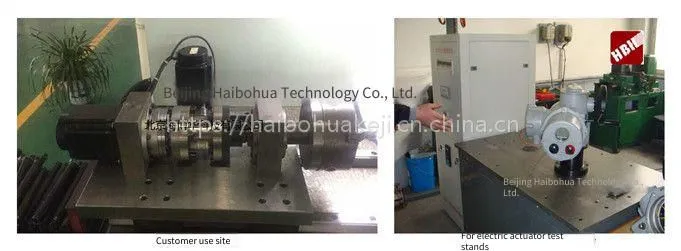

Pictures of application scenarios
