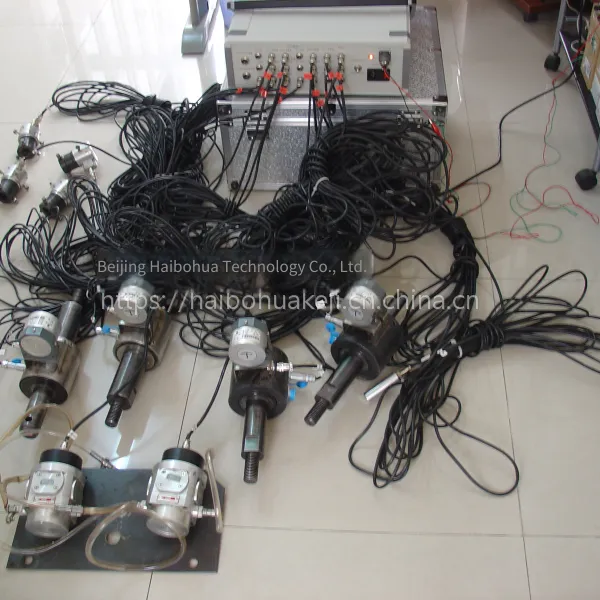

1. System Configuration

1.1 Hardware Interface

1.1.1 Parameter Channel Settings

Channel Name

Channel Type

Number of Test Channels

Tensile Force Channel

Main Upper Tie Rod, Main Lower Left Cantilever Pin, Main Lower Right Cantilever Pin, Auxiliary Upper Tie Rod, Auxiliary Lower Left Cantilever Pin, Auxiliary Lower Right Cantilever Pin

6

Angle Channel

Main Upper Tie Rod Angle, Main Lower Left Cantilever Pin Angle, Main Lower Right Cantilever Pin Angle, Auxiliary Upper Tie Rod Angle, Auxiliary Lower Left Cantilever Pin Angle, Auxiliary Lower Right Cantilever Pin Angle

6

Torque Channel

Main Power Output Shaft Torque, Auxiliary Power Output Shaft Torque

2

Rotational Speed and Revolution Channel

Main Power Output Shaft Rotational Speed, Auxiliary Power Output Shaft Rotational Speed, Rear

Left Drive Wheel Revolution, Rear Right Drive Wheel Revolution, Front Left Drive Wheel Revolution, Front Right Drive Wheel Revolution

6

Displacement Channel

Measuring Area Length, Original Ground Surface Height, Ridge Depth

3

Flow Channel

Fuel Supply Volume, Fuel Return Volume

2

Total Channel

25

1.2 Software Modules

    The software modules are mainly divided into the following types: Tensile Test, Torque Test, Fuel Consumption Test, Travel Distance Test (Measuring Area Length, Driving Wheel Slip Rate Test during Tractor Operation), Geomorphology (Original Ground Surface Height, Ridge Depth, Ridge Height, Tillage Depth)

2. Technical Parameters

2.1 Tensile Sensors: (Six)

   Range: 0.1～±5.00T (Main Lower Left Cantilever Pin, Main Lower Right Cantilever Pin, Main Upper Tie Rod)

         0.1～±4.00T (Auxiliary Lower Left Cantilever Pin, Auxiliary Lower Right Cantilever Pin, Auxiliary Upper Tie Rod)

   Bridge supply voltage: 24V

   Sensitivity: ±0.20％FS

   Nonlinearity: ≤0.20％FS

   Hysteresis: ≤0.20％FS

   Temperature drift: ≤0.0016％FS/℃

   Zero drift: ≤0.0026％FS/℃

   Operating temperature: -35℃～85℃

   Operating humidity: ≤90％

   Overload capacity: 150％FS range

2.2 Angle sensors: (Six)

   Range: ±90°

   Accuracy: 0.5%FS

2.3 Torque sensors: (Two sets)

   Torque range:10～±5,000.00 N·M (Main torque sensor)

            10～±3,000.00 N·M (Auxiliary torque sensor)

Speed range: 2,000.00rm

   Speed signal: 60 pulses/revolution

   Supply voltage: 24V

   Sensitivity: ±0.20％FS

   Nonlinearity: ≤0.20％FS

   Hysteresis: ≤0.20％FS

   Temperature drift: ≤0.0016％FS/℃

   Zero drift: ≤0.0026％FS/℃

   Operating temperature: -35℃～85℃

   Operating humidity: ≤90％

   Overload capacity: 150％FS range

2.4 Displacement sensor (Five-wheel instrument sensor):

   Output waveform: Pulse voltage

   Resolution: 1cm/pulse (360 teeth/week gear disc)

   Speed measurement range: 0～100 km/h

   Measurement accuracy: 1％

2.5 Revolution sensors (4 pieces):

   Output waveform: Pulse voltage

   Resolution: 6°/pulse (60 teeth/week gear disc)

2.6 Fuel consumption sensor:

   Power supply DC＋12V,

   Sensor output pulse signal: Low level 11V,

   Pulse equivalent approximately: 0.1 ml/pulse (If the power supply is DC＋5V,

   Output pulse signal: Low level4.5V).

   Flow rate: 0～60 liters per hour (h) (Type 2 flow rate: 3～300 l/h)

   Weight: 1.9 kg (Type 2: 2.2 kg)



 Instrument: Collector + Computer

   Operating system: windows XP

3. Test mode

There are the following two test modes:

 1. Comprehensive test (displacement sampling method): (Preset before testing)

   Sampling frequency: 1cm～1,000.00cm

   Measuring area length: 10,000.00cm～200,000cm

 2. Special test (time sampling method ): (Preset before testing)

   Sampling frequency: 0.01 seconds～60 seconds

Note: 1. Torque test, tensile test, and fuel consumption measurement can be carried out separately or in combination

   2. Test data output format:  1. In the displacement sampling mode, the data collected from the other 25 channels should be selectively output.

                       2. In the time sampling mode, the data collected from the other 25 channels should be selectively output.
