Dynamic Torque Sensor for Motor Testing, Torque and Speed Sensor for Reducers, Beijing Haibohua

Product Overview:

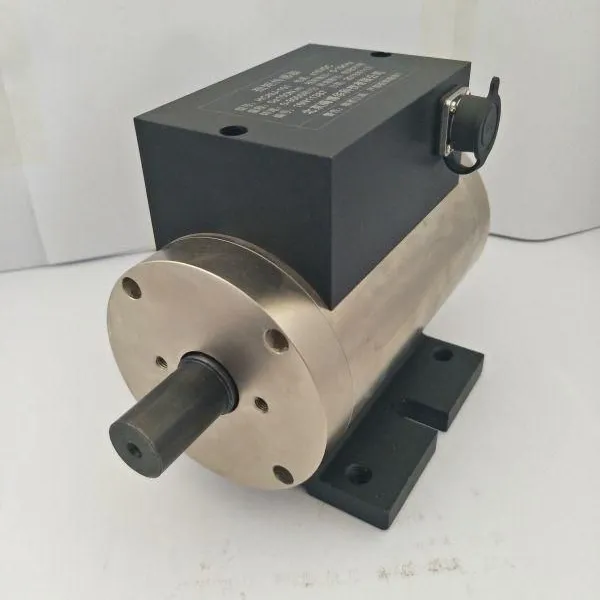

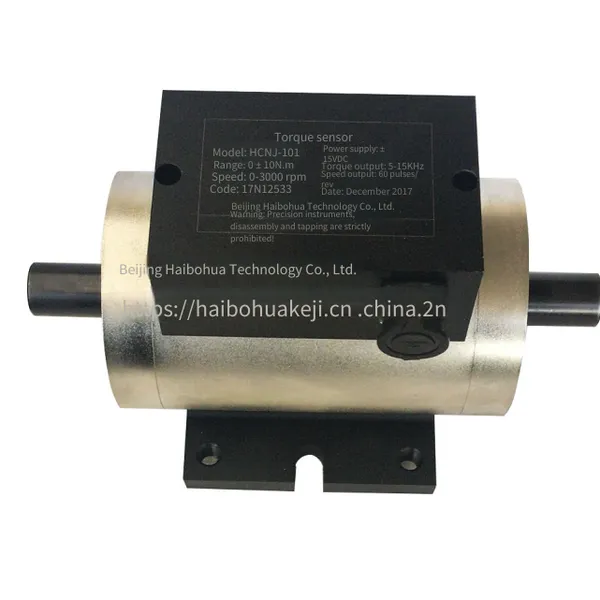

       The HCNJ-101 Torque Sensor is developed based on the proprietary technology of the strain bridge. It is a sensor specifically designed to measure torque and speed parameters. This series of torque sensors uses the strain bridge electrical measurement technology. A set of ring transformers provides power in a non-contact manner, and a micro-power signal coupler is used to replace the ring transformer for non-contact signal transmission, effectively overcoming the self-interference of high-order harmonics caused by the inductive coupling signal and the mutual interference of the energy ring transformer to the signal ring transformer. At the same time, the output sharp pulse is changed to an equal square wave signal. Therefore, this series of torque sensors can operate at high speed for a long time. This series of torque sensors can be used for both static and dynamic measurements. The design of various installation forms brings great convenience to users.

Dynamic Torque Sensor for Motor Testing, Torque and Speed Sensor for Reducers, Beijing Haibohua

Technical Features:

■ It can measure both static torque and rotating torque;

■ High detection accuracy, good stability, and strong anti-interference ability;

■ Small size, light weight, and easy to install;

■ It can continuously measure forward and reverse torques without repeated zero adjustment;

■ There are no wearing parts such as slip rings, and it can run at high speed for a long time;

■ The strain elastic body has high strength and can withstand 150% of the load;

■ Strong anti-interference ability, can be installed in any position and any direction;

■ The sensor part can be used independently without the secondary instrument, and can directly form a torque measurement device with the measurement board card, PLC, or DCS










Product Tags: Beijing torque sensor , Beijing torque and rotational speed sensor , Beijing torsion sensor
