Product Overview:

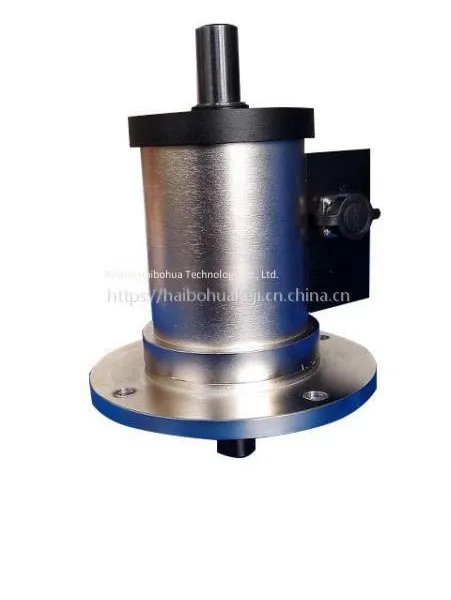

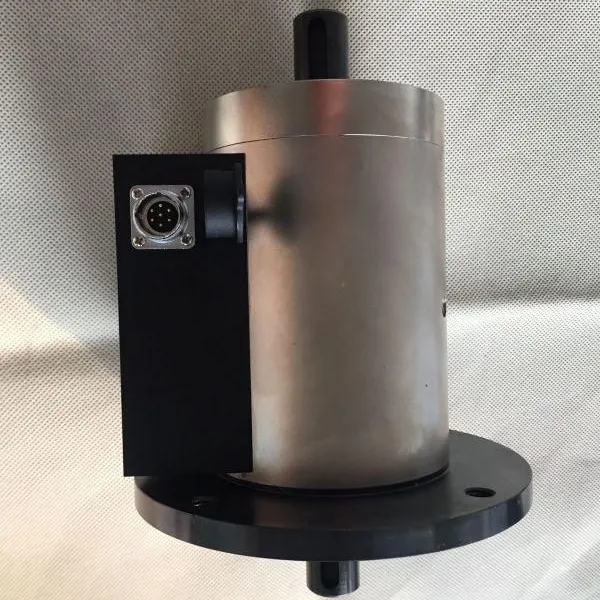

HCNJ-101AThe axially installed torque sensor is developed on the basis of the proprietary technology of the strain bridge and is specifically used to measure torque and rotational speed parameters. This series of torque sensors uses the strain bridge electrical measurement technology. A set of toroidal transformers provides power in a non-contact manner, and a micro-power signal coupler is used to replace the toroidal transformer for non-contact signal transmission, effectively overcoming the high-order harmonic self-interference caused by the inductive coupling signal and the mutual interference of the energy toroidal transformer to the signal toroidal transformer. At the same time, the output sharp pulses are changed to square wave signals. Therefore, this series of torque sensors can operate at high speeds for a long time.
This series of axially installed torque sensors is designed by Beijing Haibohua Technology Co., Ltd. for the mixing industry or other special occasions where vertical installation is required and it is inconvenient to fix the base. It can be made into a single flange or double flanges on the axial end face, which can be circular flanges or square flanges.
ProductFeatures:
■ It can measure both static torque and rotating torque;
■ High detection accuracy, good stability, and strong anti-interference ability;
■ Small size, light weight, and easy to install;
■ Continuous measurement of forward and reverse torque can be carried out without repeated zero adjustment;
■ There are no wearing parts such as slip rings, and it can operate at high speed for a long time;
■ The strain elastomer has high strength and can withstand150% load;
■ It has strong anti-interference ability and can be installed at any position and in any direction;
■ The sensor part can be used independently without the secondary instrument and can directly form a torque measurement device with the measurement board card,PLC orDCS.
Technical Parameters:
Indicator Name |
Parameter Specifications |
Range |
5-500,000N.m (Optional) |
Power Supply |
±15V DC (For Frequency Signal Output), 24V DC (For Voltage or Current Signal Output) |
Torque Signal |
5～15Khz (Amplitude12V, Zero Point10kHz), 4～20mA, 1～5V,0-10V (Optional) |
Speed Range |
0～1000,3000,6000,8000 RPM |
Speed Signal |
60 Pulses/ Revolution (No cumulative error, amplitude 12VDC), 4-20mA,1～5V |
Accuracy Degree |
±0.25%,±0.5% |
Annual stability |
0.3%/year |
Insulation resistance |
≥200MΩ(100VDC) |
Ambient temperature |
-20~60℃ |
Relative humidity |
0~90%RH |
Overload capacity |
150% |
Frequency response |
1ms |
Connection method |
End face single flange, end face double flange, circular flange, square flange (customized according to customer requirements) |
Application fields:
Mixing industry or other special occasions where vertical installation is required and it is inconvenient to fix the base
Common signal types and supporting products
1.Thetorque frequency signal can be directly transmittedtoa computer orPLCfor processing.
2.Compatible withXSKMorXSYtorque display instrument, which can directly display the torque value.
3.Compatible with the seriesHN-201torque, speed and power meter, which can directly display the values of torque, speed and power.Functions: Standard zero clearing; Two-way 4 - 20mA transmission for torque and speed, RS485 communication is optional.
4.Compatible withF/IorF/Vsingle-channelsignal conversion moduleor dual-channel signal conversion module, which can convert the frequency signal into4-20mAor1-5V and other common analog signals, facilitating customers' signal acquisition;
5.Choose the professional data acquisition card and supporting software of Beijing Haibohua Technology Co., Ltd. to realize the functions of signal acquisition, storage, printing, playback, etc. for torque, speed, etc.
