Mobile Stacker From Henan Staurk Machinery Co.,Ltd
The Mobile Stacker from Henan Staurk Machinery offers high mobility and fast relocation, enabling easy site movement without heavy transport. Features like hydraulic height adjustment and 180° radial movement create larger stockpiles and reduce loader traffic. Its heavy-duty frame and durable belt ensure long service life in harsh conditions, while electric or diesel options provide energy efficiency and flexibility for any site.
1.Product Introduction Minerals Conveying Equipment

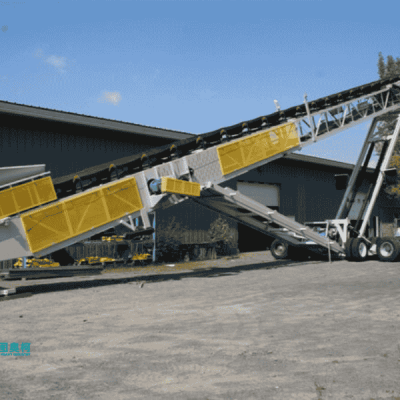

Mobile stacker is a mobile material stacking equipment used in construction sites, ports, mines, building materials and other places. It is mainly used to efficiently stack crushed or screened materials, expand the stacking range, and improve on-site logistics efficiency.
2.Application Minerals Conveying Equipment

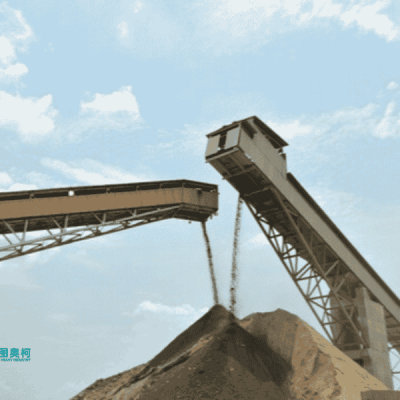

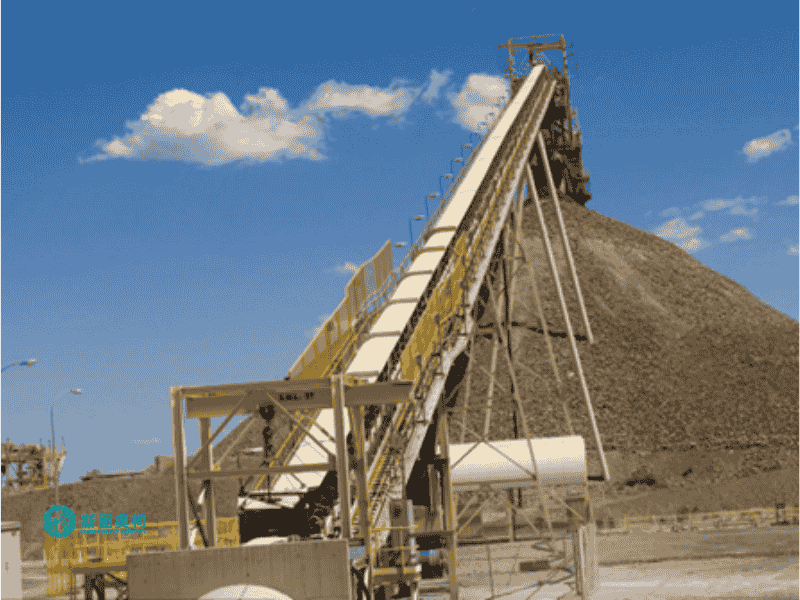

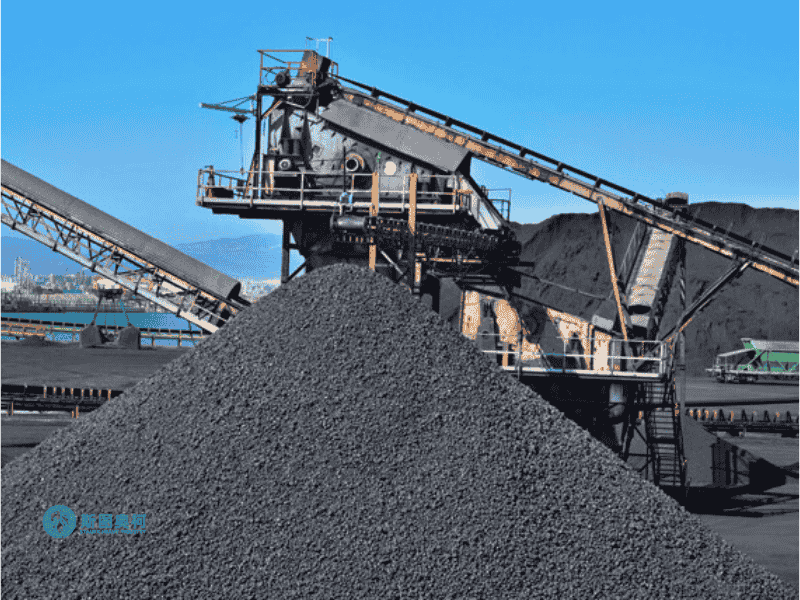

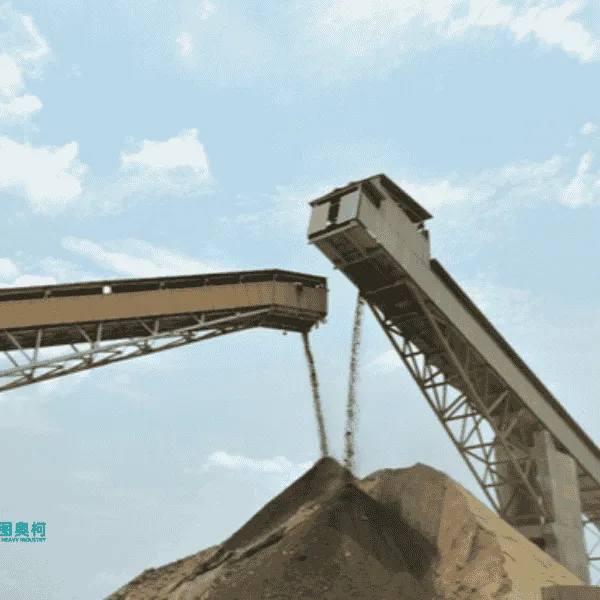

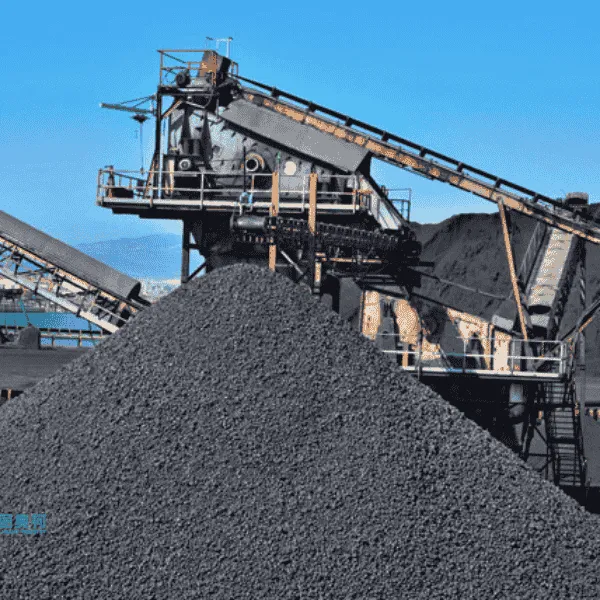

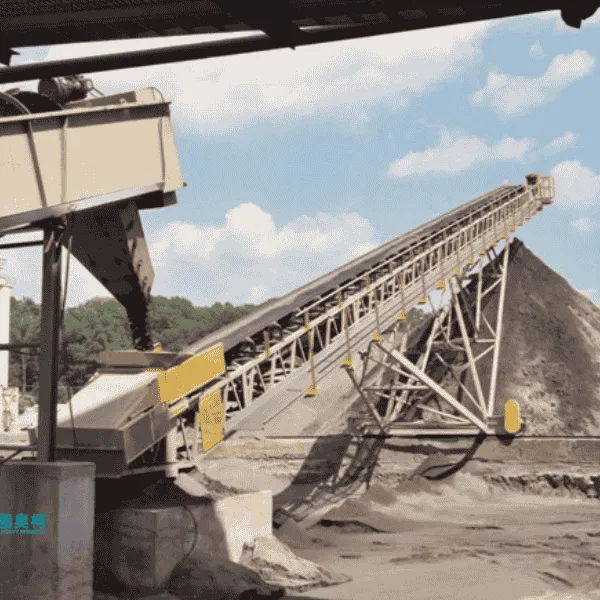

This type of equipment is widely used across various mining industries, including coal mines, iron ore mines, copper mines, gold mines, and sand and gravel aggregate production lines. It conveys a wide range of materials, encompassing coal, quartz stone, iron ore, kaolin, granite, bauxite, sand, gravel, and other blocky, granular, and powdered minerals. The equipment can be arranged horizontally, inclined, or vertically according to process requirements, enabling continuous and automated connections throughout production stages.
3.Working Principle Minerals Conveying Equipment
Hydraulic-Driven Lifting System The lifting motion of the mobile stacker is powered by a hydraulic system, comprising core components such as a hydraulic pump, cylinders, control valves, and a reservoir. The pump converts mechanical energy into hydraulic energy, delivering pressurized fluid to the cylinders via high-pressure hoses. As the fluid enters the cylinders, it drives the piston to raise or lower the stacking platform.
Precision Operation via Control Valves Operators adjust the control valves using joysticks or push-buttons to regulate the flow and direction of the hydraulic oil, enabling precise height adjustment of the platform. This system supports fine-tuning to ensure stable material stacking at varying heights.
Integrated Electrical and Sensor Control The equipment is equipped with an electrical control system and sensors that monitor parameters such as platform height and material position in real-time. This feedback is sent to the control unit to achieve closed-loop control of the lifting process, enhancing operational safety and positioning accuracy.
Limit Switches for Safety Assurance When the stacking platform reaches the maximum or minimum preset position, the limit switches are triggered automatically. This cuts off the oil supply to the hydraulic system to prevent over-travel, avoiding equipment damage or safety accidents.
Extended Functions of Automated Storage and Retrieval Systems (AS/RS) In smart warehousing scenarios, stacker cranes also feature automatic barcode identification, horizontal travel within aisles, and automatic fork extension for material handling. Horizontal movement is driven by motors via gears or synchronous belts, while vertical lifting is completed by motors driving chains or wire ropes, all coordinated by a centralized PLC control system.
4.Advantages
High Mobility Equipped with a self-propelled traveling mechanism, the unit can move freely across the job site to adapt to diverse operational requirements.
User-Friendly Operation Features an intuitive control system, such as the SPECTIVE intuitive operating concept and local control elements, ensuring ease of use for on-site operators.
Versatile Configurations Supports either diesel-hydraulic drive (H-DRIVE) or external power supply. Both feeding and discharge heights are hydraulically adjustable to accommodate various stockpiling height requirements.
Efficient Logistics By extending the material conveying distance of crushing and screening equipment, it minimizes material handling stages and improves overall operational efficiency.
5.Technical Specifications
| Category | Parameter | Description |
| Basic Info | Equipment Type | Tracked / Wheeled Mobile Stacker |
| Application | Mining, Aggregate, Port, Bulk Material Handling | |
| Mobility | Chassis Type | Self-propelled Crawler or Wheel-mounted |
| Drive System | Diesel-Hydraulic (H-DRIVE) / Electric Plug-in | |
| Performance | Conveying Capacity | 100 - 2000 t/h (Customizable) |
| Belt Width | 650mm / 800mm / 1000mm / 1200mm | |
| Max. Stacking Height | 5m - 15m (Hydraulically Adjustable) | |
| Functionality | Lifting Mechanism | Dual Hydraulic Cylinders |
| Control System | PLC with HMI (e.g., SPECTIVE) / Remote Control | |
| Folding Mode | Hydraulic Folding for Transport | |
| Safety | Monitoring | Height/Position Sensors & Limit Switches |
| Protection | Emergency Stop & Over-travel Interlocks | |
| Add-ons | Optional Modules | Dust Covers, Spray Bars, Belt Scales |
