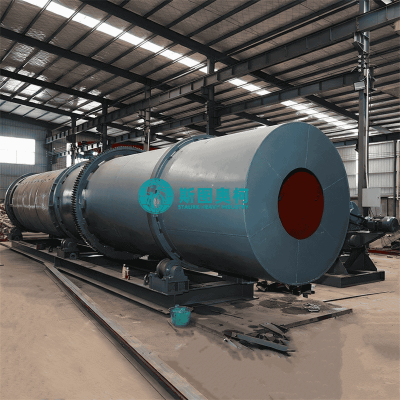

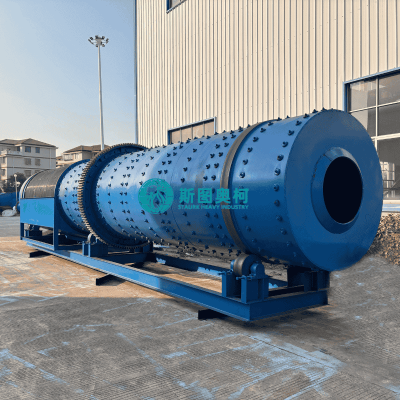

Stone Scrubber Manufactured Henan Staurk Machinery Co.,Ltd
Product Introduction
The stone scrubber uses a rotating cylinder and internal scraper, as well as the inherent pebbles and rocks in the material, to decompose clay, lumps, and soft oxides. The cylinder of the washing machine slowly rotates, resembling a huge washing machine. Materials of different thicknesses and water are simultaneously rolled and stirred together, effectively releasing useful minerals from muddy soil and clay.

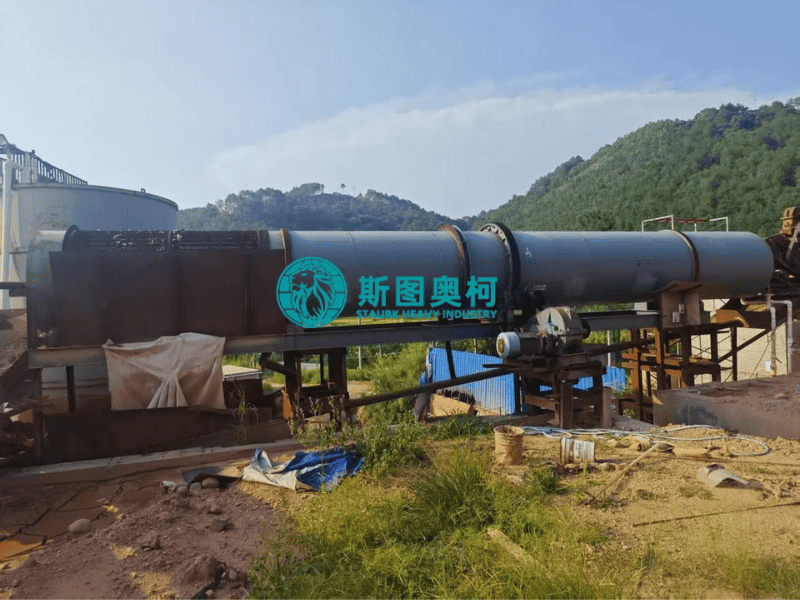

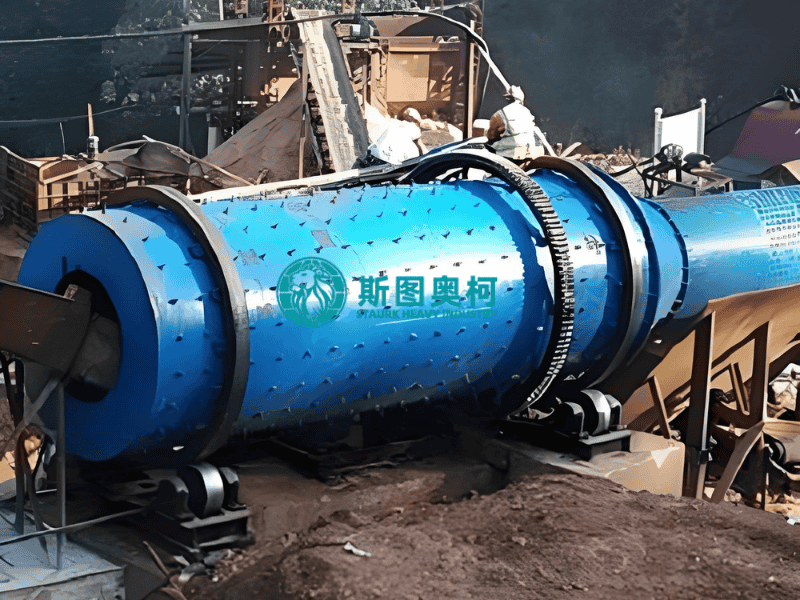

2. Application
Suitable for weathered sand, quartz sand, granite, pebbles, limestone, gold ore, iron ore, and various other ores.
3. Working Principle

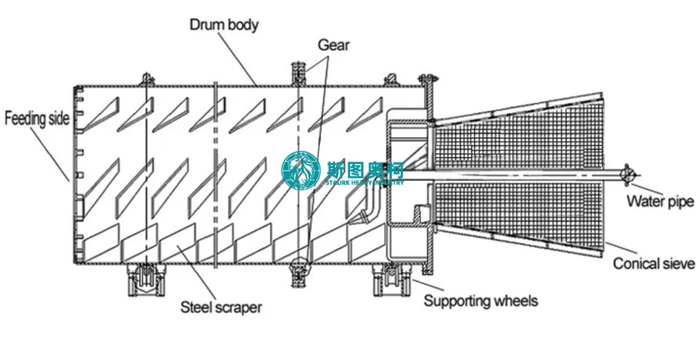

The material enters the rotating drum through the feeding port and is cleaned under the combined action of gravity, friction, and hydraulic flushing. The lifting plate on the inner wall of the drum continuously lifts and throws the material, creating a strong impact and friction; At the same time, high-pressure spray water penetrates the material layer, effectively peeling off the clay inclusions. Wash the ore and transport it forward with the inclination angle of the drum, while impurities are discharged through the sieve holes with the mud water.
4. Advantages
① Efficient cleaning: The synergistic effect of mechanical friction and hydraulic flushing can achieve a removal rate of over 85% for viscous mineral mud.
②. Strong processing capability: Single machine processing capacity is large, suitable for large-scale mining operations.
③. Strong adaptability: can adapt to different types of ores by adjusting the speed and water volume.
④. Energy saving and environmental protection: Compared to trough washing machines, it saves more than 30% water and achieves zero emissions through closed-loop circulation of slurry water.
5. Technical Specifications
Model |
Cylinder Size (m) |
Max Feed Size (mm) |
Water Pressure (MPa) |
Water Consumption (m³/t) |
Capacity (t/h) |
Rotating Speed (r/min) |
Power (kW) |
Weight (kg) |
SS1030 |
1.0×3.0 |
≤100 |
0.4–0.5 |
1.2 |
30–50 |
25–28 |
15 |
4800 |
SS1230 |
1.2×3.0 |
≤100 |
0.4–0.5 |
1.5 |
50–70 |
23–25 |
18.5 |
5800 |
SS1545 |
1.5×4.5 |
≤150 |
0.4–0.5 |
1.8 |
70–120 |
18–22 |
30 |
6900 |
SS1560 |
1.5×6.0 |
≤150 |
0.4–0.5 |
2 |
80–130 |
18–22 |
37 |
8300 |
SS1845 |
1.8×4.5 |
≤170 |
0.4–0.5 |
2.5 |
90–130 |
20–21 |
45 |
11800 |
SS1860 |
1.8×6.0 |
≤170 |
0.4–0.5 |
3 |
100–140 |
20–21 |
45 |
12800 |
SS2060 |
2.0×6.0 |
≤210 |
0.4–0.5 |
3.5 |
120–160 |
19–20 |
55 |
14800 |
SS2265 |
2.2×6.5 |
≤230 |
0.4–0.5 |
5 |
160–180 |
19–20 |
55 |
16500 |
6.Our Solutions
