AIRTEC Solenoid Valve KM-10-520-HN, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, original genuine products from the factory, in-stock inventory, affordable prices. We sincerely welcome new and old customers to consult and purchase!
German AIRTEC Solenoid Valve KM-10 Series
Technical features
Connection: G1/4
Nominal width: 9 mm
Temperature range: -10°C…+70°C
Protection class: IP 65
ATEX: Optional
Valve models:
2/5-way, 3/5-way
Available voltages:
DC: 12V, 24V
AC: 24V, 115V, 230V
Connection
KM-09: G1/8
KM-10: G1/4
Nominal width
KM-09: 6 mm
KM-10: 9 mm
Temperature range -10°C…+70°C
Medium: Filtered, oil-free and dry compressed air, conforming to ISO 8573-1:2010, class 7:2:4µ, without corrosive components. As a derating, the pressure dew point must be at least 10°C lower than the lowest ambient temperature.
Material: Housing: Anodized aluminum, plastic; Seals: NBR and POM
Internal parts: Aluminum, stainless steel and Ms
According to EN 60529, the protection class is IP 65
Versions conforming to 2014/34/EU (ATEX) are available
Electric plunger valve. After the voltage is applied, the valve switches. These valves are equipped with a locking manual auxiliary actuator, driven by a screwdriver.
AIRTEC 2/5-way solenoid valve
KM-10-510-HN
KM-10-511-HN
KM-10-520-HN
AIRTEC 3/5-way solenoid valve
KM-10-530-HN
KM-10-533-HN
KM-10-534-HN
German AIRTEC Profile Cylinder XL Series
Technical features
Diameter: 32 mm to 125 mm
Maximum stroke: 2.800 mm
Temperature range: -20°C…+80°C
Buffer length: 27...44mm²
Interface: G1/8, G1/4, G3/8, G1/2
Theoretical force at 6bar: 420...6480N
Piston rod thread: M10x1.25, M12x1.25, M16x1.5, M20x1.5, M27x2
Working principle: 1...10bar (14.5...145psi)
ATEX: Optional
Versions:
Low-temperature type -40°C…+80°C
High-temperature type -10°C…+150°C
Low-friction design
Medium: According to ISO 8573-1:2010, Class 7:2:4, filtered, oil-free and dry compressed air, without corrosive components. As a derogation, the pressure dew point must be at least 10°C lower than the low ambient temperature.
Materials:
Cylinder tube: Aluminum (anodized)
End caps: Die-cast aluminum (painted)
Piston rod: Chrome-plated (standard) – Stainless steel
Seals: PU/NBR
Double-acting cylinder with adjustable pneumatic end position damping on both sides. With position detection function, non-contact position query can be carried out through the cylinder switch.
Special stroke lengths can be provided upon request.
XL = Basic version.
XLBS = Cylinder with pneumatic brake.
XLR = Locking device buffer.
000 - Stainless steel piston rod
050 - Standard (chrome-plated stainless steel piston rod)
070 - Double piston rod, piston diameter 32 - 63 mm
400 - Stainless steel double-ended piston rod
450 - Double-ended piston rod
Design and function
Double-acting aluminum cylinder with a complete set of sensor grooves, adjustable pads and permanent magnets for proximity sensors. The sensors can be directly installed in the aluminum grooves. Refer to the following table for standard stroke lengths, and additional lengths can be provided according to user requirements.
The valves in this series comply with the 94/9/EG (ATEX) standard and are designed to be explosion-proof.
050, 054, 000, 004
Double-acting, adjustable on both sides, pneumatic end position damping, position detection
152, 102
Double-acting, adjustable on both sides, pneumatic end position damping
450, 454, 400, 404
Double-acting, continuous piston rod, adjustable on both sides, pneumatic end position damping, position detection
552, 502
Double-acting continuous piston rod, adjustable on both sides, pneumatic end position damping
Ordering models of German AIRTEC profile cylinders:
XL-050-0075-050
XL-032-1000-050
XL-050-0160-050
XL-050-0320-050
XL-050-0100-050
XL-050-0025-050
XL-050-0050-050
XL-050-0200-050
The German AIRTEC company is an enterprise that produces pneumatic components and has more than 30 years of production experience. Its headquarters is located in Kronberg, on the outskirts of Frankfurt, Germany, and its production is located in Reutlingen near Stuttgart. AIRTEC has subsidiaries and cooperative enterprises in more than 20 countries and regions, providing high-quality and convenient services to customers.
AIRTEC belongs to the field of pneumatic automation. It has technical strength and the ability to solve various technical problems with high quality. At the same time, it provides customers with products of high quality and advanced technology, and brings great benefits to customers with a very low maintenance rate.
Paying attention to quality is the consistent business purpose of our company. "Quality" is the decisive factor for AIRTEC's success. We put quality first from the product development and research stage. This purpose runs through all departments and the entire process from production, debugging, product delivery to pre-sales and after-sales services. In addition, AIRTEC is also one of the earliest companies in the world's pneumatic industry to pass the ISO9001 quality certification.
The valves produced by AIRTEC can withstand various usage environments, such as dusty environments, humid environments and the outdoors. The main reason is the spool structure of AIRTEC, which is AIRTEC's design. This is also the main reason why AIRTEC's products are famous worldwide for their high quality and long service life.
1) The unique sealing design of AIRTEC valves is a combination of a composite resin ring and an expanding O-ring. Since the composite resin ring is relatively hard, its expansion is very limited.
2) The valve sleeve is made of stainless steel, and there is a fit tolerance between the valve sleeve and the composite resin.
3) The inner edge of the small hole in the valve sleeve and the outer edge of the composite resin ring on the spool are both free of sharp edges. Its edge is like a razor, which can cut any impurity particles entering the small hole of the valve sleeve and be carried away by the air flow. This anti-pollution structure is very effective, enabling AIRTEC's valves to be widely used in equipment such as coal mines, mines and cement plants.
4) When the valve is not used for a long time, due to the unique spool structure of AIRTEC valves, the sealing ring will not stick to the valve sleeve, so the valve can be opened normally.
5) Compared with valves of the same specification and size, AIRTEC's valves have a larger flow rate.
1. Tubular valve installation: Threaded interface, can be installed individually or in groups. For MF-05, MF-07 and MF-25, a single air circuit board is required.
2. Combination valve: Six 3/2 poppet valves can be installed. Used for: MS-18, MS-20.
3. P air circuit board: With a common air inlet, suitable for installing 1 - 12 3/2, 5/2 and 5/3 valves. The valves are installed with hollow bolts. Used for: M-04, M-05, M-07, P-05 and P-07.
4. P-R-S air circuit board: With a common air inlet and two common exhaust ports. Suitable for installing 5/2 and 5/3 valves. The valves are installed with hollow bolts. Used for: M-04, M-05, M-07, P-05 and P-07.
5. Plastic air circuit board: With a common air inlet and two common exhaust ports. The valves are directly installed on the air circuit board with two screws. Used for: MF-05, MF-25 and MF-07.
6. Modular air circuit board: Modular P-R-S air circuit board, expandable, with a common air inlet and two common exhaust ports. Valves of different sizes (1/8 and 1/4) can be installed. Used for: KM-09, KM-10.
7. Plate valve installation: Used for installing 5/2 and 5/3 valves. The advantage is that there is no need to pull out the pipes when replacing the valves. With a common air inlet and two common exhaust ports. The valves are directly installed on the air circuit board with two screws. Used for: MC-07, MC-20, MD-20.
8. Expandable air circuit board: This modular air circuit board is expandable, with a common air inlet and two common exhaust ports. Add valves as needed. Clips for installing DIN rails can be used.
The valve island comes with a multi-pin plug, ASI, fieldbus and Interbus bus, with 4 - 24 valves, G1/8 and 1/4
900 - 2100 NI/min (0.915 - 2.134 Cv)
RE-19/8-M
RE series
19 Number of valves
M Interface form
Design and function
Through the multi-core cable, the control signal is transmitted from the controller to the valve island, thus greatly reducing the installation workload. The valve island not only has an electrical multi-pin plug, but also has LED indicators, manual control buttons and an internal overpressure protection circuit.
The valve with a G1/4 interface (2100NI/min/2.134Cv) needs to occupy 2 valve positions.
The above order numbers only include the air circuit board. The valves and multi-pin plug cables need to be specified separately.
When delivered, the valve island is fully assembled and has passed the factory performance test.
Solenoid valves KF-09, KF-10
Working pressure range 3...8bar
Temperature range: 10℃...+50℃
Protection level: IP 56 according to standard EN 60529
Standard voltage: 24VDC -10%...+15%
Power consumption: 2.5w
Output signal: Polarity protection circuit and built-in surge absorption protection circuit
Materials: Valve body: Aluminum (anodized), plastic; Sealing ring: NBR and POM; Internal parts: Aluminum, brass, stainless steel.
Weight: 0.2kg, 0.37kg
AIRTEC 2/5-way directional control valve
KF-09-511-HN
KF-09-510-HN
KF-09-510-HNT-442
KF-09-510-HNR-442
KF-09-511-HNT-442
KF-09-511-HNR-442
KF-10-510-HNT-442
KF-10-510-HNR-442
KF-10-511-HNT-442
KF-10-511-HNR-442
KF-10-520-HNT-442
KF-10-520-HNR-442
German AIRTEC solenoid valve
Technical features
Connection: G1/4
Nominal width: 9 mm
Temperature range: -30°C…+80°C
Working pressure: 3...8bar
Protection level: IP 65
Valve versions:
2/5-way, 3/5-way
Available voltages:
DC: 12V, 24V
Protection level: IP 65 in accordance with EN 60529
Interfaces
ICK-09: G1/8
ICK-10: G1/4
Nominal width
ICK-09: 6 mm
ICK-10: 9 mm
Medium: According to ISO 8573-1:2010, class 7:2:4, filtered, oil-free and dry compressed air without corrosive components. As a derogation, the pressure dew point must be at least 10°C below the low ambient temperature.
Materials: Housing: Anodized aluminum, Seals: FKM and PU, Internal parts: Aluminum, stainless steel and Ms
Electromagnetic directional control valve. After the voltage is applied, the valve switches. The valve is equipped with a locking manual auxiliary drive. It is driven by a screw.
ICK-09-511-HN-xxx
ICK-10-511-HN-xxx
Two-position five-way, single coil, mechanical spring
ICK-09-520-HN-xxx
ICK-10-520-HN-xxx
Two-position five-way, double coil, mechanical spring
ICK-09-530-HN-xxx
ICK-10-530-HN-xxx
Three-position five-way, double coil, middle position closed
German AIRTEC valve island RE-46
Technical features
Working connection: G1/8
Nominal width: 6 mm
Temperature range: -10°C…+50°C
Signal: 4 to 24
Valve model:
2 x 3/2 way, two-position five-way, 3/3 way
Electrical connection:
Multipol, AS interface, Profibus DP, Profinet RT/IRT, CANopen
Temperature range -10°C…+50°C
Medium filtered, oil-free and dry compressed air, conforming to ISO 8573-1:2010, class 7:2:4µ, without corrosive components. As a derating, the pressure dew point must be at least 10°C lower than the low ambient temperature.
Material housing: Anodized aluminum, plastic, seals: NBR
Protection class IP 65 according to EN 60529
Valve/substrate system with current collector connection, integrated LED display and protection circuit. The valve end can be equipped with 2 x 3/2-way valves, 5/2 or 5/3-way valves at each station. All ports are accessible from the front.
The valve terminal is delivered fully assembled and tested. The valves are arranged according to their functions. The high-numbered (KF-46-534-HN) is installed on the electrical connection, the low-numbered (KV-46-210/2-HN) is installed away from the electrical connection, and the sealing plate (RE-46-V-EP) is installed behind the connection valve. Other sequences must be specified when ordering.
AIRTEC Aiertieke valve island
RE-46/04-G-M-1
RE-46/06-G-M-1
RE-46/08-G-M-1
RE-46/10-G-M-1
RE-46/12-G-M-1
RE-46/14-G-M-1
RE-46/16-G-M-1
RE-46/18-G-M-1
RE-46/20-G-M-1
RE-46/22-G-M-1
RE-46/24-G-M-1
RE-46/04-G-AS3
RE-46/08-G-AS3
RE-46/12-G-AS3
German AIRTEC Solenoid Valve KF-46 Series
Working connection according to terminal type
Temperature range: -10°C…+50°C
Voltage: 24VDC ±10%
Power consumption: 1.3W
Protection level: IP65
Working principle: 2.5...8bar
Nominal width: 4.5mm
Medium: Filtered, oil-free and dry compressed air, complying with ISO 8573-1:2010, class 7:2:4µ, without corrosive components. As a derating, the pressure dew point must be at least 10°C lower than the low ambient temperature.
Material of housing: Anodized aluminum, plastic; Seals: NBR
Internal parts: Aluminum, stainless steel and Ms
Rated voltage: 24V DC, ±10%
Power consumption per magnet: 1.3 W
Protection level: IP 65 according to EN 60529
Electric plunger valve. After the voltage is applied, the valve switches. The valve is equipped with an emergency locking manual drive. Operate it through the terminal cover with a screw.
KF-46-210/2-HN-S12
2x 2/2-way, single coil, air spring return, all closed
KF-46-310/2-HN-S12
2x 2/3-way, single coil, air spring return, all closed
KF-46-312/2-HN-S12
2x 2/3-way, single coil, air spring return, all open
KF-46-314/2-HN-S12
2x 2/3-way, single coil, air spring return, 1 position open, 1 position closed
KF-46-510-HN-S12
2/5-way, single coil, air spring return
KF-46-511-HN-S12
2/5-way, single coil, mechanical spring return
KF-46-520-HN-S12
2/5-way, double coil
KF-46-530-HN-S12
3/5-way, middle position closed
KF-46-533-HN-S12
3/5-way, middle position vented
KF-46-534-HN-S12
3/5-way, middle position vented

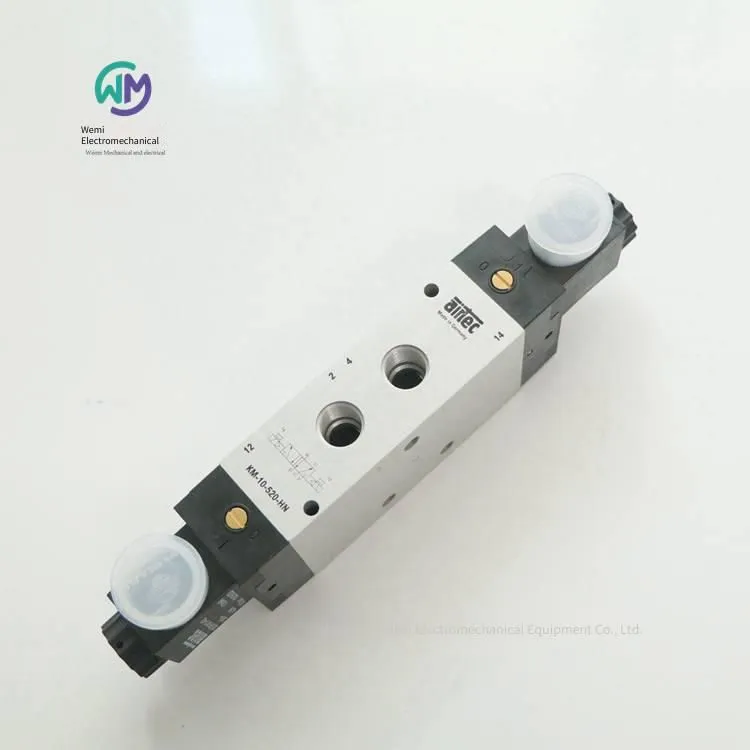

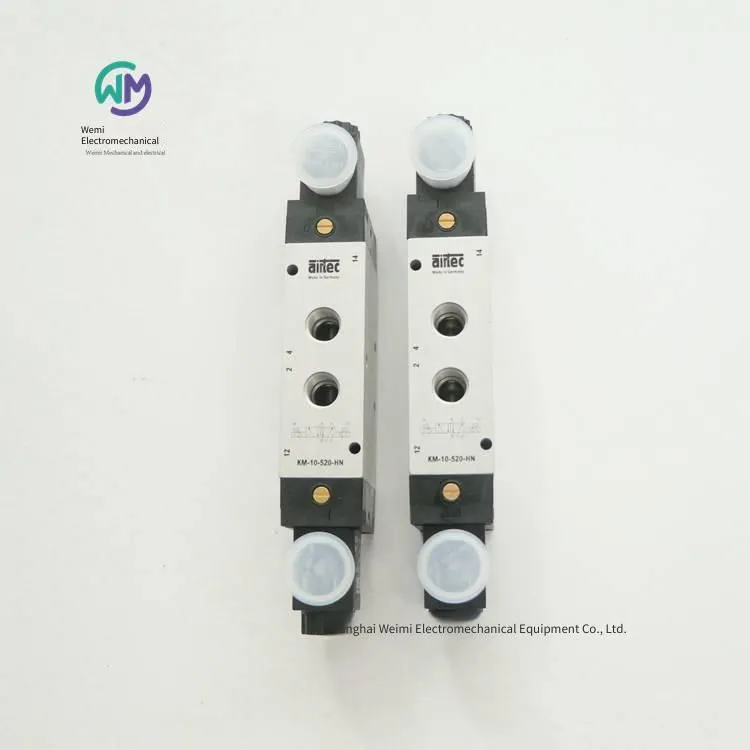

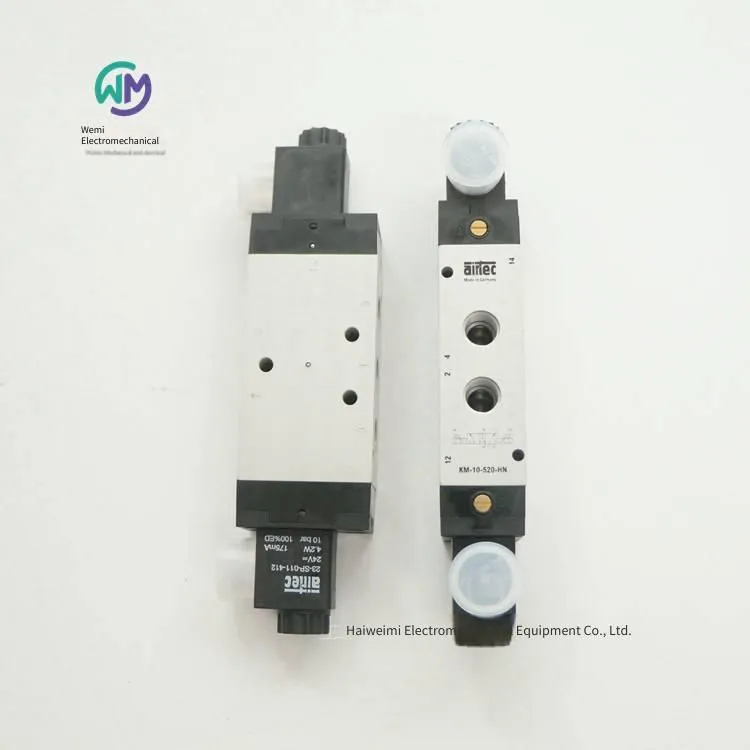

AIRTEC Solenoid Valve KM-10-520-HN
