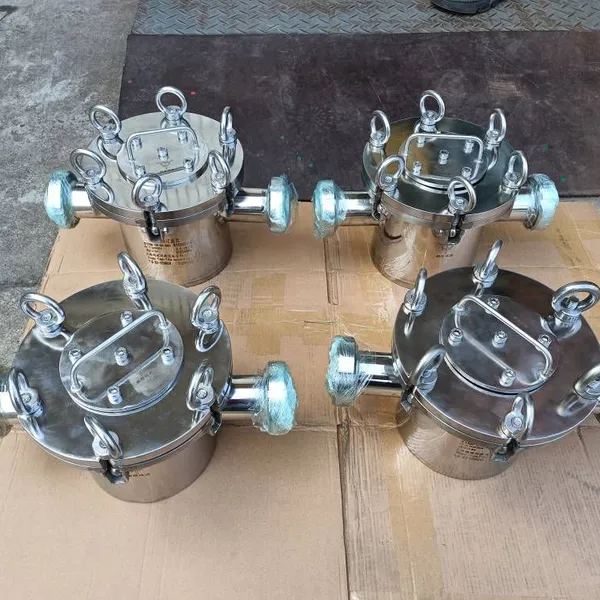

Help CenterMagnetic Rod Filter Model Ycbf-159-304-sms51, a Strong Magnetic Filter Produced by Yingsu
Related Products
-
Ydf-s1-304-sms51 Stainless Steel Filter, Basket Filter, Bag FilterNegotiableMOQ: 0 Set -
Ylf-219-304-f80p1.0 Stainless Steel Filter, Basket Filter, Etc.NegotiableMOQ: 0 Set
-
Ylf-219-304-f80p1.0 Scraper Self-cleaning Filter, Strong Magnetic Filter, Stainless Steel FilterNegotiableMOQ: 0 Piece
-
Yjf-219-316l-k50, Yjf-219-316l-k76-300um Stainless Steel Filters Produced by YingsuNegotiableMOQ: 0 Piece
-
Double Automatic Scraper Filter, Automatic Self-cleaning Filter, Self-cleaning Filter Produced by YingsuNegotiableMOQ: 0 Set
The magnetic rod filter is a common and important filtration device that plays a crucial role in many industries. It is mainly used to remove ferromagnetic impurities from fluids, and its working principle is based on the attraction of magnetic force to ferromagnetic substances.
In terms of structure, the magnetic rod filter usually consists of magnetic rods and a filter housing. The magnetic rods are the core components, generally made of high - magnetic permanent magnet materials such as neodymium iron boron. These magnetic rods are installed inside the filter and distributed in a specific arrangement to form an effective magnetic field area. The filter housing protects the magnetic rods and guides the fluid flow. It is usually made of materials such as stainless steel, which has good corrosion resistance and strength.
When the fluid to be filtered enters the magnetic rod filter, it first comes into contact with the magnetic field around the magnetic rods. Under the action of the magnetic field, ferromagnetic impurities are attracted by the magnetic force and adsorbed on the surface of the magnetic rods. This is like a magnet attracting iron filings. As long as ferromagnetic substances are close to the magnetic rods, they will be firmly adsorbed. As the fluid continuously passes through the filter, more and more ferromagnetic impurities will be captured by the magnetic rods, thus purifying the fluid.
The filtration effect of the magnetic rod filter depends on several factors. Firstly, it is the magnetic strength of the magnetic rods. The stronger the magnetism, the greater the attraction to ferromagnetic impurities, and the better the filtration effect. Secondly, it is the number and arrangement of the magnetic rods. A reasonable arrangement can make the fluid fully contact the magnetic rods and improve the impurity capture rate. The flow rate of the fluid also affects the filtration effect. If the flow rate is too fast, ferromagnetic impurities may flow out of the filter with the fluid before being adsorbed by the magnetic rods; if the flow rate is too slow, the filtration efficiency will be affected.
In practical applications, to ensure the continuous and effective operation of the magnetic rod filter, the magnetic rods need to be cleaned regularly. When the impurities adsorbed on the surface of the magnetic rods reach a certain level, it will affect their ability to adsorb subsequent impurities. During cleaning, the magnetic rods are usually taken out of the filter, and the adsorbed impurities are removed with a brush or other tools, and then reinstalled back into the filter.
The magnetic rod filter is widely used in industries such as chemical, food, pharmaceutical, and electronics. In the chemical industry, it can remove ferromagnetic impurities from chemical raw materials to ensure the purity and quality of products; in the food industry, it can prevent impurities such as iron filings from mixing into food to ensure food safety; in the pharmaceutical industry, it helps to improve the purity of drugs and ensure the effectiveness and safety of drugs; in the electronics industry, it can avoid damage to electronic components caused by ferromagnetic impurities and improve the product qualification rate.
The magnetic rod filter achieves effective purification of fluids by using the principle of magnetic force to adsorb ferromagnetic impurities. It has a simple structure, good filtration effect, and is easy to maintain. It plays an important role in various industries and provides strong support for product quality and production safety.
