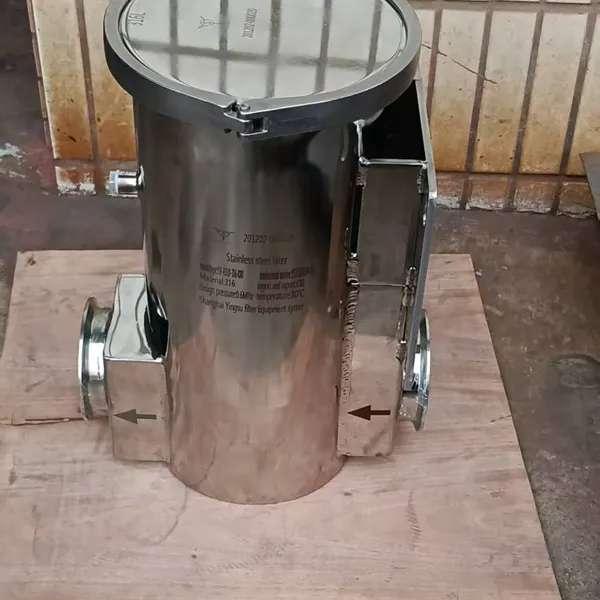

Help CenterYjf-0110-304-19 Stainless Steel Filter Produced by Yingsu, Stainless Steel Precision Filter
Related Products
-
Yjf-0110-304-f20p1.0 Stainless Steel Filters Produced by Yingsu, Stainless Steel Precision Filters, Etc.NegotiableMOQ: 0 Piece -
Yslf-219-304-f80 Basket Filter Produced by Yingsu, Stainless Steel Filter, Stainless Steel Basket, Etc.NegotiableMOQ: 0 Piece
-
Silicone Powder Filter Yzyf-219-5l-304-k25, Silicone Powder Testing Machine, Produced by YingsuNegotiableMOQ: 0 Piece
-
High-pressure Precision Gas Filter Produced by Yingsu. High-pressure Filter Yjf-0310-316-k80NegotiableMOQ: 0 Piece
-
Yjf-0110-304-20um Ying su Double Bag Filter, Pipeline Precision FilterNegotiableMOQ: 0 Piece
Stainless steel filters are an indispensable device in the pipeline series for transporting media and play an important role in many fields. The following will provide a detailed introduction from aspects such as its structural composition, working principle, characteristics, classification, and scope of use.
Structural Composition
Stainless steel filters are mainly composed of a shell, multiple filter elements, a backwashing mechanism, and a differential pressure controller. The horizontal partition inside the shell divides its inner cavity into upper and lower chambers. The upper chamber is equipped with multiple filter elements, making full use of the filtration space and significantly reducing the volume of the filter; the lower chamber is equipped with a backwashing suction cup. There are also components such as a filter screen and a sewage outlet.
Working Principle
Conventional Filtration Process
During operation, the water to be filtered enters through the water inlet, flows through the filter screen, and enters the pipeline required by the user through the outlet for process circulation. The particulate impurities in the water are trapped inside the filter screen. With continuous circulation, more and more particles are trapped, and the filtration speed becomes slower and slower. The sewage at the inlet still keeps flowing in continuously, and the filter holes will become smaller and smaller, resulting in a pressure difference between the inlet and the outlet.
Backwashing Process
When the pressure difference reaches the set value, the differential pressure transmitter transmits an electrical signal to the controller. The controller starts the driving motor to drive the shaft to rotate through the transmission component. At the same time, the sewage outlet opens, and the impurities are discharged through the sewage outlet. After the filter screen is cleaned, the pressure difference drops to the minimum value, and the system returns to the initial filtration state, and the system operates normally. Among them, the filter element uses a high-strength wedge-shaped filter screen, which automatically cleans the filter element through differential pressure control and timing control. When the impurities in the filter accumulate on the surface of the filter element, causing the pressure difference between the inlet and the outlet to increase to the set value, or when the timer reaches the preset time, the electric control box sends a signal to drive the backwashing mechanism. When the backwashing suction cup opening is directly opposite to the filter element inlet, the sewage valve opens. At this time, the system relieves pressure and drains water. A negative pressure area with a pressure lower than the water pressure outside the filter element appears inside the suction cup and the filter element, forcing part of the clean circulating water to flow from the outside of the filter element into the inside of the filter element. The impurity particles adsorbed on the inner wall of the filter element flow into the suction cup with the water and are discharged from the sewage valve. The specially designed filter screen creates a jet effect inside the filter element, and any impurities will be washed away from the smooth inner wall.
Characteristics
General Characteristics
Stainless steel filters have the characteristics of advanced structure, small resistance, and convenient sewage discharge. They are suitable for a wide range of media, such as water, oil, and gas. All internal components are made of stainless steel, which is strong and durable. They are extremely convenient to use and maintain. When cleaning is required, simply remove the detachable filter cartridge, process it, and then reinstall it.
Characteristics of Y-type Filters
Y-type filters are small in size, have fine filter holes, small resistance, fast flow, small pressure loss, convenient installation and maintenance, low cost, strong anti-pollution ability, short sewage discharge time, and convenient slag discharge. The filter screen uses a stainless steel double-layer mesh structure, which is strong and durable, has small flow resistance, and convenient sewage discharge. The mesh number of the filter screen can also be set according to user needs. Generally, the mesh number for water is 18 - 30 meshes/c㎡, for gas is 40 - 100 meshes/c㎡, and for oil is 100 - 480 meshes/c㎡. Y-type filters can also be combined with expansion joints to form a Y-type tie rod expansion filter with an adjustable installation length.
Features of Multi - Filter
The multi - filter is specially designed and manufactured for simultaneous filtration of multiple samples. The multi - filter system can filter multiple (single, three, six) samples simultaneously. Only one vacuum source is needed to complete all operations, saving a lot of time and being convenient and fast. Each support of the filter support is equipped with an independent control valve, which is flexible to use, convenient to disinfect and highly efficient. It can detect three or six samples simultaneously, with high sensitivity, low false - positive probability and simple operation. The multi - filter support made of all - stainless - steel material can perform filtration operations at a high temperature of 180°C; the high - quality extra - hard glass filter bottle and cup are exquisitely made and can withstand a temperature difference of over 200°C. The aluminum alloy clip is reasonably and tightly designed, which can conveniently combine the filter cup with the intermediate filter head and ensure strict sealing without liquid leakage. At the same time, the 316L sanitary - grade stainless - steel material is resistant to acid and alkali, corrosion - resistant and easy to be disinfected at high temperature, making the analysis results more stable and reliable.
Classification
SUS304 and SUS316 Stainless - Steel Filters
SUS304 and SUS316 stainless - steel filters are common types, with brands such as Jiajie and complete models and specifications. They are usually installed at the inlet end of pressure - reducing valves, pressure - relief valves, constant - water - level valves or other equipment, and can effectively filter mechanical impurities in the medium, such as rust and sand in sewage, and a small amount of solid particles in liquid, so as to protect the accessories on the equipment pipeline from wear and blockage.
Multi - Filter
Multi - filters can be divided into three - unit stainless - steel filters and six - unit stainless - steel filters, etc. According to the material and application scope, they can be further divided into standard multi - filters and all - stainless - steel multi - filters. The support of the standard multi - filter is made of stainless - steel material, and the membrane - changing filter is made of extra - hard glass, which can be autoclaved. It has the characteristics of simple installation, easy disinfection, improving the accuracy of parallel experiments, reducing the number of repetitive filtration tests and low price. The all - stainless - steel multi - filter is entirely made of stainless - steel material, which is more corrosion - resistant and convenient for cleaning and sterilization.
Scope of Application
Stainless - steel filters are widely used in multiple fields. In industry, they can be used in various pipeline systems to protect the normal operation of equipment; in the fields of chemical analysis and biochemical pharmacy, they can be used for solution filtration; in sanitary inspection, environmental detection and water quality analysis, they can filter impurities to ensure the accuracy of detection results; in the food and beverage industry, they can guarantee product quality; in scientific research, they are also commonly used experimental equipment.
With its diverse structures, efficient working principles and remarkable features, the stainless - steel filter shows important application value in many fields. And with the continuous development of technology, its performance and application scope will also be continuously expanded and improved.
