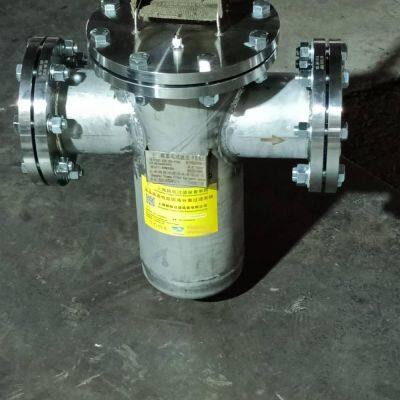

Help CenterYjf-0110-304-20um Ying su Double Bag Filter, Pipeline Precision Filter
Related Products
-
Double Bag Filtration, Bag Filter, Stainless Steel Bag Filter Model Ydf - Bn2 - 304 - F50NegotiableMOQ: 0 Piece -
Double Self-cleaning Filter Ylf-219-304-f50-400m Double Bag Filter Pipeline FilterNegotiableMOQ: 0 Set
-
Ytf-0110-304-f50 Pipeline Precision Filter, Basket Filter, T-type Filter Produced by YingsuNegotiableMOQ: 0 Piece
-
Ylf-219-304-f50 Stainless Steel Filter, Basket Filter, Ylf-220-304-f100NegotiableMOQ: 0 Piece
-
Ylf-219-304-f50-400m Basket Filters Produced by Yingsu, Pipeline Basket Filters, Etc.NegotiableMOQ: 0 Piece
The double-bag filter is a highly efficient filtration device widely used in the industrial field. It combines the advantages of bag filtration with the characteristics of a double design, providing reliable filtration solutions for the production processes of many industries.
Structural Features
The double-bag filter is mainly composed of two filter tanks, inlet and outlet pipes, switching valves, filter bags and other components. The two filter tanks are connected together through pipes and switching valves to form a double structure. This design allows the filter to replace and clean the filter bags without stopping work, greatly improving the continuity and efficiency of production. As the core filtration element, the filter bag is usually made of high-quality filtration materials, such as polypropylene, polyester, nylon, etc., with different precision levels available for selection to meet different filtration needs.
Working Principle
When liquid enters the double-bag filter, it first enters one of the filter tanks through the switching valve. Under the action of pressure, the liquid passes through the filter bag, and solid particles and impurities are intercepted inside the filter bag, while the clean liquid flows out of the filter bag and enters the downstream pipeline. As the filtration progresses, the impurities inside the filter bag gradually increase, and the pressure loss also gradually increases. When the pressure loss reaches a certain value, it is necessary to switch to the other filter tank to continue filtration, and at the same time replace or clean the clogged filter bag. This switching process can be completed by manually operating the switching valve or by using an automated control system for automatic switching.
Main Functions
Similar to other pipeline-type precision filters, the double-bag filter also has the functions of removing solid particles, protecting downstream equipment, and improving product quality. It can efficiently remove solid particles and impurities from the liquid. By selecting filter bags of different precision levels, high-precision filtration from a few microns to hundreds of microns can be achieved to ensure the purity of the liquid. Removing solid particles can prevent the blockage and damage of downstream equipment (such as pumps, valves, nozzles, etc.), reduce equipment wear and corrosion, and extend the service life of the equipment. Through efficient filtration, the purity of the liquid is guaranteed, thereby improving the quality and stability of the final product, reducing possible secondary pollution during the filtration process, and ensuring product safety.
Advantages
The advantage of the double-bag filter lies in its ability to achieve continuous operation. In industrial production, many process procedures need to be carried out continuously. Once the filtration stops, it may affect the entire production process. The double-bag filter can replace and clean the filter bags without interrupting the liquid flow by switching the working states of the two filter tanks, ensuring the continuity of production. Moreover, the cost of its filter bags is relatively low, and they are easy to replace, reducing the long-term operating cost. The initial investment of the filter is also relatively small, and it is highly economical overall.
Application Fields
Due to the characteristics of high efficiency, continuity, and economy of the double-bag filter, it is widely used in many industries such as chemical, pharmaceutical, food, beverage, and environmental protection. In the chemical industry, it can be used for the filtration of various chemical raw materials, intermediates, and products. In the pharmaceutical industry, it can meet the strict requirements of drug production for purity and sterility. In the food and beverage industry, it is used to remove impurities, suspended solids, and microorganisms from the liquid to ensure product quality and safety. In the environmental protection field, it can be used for sewage treatment, waste gas purification, etc.
