Three-roller gate access control passage

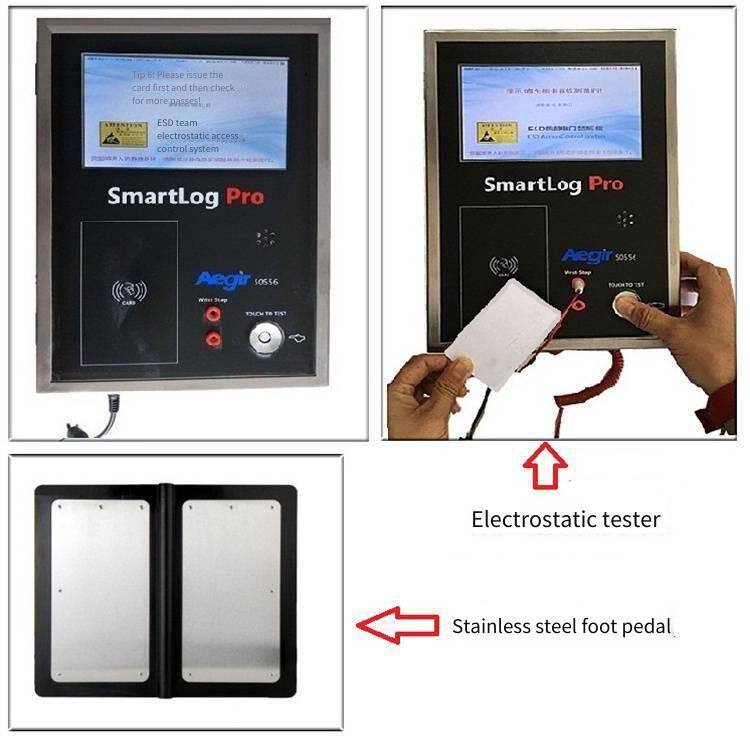

Introduction to AEGIR50556 Electrostatic Meter:
The AEGIR 50556 intelligent electrostatic tester is used to test whether the electrostatic wrist straps and electrostatic ankle straps meet the usage standards of electrostatic protection tools. It combines with the personnel identification card to generate an electronic file and uploads it to the server, which facilitates the customer's auditing and production department management. The AEGIR50556 belongs to a testing instrument and needs to be calibrated regularly.
Features of the electrostatic meter:
1.Supports network communication and can upload 60,000 records within less than 14S
2.Enables online upgrade via the network (can be upgraded across network domains)
3.All parameters can be set through a PC and can be remotely controlled
4.Comes with a perpetual calendar for accurate timekeeping and can automatically synchronize time via the network
5. It has 60,000 card swiping records and a blacklist capacity of 10 million, and the data will not be lost in case of power failure.
6.It has abundant I/O ports, which can be used to control other external devices
7.It has been used by large enterprises and tested by massive data, with excellent performance
Basic specification parameters of the electrostatic meter:
Protocol standard: |
ISO15693, ISO14443A |
Operating frequency: |
13.56MHz |
Communication interface: |
RJ45 (TCP/IP) |
External power supply: |
DC12V/3A |
Overall power consumption: |
|
Display screen: |
LED LCD display screen |
Physical parameters of the electrostatic instrument:
Overall dimensions: |
215*295*60mm |
Total weight: |
2kg |
Shell material: |
304 stainless steel for the whole machine |
Protection level: |
IP53 |
Environmental parameters of the electrostatic instrument:
Operating temperature: |
-20℃～+70℃ |
Storage temperature: |
-30℃～+80℃ |
Storage humidity: |
5%～95% without condensation |
Measurement standards of the electrostatic instrument:
Static wrist strap: |
Lower limit (750K±10%) Upper limit (10M±10%) |
Shoes: |
Lower limit (750K±10%) Upper limit (35M, 100M, 1000M±10%) can be selected arbitrarily |

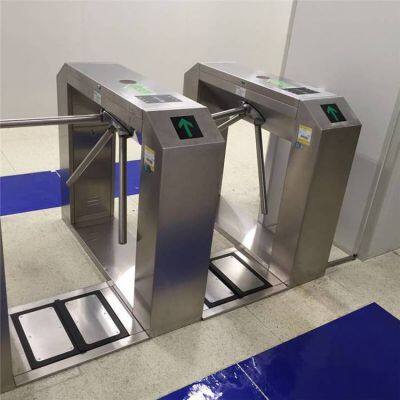

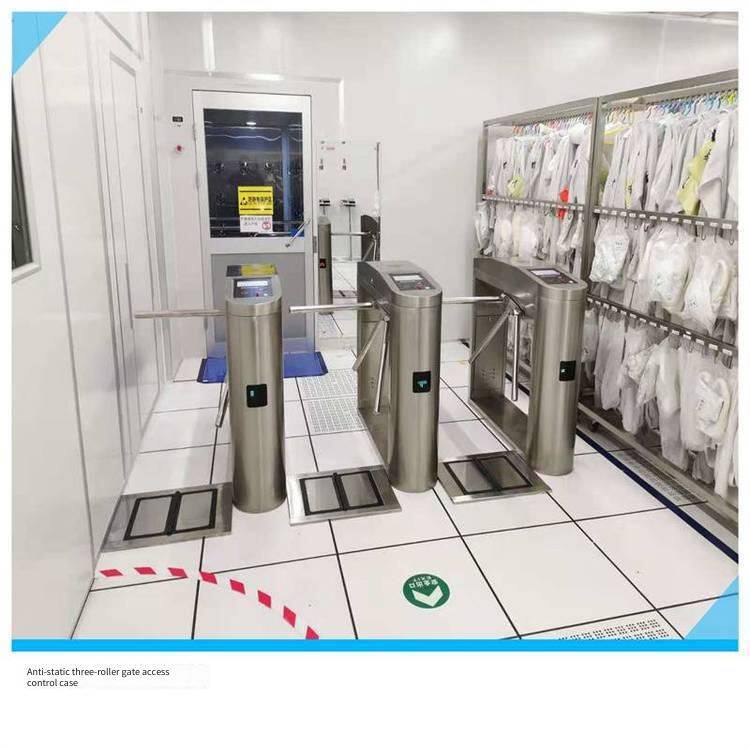

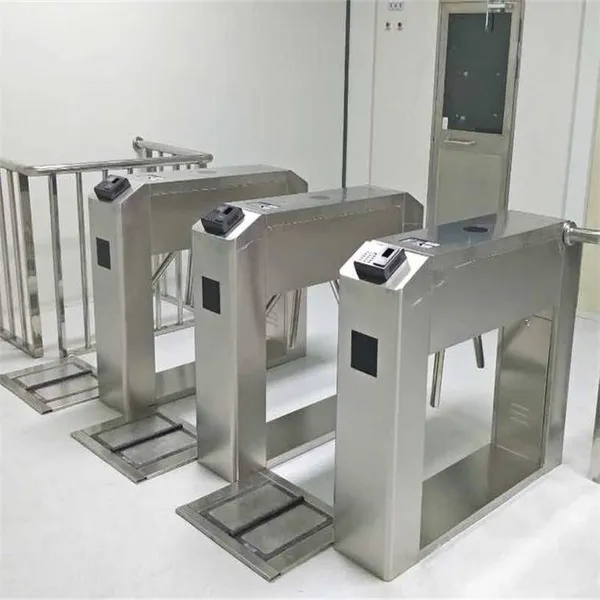

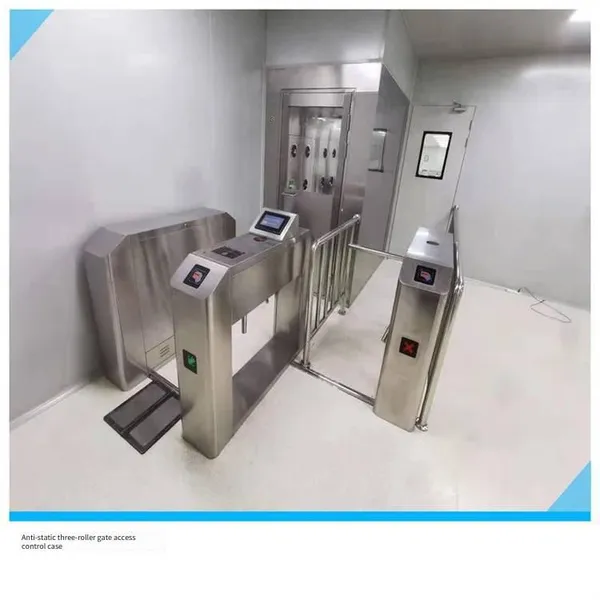

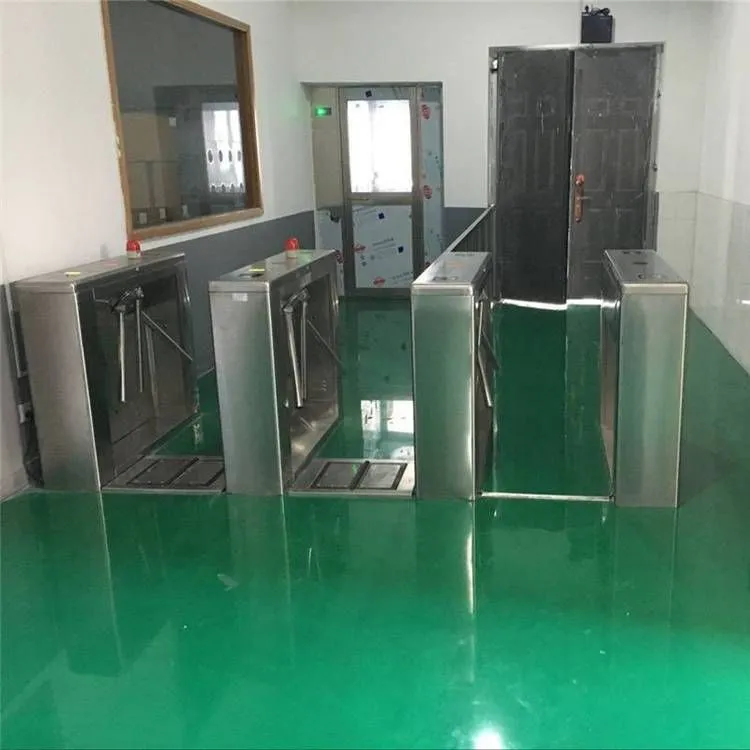

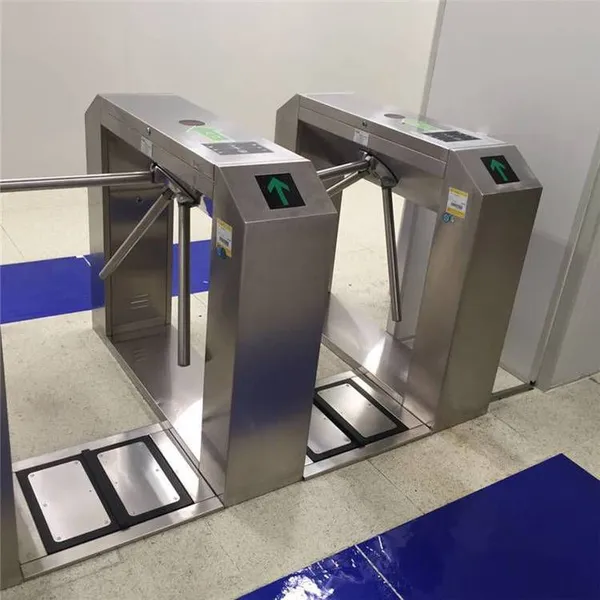

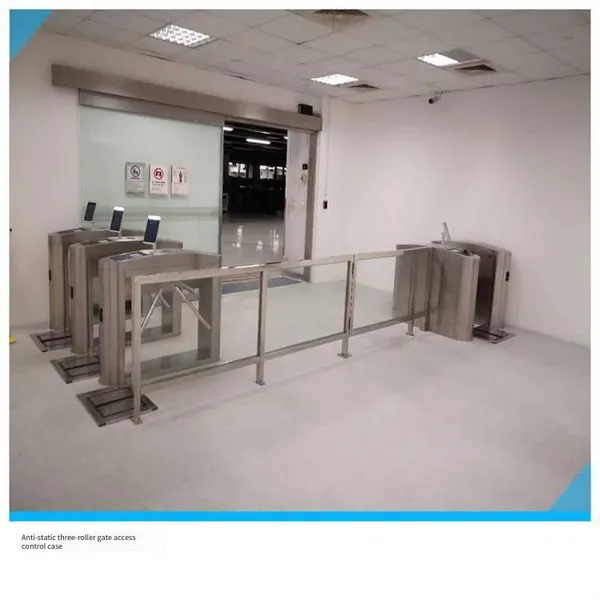

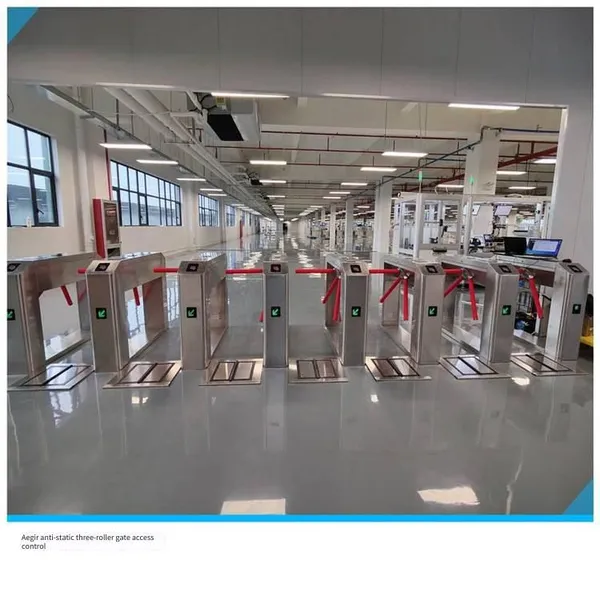

Detailed description of the ESD three-roller gate:
The overall shape of the product is made of domestic standard (No. 304) stainless steel plate by stamping. It has an elegant appearance, is rust-proof, and can resist external damage. The passage formed by the rectangular chassis and the channel gate bar can provide an orderly and civilized passage for people entering and exiting, prevent illegal entry and exit, and quickly control the lowering or retracting of the bar in case of emergency.
Main technical parameters of the product:
◇ Structure: Frame structure / Stainless steel shell
◇ Production process: Produced by a full-computer numerical control laser cutting machine
◇ Overall dimensions: Length 1200 × Width 280 × Height 980 (mm)
◇ Weight: 70Kg
◇ Length of the barrier rod: 510(mm) outside the cabinet
◇ Bearing capacity of the barrier rod: 80Kg
◇ Driving force for the barrier rod operation: 3Kg
◇ Transmission mode of the barrier rod: Digital mode
◇ Direction of the barrier rod: One-way, two-way (optional); There are multiple working modes to choose from, such as two-way card reading for flow limitation, or card reading on one side and prohibited passage in the other direction, or card reading on one side and free passage in the other direction
◇ Automatic reset function: After the barrier is opened, the system will automatically lock if there is no passage within the specified time, and the passage time is adjustable;
◇ Light indication: Passage direction indication
◇ Adopt the working principle of optical hole position, and there is no delay requirement for the input control signal
◇ Working environment: Indoor, outdoor (awning)
◇ Temperature: -10℃～50℃ Relative humidity: ≤90%, no condensation
◇ Size of the induction card reading port: Comes with a standard mounting bracket or can be customized
◇ Barrier opening time: 0.2 seconds
◇ Passage speed: 30 people/minute
◇ Communication interface: Standard RS485 interface, distance ≤1200 meters
◇Input interface: Dry contact signal, +12V level signal, or DC12V pulse signal with a pulse width ≥ 100ms and a driving current ≥ 10mA;
Import and export of data
Import of employee card number data
Since the company has already installed personnel systems, attendance systems, etc., each employee has an induction card. These systems already contain information such as employee data and card numbers. To avoid re - entering this data in the ESD access control system, we can export a text file from the personnel system. This file should contain the information necessary for the ESD access control, such as employee ID, name, department, card number, etc. Then, use the import function of the ESD access control software to complete the initialization and update of the data. The import module must ensure that the access control settings made in the ESD access control software can still be retained after the import operation. This part of the work will be customized and completed by Suzhou Boyuanhong Electronics Co., Ltd.
This process of import and then export is similar to obtaining attendance data, so it can be smoothly integrated into the company's management process.
Export of access data
The transaction records of employees entering and exiting the passage can also provide necessary information for company management. Some companies directly use the access records of the passage as employee attendance. The system designed in this solution also has this function. According to customer requirements, we can add a module to the ESD access control management software so that the access records can directly enter the target database or be exported as a file for use by other systems.
Performance parameters
Digital design, accurate data, and rich interfaces
The test switch uses a touch - type design, which is convenient to use and has a long service life
The test items can be programmatically selected by the central controller
The electrostatic test results have multiple output methods: LED display, sound prompt, and program-controlled digital output provide a basis for the central controller to operate.
The tester uses a 100V microcurrent test, and the test is stable and accurate.
The ankle has an extended range: 750KΩ - 1GΩ
