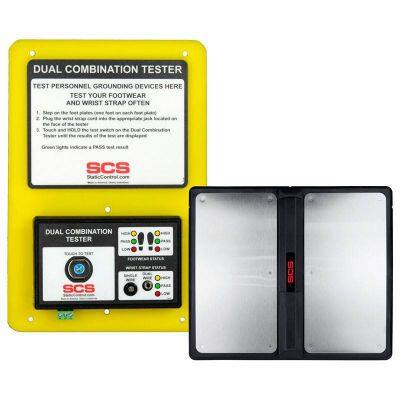

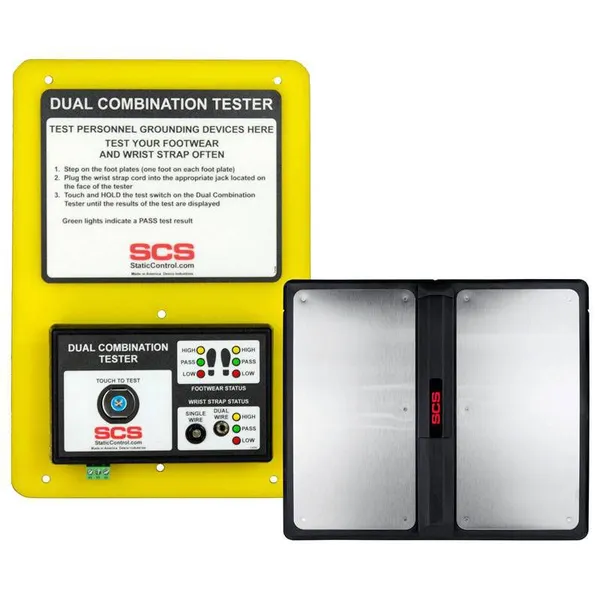

I. Device Description
According to the ANSI/ESD S20.20 standard, the grounding measures of employees must be tested daily. The 770758 can detect whether the grounding resistance of employees' wrist straps and anti-static shoes is within the qualified range. The detailed regulations can be found in the ESD anti-static manual TR20.20.
II. Sales Item Number 770758, Standard Configuration Includes the Following Items
Standard Accessories:
19273 Foot Pedal
Product Description: Foot pedal for 19270 and 770758
Sales Unit: Piece
62103 Connection Cable
Product Description: Connection cable for the foot pedal of 19270 and 770758
Sales Unit: Piece
19262 Power Adapter
Product Description: Universal power adapter, 100 - 240VAC input voltage, 12VDC output voltage
Sales Unit: Piece
19274 Grounding Wire
Product Description: 6-foot-long grounding wire, lantern plug/circle terminal
Sales Unit: Piece
Optional Accessories
50755 Inductive Grip
Product Description: Used for comprehensive human body grounding test when wearing gloves or finger cots
Sales Unit: Piece
50426 Calibrator
Product Description: 15 standard resistors, used to calibrate the comprehensive human body grounding tester
Sales Unit: Set
19272 Support Frame
Product Description: Support frame for 19270 and 770758
Sales Unit: Piece
80021 Adapter - 4mm Jack to 10mm Male Connector
Product Description: Convert the 4mm wrist strap jack to a 10mm male connector, suitable for wrist straps with 10mm female buckle terminals
Sales Unit: Piece
III. Product Use

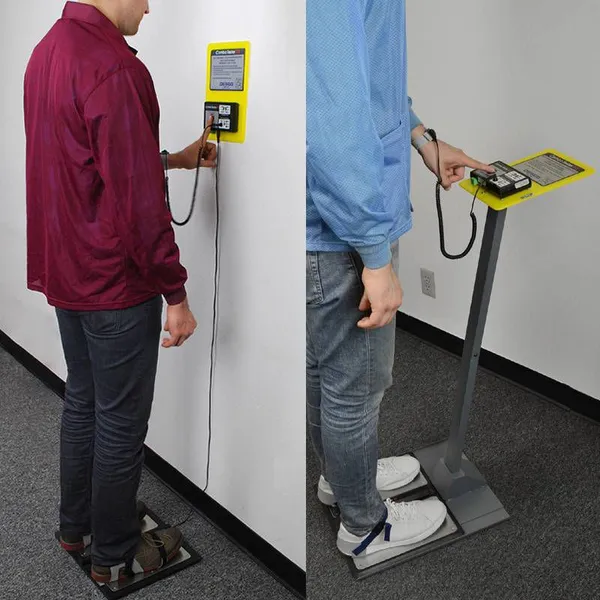

1. Install at the entrance of the EPA (Electrostatic Control Area) to detect whether the electricity of the human body grounded through the wrist strap and work shoes is qualified
2. Test the grounding of the wrist strap and work shoes simultaneously (independent test for the left/right foot)
3. It can test single-line and double-line wrist straps.
4. The 50755 inductive grip can be optionally configured, and it can also be tested when wearing gloves/finger cots.
5. Three groups of LEDs indicate the high/qualified/low resistance values of the wrist strap, left shoe, and right shoe respectively.
6. It has normally open (NO) and normally closed (NC) dry contacts, and can be externally connected to an access control or other devices.
7. Solid-state buttons (blue LED backlight), no mechanical wear.
8. Qualified resistance value for grounding of work shoes: (100KΩ~1GΩ)
Upper limit resistance value: Can be set to 10MΩ, 35MΩ, 100MΩ, 1GΩ
Lower limit resistance value: Can be set to 100KΩ, 750KΩ
Testing can be set to be disabled.
9. Qualified resistance value for grounding of wrist straps: (10MΩ~35MΩ)
Upper limit resistance value: Can be set to 10MΩ, 35MΩ
Lower limit resistance value: Fixed value of 750KΩ
Testing can be set to be disabled.
IV. Product Features
1. Simultaneously test whether the grounding of the human body through the wrist strap, left shoe, and right shoe is qualified.
2. It can test single-line wrist straps and double-line wrist straps.
3. You can choose to only test the wrist strap or anti-static shoes.
5. The testing time is short, and the test results of the wrist strap, left shoe, and right shoe are quickly displayed.
6. It complies with the latest ANSI/ESD S20.20-2007 standard.
7. Users can set the upper and lower limit thresholds to comply with ANSI (American Standard) or IEC (International Standard).
8. Solid-state test buttons to avoid further damage to the buttons.
9. The blue backlight of the buttons indicates the operation status.
10. The relay on/off signal controls the access control.
11. An infrared inductive grip can be optionally configured for testing when wearing gloves/finger cots.
