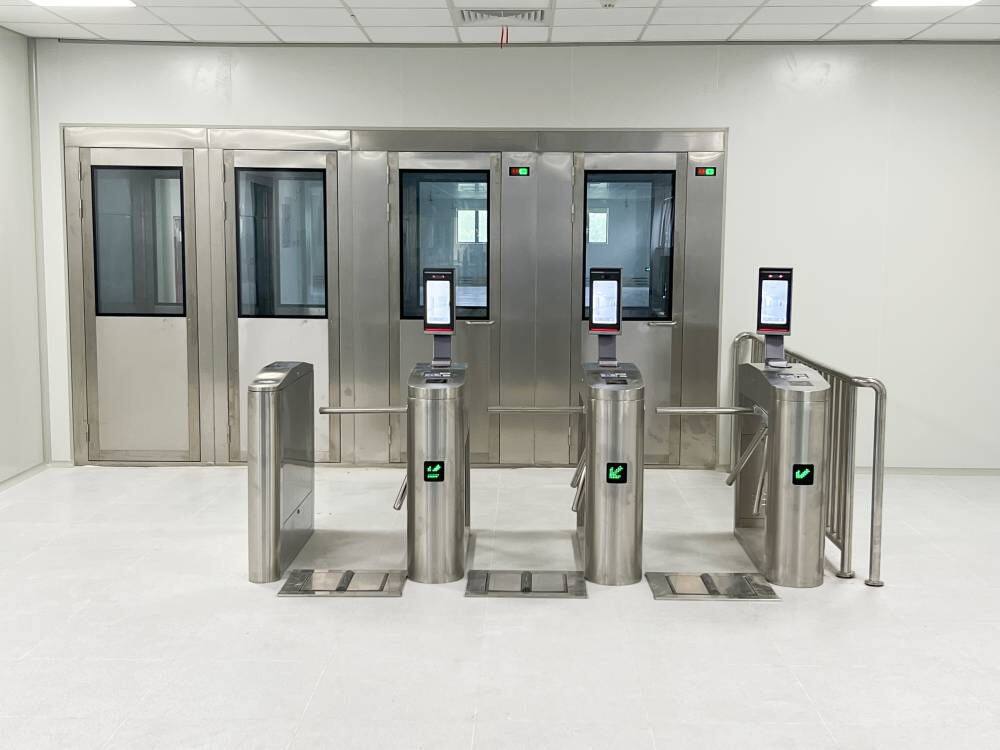

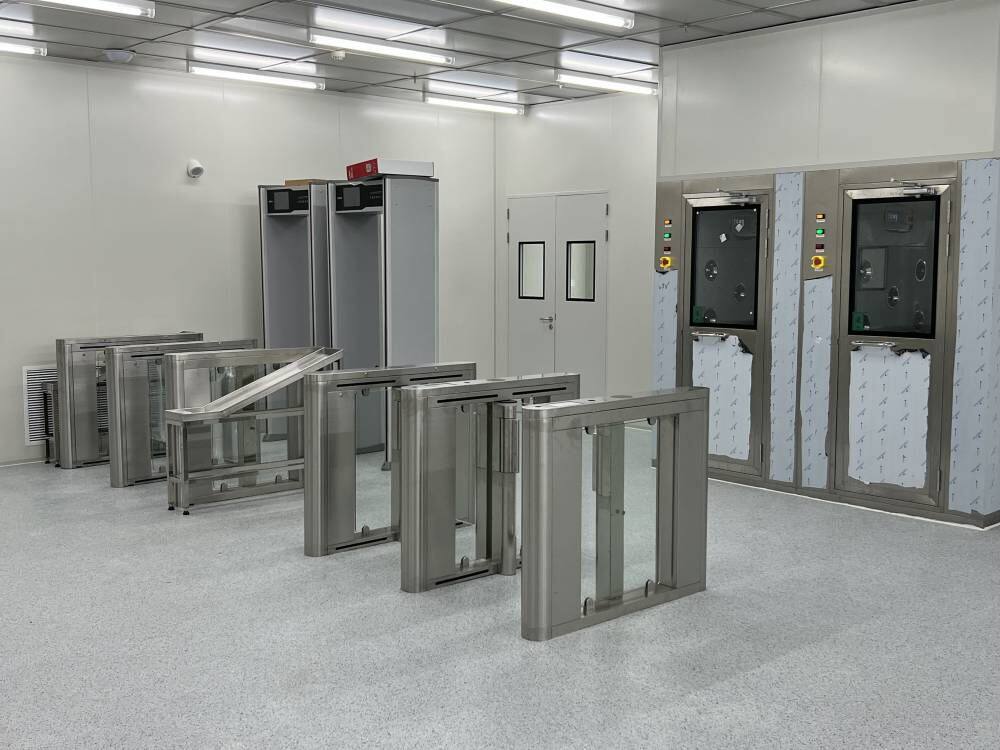

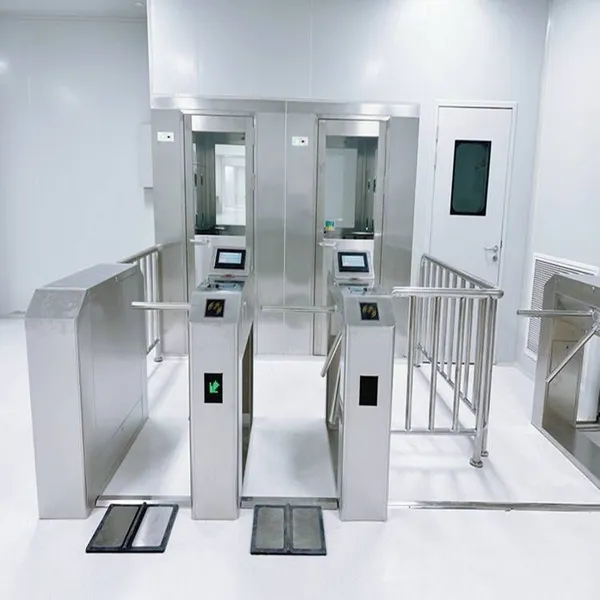

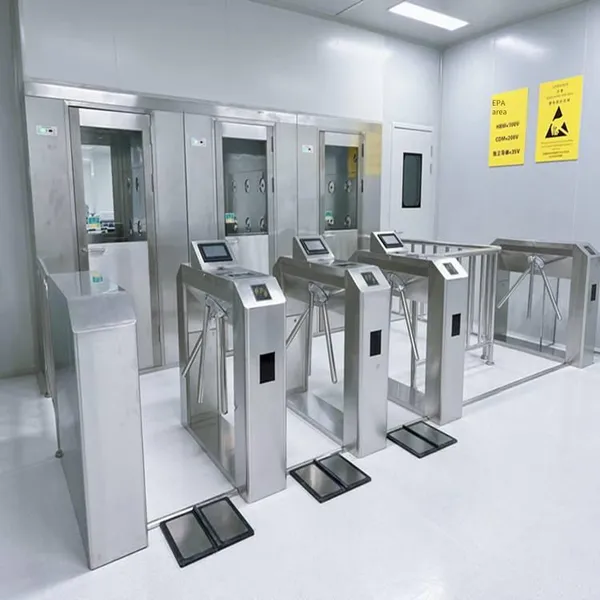

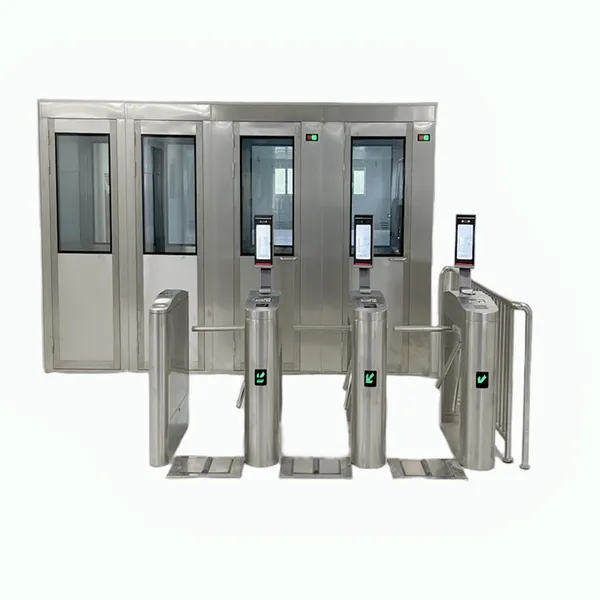

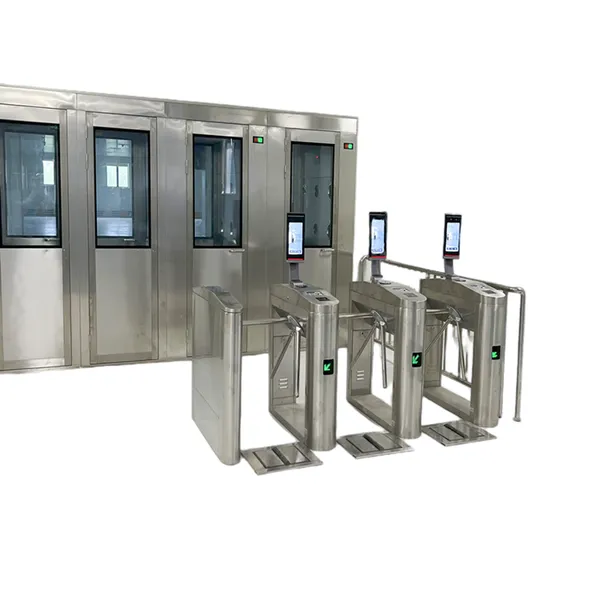

Supply ESD Aegir Air Shower Roller Gate Access Control Passage
Supply ESD Aegir Air Shower Roller Gate Access Control Passage is used for air showering of operators before entering the clean working environment to remove dust on the surface of the human body and carried items. At the same time, it also acts as an air lock to prevent unpurified air from entering the clean area, ensuring the cleanliness of the clean environment.
I. Technical Parameters:
1. Overall Dimensions: 2000×2300×2100 (Width × Depth × Height)
2. Clean Area Dimensions: 1790*1390*1950 (Width × Depth × Height)
3. Filter Purification Efficiency: ≥0.5um dust ≥99.91% (Sodium Flame Method)
4. Nozzle Air Speed: ≥ 22m/sec
5. Air Shower Time: Adjustable from 0 to 99sec
6. Circulating Air Volume: 2800 - 3200 m3/h
7. Power Supply: 380 V 50Hz
8. Power Consumption: 1.5 KW
II. Operation and Use:
1. Enter the air shower, press the power start button (red) on the electrical control panel to turn on the power, and the LED digital screen will start. Press the lighting button (lighting pattern, blue) on the control panel, and the lighting fluorescent lamp in the air shower will light up.
2. Before the air shower, press (∨∧) to set the air shower time. Press the air supply control button (blue), and the fan will start supplying air. The person being air showered starts the air shower process, and the digital display counts down. After reaching the set time, the time relay cuts off the power supply to the fan, stopping the air supply. If the time relay malfunctions, the person being air showered can directly press the indoor power stop button (red) to cut off the power.
(Note: If the malfunction occurs, please turn off the main power supply and wait for one minute. Then try to run it again. If the malfunction still persists, please contact Suzhou Boyuanhong Electronics Co., Ltd.)
If there are more people waiting for the air shower, after the previous person has finished the air shower, there is no need to press the indoor power stop button. Just walk out of the air shower and close the door behind. After the next person enters the air shower, press the air shower button to start the air shower directly.
3. The front and rear doors of the air shower room should not be opened simultaneously to prevent non - purified air from polluting the purified working area.
