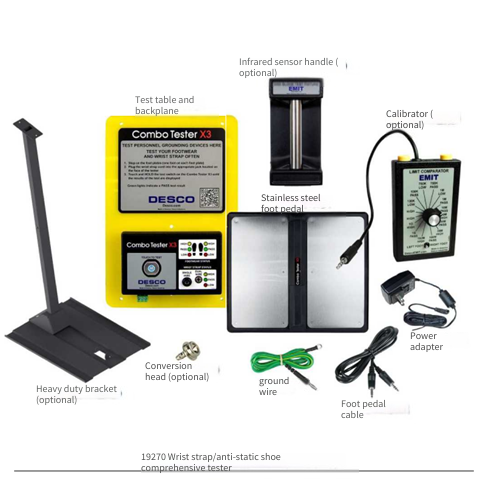

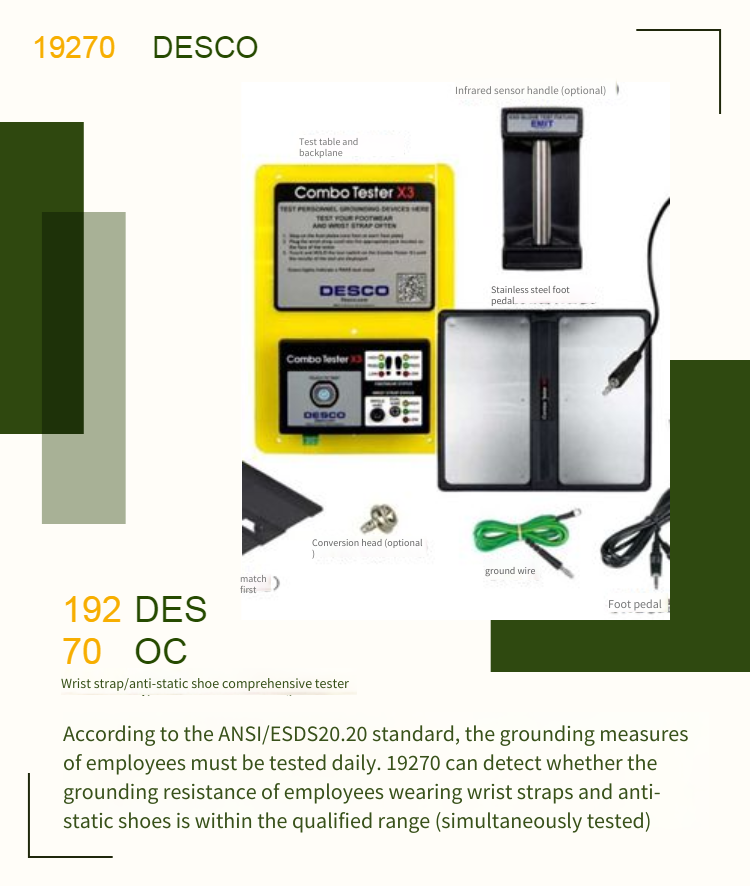

Help CenterAmerican Static Tester 19270 for Simultaneous Testing of Wrist Straps and Anti - Static Shoes
Related Products
-
Supply of Esd Swing Gate Access Control / Imported Esd From the United States / Swing Gate Access Control SystemNegotiableMOQ: 0 -
American Static Tester 770758 for Simultaneous Testing of Wrist Straps/esd Shoes (19270)NegotiableMOQ: 1 Unit
-
Supply of Esd Aegir Air Shower Roller Gate Access Control PassageNegotiableMOQ: 0 Piece
-
Supply Esd Aegir Anti-static Face Recognition Access Control Passage SystemNegotiableMOQ: 0 Piece
-
Esd Aegir Face Recognition Access Control Management System - Anti-static Swing Gate Access ControlNegotiableMOQ: 1 Set
Product Features

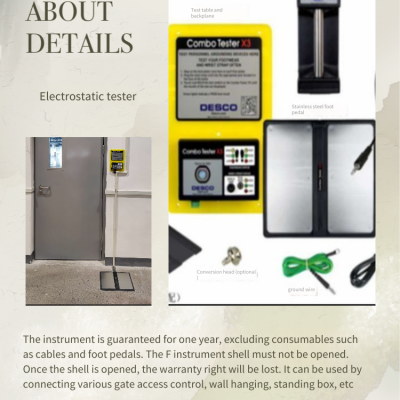

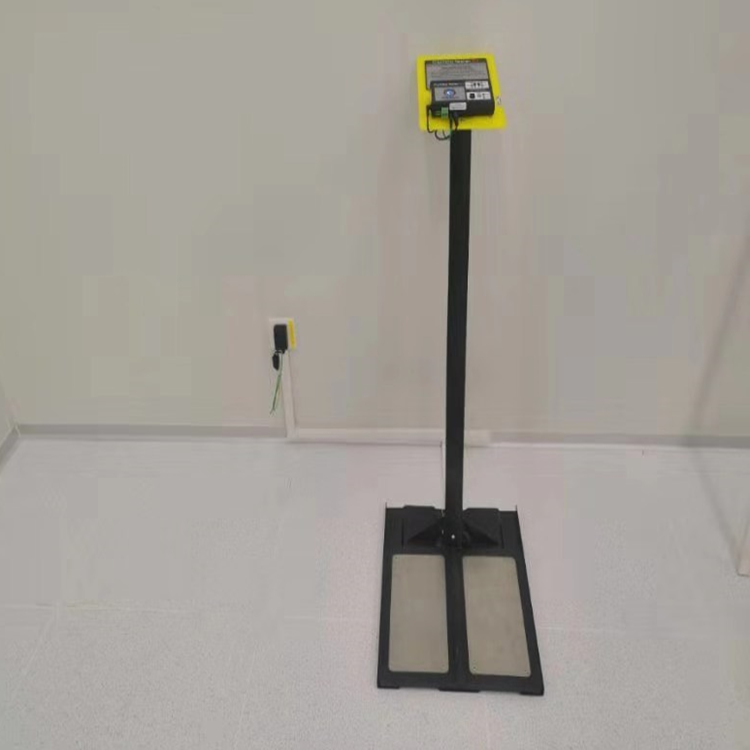

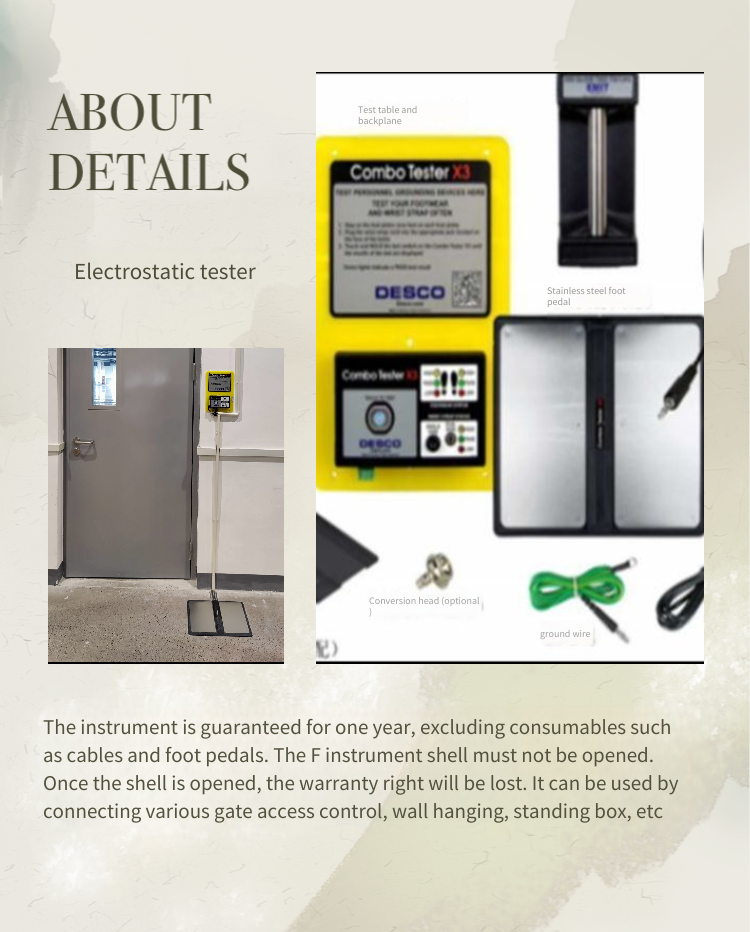

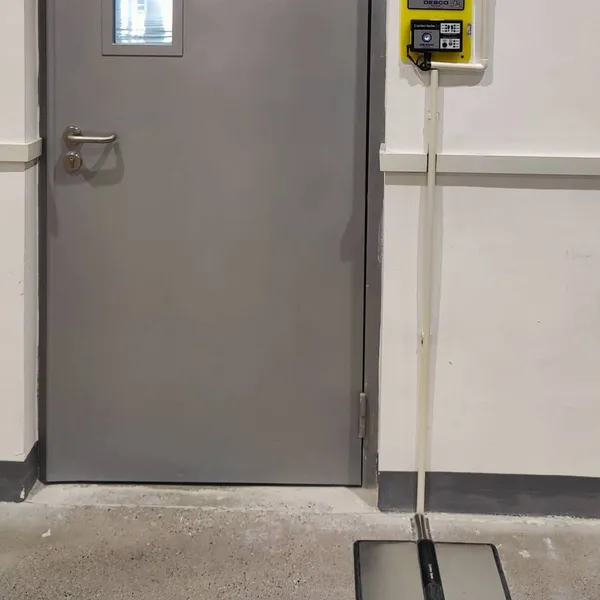

1. Installed at the entrance of the EPA (Electrostatic Control Area) to detect whether the electricity of the human body grounded through the wrist strap and work shoes is qualified.

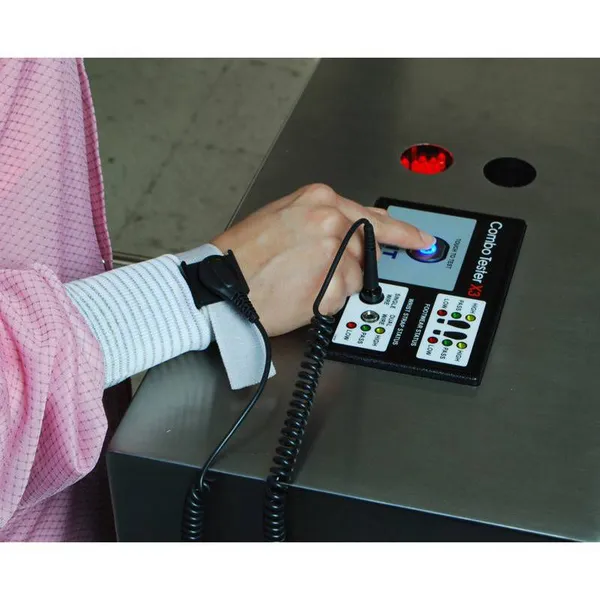

2. Test the grounding of the wrist strap and work shoes simultaneously (independent testing for the left/right foot).
3. Can test single-line and double-line wrist straps.
4. Optional 50755 induction grip, can be tested even when wearing gloves/finger cots.
5. Three groups of LEDs respectively indicate the high/qualified/low resistance of the wrist strap, left shoe, and right shoe.
6. Has normally open (NO) and normally closed (NC) dry contacts, can be externally connected to access control, alarm lights or other devices.
7. Solid-state buttons (blue LED backlight), no mechanical wear.
8. Qualified resistance value for work shoe grounding: (100KΩ~1GΩ)
Upper limit resistance value: Can be set to 10MΩ, 35MΩ, 100MΩ, 1GΩ
Lower limit resistance value: Can be set to 100KΩ, 750KΩ
Can be set not to test.
9. Qualified resistance value for wrist strap grounding: (10MΩ~35MΩ)
Upper limit resistance value: Can be set to 10MΩ, 35MΩ
Lower limit resistance value: Fixed value 750KΩ
Can be set not to test.
