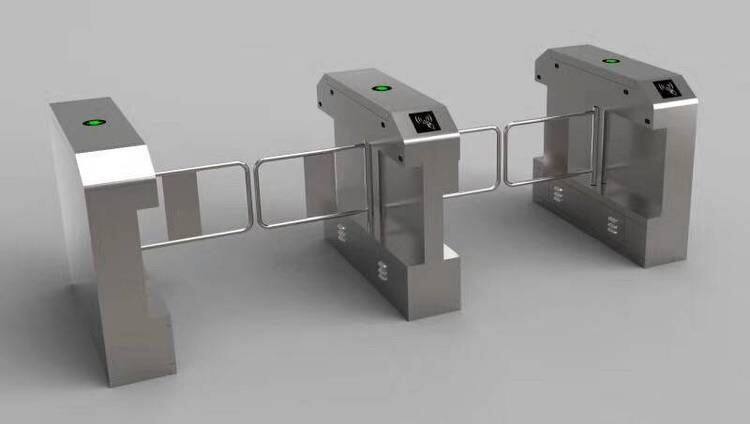

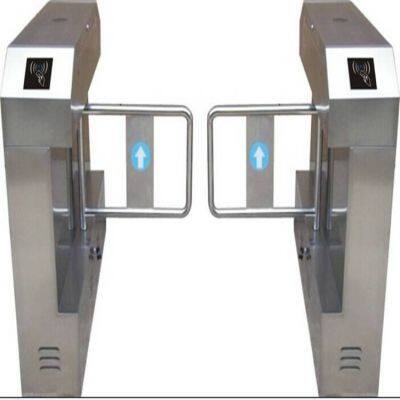

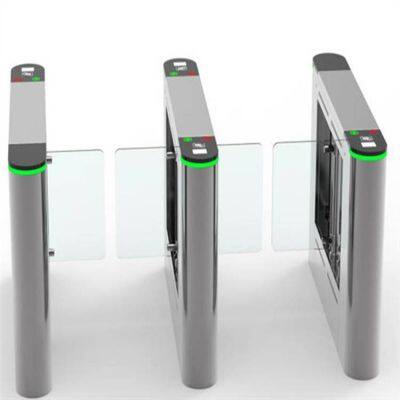

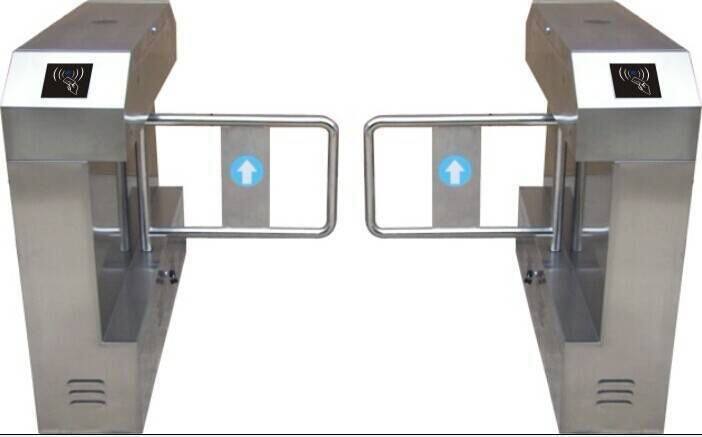

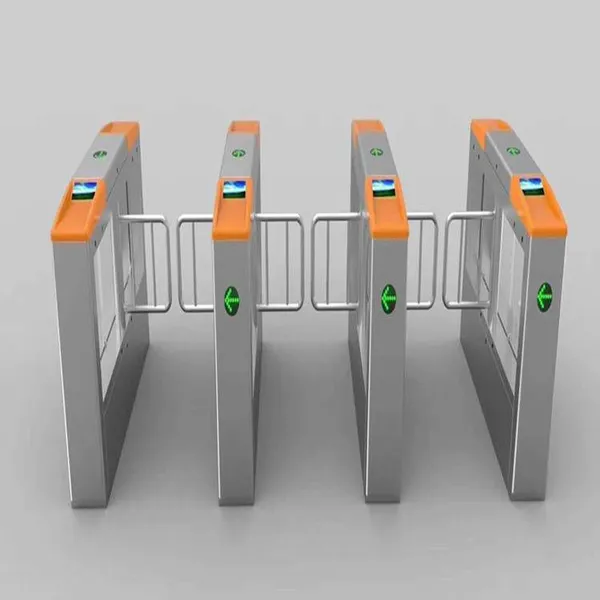

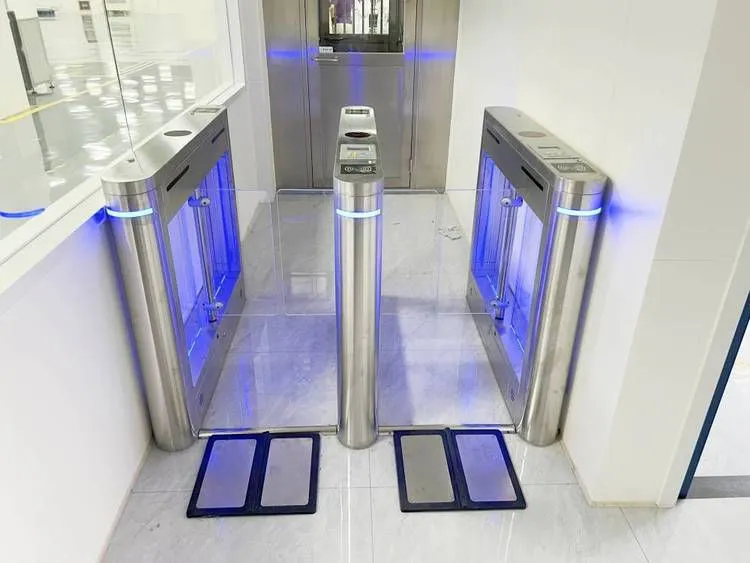

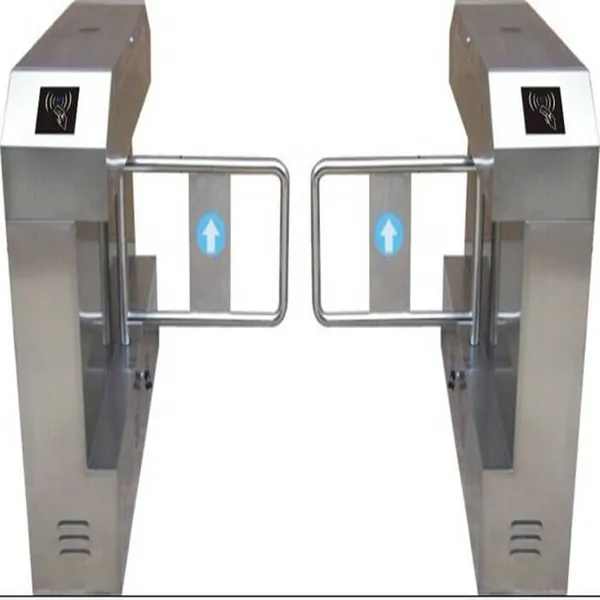

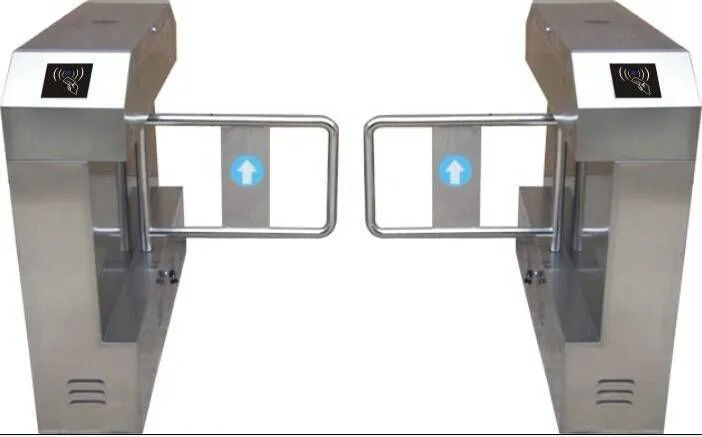

ESD Swing Gate Access Control

The swing gate consists of a gate machine chassis and movable swing bars. The swing bars can swing 180° or 90°. Swing gates are divided into mechanical and fully automatic types according to the control mode of the movement. In terms of shape, they are divided into vertical, bridge, and cylindrical types. The vertical and cylindrical types are smaller in size and easy to install, but the passage length is shorter, and the function of the pedestrian detection module is limited; the bridge-type swing gate has a longer passage, a stronger function of the pedestrian detection module, and higher security.


The entire outer box of the product is stamped and formed from domestic standard 304 stainless steel plates. The swing gate can provide an orderly and civilized way of passage for people entering and exiting, prevent illegal entry and exit, and the swing arms operate smoothly with low noise. The swing gate can be integrated with various access control devices, such as ID cards, IC cards, barcode cards, mobile phone SIM cards, access control systems, fingerprint machines, palm scanners, face recognition systems, etc.

1. Product Features:
◆ Beautiful and elegant appearance, rainproof, moisture-proof, and rust-proof.
◆ One-year free warranty for the whole machine and lifetime maintenance.
◆ Synchronization function (double swings open in opposite directions).
◆ It has the functions of fault self-check and alarm prompt, which is convenient for users to maintain and use.
◆ When the power is cut off, the swing arms automatically swing open, and when the power is on, they automatically close, meeting the fire protection requirements.
◆ There are multiple working modes to choose from. It can read cards in both directions, or read cards on one side and prohibit passage on the other side, or read cards on one side and allow free passage on the other side. The working mode of the gate machine can be set through the main board menu.
◆ The entire system runs smoothly with low noise.
◆ It has the function of long-distance control of opening and closing the gate through 485 to meet the special needs of users and fire safety requirements.
◆ Anti-rushing function. When the gate opening signal is not received, the swing arms are automatically locked.
◆ Anti-pinching and anti-collision functions. When the swing arm encounters an obstacle during the reset process, the motor automatically stops working within the specified time and restarts after the default delay.
◆ It has a reset function. After the gate is opened, if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and close automatically.
◆ It can be adjusted to be normally open or normally closed to meet the requirements of different sites.
◆ Inductive or delayed automatic reset. The standard is to automatically reset 5 seconds (adjustable) after opening.
◆ It can be externally connected to a switch button or a remote control to achieve one-way or two-way control of passage.

2. Swing Gate Technology
◇ Structure: Stainless steel chassis, swing arms, motor, movement and transmission parts, control board, etc.
◇ Gate machine technology: Bending, cutting, welding, polishing, grinding, etc.
◇ Swing arm length: 600mm;
◇ Weight: About 80Kg;
◇ Maximum bearing capacity of the swing arm: 60Kg;
◇ Swing arm transmission angle: 180 degrees;
◇ Maximum passage width: 1200mm;
◇ Swing direction: One-way, two-way;
◇ Working environment: Indoor, outdoor (with a rain awning);
◇ Environmental temperature: -30℃～50℃;
◇ Input interface: Relay switch signal (COM port is ground);
◇ Working power supply: Power supply voltage: Input AC220V±10%, output DC24V, DC12V;
◇ Motor power: DC motor 100W/24V;
◇ Motor speed: 1600 revolutions per minute;
◇ Relative humidity: Less than 95% (no condensation);
◇ Communication interface: Communication interface: RS485 (distance ≤1200 meters) or TCP/IP;
◇ Passage speed: 40 people per minute (normally open); 25 - 30 people per minute (normally closed);
◇ Gate opening and closing time: 1 - 2 seconds;
◇ Time required to enter the passage state after power-on: 3 seconds;
◇ Automatic fault reset time: 10 seconds;
◇ Mechanical life: More than 3 million times;
◇ Supported card readers: Barcode, ID/IC card, RFID card


3. Application scenarios of swing gates

Suitable for scenarios with relatively high requirements for passage width, such as cargo passages. Also suitable for scenarios with high requirements for aesthetics.


Product Tags: ESD detection access control , Swing gate access control , ESD access control , ESD static electricity detection , Swing gate
