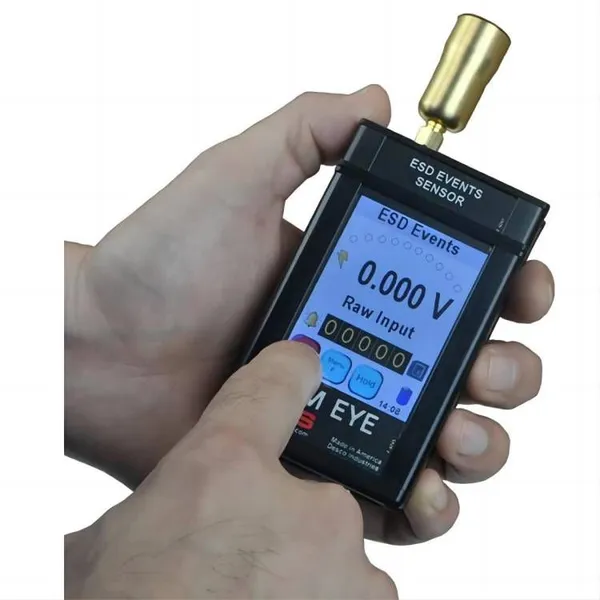

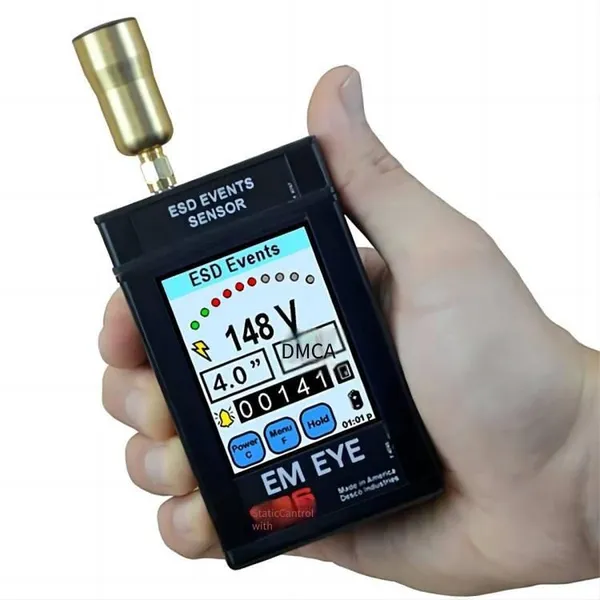

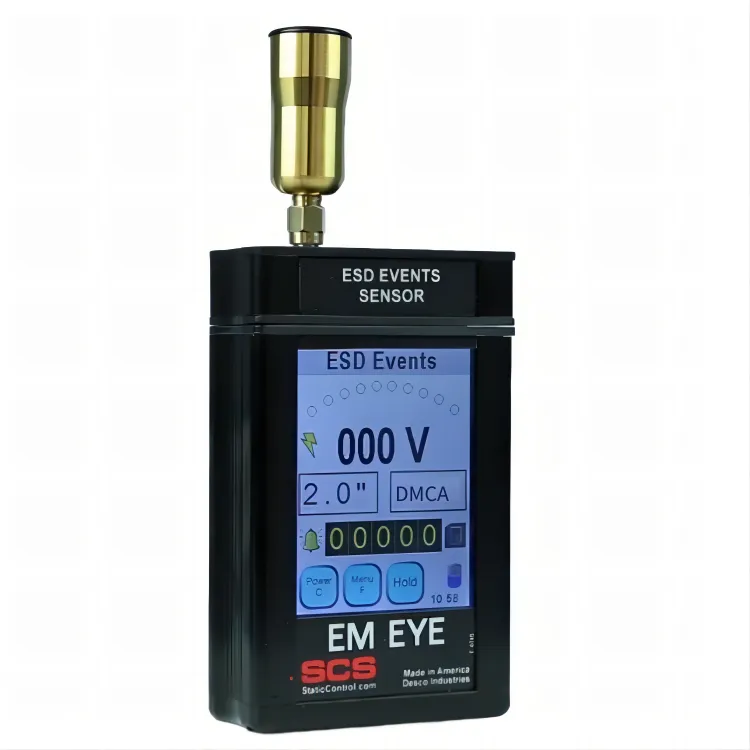

DESCO CTM048 Electrostatic Event Detector
Product Introduction
English Name: EM EYE METER
Product Description: Detect electrostatic discharge events and display the number of discharges and the discharge voltage value.
Product Type: Tester
Product Brand: SCS (Sub - brand of DESCO)
Product Origin: USA
Product Features
Detect the number of electrostatic discharge events and the discharge voltage value.
Have the ability to distinguish signals, differentiate between EMI and ESD signals, and eliminate non - ESD related events.
The detection distance can be set from 1.3 to 38.1 cm.
CDM, HBM, and MM discharge models can be selected.
The color touch screen is convenient to operate.
The data is saved on the SD card and can be converted into a form format (EXCEL).
Order Number
CTM048 - 21: Includes the following items:
CTM048: Main body of the tester

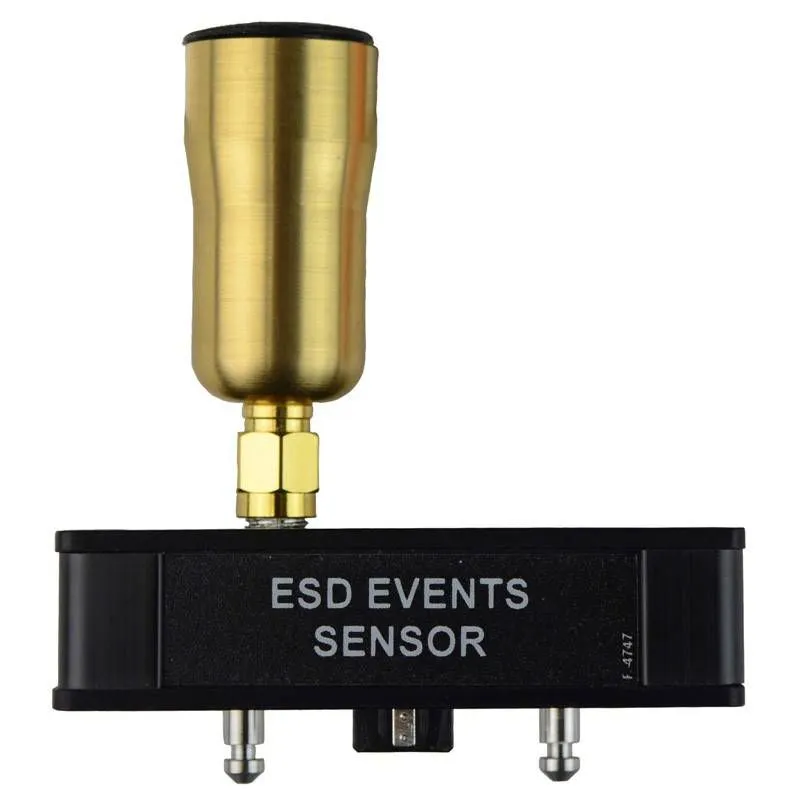

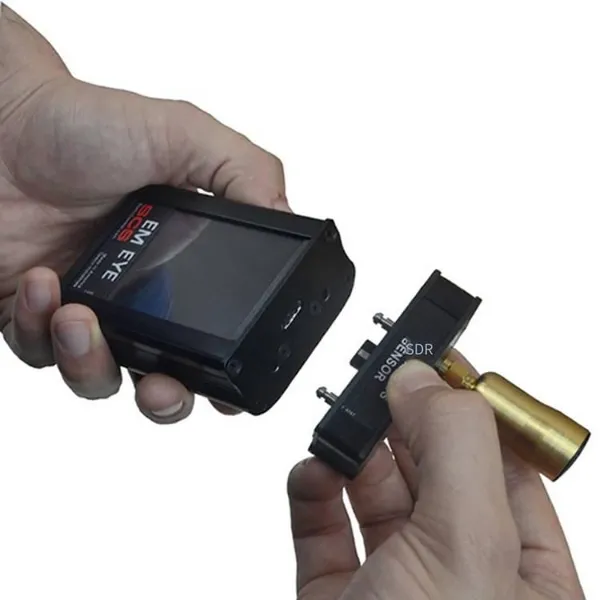

CTC021: Sensor module (including CTS001 antenna), already installed on CTM048

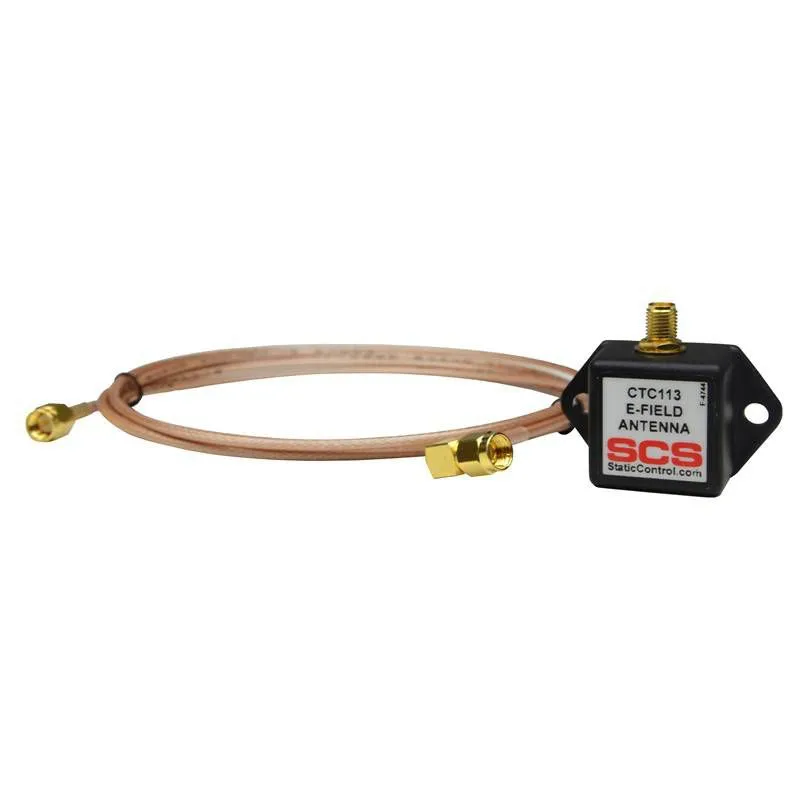

CTC113 - 6FT: Remote antenna and 6 - foot cable
SD memory card
Power adapter/battery charger

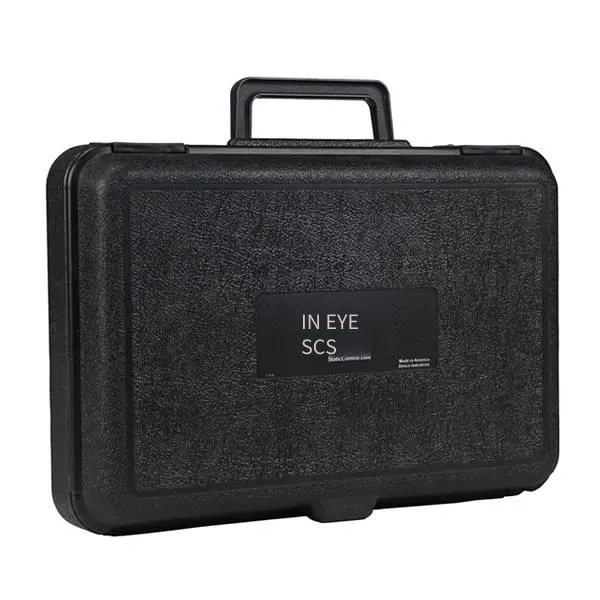

Carrying case
