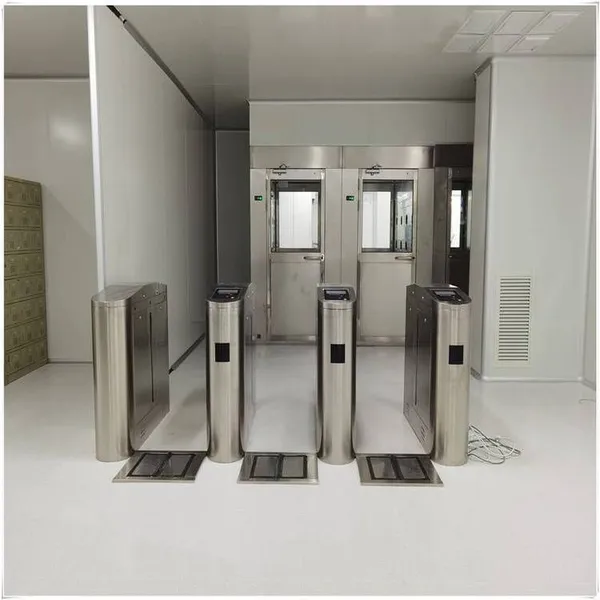

50556 Networked Digital Display Type Supporting Wing Gate Access Control System

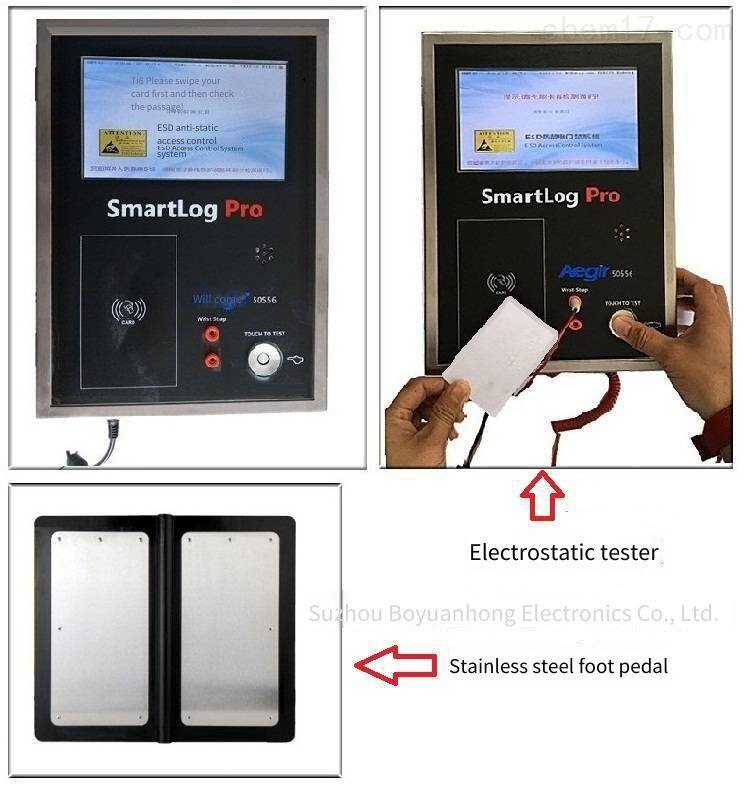

Introduction to AEGIR 50556 Electrostatic Meter:
The AEGIR 50556 intelligent electrostatic tester is used to test whether the electrostatic wrist strap and electrostatic ankle strap meet the usage standards of electrostatic protection tools. It combines with the personnel identification card to generate an electronic file and upload it to the server, which is convenient for the customer's audit and production department management. The AEGIR 50556 belongs to a testing instrument and needs to be calibrated regularly.
Features of the Electrostatic Meter:
a. Supports network communication and can upload 60,000 records within less than 14S.
b. Achieves online upgrade through the network (can be upgraded across network domains).
c. All parameters are set through the PC and can be remotely controlled.
d. Comes with a perpetual calendar timer and can automatically synchronize time through the network.
e. It has 60,000 card swiping records and a blacklist capacity of 10 million records, and the data will not be lost in case of power failure.
f. It has rich I/O ports, which can be used to control other external devices.
g. After being used by large enterprises and tested by massive data, the performance...
Basic Specification Parameters of the Electrostatic Meter:
Protocol Standard: |
ISO15693, ISO14443A |
Operating Frequency: |
13.56MHz |
Communication Interface: |
RJ45 (TCP/IP) |
External Power Supply: |
DC12V/3A |
Overall Power Consumption: |
＜2W |
Display Screen: |
LED Liquid Crystal Display Screen |
Physical Parameters of the Electrostatic Meter:
External Dimensions: |
215*295*60mm |
Total weight of the machine: |
2kg |
Shell material: |
304 full stainless steel |
Protection level: |
IP53 |
Environmental parameters of the electrostatic meter:
Operating temperature: |
-20℃～+70℃ |
Storage temperature: |
-30℃～+80℃ |
Storage humidity: |
5%～95% without condensation |
Measurement standards of the electrostatic meter:
Static wrist strap: |
Lower limit (750K±10%) Upper limit (10M±10%) |
Shoes: |
Lower limit (750K±10%) Upper limit (35M, 100M, 1000M±10%) can be selected arbitrarily |

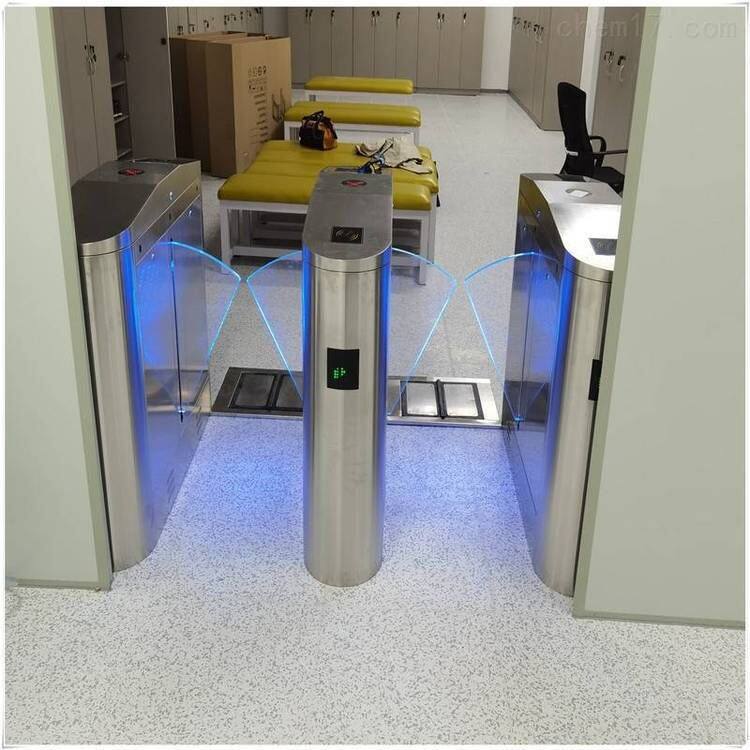

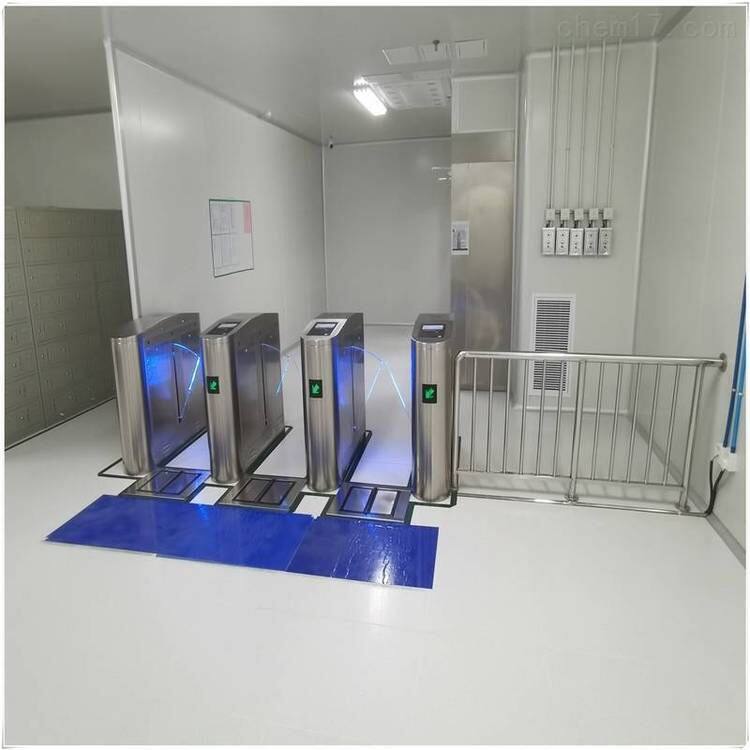

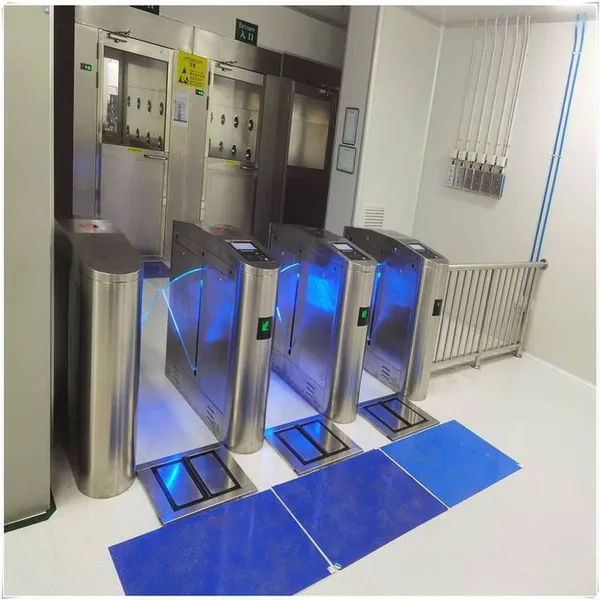

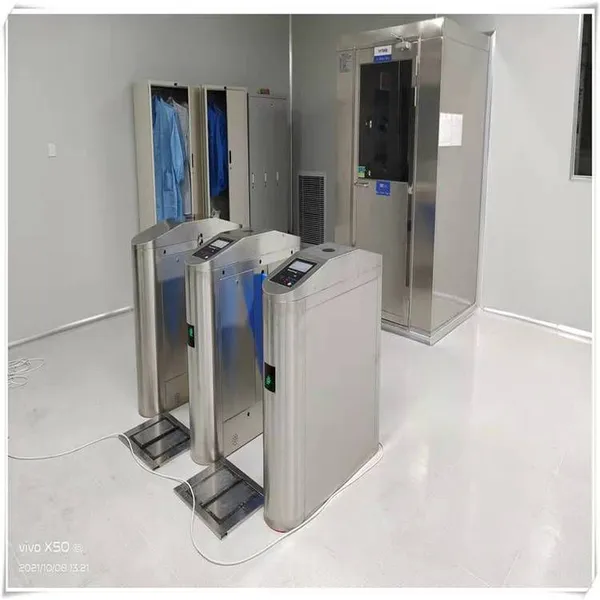

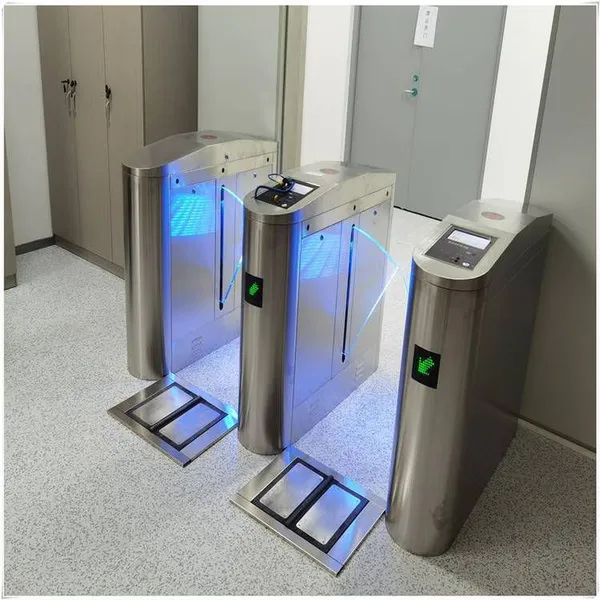

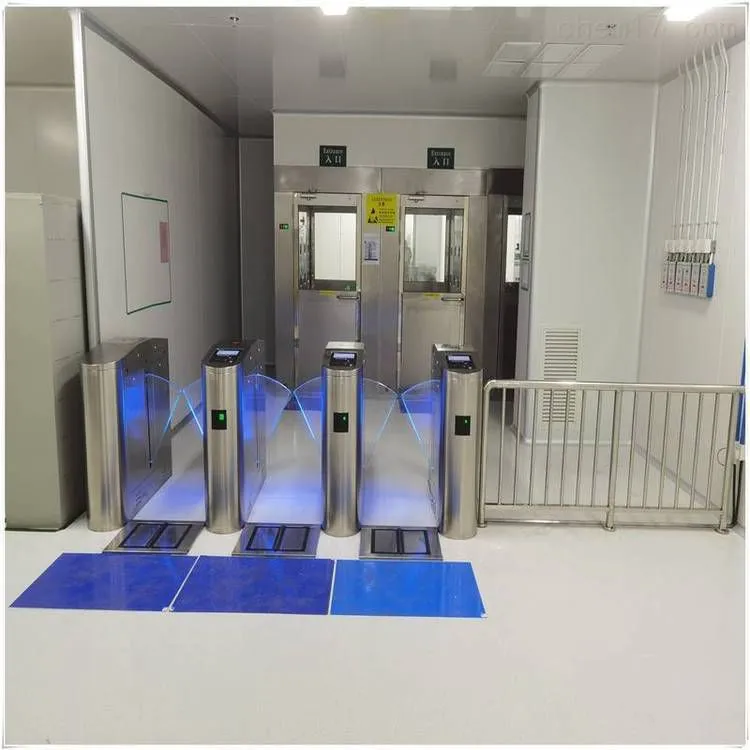

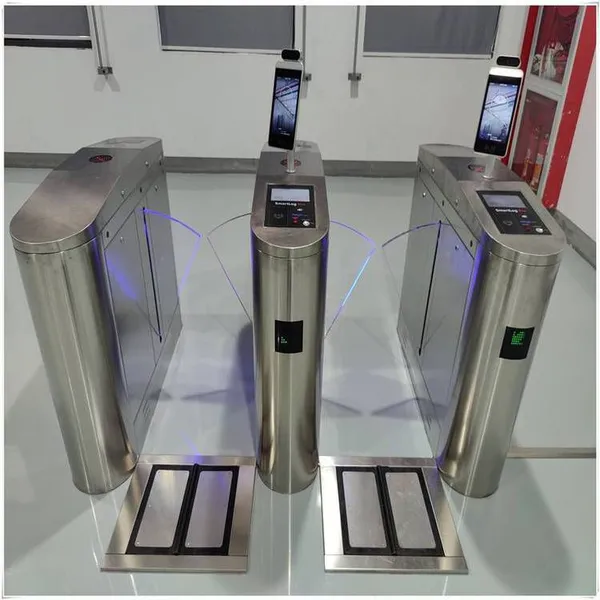

Wing gateStandard product features:
a. It has the functions of fault self - diagnosis and alarm prompt, which is convenient for users to maintain and use;
b. Through the built - in small keypad on the main control board, the operating status of the device can be programmed;
c. It has mechanical structure and induction double anti - pinching functions. When the telescopic arm encounters an obstacle during the reset process, it will automatically stop or the motor will stop working within the default time. It will reset again after the default delay (until it is reset), and the force is very small (≤2Kg);
d. Sound and light alarm functions: including illegal entry and tailgating alarms;
e. Anti - rush function. When no gate - opening signal is received, the swing arm will automatically lock;
f. Telescopic arm synchronization function;
g. It can be connected with a variety of card - reading devices and work by receiving relay switch signals;
h. It can control the entry and exit of personnel in one - way or two - way mode;
i. Remote control and management can be directly achieved through the management computer;
2.2Expandable functions:
a. Counting function;
b. Chassis lengthening and selection of telescopic arm materials.
3. Main structure and configuration
a. 2 standard chassis (both sides of the chassis are sloped and arc - shaped)
b. 2 telescopic arms (colors are optional)
c. 2 main control boards
d. 2 transformers
e. 2 motors
f. 2 sets of movement and transmission parts
g. 3 pairs of infrared beam sensors
h. 2 standard direction indicator boards (multiple boards can also be configured according to requirements)
4. Standard technical parameters
a. Chassis size: 1200 (length) * 300 (width) * 1000 (height) (MM)
b. Length of telescopic arm: 285mm
c. Passage width: 600mm
d. Weight: 140Kg
e. Chassis material: Domestic standard (No. 304) stainless steel
f. Driving motor: DC brushed motor (24V)
g. Input interface: Relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms, driving current > 10mA
h. Normal service life: 3 million times
i. Communication interface: RS485 standard, communication distance: 1200 meters
j. 2 LED indicators
k. 2 card - reading windows
l. 4 maintenance openings
m. Passing speed: 30 - 40 people/minute
n. Opening and closing time of the gate: 1 second
p. Automatic reset time after a fault occurs: 10 seconds
q. Working environment:
Indoor, outdoor (awning)
Temperature: - 10℃ - 50℃
Relative humidity: ≤90%, non - condensing
