Supply imported SIMCO ESD electrostatic tester

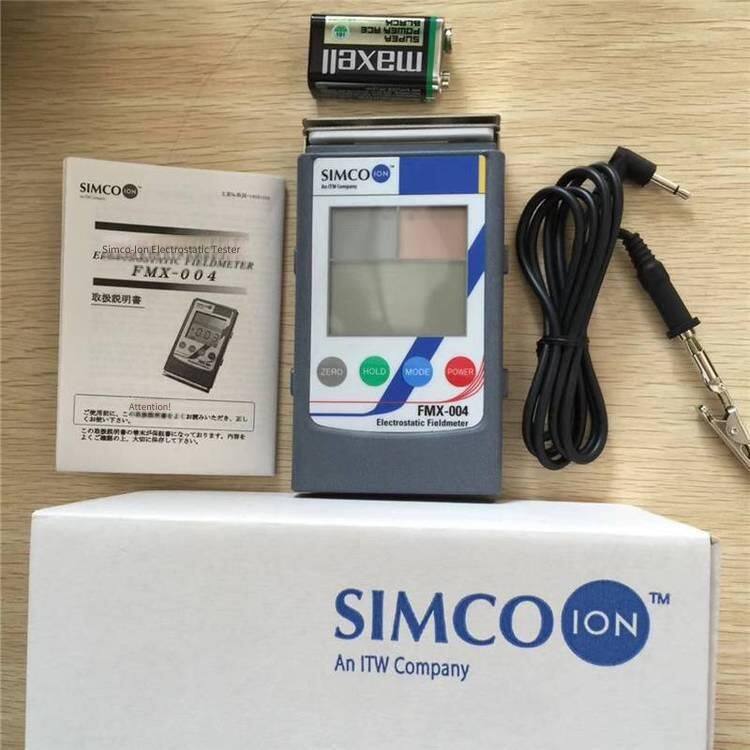

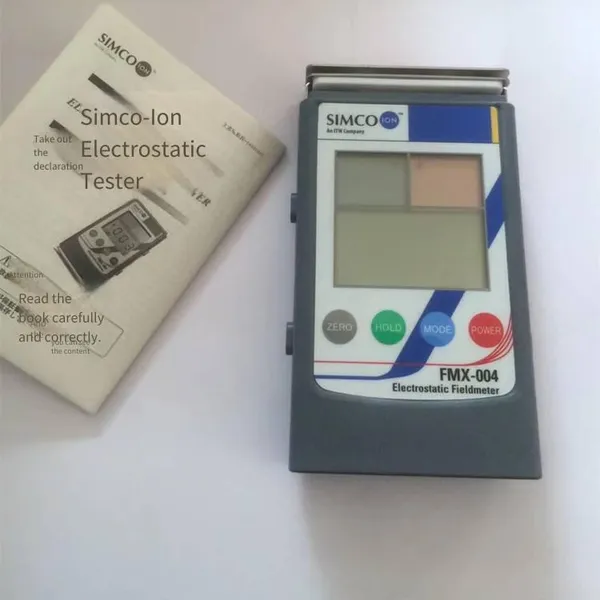

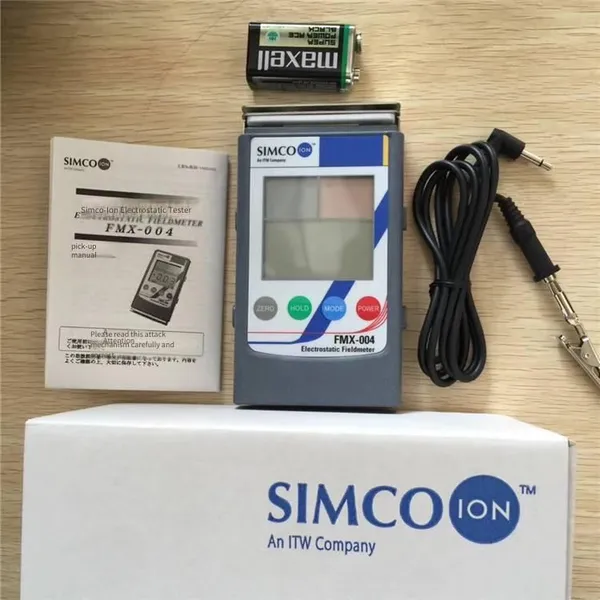

The Japanese SIMCO FMX - 004 is currently the best electrostatic tester. Its testing range has been increased by 10KV compared to the old SIMCO FMX - 003, and its measurement performance and usability have been greatly improved. ±30kV (measurement distance: 25mm), used for simple charge measurement.
3 types of detection methods
Select the measurement range by switching the MODE button.
Continuous electrostatic measurement
Continuous measurement of ion balance and data recording are possible.
Integrated memory for displaying and recording measurement results on the screen
Record the confirmation of the static elimination status of the product.
The FMX - 004 body can perform continuous testing for 30 hours
Ion balance measurement
Confirm the performance of the device according to the ion balance measurement method
The potential measurement of ±300V is the most appropriate maintenance for various static eliminators. When the ion balance plate is not in use, store it by attaching it to the back of the body
Product specifications
Model
FMX - 004
Measurement range
AUTOMODE [Au]
0 -±1.49kV(Lo range)
±1.0kV - ±30.0kV (Hi Range)
Low MODE [Lo]
0 - ±3.00kV
Hi MODE [Hi]
0 - ±30.0kV
Ion balance voltage measuring mode [Ib]
0 - ±300V
Press the [MODE] button to switch the modes sequentially.
Indications during switching:
[Au] → [Hi] → [Lo] → [IB] for sequential switching
Measurement distance
25mm ±0.5mm
Response speed
Within 1 second
Sampling speed
5 times/second
Measurement accuracy
±10%
Operating environment
0℃ - 40℃, 0 - 60% R.H.
Wide-range LCD display
Digital values and graphical display
Graphical display: Voltage, auxiliary scale
The red LCD light on the right side (+) is on
The blue LCD light on the left side (-) is on
Live testing method
Automatic mode (AUTO MODE)
Lo: ±0.1kV (0 - ±1.49kV) indication
Hi: ±2.0kV (±1.5kV - ±30.0kV)
LOW mode (LowMODE)
±0.2kV
Hi mode (HI MODE)
±2.0kV
Ion balance mode (Ionbalance ismeasured)
±20V
Digital numerical indication:
3-digit indication with automatic range switching
Live potential measurement AUTO:
□.□□kV 0.00 - ±1.49kV (LOW range)
□□.□kV ±1.0kV - ±30.0kV (Hi
range)
Lo:
□.□□kV 0.00 - ±3.00kV (Low Mode)
Hi:
□□.□kV 0 - ±30.0kV(HiMode)
□□□V
0 - ±300V(Ionbalance)
Ion balance potential measurement
□□□V
0 - ±300V(Ionbalance)
Form representation
Au: AUTO Mode
Hi: HI range mode
Lo: LOW range mode
Ib: Ionbalance Mode
[HOLD]: Manual operation indication
Battery level indication: The remaining battery capacity is indicated in 4 stages
Sound
There will be a rustling sound when the power is operated
Automatic power-off
The power will be automatically cut off after about 5 minutes of use
When the power is ON, press the "POWER" button for 3 seconds to stop this function. (The battery can be used for continuous measurement)
Manual function
Press the "HOLD" button during measurement to fix the digital value, but pressing it once will resume normal measurement.
LED Lighting
None
Analog Output
AUTOMODE
0 - ±3.0V(0 -30.0kV)
Low MODE
0 -±3.0V(0 - ±3.00kV)
Hi MODE
0 -±3.0V(0 - ±30.0kV)
Ion balance voltage measuring range
0 - ±3.0V(0 -±300V)
Power Supply
One 9V dry battery (006P), Operating time: Approximately 30 hours
External Dimensions
Main body: 115mm(L) x 73mm(W)x 25mm(H)
Ion balance board: 123mm(L)x 73mm(W) x 25mm(H)
Weight
140g including battery
170g including battery and ion balance board
Shell Material
Conductive ABS resin (gray)
Optional
Simulation output cable fixing bracket set
