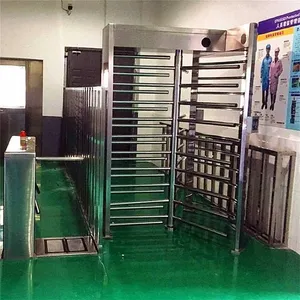

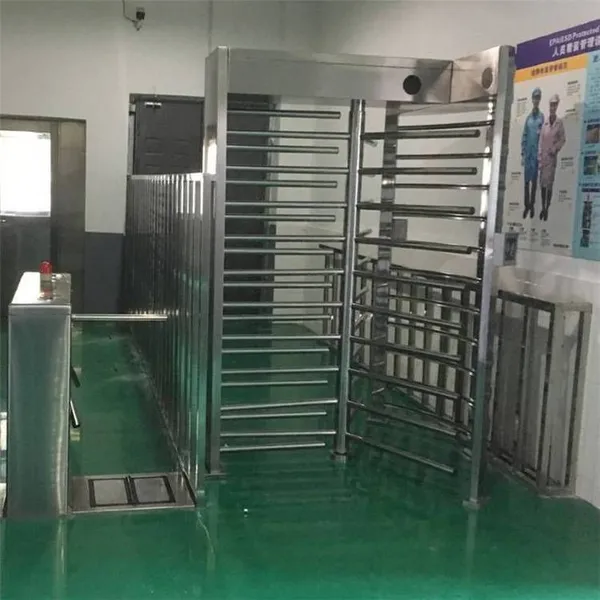

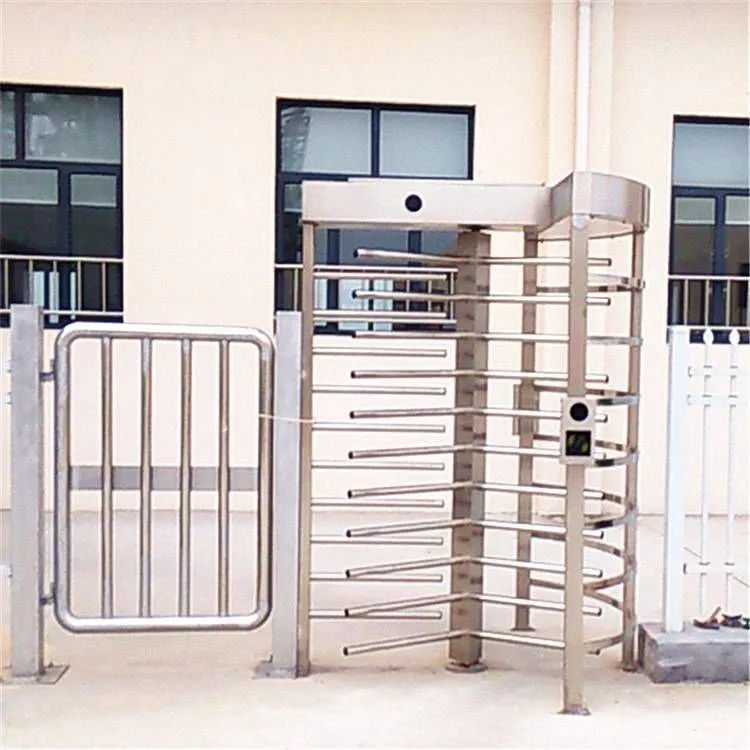

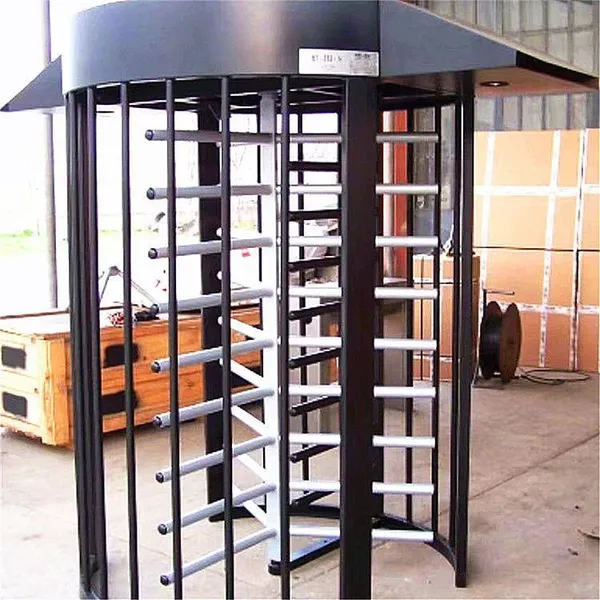

Product Name: Intelligent Full-height Turnstile
It adopts advanced drive control technology and can be designed with a wide range of changes to meet various requirements of modern buildings with different styles for intelligent access control systems. The turnstile is particularly suitable for the safe and reliable protection of external facilities of factories, sports fields, entertainment venues, and parking lot facilities. The turnstile designed for automatic personnel entrances and exits has a highly perfect system with usability and can be connected to access control card readers and ticket checking machine systems to prevent unauthorized persons from entering.
It is divided into single-channel and double-channel.
Main technical parameters of the product:
◇Structure: Frame structure with fine-profile stainless steel tubes
◇Passage direction: One-way, two-way (optional); There are a variety of working modes to choose from, such as two-way card reading with flow limitation, or card reading on one side and prohibited passage on the other side, or card reading on one side and free passage on the other side.
◇Automatic reset function: After the turnstile is opened, the system will automatically lock if no one passes within the specified time, and the passage time is adjustable.
◇Advanced two-way anti-reverse function
◇Free rotation function when power is offMeeting fire protection requirements
◇Light indication: Passage direction indication
◇The control board has a counting function, and the digital display function is optional.
◇The control board has a memory function to meet the needs of group passage.
◇It adopts the working principle of optical hole positions and has no delay requirements for input control signals.
◇Working environment: Indoor, outdoor awning)
◇Temperature: -10℃～50℃ Relative humidity: ≤90%, no condensation
◇Size of the induction card reading port: It comes with a standard mounting bracket or can be customized.
◇Gate opening time: 0.2 seconds
◇Passage speed: 30 people per minute
◇Communication interface: Standard RS485 interface, distance ≤ 1200 meters
◇Input interface: Dry contact signal or +12V level signal or DC12 pulse signal with pulse width ≥ 100ms, driving current 10mA
◇Single-channel width: about 1.5m, dual-channel width can be customized according to requirements
◇Standard single-channel width: 1500mm;
◇Channel height: 2.0m; with cover 2.2m
