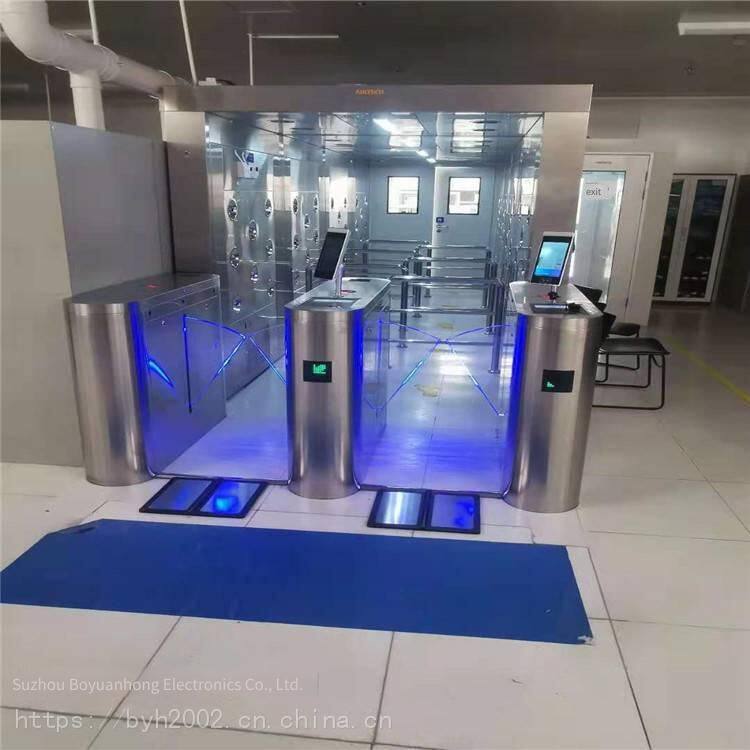

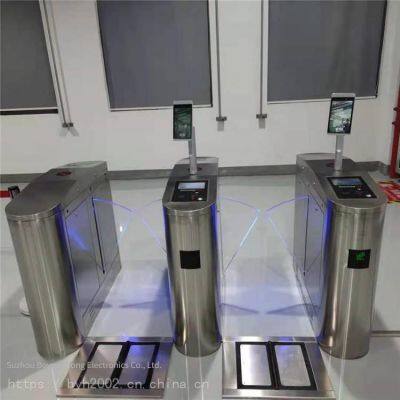

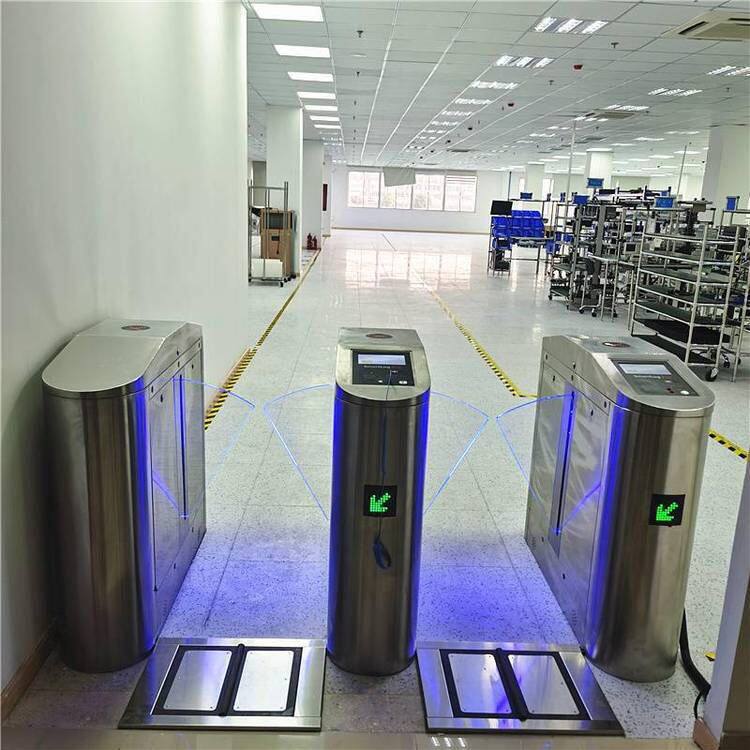

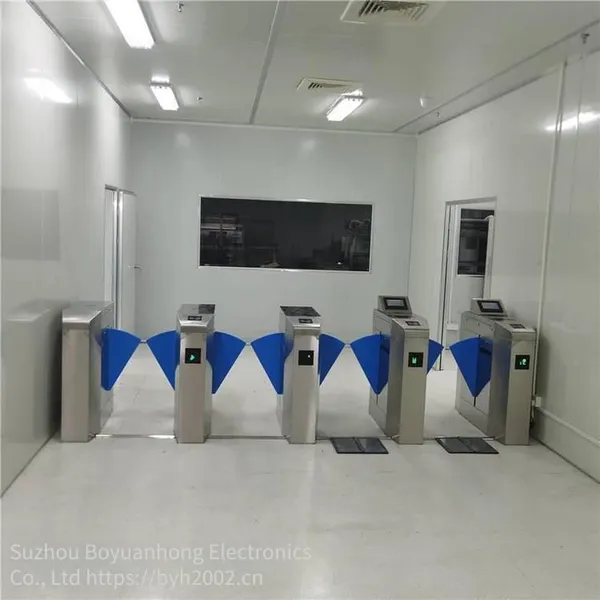

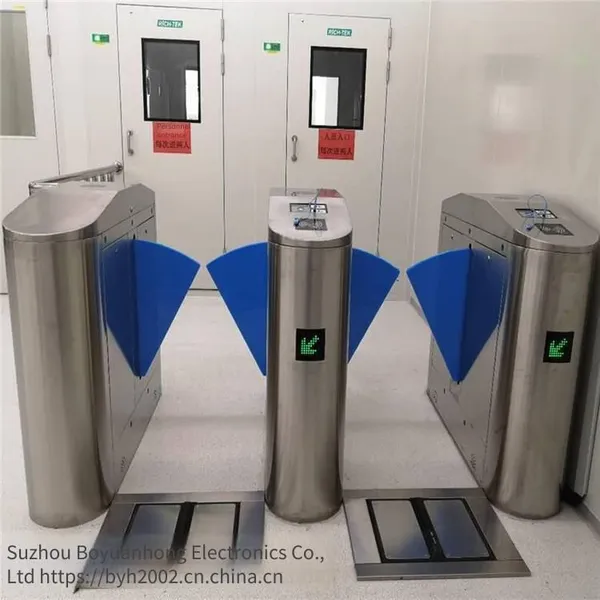

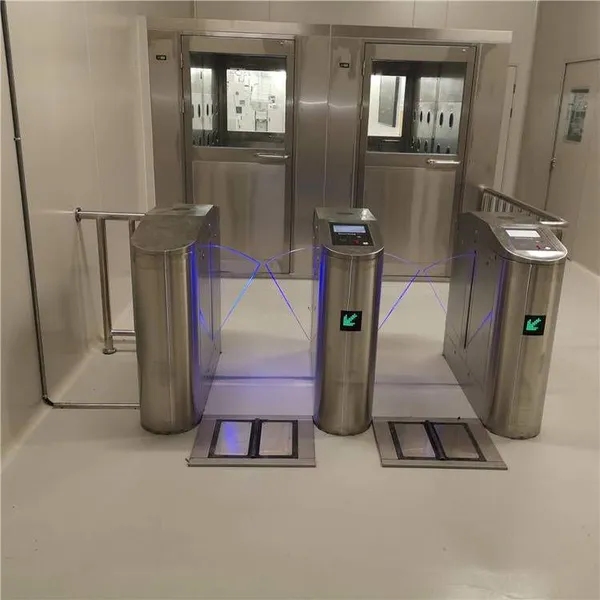

Aegir Intelligent Networked Turnstile Access Control System
AEGIR50556Introduction to the Static Electricity Tester:
AEGIR 50556 is an intelligent static electricity tester used to test whether the static wrist straps and static foot straps meet the usage standards of static protection tools. It combines with the personnel identification card to generate an electronic file and upload it to the server, which is convenient for the customer's audit and production department management. AEGIR50556 belongs to the testing instrument and needs to be calibrated regularly.
Features of the Static Electricity Tester:
1. Supports network communication and can upload 60000 records within less than 14S
2. Achieves online upgrade through the network (can be upgraded across network domains)
3. All parameters can be set through the PC and can be remotely controlled
4. Comes with a perpetual calendar timer and can automatically synchronize time through the network
5. 60000 card swiping records, 1000 million blacklist capacity, and the data will not be lost when the power is off
6. Has rich I/O ports, which can be used to control other external devices
7. After being used by large enterprises and tested with massive data, the performance is
Basic Specification Parameters of the Static Electricity Tester:
Protocol Standard: |
ISO15693, ISO14443A |
Operating frequency: |
13.56MHz |
Communication interface: |
RJ45(TCP/IP) |
External power supply: |
DC12V/3A |
Overall power consumption: |
|
Display screen: |
LED LCD display screen |
Physical parameters of the electrostatic meter:
Overall dimensions: |
215*295*60mm |
Overall weight: |
2kg |
Shell material: |
304 Overall stainless steel |
Protection level: |
IP53 |
Environmental parameters of the electrostatic meter:
Operating temperature: |
-20℃～+70℃ |
Storage temperature: |
-30℃～+80℃ |
Storage humidity: |
5%～95%No condensation |
Measurement standards for the electrostatic meter:
Static wrist strap: |
Lower limit (750K±10%) Upper limit (10M±10%) |
Shoes: |
Lower limit (750K±10%) Upper limit (35M.100M.1000M±10%) Can be arbitrarily selected |
Wing barrierFeatures of standard products:
1) It has the functions of fault self - checking and alarm prompt, which is convenient for users to maintain and use;
2)Through the built - in small keypad on the main control board, the operating status of the device can be programmed;
3)Mechanical structure and induction dual anti - pinching functions. When the telescopic arm encounters an obstacle during the reset process, it will automatically stop or the motor will stop working within the default time. It will reset again after the default delay (until reset), and the force is very small(≤2Kg);
4) Sound and light alarm functions: including illegal entry and tailing alarms;
5) Anti - rush function. When the gate opening signal is not received, the swing arm will automatically lock;
6) Telescopic arm synchronization function;
7)It has an automatic reset function. After the gate is opened, if the user does not pass within the specified time, the system will automatically cancel the user's right of passage this time. The standard is after opening5 seconds automatic reset;
8) The channel automatically opens after power-off and closes automatically after power-on; The motor has low noise
9) It can be connected with a variety of card reading devices and work by receiving relay switch signals;
10) It can control the entry and exit of personnel in one-way or two-way;
11) Remote control and management can be directly realized through the management computer;
2.2 Expandable functions:
1) Counting function;
2) The chassis can be lengthened, and the material of the telescopic arm can be selected.
3 Main structure and configuration
◇ 2 standard chassis (The two sides of the chassis are inclined and arc-shaped)
◇ 2 telescopic arms (Colors are optional)
◇ 2 main control boards
◇ 2 transformers
◇ 2 motors
◇ 2 sets of movement and transmission parts
◇ 3 pairs of infrared beam detectors
◇ 2 alarms (lights)
◇ 2 direction indicator boards (standard) (Multiple boards can also be configured according to requirements)
4 Standard technical parameters
◇ Chassis size: 1200 length*300 width*1000 height (MM)
◇ Telescopic arm length: 285mm
◇ Channel width: 600mm
◇ Weight: 140Kg
◇ Chassis material: Domestic standard (No. 304) stainless steel
◇ Drive motor: DC brushed motor (24V)
◇Input interface: Relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms and driving current > 10mA
◇Normal service life: 3 million times
◇Communication interface: RS485 standard, communication distance: 1200 meters
◇LED indicators: 2 pcs
◇Card reading windows: 2 pcs
◇Inspection ports: 4 pcs
◇Passage speed: 30 - 40 persons / minute
◇Gate opening and closing time: 1 second
◇Time required to enter the passage state after power-on: 3 seconds
◇Automatic reset time after a fault occurs: 10 seconds
◇Working environment:
Indoor, outdoor (awning)
Temperature: -10℃ —— 50℃
Relative humidity: ≤ 90% , no condensation
