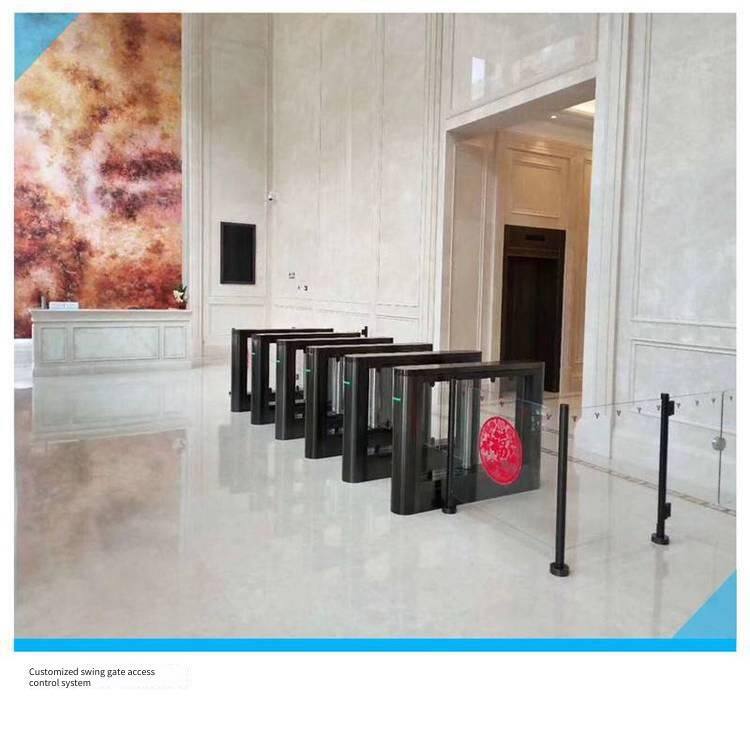

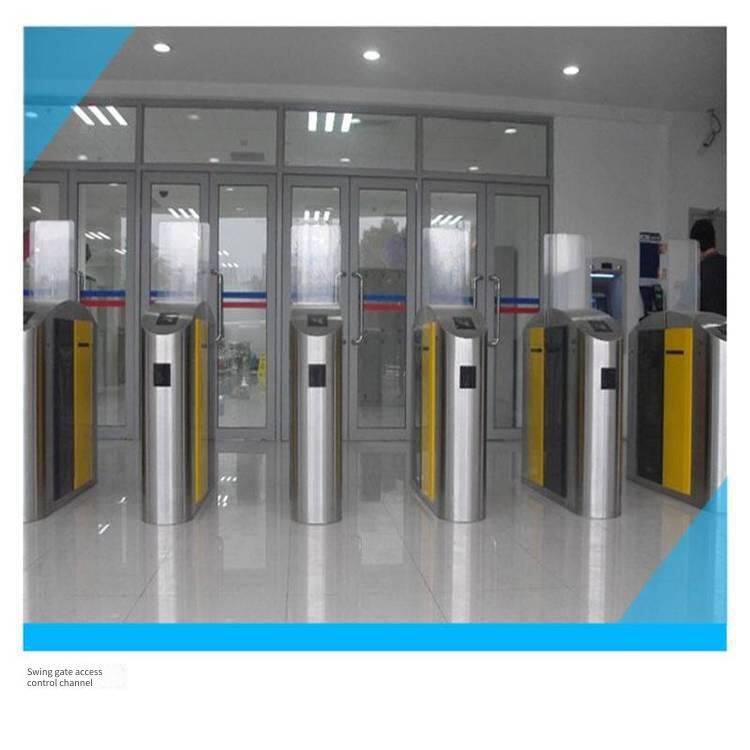

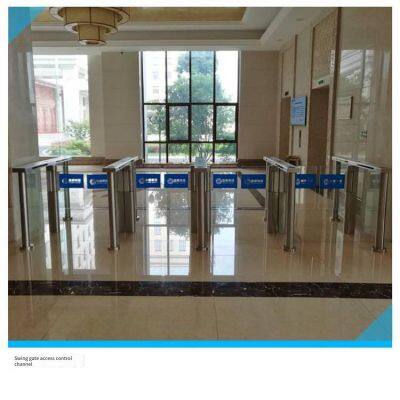

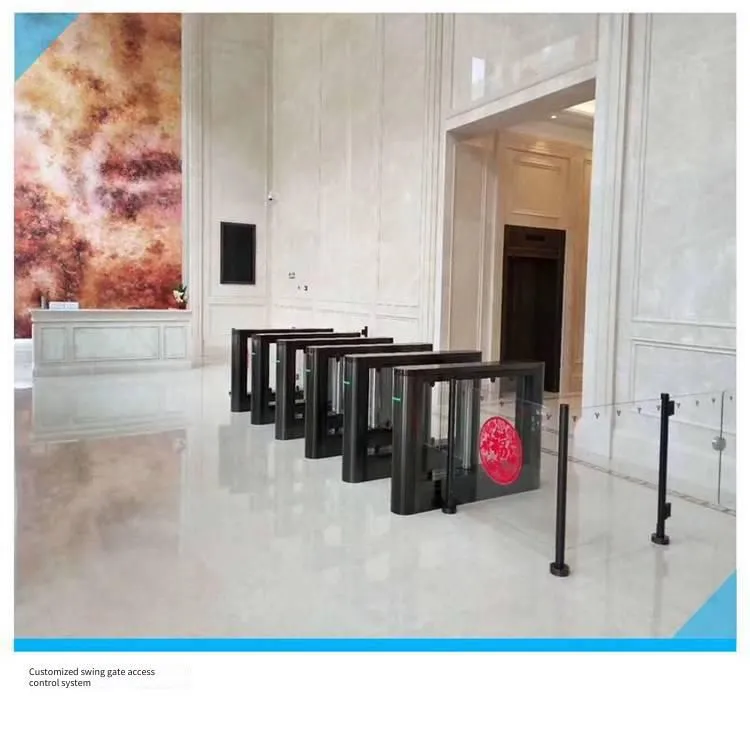

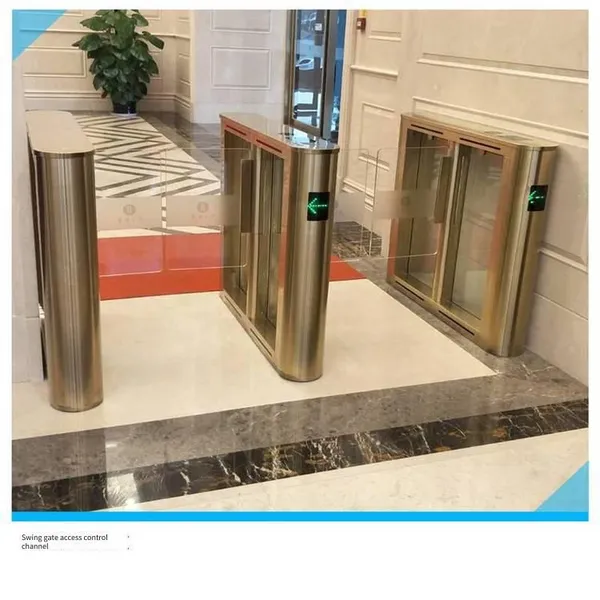

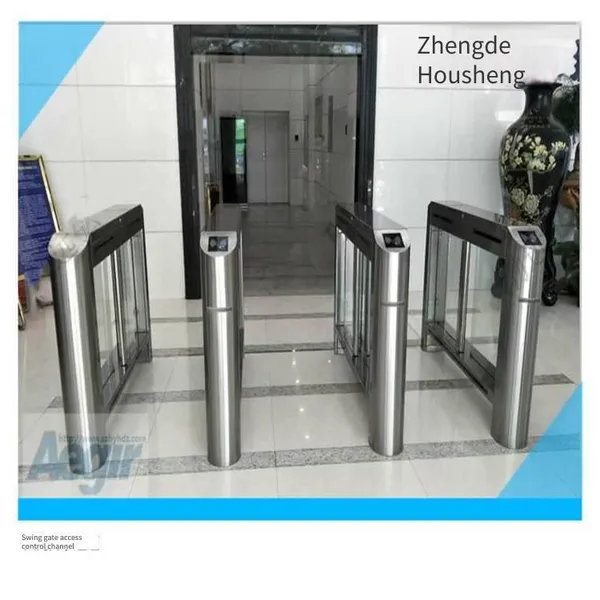

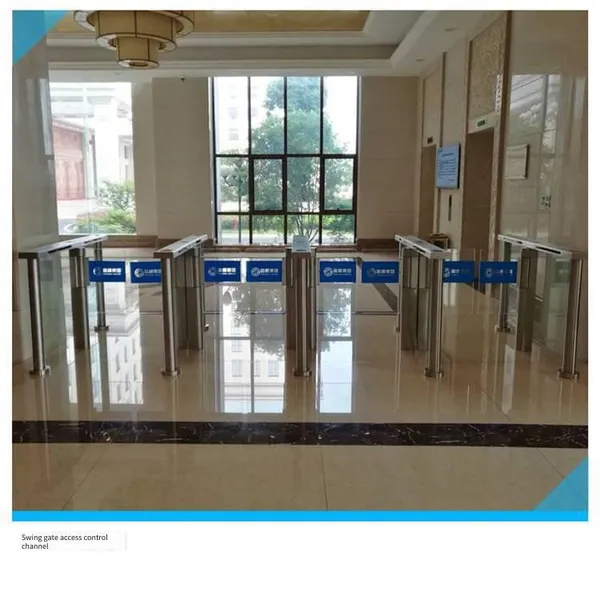

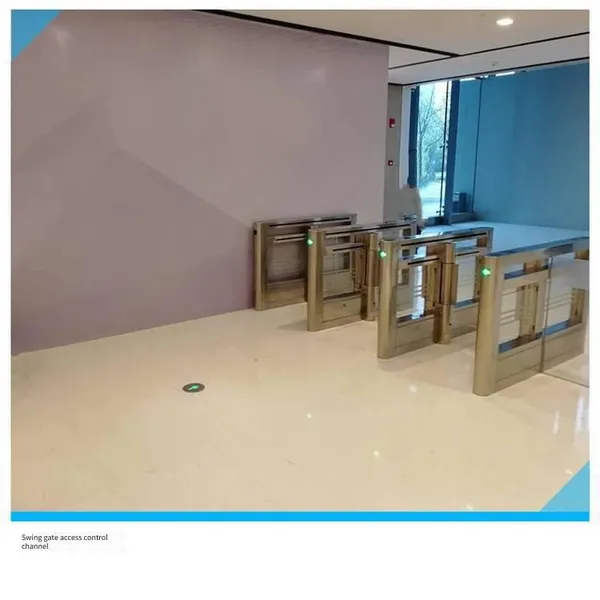

Aegir Customized Access Control and Attendance Card System for Office Buildings and Gates

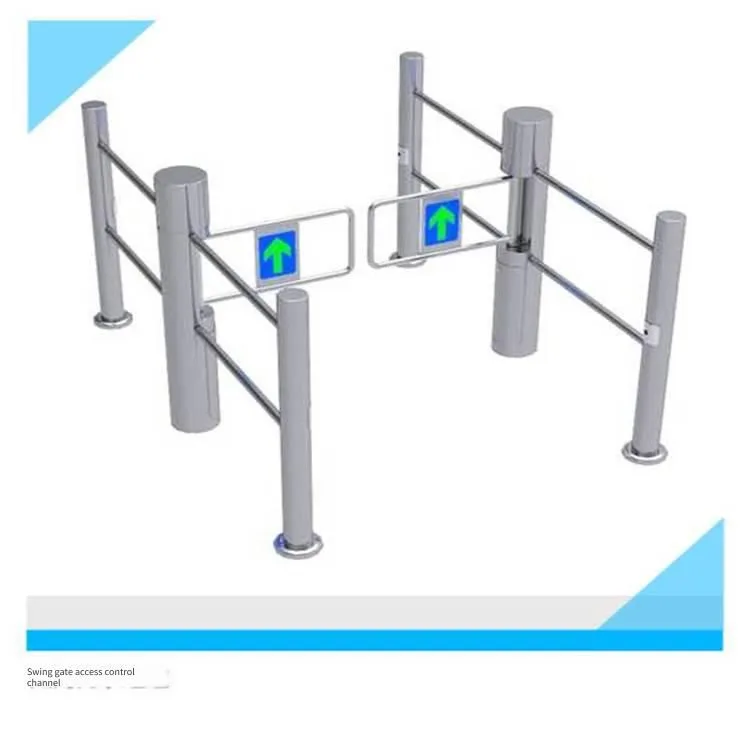

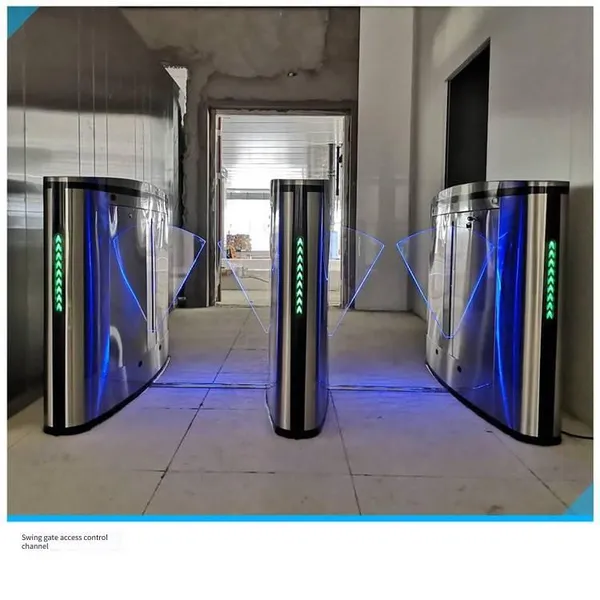

The entire product outer box is stamped and formed using domestic standard 304 stainless steel plates. The swing gate can provide an orderly and civilized way of passage for people entering and exiting, prevent illegal entry and exit, and the swing arms run smoothly with low noise. The swing gate can be integrated with various access control devices, such as ID cards, IC cards, barcode cards, mobile phone SIM cards, access control systems, fingerprint machines, palm scanners, face recognition systems, etc.
◆ The swing gate has an elegant and beautiful appearance, and is rainproof, moisture-proof, and rust-proof.
◆ The swing gate comes with a 1-year free warranty for the whole machine and lifetime maintenance.
◆ Swing arm synchronization function (double swing gates open in opposite directions).
◆ The swing gate has a fault self-check and alarm prompt function, which is convenient for users to maintain and use.
◆ When the power is cut off, the swing arms automatically swing open, and when the power is restored, they automatically close, meeting the fire protection requirements.
◆ The swing gate has multiple working modes to choose from. It can read cards in both directions, or read cards in one direction while prohibiting entry in the other direction, or read cards in one direction while allowing free passage in the other direction. The working mode of the gate can be set through the main board menu.
◆ The entire system of the swing gate runs smoothly with low noise.
◆ The swing gate has the function of remotely controlling the opening and closing of the gate via 485, to meet the special needs of users and fire safety requirements.
◆ The swing gate has an anti-rush function. When no gate opening signal is received, the swing arms are automatically locked.
◆ The swing gate has anti-pinch and anti-collision functions. When the swing arm encounters an obstacle during the reset process, the motor automatically stops working within the specified time and restarts after the default delay.
◆ It has a reset function. After the gate is opened, if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and close the gate automatically.
◆ It can be adjusted to be normally open or normally closed to meet the requirements of different venues.
◆ It can be automatically reset by induction or delay. The standard is to automatically reset 5 seconds (adjustable) after opening.
◆ It can be externally connected to a switch button or remote control to achieve one-way or two-way control of passage.
◇ Swing gate structure: Stainless steel case, swing arms, motor, movement and transmission parts, control board, etc.
◇ Gate manufacturing process: Bending, cutting, welding, polishing, grinding, etc.
◇ Swing arm length: 600mm;
◇ Weight: Approximately 80Kg;
◇ Swing arm bearing capacity: 60Kg;
◇ Swing arm transmission angle: 180 degrees;
◇ Passage width: 1200mm;
◇ Swing direction: One-way, two-way;
◇ Working environment: Indoor, outdoor (with rain awning);
◇ Ambient temperature: -30℃～50℃;
◇ Input interface: Relay switch signal (COM port is ground);
◇ Working power supply: Power supply voltage: Input AC220V±10%, output DC24V, DC12V;
◇ Motor power: DC motor 100W/24V;
◇ Motor speed: 1600 revolutions per minute;
◇ Relative humidity: Less than 95% (no condensation);
◇ Communication interface: Communication interface: RS485 (distance ≤1200 meters) or TCP/IP;
◇ Passage speed: 40 people per minute (normally open); 25 - 30 people per minute (normally closed);
◇ Gate opening and closing time: 1 - 2 seconds;
◇ Time required to enter the passage state after power-on: 3 seconds;
◇ Automatic fault reset time: 10 seconds;
◇ Mechanical life: More than 3 million times;
◇ Supported card readers: Barcode, ID/IC card, RFID card, second-generation ID card;
Functions and Features:
It has the functions of fault self - inspection and alarm prompt, which is convenient for users to maintain and use;
The operating status of the device can be programmed through the built - in small keypad on the main control board;
Anti - pinch and anti - collision functions. When the swing arm encounters an obstacle during the reset process, the motor will automatically stop working within the specified time, and reset again after the default delay (until the reset is completed), and the force is very small (≤2Kg);
Anti - rush function. When the gate opening signal is not received, the swing arm will automatically lock;
It has an automatic reset function. After the gate is opened, if the user does not pass within the specified time, the system will automatically cancel the user's right to pass this time;
It can be freely adjusted to be normally open or normally closed to meet the requirements of different sites;
It can be connected to a variety of card - reading devices and work by receiving relay switch signals;
One - way and two - way swing functions, which can control the entry and exit of personnel in one - way or two - way mode;
Delayed automatic reset. The system defaults to automatic reset 10 seconds (adjustable) after opening;
The swing arm will automatically swing open when the power is off and close automatically when the power is on, which meets the fire protection requirements.
Application scope of swing gates:
★Transportation stations: High - speed railway stations, subway stations, airports, docks, railway stations, bus stations, ferry crossings.
★Office places: Government agencies, commercial buildings, detention centers.
★Scientific and educational institutions: Libraries, universities, research institutes, kindergartens.
★Commercial places: Banks, hotels, supermarkets, exhibition centers, villas, residential communities.
