TS 10184 Gtex Rtex S1-Q1 Storage tube, Protective tube Storage tube 1'' S1-Q1 standard

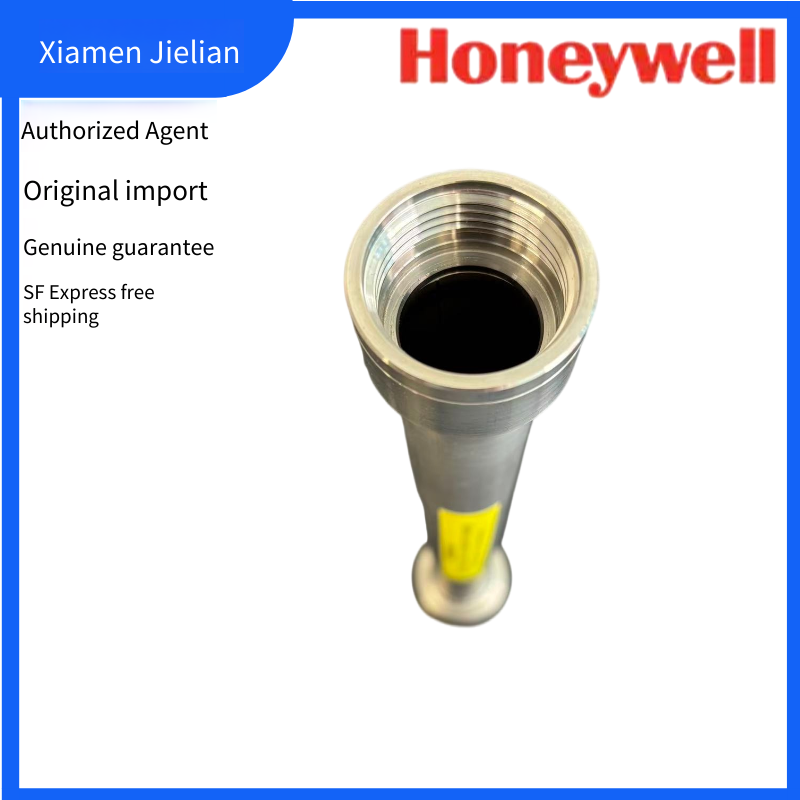

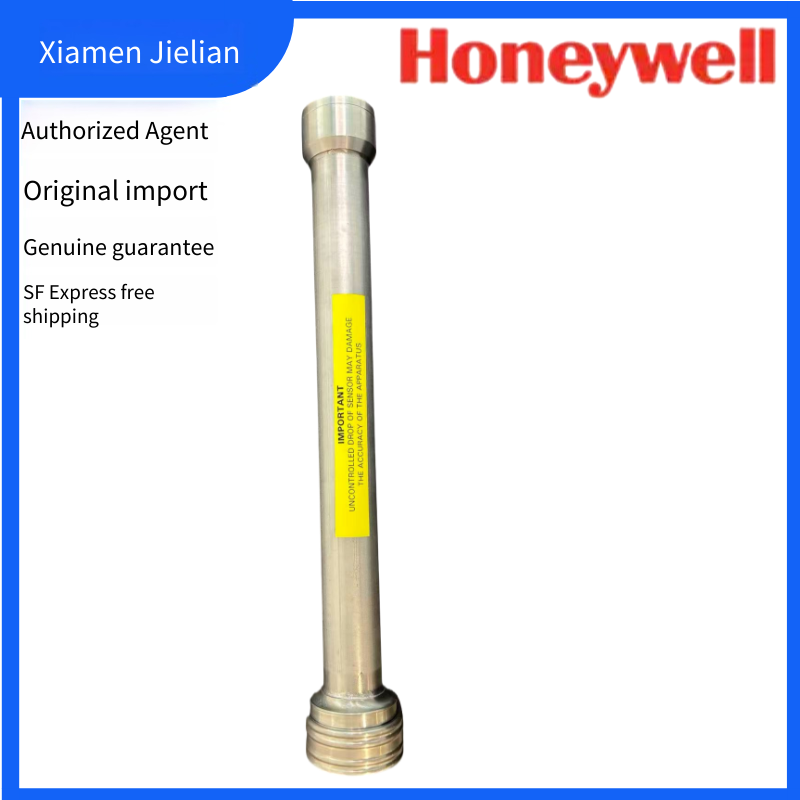

Xiamen Jielian Instrument & Equipment Technology Co., Ltd. is the agent for the sales of Honeywell's TS 10184 Storage tube 1'' S1-Q1 standard. TS 10184 is a stainless-steel storage tube accessory under the Honeywell (Honeywell) Tanksystem brand, specifically designed for the HERMetic UTImeter series of portable liquid level measurement devices.
Attribute |
Details |
Manufacturer |
Honeywell (Honeywell) |
Product Model |
TS 10184 |
Specification |

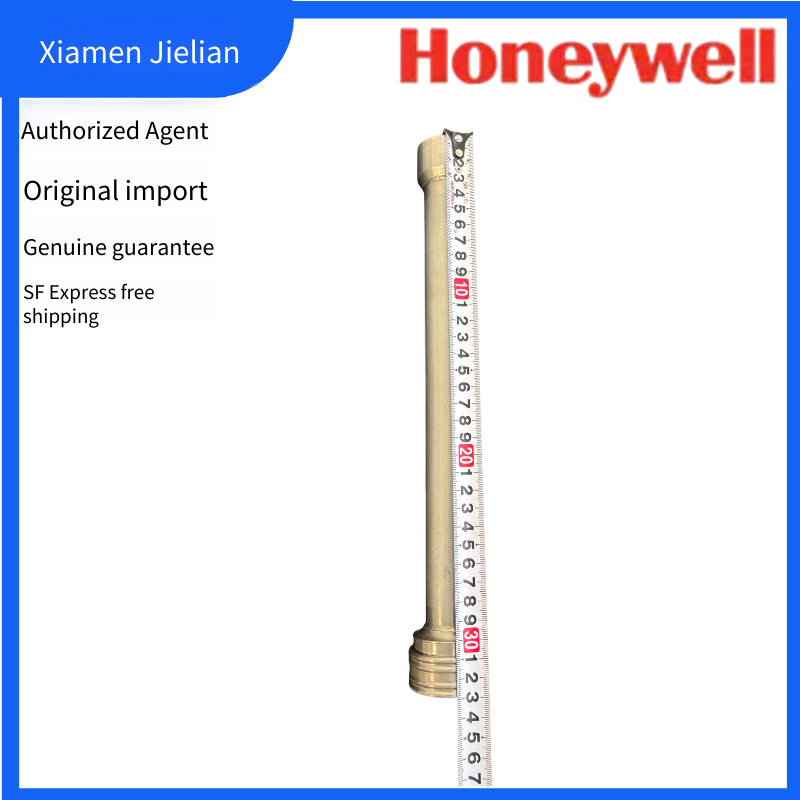

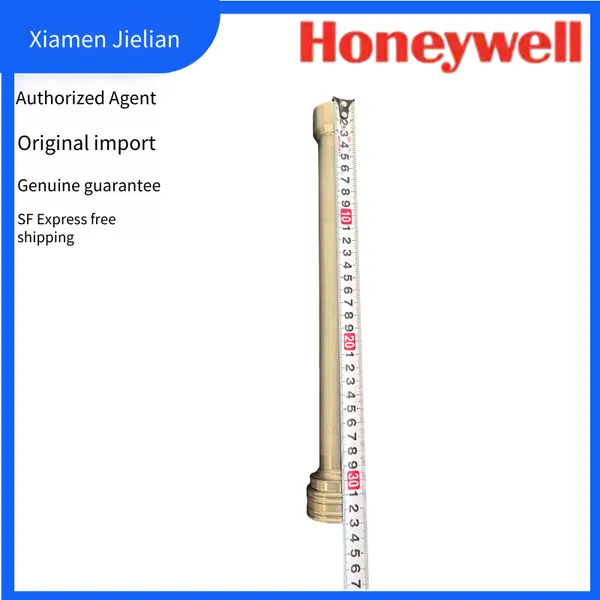

1 inch (1'') |
Standard |
S1-Q1 |
Material |
Stainless Steel |
Type |
Storage Tube/Protective Tube |
Detailed technical specifications
Meaning of S1-Q1 standard:

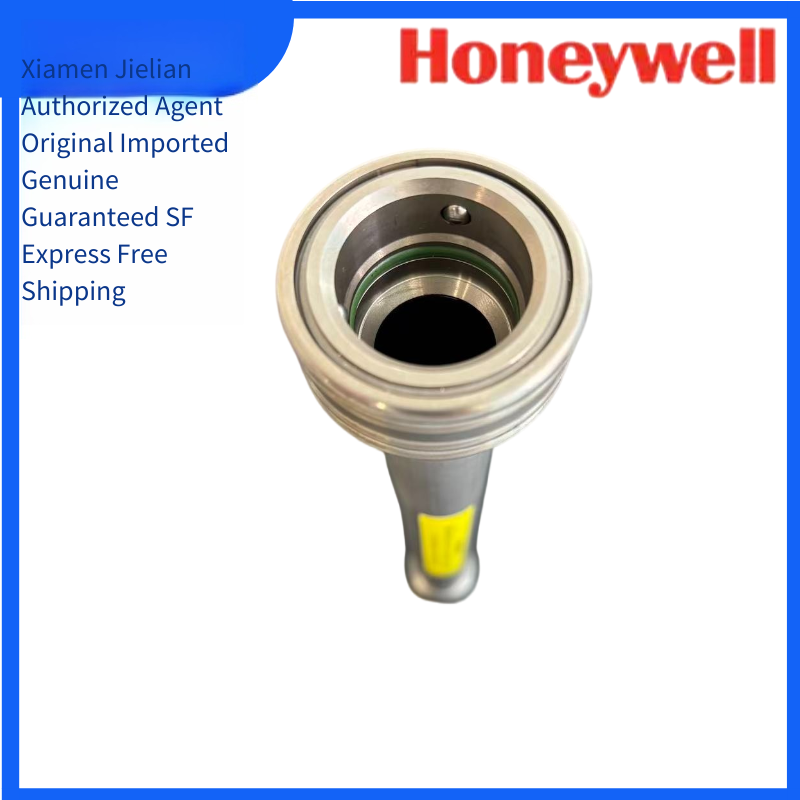

S1: Stainless Steel Storage tube 1" (1-inch stainless-steel storage tube) Q1: Connector 1" (1-inch connector interface)
Main applications
This storage tube is mainly used as an accessory for the following devices:

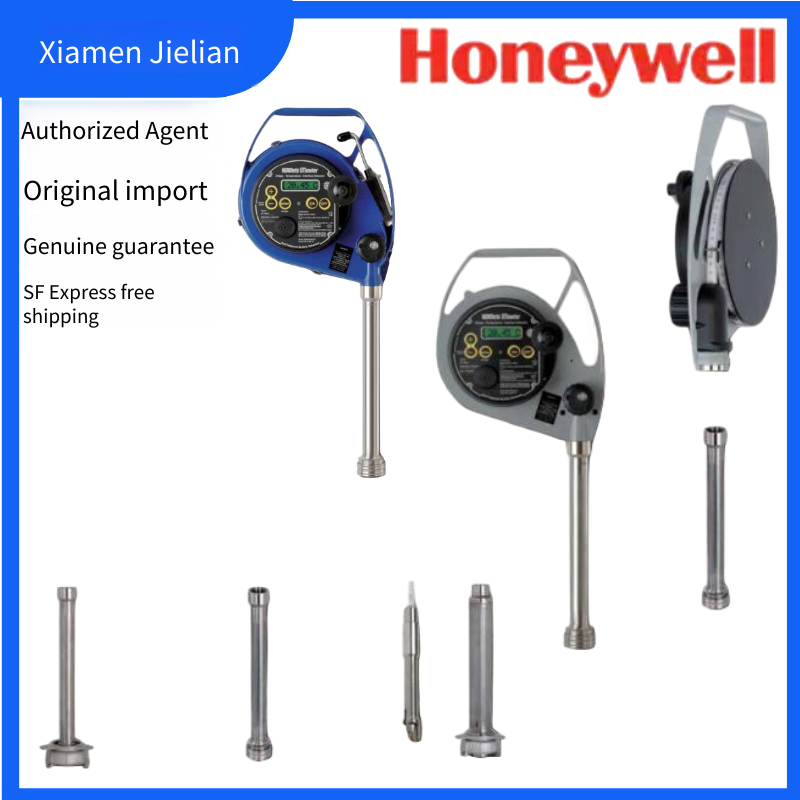

HERMetic UTImeter Rtex (Closed tank measuring instrument)
HERMetic UTImeter Gtex (Air-tight tank measuring instrument)
Functions
As a protective sleeve for the sensing probe, it protects the sensor during the liquid level measurement process. It is used for oil-water interface detection, liquid level measurement, and temperature measurement. It is suitable for custody transfer and inventory control of storage tanks for petroleum, chemical products, corrosive liquids, etc.
Related accessory models
TS 10184 belongs to the storage tube series of HERMetic UTImeter. Other related models include:
TS 10182: Storage tube S2-Q2 with load (2-inch storage tube with load)
TS 10183: Storage tube S1-Q2 (1-inch tube body with 2-inch interface)
TS 10189: Battery holder assembly
TS 10190: Electronic box assembly
Version selection
In addition to the Standard version, the following is also available:
Chemical version: It uses FFKM perfluororubber seals and special coatings, suitable for measuring corrosive liquids
Global shipping is supported
Compliance with standards
The HERMetic UTImeter series (including this accessory) complies with multiple international standards:
ISO: 4512, 3170, 4268 API: MPMS Chap 3.1A, Chap 7, Chap 8.1, Chap 17.11 IP: PMM Part III-1, Part IV ATEX/IECEx: Explosion-proof certification

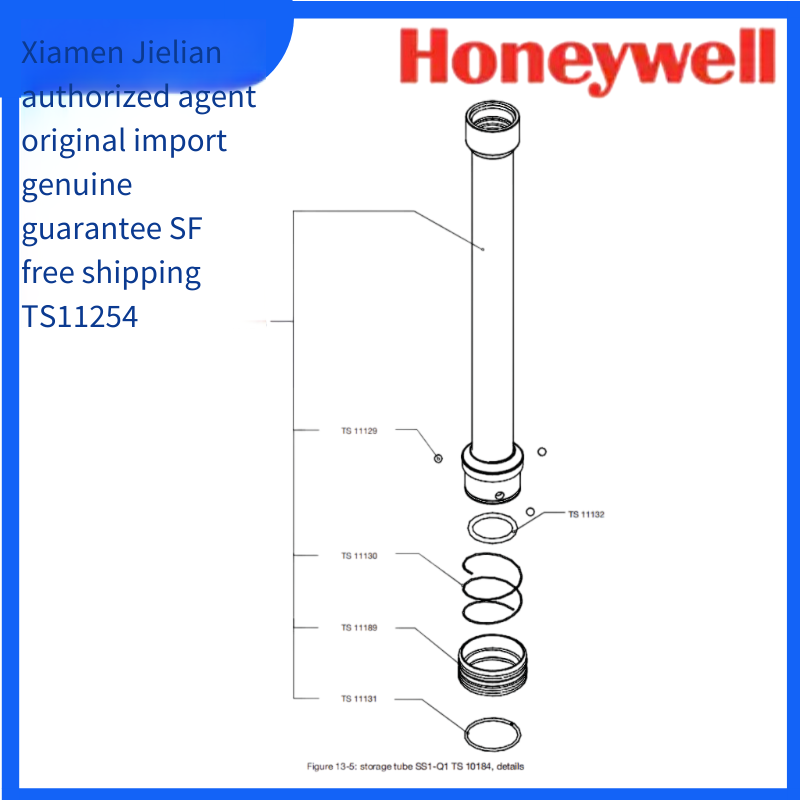

Note: This is a professional industrial measurement equipment accessory and is usually not used alone. It needs to work with the HERMetic UTImeter host. For detailed technical drawings, please refer to Figure 13-5 in the Honeywell Operation and Service Manual.
