Overview of Centrifugal Spray Dryer:
The centrifugal spray dryer is a core equipment in modern industry for efficiently converting liquid materials into high-quality powders. Its working principle is that through a high-speed rotating centrifugal atomizer, the liquid raw materials are instantly scattered and stretched to form a fine mist net. At the same time, hot air is precisely introduced into the drying tower and comes into efficient co-current or counter-current contact with the mist droplets, so that the moisture evaporates rapidly within a few seconds, and finally a uniform and dry powder product is obtained.
The essence of this process lies in "instant drying". The extremely high heat and mass transfer efficiency enables even heat-sensitive substances (such as proteins, probiotics, or natural extracts) to complete dehydration at a relatively low temperature, thus maximizing the retention of their active ingredients and natural properties. By precisely controlling the atomizer rotation speed, inlet air temperature, and airflow mode, the operator can flexibly control the particle size, moisture content, solubility, and fluidity of the finished powder to meet the strict requirements of many fields, from food milk powder, pharmaceutical raw materials to high-end ceramic powders and nanomaterials.
The centrifugal spray dryer is an extremely important and efficient production equipment in the western medicine industry (especially in the fields of bulk drugs and new formulations). It instantly converts liquid materials into dry powders. Its core principle is that through a high-speed centrifugal atomizer, the feed liquid is thrown into micron-sized mist droplets, which come into co-current or counter-current contact with hot air and complete evaporation and drying within a few seconds, thus obtaining powders with specific particle size and fluidity.
Application of Spray Dryer in Western Medicine Production Process:
Active Pharmaceutical Ingredient (API) Production
Drying of Heat-Sensitive APIs: Many antibiotics (such as penicillin, streptomycin), vitamins, enzyme preparations, and protein drugs are sensitive to temperature. The "instant high temperature, low temperature of materials" characteristic of centrifugal spray drying (the outlet temperature can be precisely controlled, and the actual heating time of materials is extremely short) can minimize the degradation of active ingredients and maintain the drug efficacy.
Improving Solubility and Bioavailability: Amorphous drug particles can be prepared by spray drying. Compared with the stable crystalline state, amorphous drugs have higher solubility and dissolution rate, which is crucial for solving the absorption problem of poorly water-soluble drugs (improving bioavailability).
Preparation of APIs with specific particle size distribution: By adjusting parameters such as the atomizer rotation speed, feed rate, air temperature, and air volume, the particle size, density, and fluidity of the finished powder can be precisely controlled to meet the direct requirements of downstream formulation processes (such as direct compression and capsule filling), eliminating subsequent processes such as crushing and mixing.
New drug delivery systems and pre - treatment of formulations
Microencapsulation and coating: Add drugs and coating materials (such as polymers and lipids) to the feed liquid simultaneously, and form microspheres or microcapsules in one step through spray drying. This can be used for taste masking (such as bitter drugs), enteric/sustained - release control, improving stability, or targeted drug delivery. For example: ibuprofen microcapsules and probiotic embedding.
Preparation of solid dispersions: Highly disperse the drug in a hydrophilic carrier (such as PVP, copovidone, HPMC, etc.) and spray - dry them together to form a solid dispersion with molecular - level or ultra - fine particle dispersion. This is one of the most effective strategies to improve the dissolution rate of poorly soluble drugs.
Key process for inhalation formulations (DPI): Spray drying is the gold - standard process for preparing inhalable dry powders (such as drugs for asthma and COPD). It can precisely produce spherical particles with an aerodynamic diameter in the range of 1 - 5 microns and excellent fluidity, ensuring that the drug can be effectively deposited in the deep lungs.
Preparation of co - processed excipients: Dissolve or suspend two or more excipients (such as lactose and microcrystalline cellulose) together and then spray - dry them to prepare multifunctional composite excipients with better fluidity, compressibility, and stability, which can be directly used in tablet or capsule production.

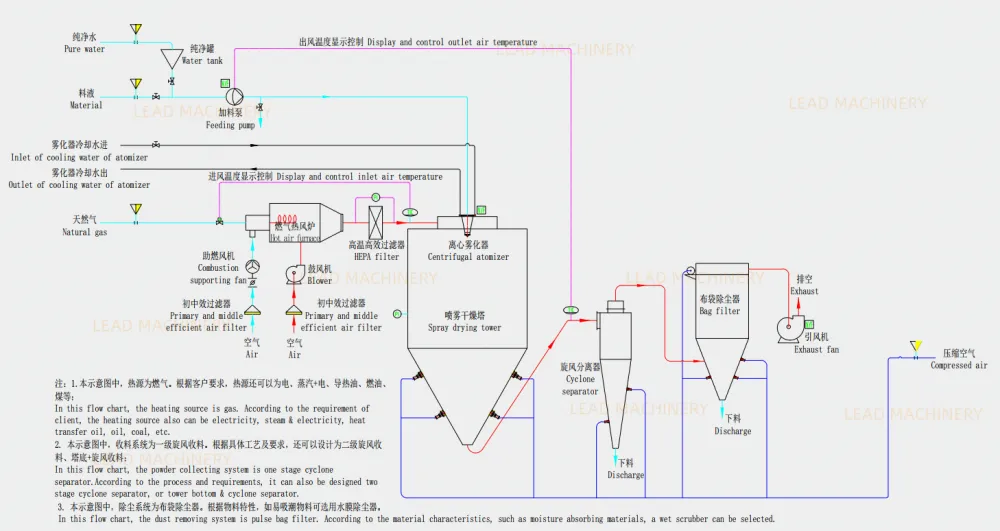

Flow chart of the centrifugal spray dryer system
Technical advantages of spray dryers in the pharmaceutical production field:
Extremely fast drying speed: The material contacts the hot air with a huge surface area, and the evaporation of water is completed within seconds, which is suitable for continuous and large - scale production.
Excellent product quality: The obtained powder is usually spherical, with good fluidity, uniform particle size, good solubility, and stable chemical properties.
Strong process controllability: By adjusting numerous parameters (inlet air temperature, outlet air temperature, atomizer rotation speed, air volume, feed liquid properties, etc.), the physical properties (particle size, density, moisture, morphology) of the product can be precisely controlled.
Streamlined production process: It can achieve "liquid → powder" in one step, eliminating multiple unit operations such as evaporation, crystallization, filtration, and pulverization, reducing the risk of contamination and improving production efficiency.
Suitable for aseptic production: The equipment can be designed as a fully enclosed system and is equipped with a sterile filter and an in-place cleaning/sterilization (CIP/SIP) system to meet the production requirements of aseptic bulk drugs or aseptic preparations.
Industries suitable for centrifugal spray drying:
Food industry
Production of milk powder, soybean milk powder, coffee powder, fruit juice powder, egg powder, yeast, and fruit and vegetable powder.
Drying of seasonings (such as soy sauce powder, yeast extract) and food additives (flavors, pigments).
Low-temperature drying of functional foods (probiotics, enzyme preparations) to protect active ingredients.
Pharmaceutical industry
Drying of bulk drugs such as antibiotics, vitamins, and traditional Chinese medicine extracts.
Preparation of spray-dried microcapsules for drug sustained release or taste masking (such as granules, capsule fillers).
Chemical and materials
Granulation of dyes, pigments, ceramic powders, catalysts, and polymer particles (such as PVC, PE).
Preparation of precursors for nanomaterials and battery cathode and anode materials (such as lithium battery materials).
Environmental protection and bioengineering
Sludge drying in wastewater treatment and immobilization of microbial preparations (such as biological pesticides).
Drying of bioactive products such as enzymes and single-cell proteins.
Other industries
Cosmetics (foundation, talcum powder), ceramic glazes, wettable powder pesticides, etc.

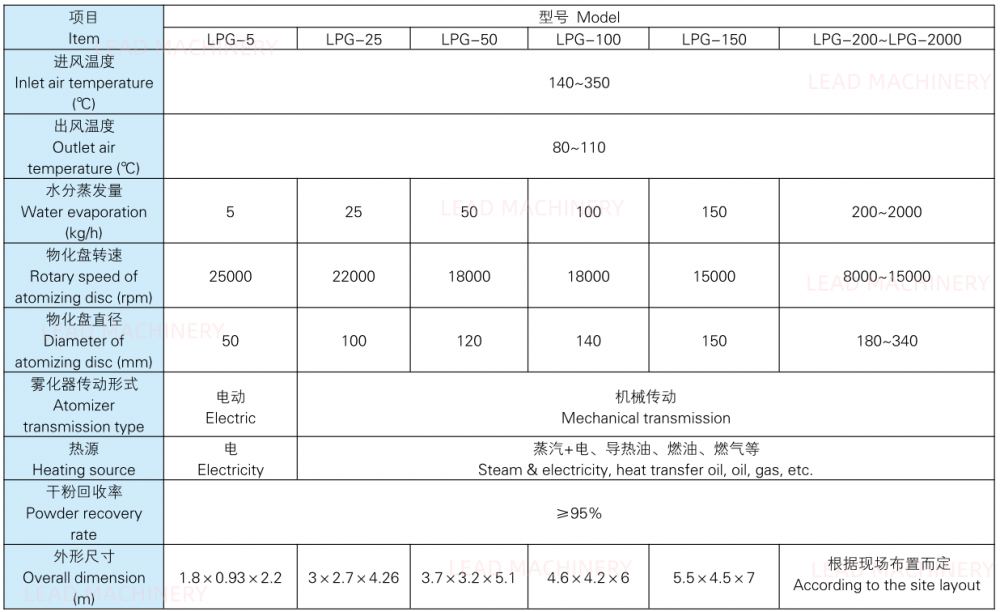

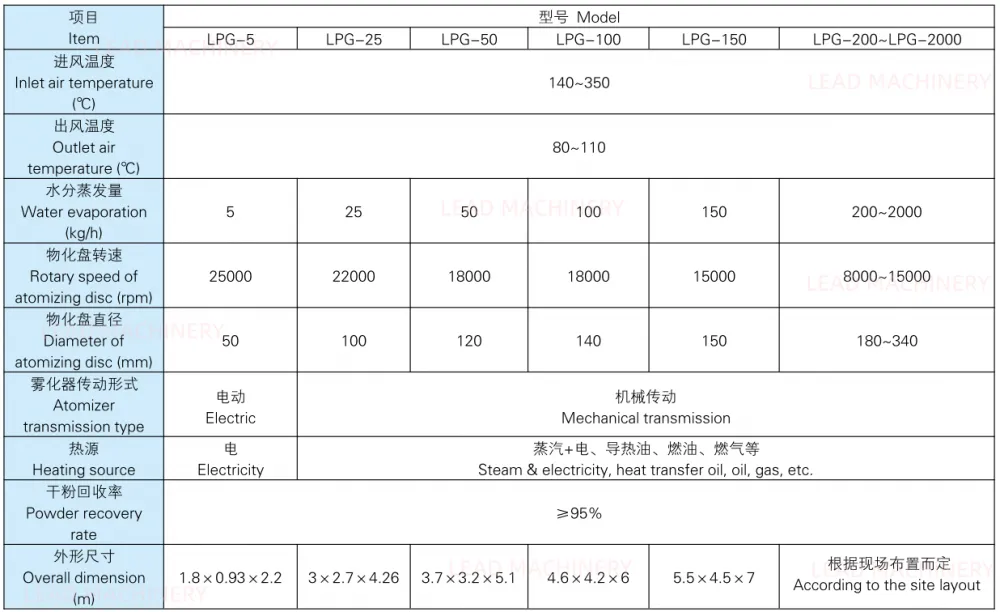

Technical parameters of centrifugal spray dryer
