Overview of Centrifugal Spray Dryer:
The centrifugal spray dryer is a core equipment in modern industry for efficiently converting liquid materials into high-quality powders. Its working principle is that through a high-speed rotating centrifugal atomizer, the liquid raw materials are instantly scattered and stretched to form a fine mist net. At the same time, hot air is precisely introduced into the drying tower and comes into efficient co-current or counter-current contact with the mist droplets, enabling the water to evaporate rapidly within a few seconds, and finally a uniform and dry powder product is obtained.
The essence of this process lies in "instant drying". With extremely high heat and mass transfer efficiency, even heat-sensitive substances (such as proteins, probiotics or natural extracts) can be dehydrated at a relatively low temperature, thus maximally retaining their active ingredients and natural properties. By precisely controlling the atomizer speed, inlet air temperature and air flow mode, operators can flexibly control the particle size, moisture content, solubility and fluidity of the finished powder to meet the strict requirements of many fields, from food milk powder, pharmaceutical raw materials to high-end ceramic powders and nanomaterials.
The centrifugal spray dryer is an extremely important and efficient production equipment in the western medicine industry (especially in the fields of bulk drugs and new formulations). It instantly converts liquid materials into dry powders. Its core principle is that through a high-speed centrifugal atomizer, the feed liquid is thrown into micron-sized mist droplets, which come into co-current or counter-current contact with hot air, and evaporation and drying are completed within a few seconds, thus obtaining powders with specific particle size and fluidity.
Application of Spray Dryer in Western Medicine Production Process:
The centrifugal spray dryer plays a key role in the final solidification and reduction of the drying production of salt-containing wastewater (especially high-salt wastewater), and is one of the core equipment for the end process of achieving "zero discharge" or near-zero discharge of industrial wastewater.
Its core purpose is to convert the high-concentration salt-containing wastewater after pretreatment (such as evaporation and concentration) into a dry solid salt mixture (salt residue) through spray drying, thus achieving the final step of complete harmlessness and resource utilization of wastewater.
This application usually appears in industries with extremely high environmental protection requirements and the need to achieve "zero discharge" of wastewater, such as:
Coal Chemical Industry, Petrochemical Industry: Coal gasification wastewater, desulfurization wastewater, etc.
Power Industry:Desulfurization wastewater from thermal power plants (typically high in calcium, magnesium, chlorine, and sulfate).
Pharmaceutical, pesticide, and dye industries: High-concentration organic/inorganic mixed salt wastewater generated during the production process.
Seawater desalination: Final treatment of concentrated brine.
Landfill leachate: Concentrate after membrane treatment.
In these scenarios, the centrifugal spray dryer is usually not used alone but as the end unit in the long process of "pretreatment → membrane concentration → evaporation crystallization/concentration → spray drying and solidification".

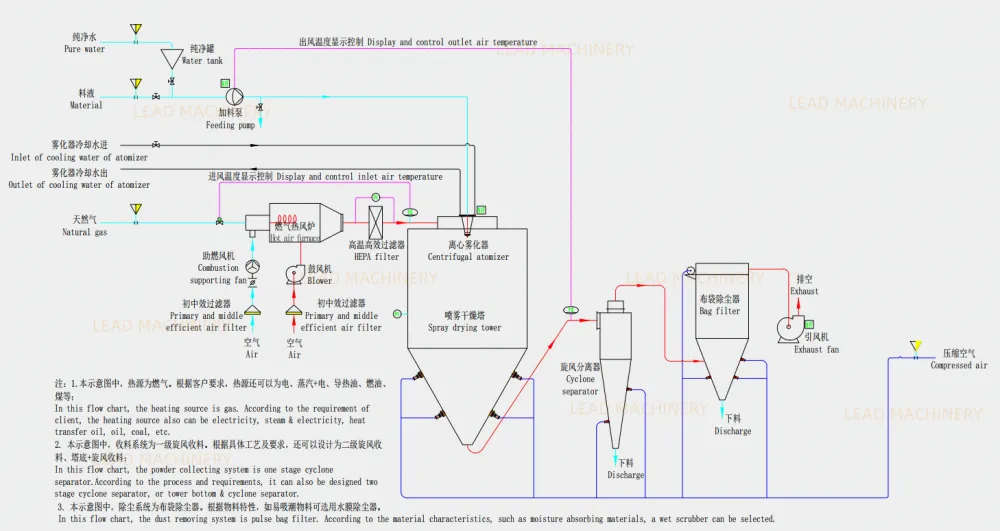

System flow chart of centrifugal spray dryer
Technical advantages of spray dryer in the pharmaceutical production field:
Extremely fast drying speed: The material contacts the hot air with a huge surface area, and the moisture evaporation is completed within seconds, which is suitable for continuous and large-scale production.
Excellent product quality: The obtained powder is usually spherical, with good fluidity, uniform particle size, good solubility, and stable chemical properties.
Strong process controllability: By adjusting numerous parameters (inlet air temperature, outlet air temperature, atomizer rotation speed, air volume, properties of the feed liquid, etc.), the physical properties (particle size, density, moisture, shape) of the product can be finely controlled.
Simplified production process: It realizes "liquid → powder" in one step, eliminating multiple unit operations such as evaporation, crystallization, filtration, and pulverization, reducing the risk of pollution and improving production efficiency.
Suitable for aseptic production: The equipment can be designed as a fully enclosed system, equipped with a sterile filter and in-place cleaning/sterilization (CIP/SIP) system to meet the production requirements of aseptic bulk drugs or aseptic preparations.
Industries suitable for centrifugal spray drying:
Food industry
Production of milk powder, soybean milk powder, coffee powder, fruit juice powder, egg powder, yeast, and fruit and vegetable powder.
Drying of seasonings (such as soy sauce powder, yeast extract) and food additives (flavors, pigments).
Low-temperature drying of functional foods (probiotics, enzyme preparations) to protect active ingredients.
Pharmaceutical industry
Drying of raw materials such as antibiotics, vitamins, and traditional Chinese medicine extracts.
Preparation of spray-dried microcapsules for drug sustained release or taste masking (such as granules, capsule fillers).
Chemical industry and materials
Granulation of dyes, pigments, ceramic powders, catalysts, and polymer particles (such as PVC, PE).
Preparation of precursors for nanomaterials and battery cathode and anode materials (such as lithium battery materials).
Environmental protection and bioengineering
Sludge drying in wastewater treatment and immobilization of microbial agents (such as biopesticides).
Drying of bioactive products such as enzymes and single-cell proteins.
Other industries
Cosmetics (foundation, talcum powder), ceramic glazes, wettable pesticide powders, etc.

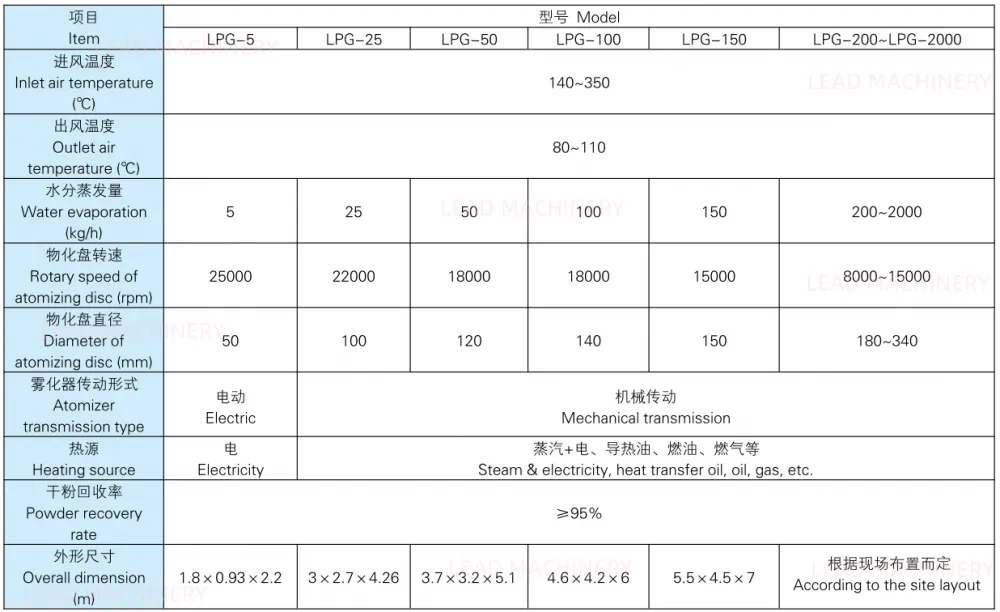

Technical parameters of centrifugal spray dryer
